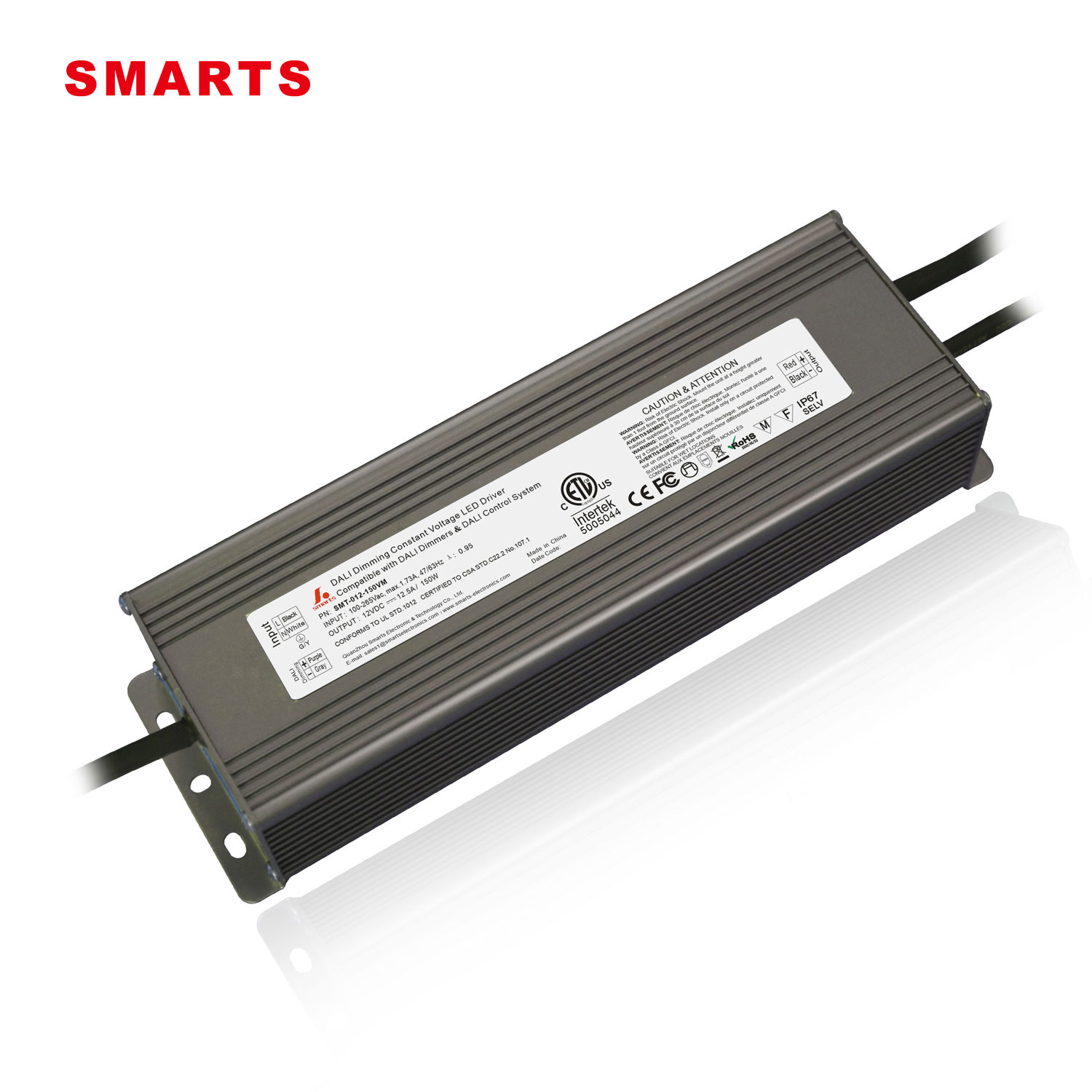

Black Case Dali dimmable led driver 150w 12V 24V LED transformer with 5 years warranty
dimmable led driver 150w is devide 12v Dali dimmable constant voltage led driver and 24v Dali dimmable constant voltage led driver.we give 5 years warranty
Feature:
-
Output constant Voltage
-
Range: 100-265VAC
-
Built-in active PFC function, PF>0.90
-
Working Efficiency >88%
-
Protections: short circuit/over load/ over current/ over temperature
-
Cooling by free air convection
-
IP67 design for indoor and outdoor installation .
-
Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
-
Dimming range from 0.1% to 100%
-
5 years warranty
-
Suitable for intelligent LED lighting
-
Compliance to worldwide safety regulations for lighting
-
Suitable for dry locations
Specification
|
Model
|
SMT-012-150VM
|
SMT-024-150VM
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
0 - 12.5A
|
0 - 6.25A
|
|
Rated power
|
150W
|
150W
|
|
Input
|
Voltage Range
|
100-130VAC/170-265VAC
|
|
Frequency Range
|
47 - 63HZ
|
|
Power Factor
|
PF≧0.90/120VAC PF≧0.90/230VAC PF≧0.90/265VAC（Full loading）
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Max.)
|
1.72A
|
0.86A
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
≤120%
|
|
Over Circuit
|
≤1.2*Iout
|
|
Protection Class:
|
Ⅰ
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40 - +60℃
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃，10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0 - 50℃）
|
|
Vibration
|
10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP66
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015,EN61000-3-2 (≥60%load)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level （surge4KV）
|
|
Others
|
Weight
|
1.6Kg
|
|
Size
|
256*78*47mm（L*W*H）
|
|
packing
|
305*295*210mm/10pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 230VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Problem Analysis
Problem Analysis
Question:
What is the wire gauge that fits into the ETL Triac Dimmable LED Driver?
Answer:
14-26 AWG

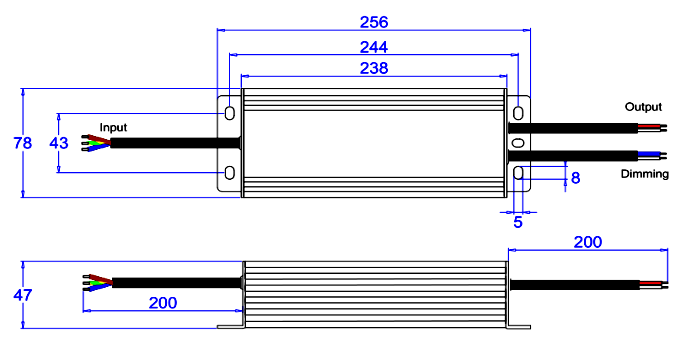

■ Mechanical Specification
※Input Rubber cable H05RN-F 3G 1.0mm²,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
※Signal Rubber cable H05RN-F 2*0.75mm²,Blue and White is DA1, DA2 (No polar). Connected to the BUS of the DALI Master.
※Output rubber cable :1 group of H05RN-F 2*1.5mm² for KV-24150-DA; 2 group of 2*1.5mm² for KV-12150-DA, Red is output ( V+) Positive,Black is output (V-) negative. Connected to LED Lamps.
Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
■ Connecting diagram options
Reference 1:

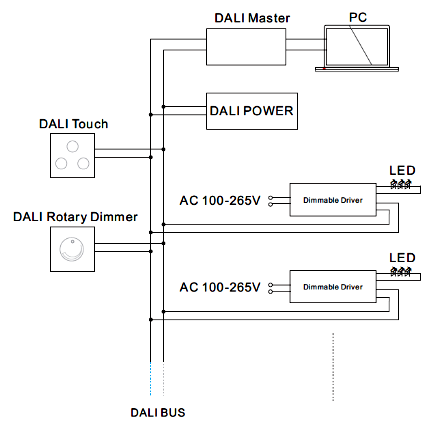

l Please refer to Diagram 1. Connect the Dali signal line to the Dali bus of the controller (the Dali Master).
After Dali Master scanning and address assignment, the driver can be successfully dimmed.
l Notice:In the market, some DALI controllers has bus-powered functions .If not,please add an extra power supply.(DALI Power).
l Any incorrect connecting of signal line and output line would damage the master.

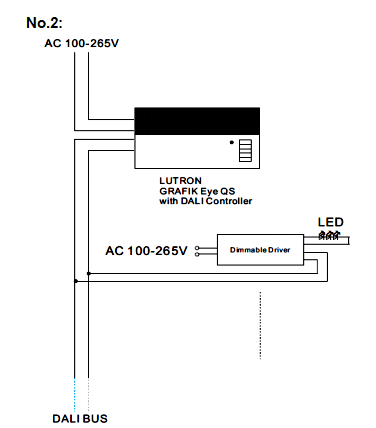

l Please refer to Diagram 2. Connect the Dali signal line to the Dali controller.
l Please refer to Diagram 3 Connect the Dali signal line to the Dali dimmers.

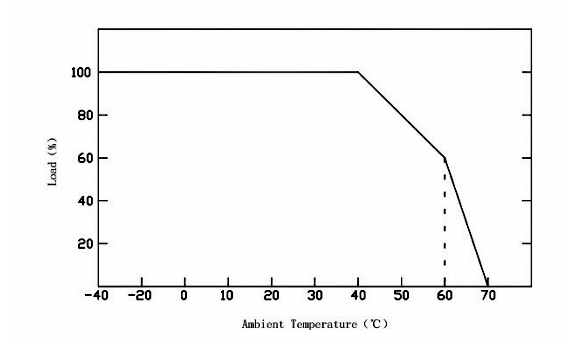

■ Derating Curve
l To extend their life, please refer to the Derating Curve and derate according to the temperature.
■ Instruction:
1) This driver should be installed by qualified and professional person;
2) Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3) Ensure that wiring is correct before test in order to avoid light and power supply damage;
4) If driver Cannot work normally, don’t maintain privately and contact us by email: sales1@smartselectronics.com
phone call: +86-595-27256889 / +86-13489577737
