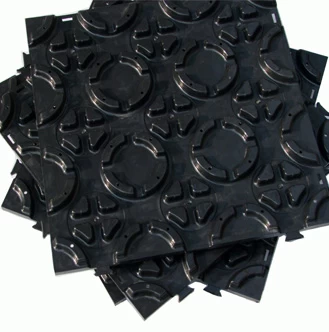

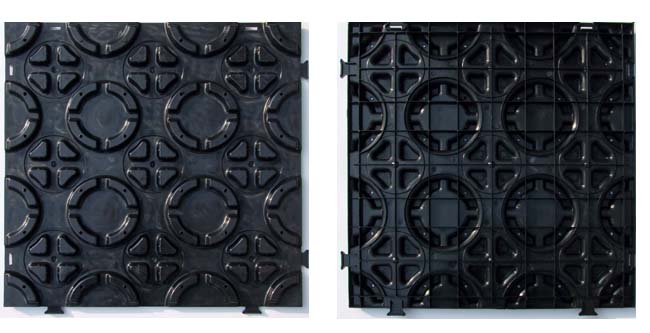

Black Radiant Floor Heating Hydronic Module

Floor heating hydronic module is mainly used under 60℃ water pour into the heating pipe that implementation of internal recycling as heat medium, setting the Heating Hydronic Module under the floor to warm up the entire floor. It is a highly safety module to keep indoor warming; also it can provide and reuse hot water in our life. With high compression strength and lightweight module design of hydronic systems is makes installation easier, cheaper, safer than electric heating.


  • Total Volume5.0625CBM
  • Size450*450*25mm
  • ColorBlack
  • MaterialPP
  • Press Strength2000kg/m2

Black Radiant Floor Heating Hydronic Module

INTRODUCTION

Floor heating hydronic module mainly used under 60℃ water pour into the heating pipe that implementation of internal recycling as heat medium, setting the Hydronic systems under the floor to warm up the entire floor. It is a highly safety module to keep indoor warming; also it provide and reuse hot water in our life. With high compression strength and lightweight module design of Hydronic systems is makes installation easier, cheaper, safer than electric heating.
floor heating

SPECIFICATION

Item No. WT4501
Color Black
Dimension 450*450*25mm
Weight 2.5kg/m2
Material PP(Polypropylene)
Quantity of a Carton  25 pieces
Coil Pipe Distance 15cm
Suitable Pipe Caliber 16cm
Water Distributor Module  400*400*25m
Daily Capacity
 200sqm/Day
Toxicity Nontoxic
Working life More than 50 years

FEATURES

1. Safety and useful
2. Recyclablefloor heating
3. Corrosion resisting
4. Resist compression
5. Flame retardance
6. provide hot water
7. Made with Anti-pollution material
8. Easy to install and have buckle can fix the pipe directly
9. Do not release toxic gas over 100℃
10. Equal heating and keep the heat quantity lasting
11. High pressure strength
12. Good dielectric property and insulativity
13. Easy for air circulating
14. Low cost,saving building cost
15. Convenient maintenance
16. Reuse water

APPLICATION


1. Industry
2. Civil and Commercial building heating/refrigeration systems
3. Agriculture
4. Animal husbandry
5. Fishing Industry
6. Forestry
7. Airport
8. School
9. Hospital
10.Indoor

ADVANTAGE

1. High pressure strengthfloor heating
2. Reduce labor cost,rapid and convenient construction
3. Good ability of heat storage
4. Partly soundproof effect
5. Energy conservation
6. Lightweight design,reduce the load of building
7. Heating rapidly:only need 10-20mins
8. Installation Flexibly
9. Easy to install and high efficient
10. Working life more than 50 years

11. Have buckle can fix the pipe directly

PROJECT


floor heating

INSTALLATION

Step1: Laying the reflectance coating or other insulation board
Step2: Laying the hydronic heating module upon the reflectance coating
Step3: Coiling pipe on hydronic heating module
Step4: Backfill concrete or paving ground decoration directly
