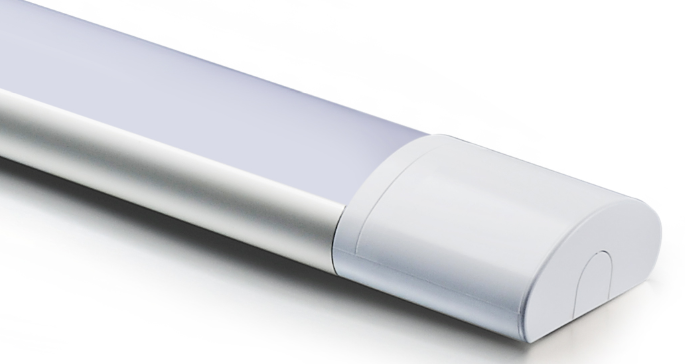

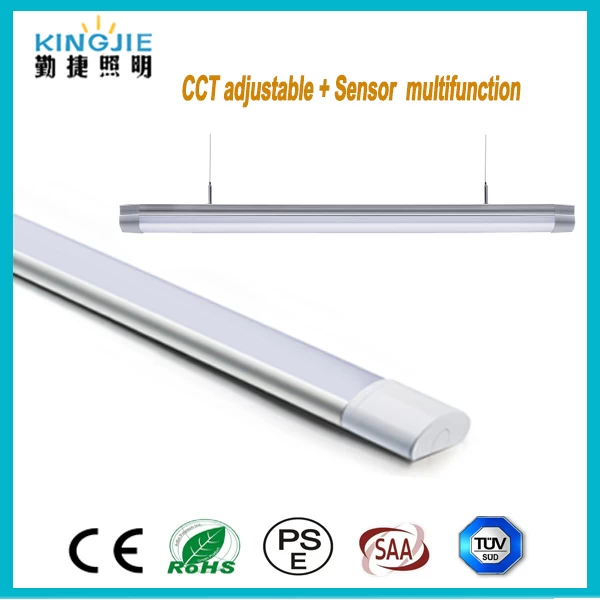

product item: Blade LED linear luminaire
1、IP42, dustproof, antiseptic
2、Flicker free PF>0.9，100LM/W &120LM/W can be choice

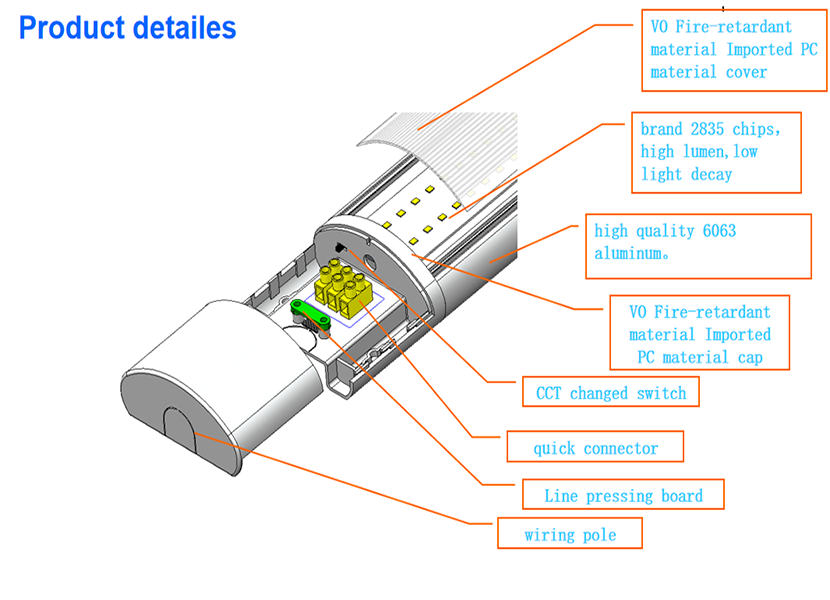

3、Quick connector for driver and PC board，fast and convenience maintenance
4、Both cap have fast wiring terminal, easy connect wire

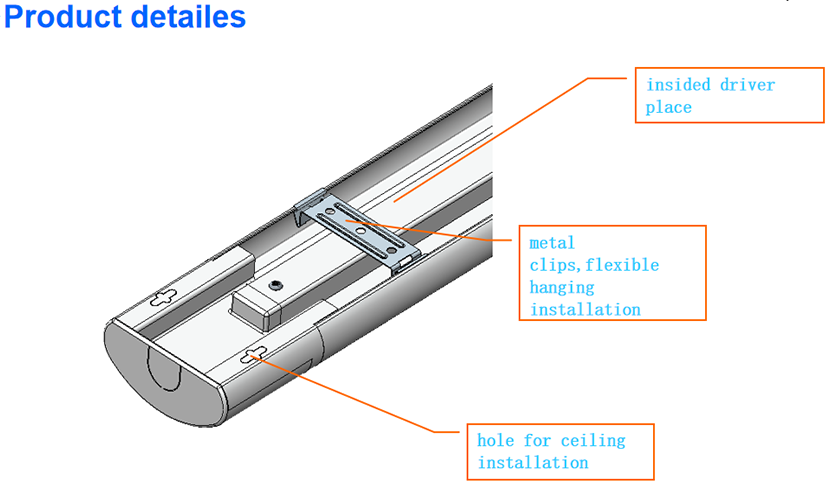

5、Pre-reserved pole for bottom and side wiring, meet various installation ways-ceiling installation,wall installation,hanging installation

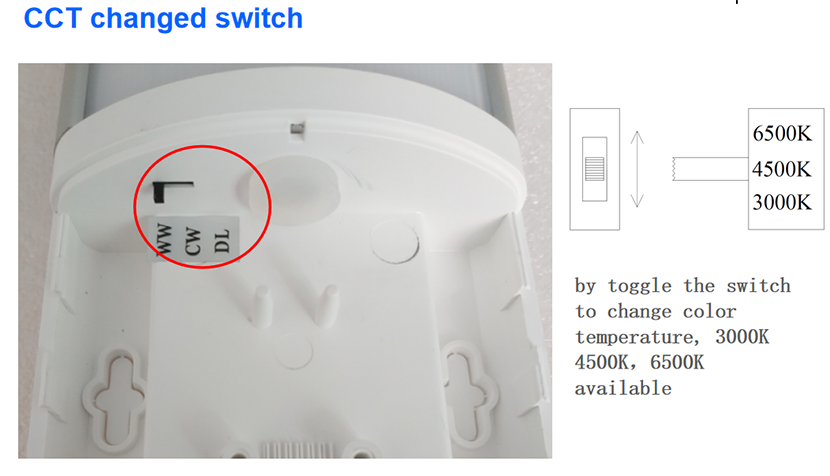

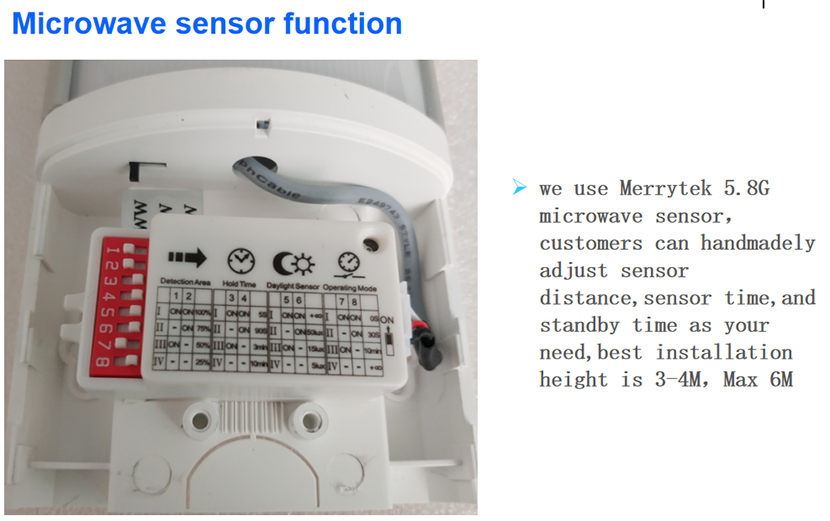

6、handmade to adjust color temperature and sensor function by switch
7、No dark area,soft and uniform light
8、Widely used in factories, car parks, supermarkets, offices and other public places is best retrofit for Philips, Osram, Panasonic T8 fluorescent lamp
|
Parameter
|
Unit
|
Technical Parameter
|
|
Product Model
|
|
KJ-LC144W20
|
KJ-LC288W40
|
KJ-LC432W60
|
KJ-LC576W72
|
|

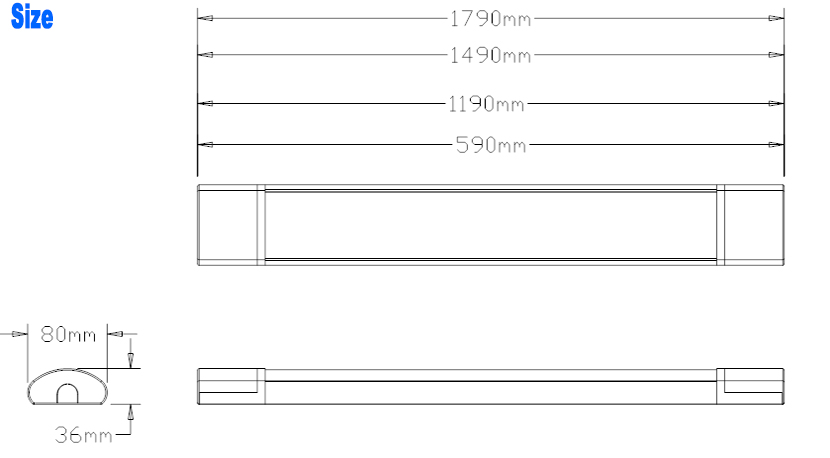

Dimension
|
mm
|
590*80*36
|
1190*80*36
|
1490*80*36
|
1790*80*36
|
|
Input Voltage
|
V
|
AC 180-240V
|
AC 180-240V
|
AC 180-240V
|
AC 180-240V
|
|
Input Frequency
|
Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Power Consumption
|
W
|
20±10%
|
4±10%
|
60±10%
|
72±10%
|
|
Power Factor
|
PF
|
>0.92
|
>0.92
|
>0.92
|
>0.92
|
|
LEDS
|
|
SMD2835
|
SMD2835
|
SMD2835
|
SMD2835
|
|
LEDS Qty
|
PCS
|
144
|
288
|
432
|
576
|
|
Efficacy
|
Lm/W
|
100
|
100
|
100
|
100
|
|
Color Temp
|
K
|
2700-6500K; or 3 CCT changeable can be choice
|
|
Function
|
/
|

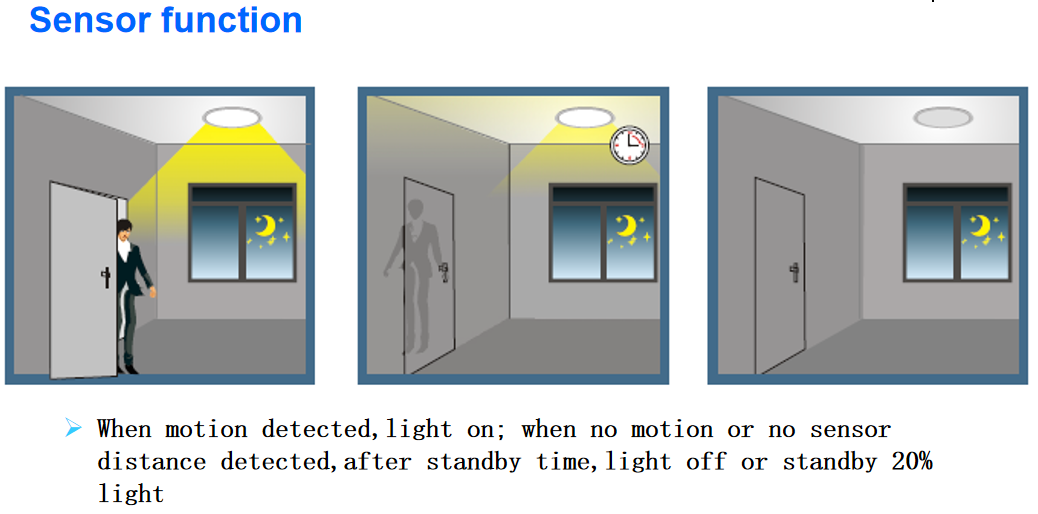

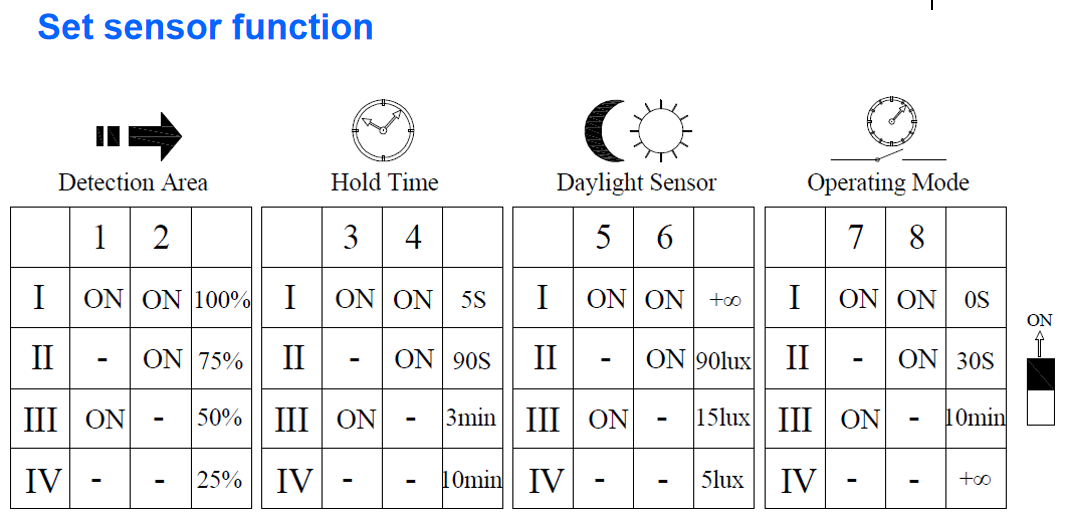

CCT changed +Sensor
|

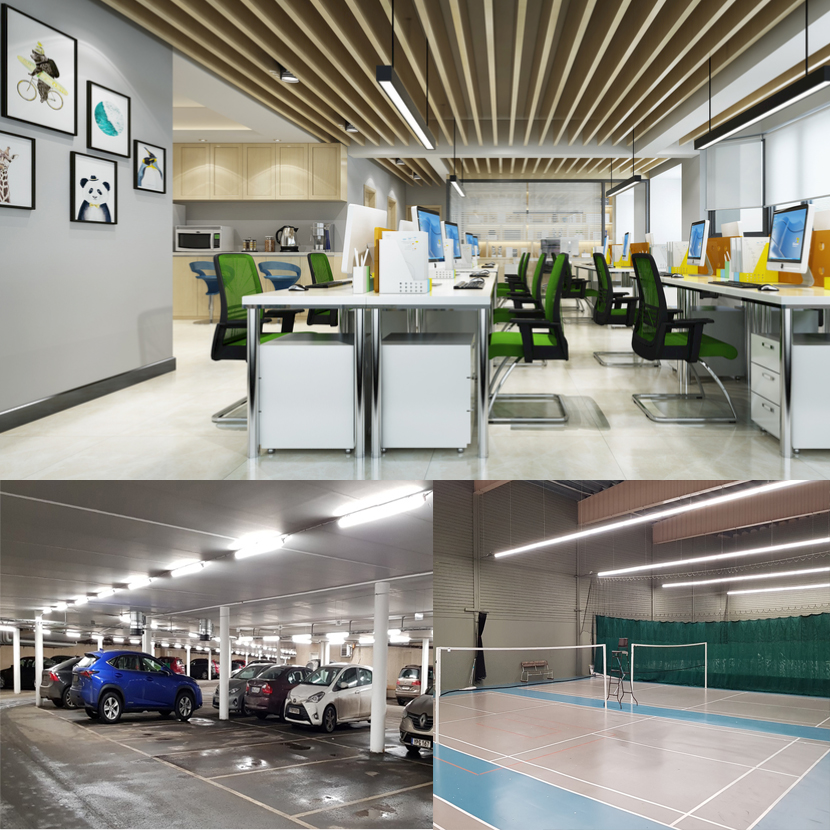

Perfect application area for Factory、 Office、Packing Lot、Shopping Mall、School、Exhibition Hall and Hotel etc
