Product Description
|
|
|

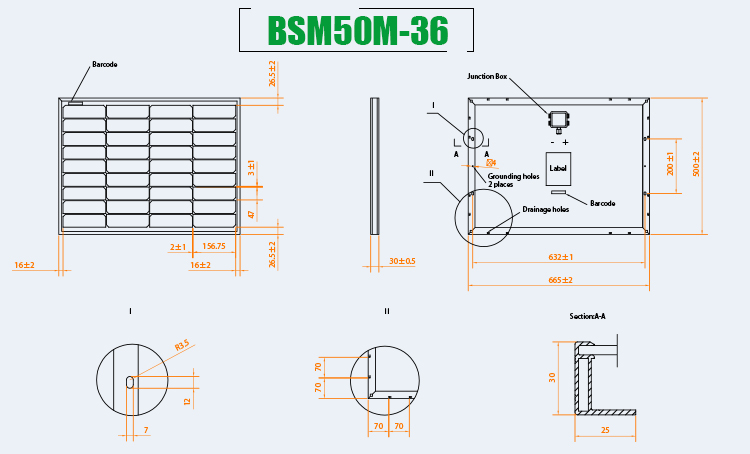

Mechanical Specifications
|
|
Module
|
BSM50M-36
|
|
External Dimensions
|
500*665*30mm
|
|
Weight
|
4.0kg
|
|
Solar Cells
|
mono crystalline 47*156.75mm (36pcs)
|
|
Front Glass
|
3.2 mm tempered glass low iron
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP67
|
|
Cables/Connector
|
Optional
|
|
Mechanical Load
|
5400 Pa
|
|
|
|
|

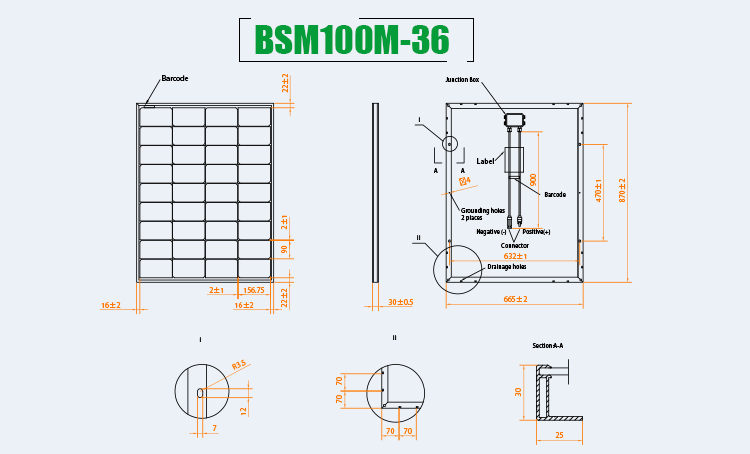

Mechanical Specifications
|
|
Module
|
BSM100M-36
|
|
External Dimensions
|
870*665*30mm
|
|
Weight
|
6.5kg
|
|
Solar Cells
|
mono crystalline 90*156.75mm (36pcs)
|
|
Front Glass
|
3.2 mm tempered glass low iron
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP67
|
|
Cables/Connector
|
Optional
|
|
Mechanical Load
|
5400 Pa
|
|
|
|
|

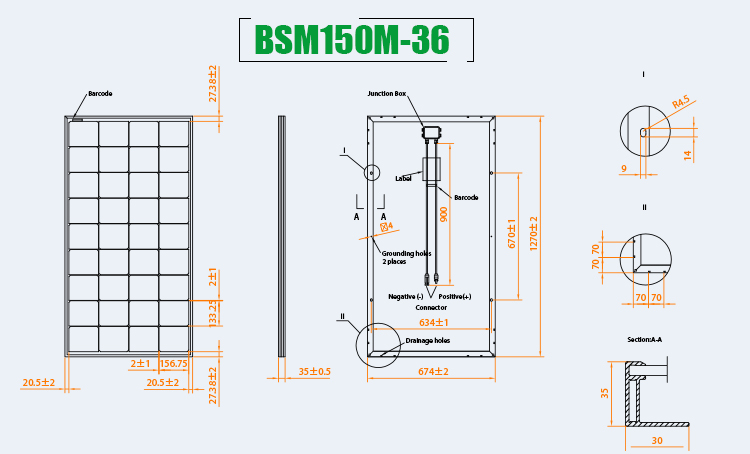

Mechanical Specifications
|
|
Module
|
BSM150M-36
|
|
External Dimensions
|
1270*674*35mm
|
|
Weight
|
9.5kg
|
|
Solar Cells
|
mono crystalline 133.25*156.75mm (36pcs)
|
|
Front Glass
|
3.2 mm tempered glass low iron
|
|
Frame
|
Anodized aluminum alloy
|
|
Junction Box
|
IP67
|
|
Cables/Connector
|
Optional
|
|
Mechanical Load
|
5400 Pa
|
|

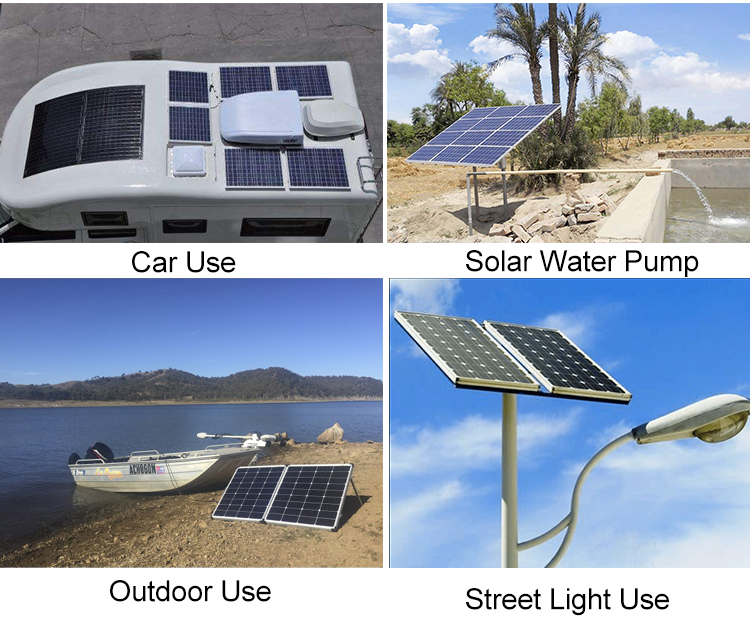

Project
|
Packing Information
|
|
Module
|
BSM50M-36
|
BSM100M-36
|
BSM150M-36
|
|
Piled pallet size（20/40’GP）
|
1390*1130*628mm
1565*1130*795mm
|
1390*1130*998mm
1800*1130*795mm
|
1310*1130*800mm
|
|
Gross weight per pallet
|
306 kg/434 kg
|
466 kg
|
310 kg
|
|
Quantity per pallet
|
64 pcs/96 pcs
|
64 pcs
|
30 pcs
|
|
Quantity per 20 feet container
|
1536 pcs
|
1024 pcs
|
480 pcs
|
|
Quantity per 40 feet container
|
4032pcs
|
2304 pcs
|
1530 pcs
|
