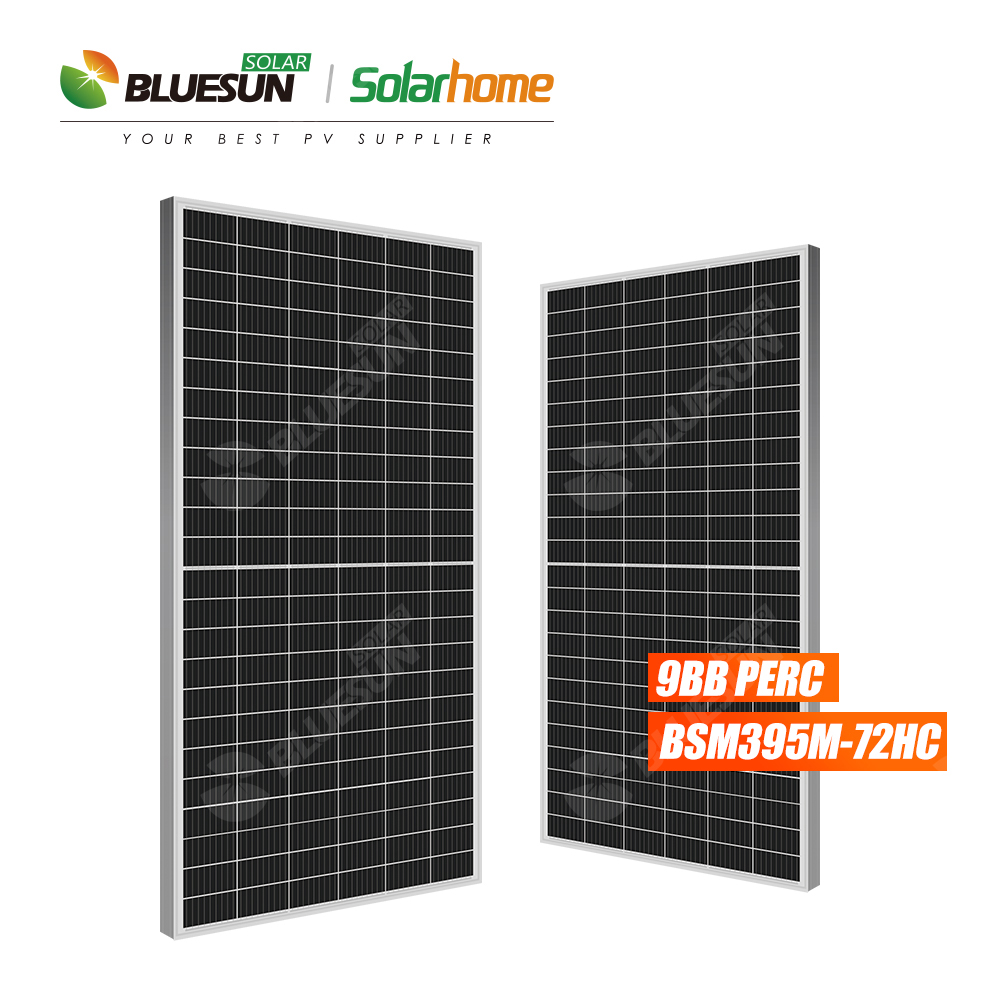

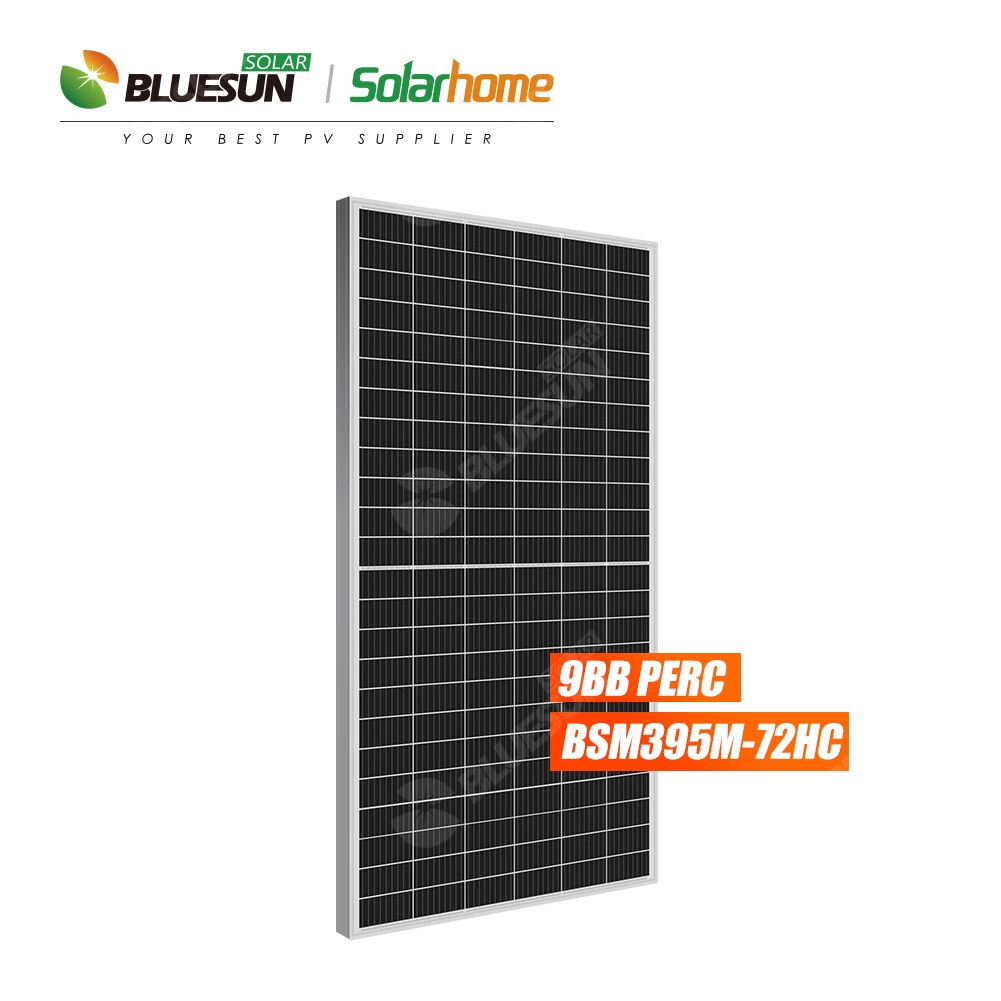

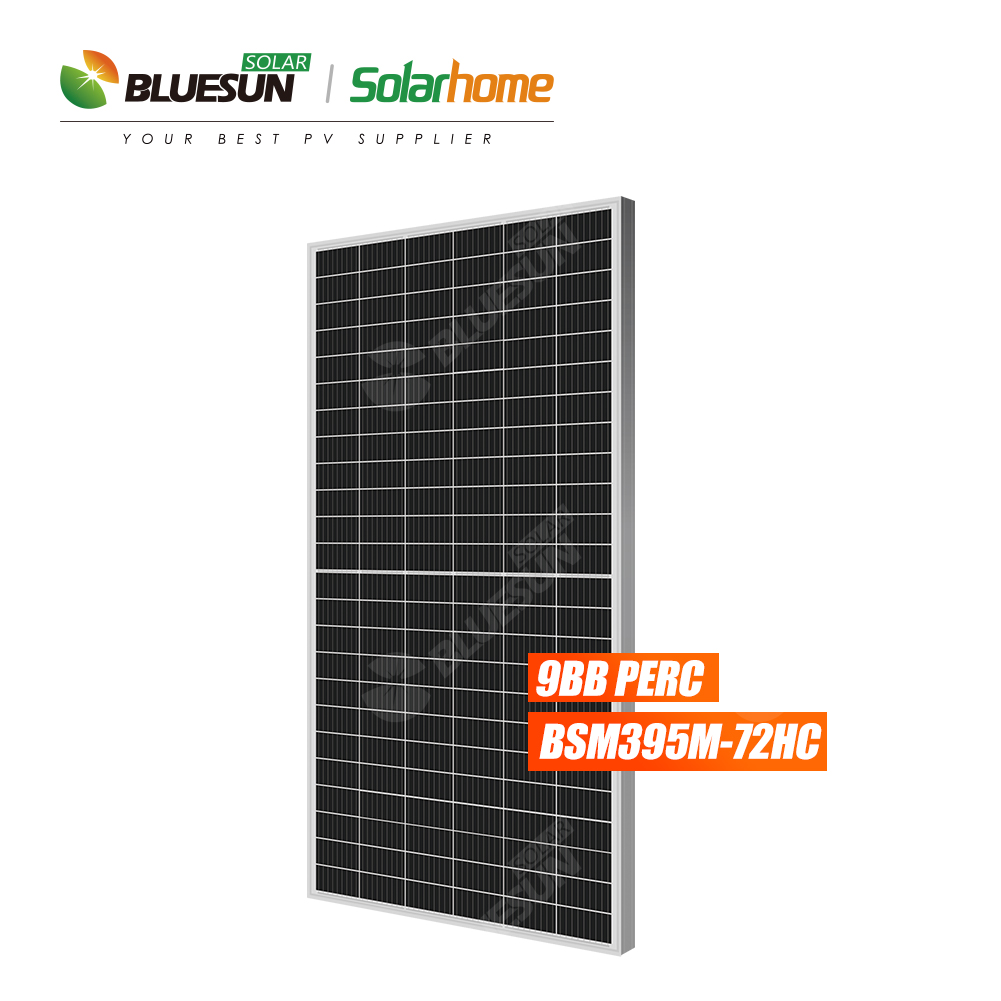

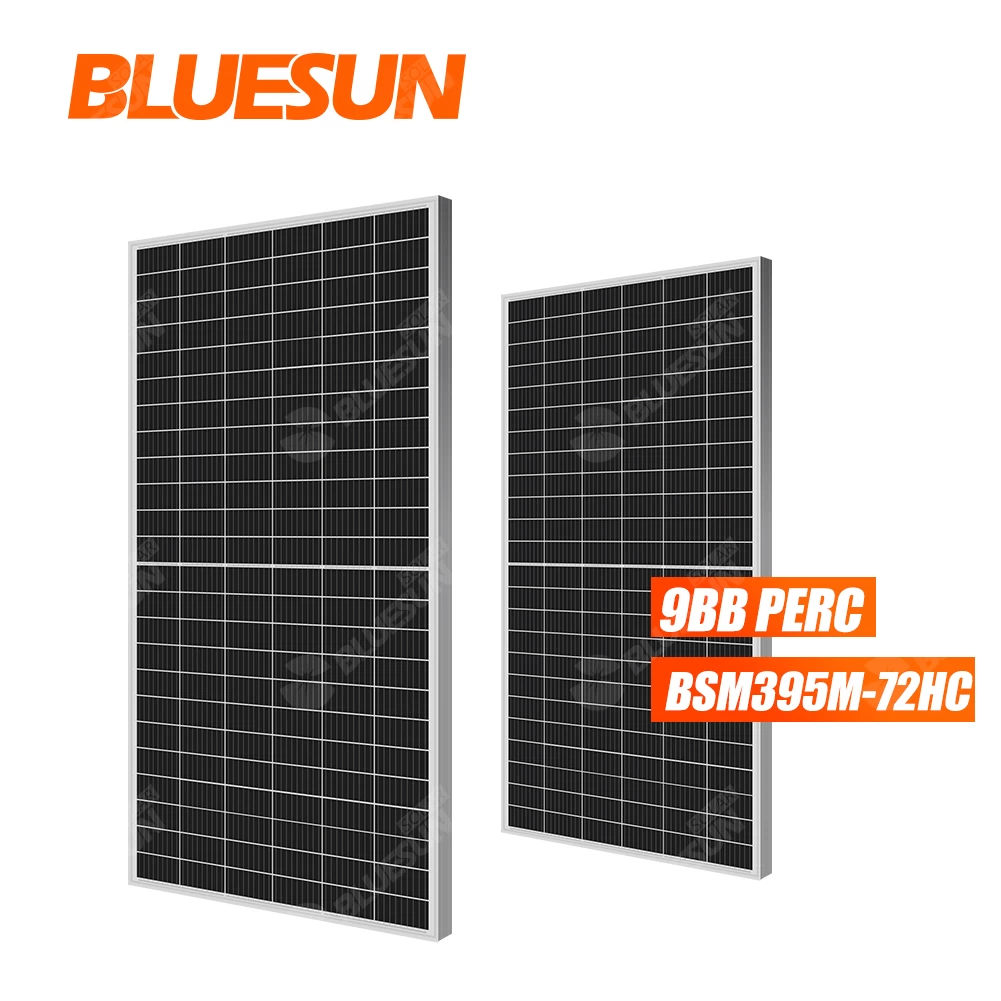

BLUESUN 395w half cell solar pv panel 9bb 395w 395watt 395wp 395 watt pv module perc

Bluesun 385w 390w 395w 400w 405w 410w half cell mono Glas Perc 5bb/9bb solar panel monocrystalline solar module with TUV


  • PaymentT/T, L/C, Paypal, Western Union
  • Lead time10 days
  • CertificateTUV, CSA, CE, ISO
  • Size2015±2mm*996±2mm*40±1mm
  • Power range390w-410w
  • Number of cells144(6*24)
  • Solar cellMono 158.75 * 78.375mm
  • Warranty25 years

Product Description

1.Higher Yield Due to Better Shading Response

Half Cell Module comprises two separated and identical solar cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.

By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.



2.Less Mismatch Loss

Instead of 6 internal strings of cells, half cell module has 2*6 shorter ones. This design effectively deals with the mismatch happened between cells caused by shadow, out of sync performance degradation, etc.




Technical Details


TYPE

BSM390M-72HC

BSM395M-72HC

BSM400M-72HC

BSM405M-72HC

BSM410M-72HC

Rated Maximum Power(Pmax) [W]

390

395

400

405

410

Open Circuit Voltage(Voc) [V]

49.01

49.3

49.58

49.86

50.12

Maximum Power Voltage(Vmp) [V]

40.71

41.02

41.33

41.6

41.88

Short Circuit Current(Isc) [A]

10.23

10.28

10.33

10.39

10.45

Maximum Power Current(Imp) [A]

9.58

9.63

9.68

9.74

9.79

Module Efficiency [%]

19.4

19.7

19.9

20.2

20.4

Temperature Coefficient of Isc(α_Isc)

+0.044%/℃

Temperature Coefficient of Voc(β_Voc)

-0.272%/℃

Temperature Coefficient of Pmax(γ_Pmp)

-0.35%/℃

STC

Irradiance 1000W/m², cell temperature 25℃, AM1.5G

Remark:

Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for

comparison among different module types.
