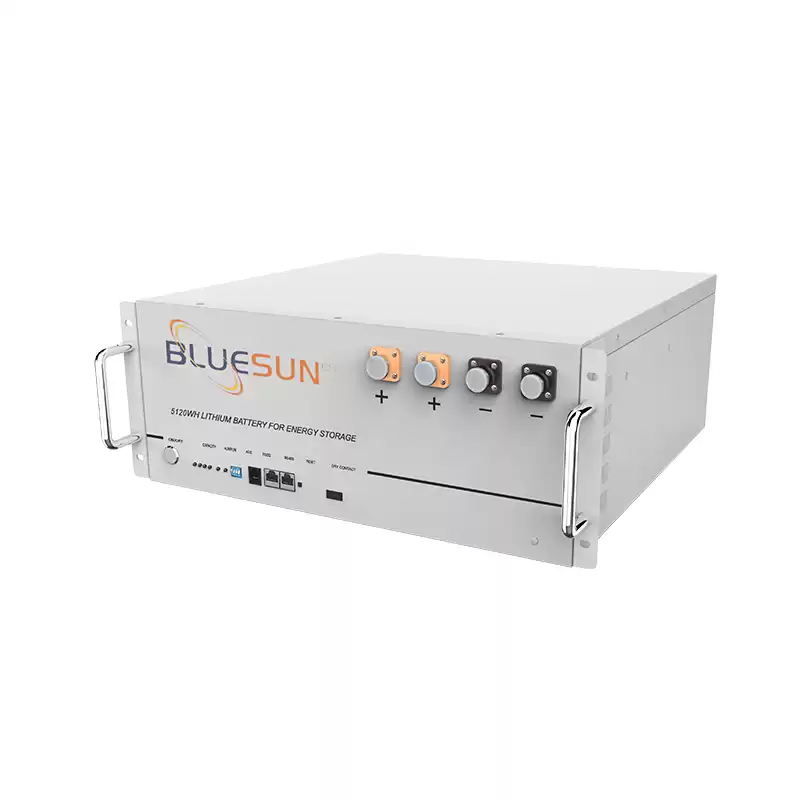

Bluesun High Voltage 48V Lithium Battery

Bluesun Longer Cycle Life High Voltage 48V 100Ah Lithium Ion Battery


  • Warranty5 Years
  • PaymentT/T, L/C,Western Union
  • Lead Time15 Days
  • Nominal Voltage48V
  • Nominal Capacity4.8Kwh
  • Battery TypeLithium Battery

Product Description

Product features:

1.Lithium iron phosphate (LiFePO4)  is used as positive material, which offers extended cycle life and good safety performance.

2.Embedded BMS offers voltage, current, temperature protection and alarm functions. BMS can communnicate with other device by modbus protocol.

3.Embedded BMS unit measures current, voltage, single cell surface temperature and the ambient temperature of the battery.

4.Embedded BMS offers four remote functions which can communicate with far-end central control center by computer management.

5.The combination of BMS and computer management technology can achieve real-time monitoring and control of various parameters and status.

6.The power system has secondary cut-off protection and when the voltage is too low the system will cut off the support from the battery to protect the battery service life.

7.Under normal operating conditions, the entire system emits very little noise due to their passive cooling design.

8.Good electromagnetics shielding.


Applications:

1. Wireless Hut back-up power

2. Wireless Repeater back-up

3. Fiber-Optic access network back-up power

4. Outdoor Billboard lighting

5. 48V Switchgear & Control Back-up Power

6. Long duration Industrial UPS Systems

7. FTTB & LAN/WIFI Connection Power

8. Street & Highway Monitoring & Surveillance


           Normal

 Model

BSM48100-H

                                                                 Battery Type

LifePO4(LFP)

Nominal Voltage(V)

51.2V

Nominal Capacity(WH)

5120WH

Usable Capacity(WH)

4096WH

Design Life

10+  Years(25℃/77F)

         Physical

Dimension(mm)

482*177.8*442

Weight(kg)

50

        Electrical

Cycle Life

>6000,25℃

Discharge Voltage(V)

40~58.4

Charge Voltage(V)

56~58.4

Charge/Discharge Current(A)

50A(Recommended)

100A(Max)

Internal Resistance

≤30mΩ

            BMS

Power Consumption

<2W(Work)<100mW(Sleep)

Monitoring Paramenters

System voltage, Current, cell voltage, cell temperature, module temperature

SOC

Intelligent algorithm

Communication

CAN/RS-485

       Operation

Operating Temperature Range

-10℃~50℃


Transport or Storage
Temperature Range


-20℃~45℃

Humidity

15%~85%(No Condensing)



Product Tags lithium ion batteries          long life span lithium battery          lithium iron phosphate battery          wholesale battery lithium ion          factory price batterie lithium          48v lithium ion battery
