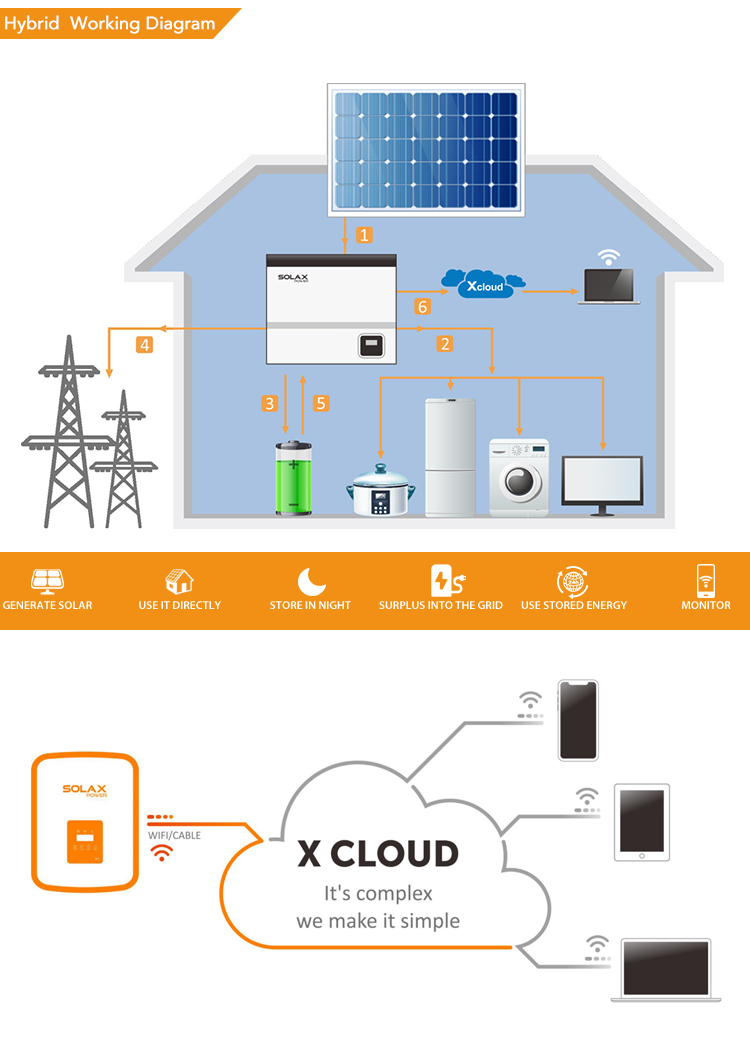

Module
|
A1-Hybrid-7.6
|
A1-Hybrid-8.6
|
|
PV
|
|
Max.PV input power [W]
|
9120
|
10320
|
|
Nominal DC voltage [Vdc]
|
360
|
|
Max.DC voltage [Vdc]
|
600
|
|
System startup voltage [Vdc]
|
150
|
|
System shutdown voltage [Vdc]
|
80
|
|
Operating voltage range [Vdc]
|
105-500
|
|
Max.PV input current [A]
|
10/ per MPPT
|
|
Max.input short circuit cuttent [A]
|
12.5
|
|
No of MPPT / Strings per MPPT
|
3/1
|
4/1
|
|
Max.backfeed current
|
39 Arms/ 2ms
|
|
GRID-OUTPUT
|
|
Nominal AC output power [VA]
|
7600
|
8600
|
|
Max. AC output power [VA]
|
8360
|
9460
|
|
Nominal AC output voltage (Range) [Vac]
|
120 / 240 Vac split phase (211 Vac- 264 Vac)
|
|
Max.AC output current [A]
|
35
|
41
|
|
Operating AC frequency range [Hz]
|
59.3-60.5
|
|
Output power factor rating
|
Default>0.99 (Adjustable +/- 0.8)
|
|
Total harmonic distortion [%]
|
<3
|
|
Max. AC output fault current and duration
|
765 Apeak /5ms, 46Arms/cycle
|
|
GRID-INTPUT
|
|
Max.AC input power [VAI
|
8300
|
9460
|
|
Nominal AC input voltage [Vac]
|
120 / 240 Vac split phase
|
|
Nominal AC input frequency [Hz]
|
60
|
|
|
Max.AC input current [A]
|
35
|
41
|
|
BACKUP LOAD OUTPUT (with auto-transformer)
|
|
Max.continous AC output power [VA]
|
7600
|
8600
|
|
Nominal AC output voltage (Range) [Vac]
|
120 / 240 Vac split phase (211 Vac- 264 Vac)
|
|
Max.continous AC output current [A]
|
32
|
36
|
|
Nominal AC output frequency |Hz]
|
60
|
|
|
Max. AC output fault current and duration
|
200 Apeak /10ms. 34Arms/cycle
|
|

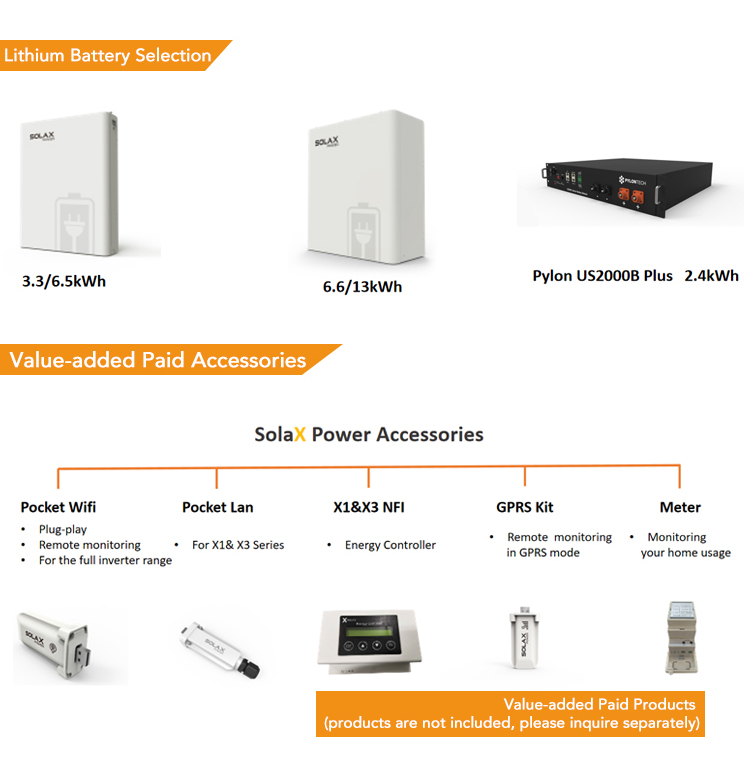

BATTERY
|
|
Battery type
|
Li-ion
|
|
Nominal DC voltage [Vdc]
|
36。
|
|
DC operating voltage range |Vdc]
|
84-432
|
|
Max.DC charge and discharge current [A]
|
25
|
|
Max. charge power (grid input only) [W1
|
7100
|
8000
|
|
Max. charge power (pv input only) [W]
|
7600
|
8600
|
|
Max. discharge power [W]
|
9000
|
10200
|
|
BMS communication interface
|
CAN2.0
|
|
|
|
|
|
EFFICIENCY
|
|
Max PV-AC [%]
|
96.7
|
|
Max Battery-AC [%]
|
96.46
|
|
CEC efficiency (PV-AC) [%1
|
95.67
|
95.75
|
|
PROTECTION
|
|
DC disconnect device
|
Yes
|
|
Over voltage protection type
|
Varistor
|
|
PV array ground fault detection
|
Pre-start RISO
|
|
Ground fault monitoring
|
Yes
|
|
Grid monitoring
|
Yes
|
|
AC short circuit protection
|
Yes
|
|
ALL-pole sensitive residual current monitoring unit(RCMU)
|
Yes
|
|
Arc fault circuit interrupter(AFCI)
|
Yes
|
|
Protection class/over voltage category
|
1/IV
|
|
GENERAL
|
|
Dimension(L*W*D) [mm]
|
913*560*276
|
|
Package dimension(L*W*D) [mm]
|
1016*667*397
|
|
Weight [kg]
|
59
|
|
Package weight [kg]
|
63
|
|
Enclosure rating
|
Type4X
|
|
Operation temperature range[°Cl
|
-20 to +60 (-4°f to +140°f), no derating below 45 (+113°f)
|
|
Storage temperature range[°C]
|
-30 ~+75 (-22°f to +167°f)
|
|
Relative humidity [%]
|
0-100 RH Condensing
|
|
Typical noise emission [dB]
|
<35
|
|
Max. operation altitude without derating [m]
|
2000
|
|
Self-consumption in standby mode [W]
|
<20
|
|
Topology
|
Transformerless
|
|
Cooling concept
|
Natural convection
|
|
Safety and EMC
|
UL1741,UL1741SA/UL62109JEEE154ZIEEE1547.1,RULE21;CSA-C22.2N.107.1-01,UL1998,UL1699B,FCCpartl5 CLASS B
|
|
HMI
|
|
Display
|
Backlight LCD, 3 LEDs
|
|
Touch button
|
4
|
|
Communication interface
|
RS485/LAN/WIFI(optional)/4G (optional)
|
|
Communication protocol
|
Modbus/Sunspec. RTU
|
|
Firmare update
|
Local USB/Remote web
|
|
Meter
|
RS485
|
|
Warranty [years]
|
5/10 (optional)
|
