Introduction:
This is a solar charge controller 40A 50A 60A that have automatic max. power point tracking function with high efficiency that
almost 30%~60% higher than traditional charge controller. It
also features the functions of system voltage auto recognition,
wide rang of PV input ,charge for all kinds of battery,automatic
discharge control,RS 232 / LAN communication function and
so on. It is very high-end product for solar market.
Feature
1.MPPT charge mode,conversion efficiency upto 99%.
2.12V/24V/48V system auto recognize.
3.Wide range of PV input with max. is DC150V.
4.Unlimited parallel connection.
5.Journal function , Save function set ,Date ,time ,Generating capacity and so on .
6.Charge mode: three stages (fast charge ,constant charge ,floating charge) .It prolongs service life of the batteries .
7.Discharge mode: ON/OFF mode, double time control mode,PV
voltage control mode ,PV voltage+time delay mode and so on .
8.Recommended battery types: sealed lead acid, vented, gel,NiCd battery. Other types of the batteries can also be defined.
9.Most information could be provide by LCD and LED like: model no,PV input voltage,battery type,battery voltage,charging current,charging power,working status and so on. Also
customer's information like company name,website and logo can be added into Solar Eagle software.

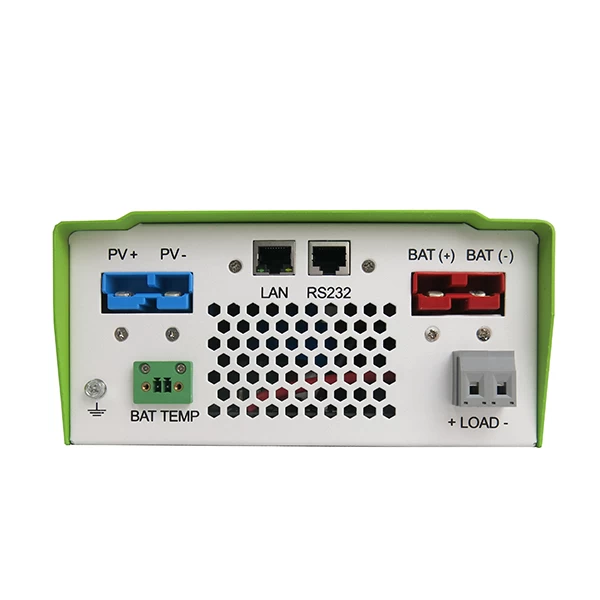

10.RS232 and LAN communication port. IP and Gate address could be user define it satisfy
global area.And communication protocol can be provided to help customer manage all information .
11.The upper computer software is displayed in 11 languages, it could show work status and set parameters of the discharge system.
Bluesun sells high quality MPPT Solar Charge Controller, perfect for your solar application. Call or order online today!
Parameter:
|
Model:BSM-Smart-series
|
40A
|
50A
|
60A
|
|
ChargeMode
|
Maximum PowerPoint Tracking
|
|
Method
|
fastcharge,constant voltage,floating charge
|
|
System Type
|
DC12V/24V/48V
|
Automaticrecognition
|
|
System Voltage
|
12Vsystem
|
DC9V~DC15V
|
|
24Vsystem
|
DC18V~DC30V
|
|
48Vsystem
|
DC36V~DC60V
|
|
Soft Start Time
|
12V/24V/48Vsystem
|
≤10S
|
Dynamic Response
RecoveryTime
|
12V/24V/48Vsystem
|
500us
|
|
Conversion Efficiency
|
12V/24V/48Vsystem
|
≥96.5%,≤99%
|
PV Utilization
Rate
|
12V/24V/48Vsystem
|
≥99%
|
|
Input Characteristics
|
MPPT Working
VoltageandRange
|
12Vsystem
|
DC18V~DC150V
|
|
24Vsystem
|
DC34~DC150V
|
|
48Vsystem
|
DC65~DC150V
|
Input Protection
Point
|
12Vsystem
|
DC16V
|
|
24Vsystem
|
DC30V
|
|
48Vsystem
|
DC60V
|
Input Recovery
Point
|
12Vsystem
|
DC22V
|
|
24Vsystem
|
DC34V
|
|
48Vsystem
|
DC65V
|
|
Max DC Voltage
|
12V/24V/48Vsystem
|
DC160V
|
Overvoltage
Protection Point
|
12V/24V/48Vsystem
|
DC150
|
Overvoltage
Recovery Point
|
12V/24V/48Vsystem
|
DC145V
|
|
Max.PVPower
|
12Vsystem
|
570W
|
700W
|
900W
|
|
24Vsystem
|
1130W
|
1400W
|
1700W
|
|
48Vsystem
|
2270W
|
2800W
|
3400W
|
|
Output Characteristics
|
|
Selectable Battery Types
|
12V/24V/48Vsystem
|
sealed lead acid,vented,
Gel,NiCdbattery and other
|
|
ConstantVoltage
|
12V/24V/48Vsystem
|
check the charge voltagea
battery type form.
|
|
Floating Charge
|
12V/24V/48Vsystem
|
OverCharge
Protection Voltage
|
12Vsystem
|
14.6V
|
|
24Vsystem
|
29.2V
|
|
48Vsystem
|
58.4V
|
|
Rated Output Current
|
12V/24V/48Vsystem
|
40A
|
50A
|
60A
|
Current-limiting
Protection
|
12V/24V/48Vsystem
|
44A
|
55A
|
66A
|
|
Temperature Factor
|
12V/24V/48Vsystem
|
±0.02%/℃
|
Temperature
Compensation
|
12V/24V/48Vsystem
|
14.2V-(Highest-25℃)*0.3
|
|
Output Ripples
|
12V/24V/48Vsystem
|
200mV
|
Output Voltage
Stability Precision
|
12V/24V/48Vsystem
|
≤±1.5%
|
|
Display
|
|
LCDdisplay
|
Input,output parameter and output power etc
|
|
LEDdisplay
|
3LEDs indicates: Fault indicate light,
charge indicatelight,
power source indicate light
|
PC Software
Control
|
RS232 (matching) or LAN (optional)
|
|
Protection
|
|
Input Protection
|
Check the input characteristics
|
|
Over voltage Protection
|
Check the input characteristics
|
|
Polarity Reversal Protection
|
yes
|
|
Output Protection
|
Check the output characteristics
|
Short-circuit
Protection
|
Recover aftere liminating the Short-circuit
fault,no problem for longterm Short-circuit
|
|
Temperature Protection
|
95℃
|
|
Temperature protection
|
Above85℃,decrease the outputpower,
decrease3Aperdegree.
|
|
Other Parameters
|
|
Noise
|
≤40dB
|
|
Thermal methods
|
Forced air cooling,
fan speed rate regulated by temperature,
|
|
Components
|
World brand raw materials.Compliance with EU
|
|
|
standards. All rated temperature of electrolytic capacitors not less than 105℃
|
|
Smell
|
No peculiar smell and toxic substances
|
|
Environment Protection
|
Meet the 2002/95/EC,no cadmium
hydride and fluoride
|
|
Physical
|
|
Measurement DxWxH(mm)
|
270*185*90
|
|
N.G(kg)
|
3
|
|
G.N(kg)
|
3.6
|
|

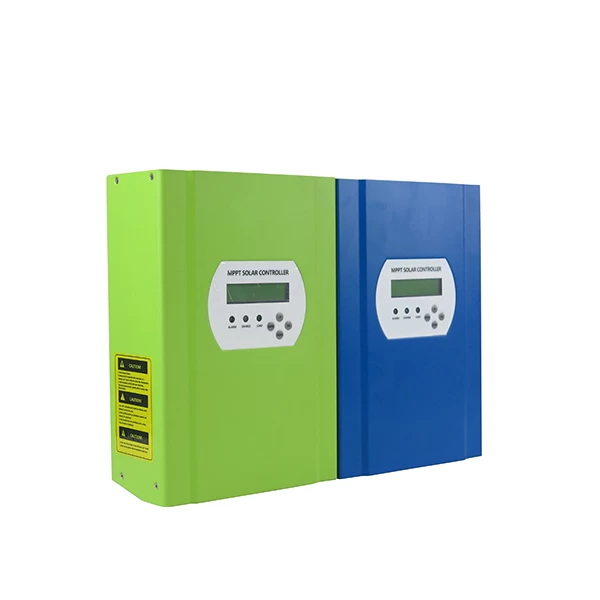

Color
|
Blue/Green(optional)
|
|
Safety
|
CE,RoHS,PSE,FCC
|
|
EMC
|
EN61000
|
|
Type of Mechanical Protection
|
IP21
|
|
Environment
|
|
Humidity
|
0~90%RH(nocondense)
|
|
Altitude
|
0~3000m
|
|
OperatingTemperature
|
-20℃~+40℃
|
|
StorageTemperature
|
-40℃~+75℃
|
|
AtmosphericPressure
|
70~106kPa
|
