BNC Female to Screw-in Antenna RF Connector Adaptor

BNC adapters Features:

  • Allow to interface BNC connectors with BNC, F, MCX, MMCX, N, RCA, SMA, SMB, TNC or UHF connectors;
  • Has female to female, female to jack, female to male, female to plug, female to sexless, male to female, male to jack, male to male, male to plug or male to sexless gender combinations;
  • Has straight or right angle versions;
  • Has bulkhead, 4 hole panel or mountless configurations;
  • Has 50ohm or 75ohm impedance;
  • BNC adaptors are miniature, lightweight and reliable;
  • Has standard or high performance designs.

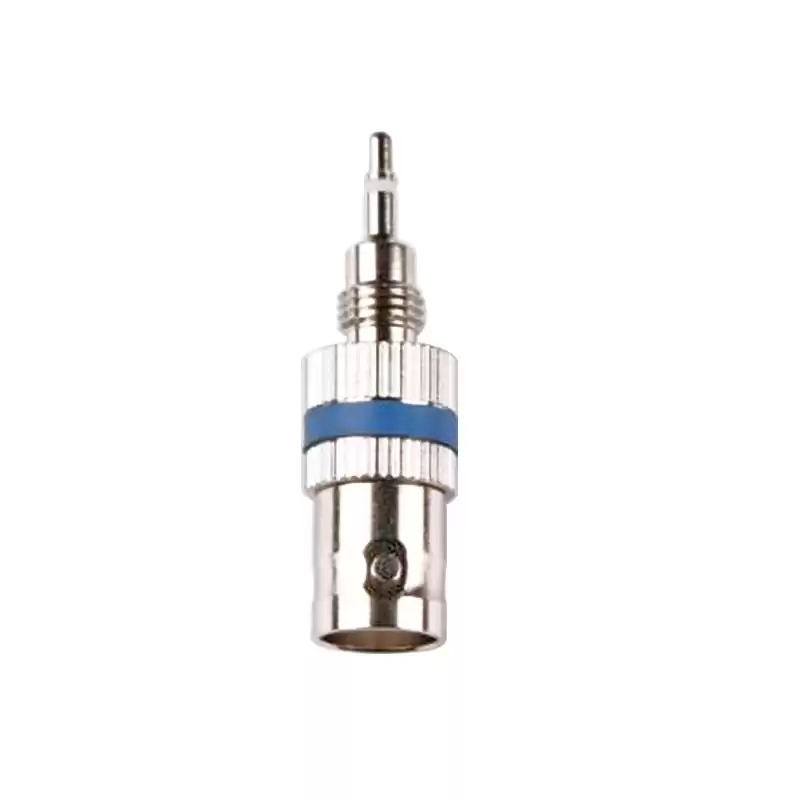

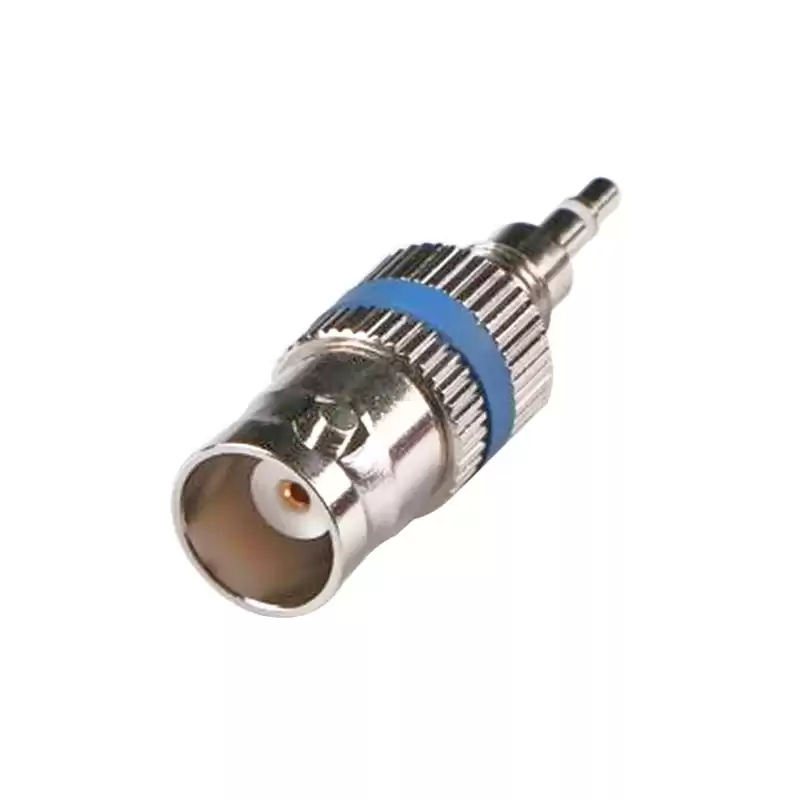

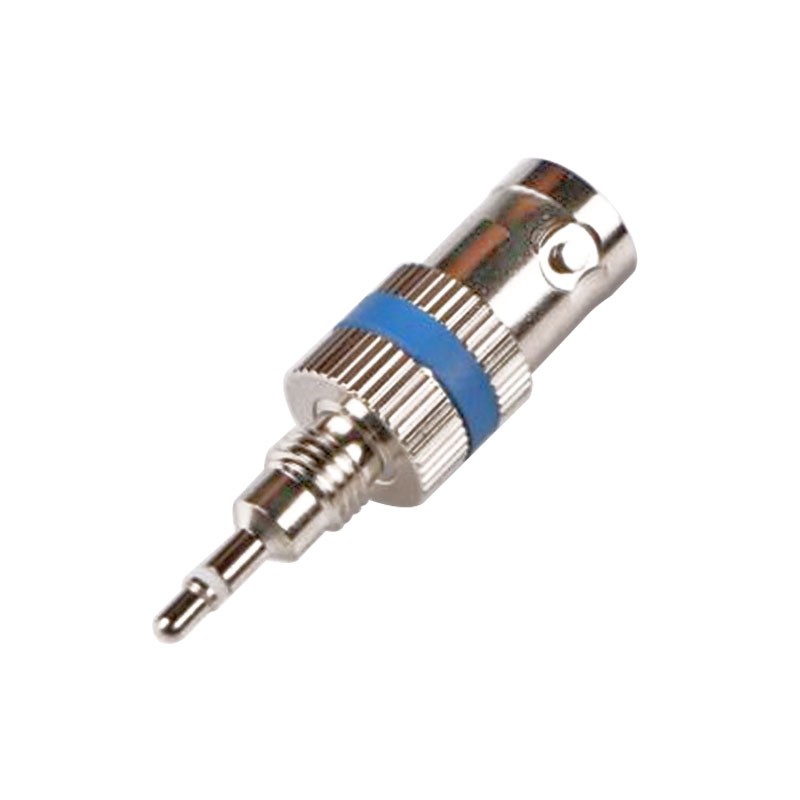

BNC Female to Screw-in Antenna RF Connector Adaptor



The BNC Adapter has different BNC to screw-in antenna adapter, Screw-in antenna adapter for Motorola P50, P110, GP300, GP340, GP350, HT750, HT1250, HT1550, EX500, and EX600 radios. Needed to use car mount antennas with listed radios. Motorola part number 5885705M02. BNC output mates with car antenna coax. This BNC female to screw-in antenna adapter has a maximum frequency of 300MHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series BNC
Adapter Side 1 Style Female
Adapter Side 2 Series Screw-in Antenna
Adapter Side 2 Style Plug
Frequency (Max MHz) 300
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
ELECTRICAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Suitable for Antennas
  • Broadcast, Radios
  • Wi-Fi, Telecom,LMR
  • Wireless LAN Devices, CCTV
  • Microwave Applications and Digital Communication System
