BNC Male Straight Connector Open Window Design Easy Welding for RG316 Cable

BNC Connector Features

  • Can terminate to coax, PCB (printed circuit board) or terminal;
  • Can be male or female gender in standard polarity or reverse polarity threads, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be 4 hole flange, bulkhead, 4 hole panel or mount-less;
  • Attachment methods include clamp/solder, crimp/solder, field replaceable, solder or solder/solder;
  • Body is brass with nickel or gold or silver or tri-metal plating.

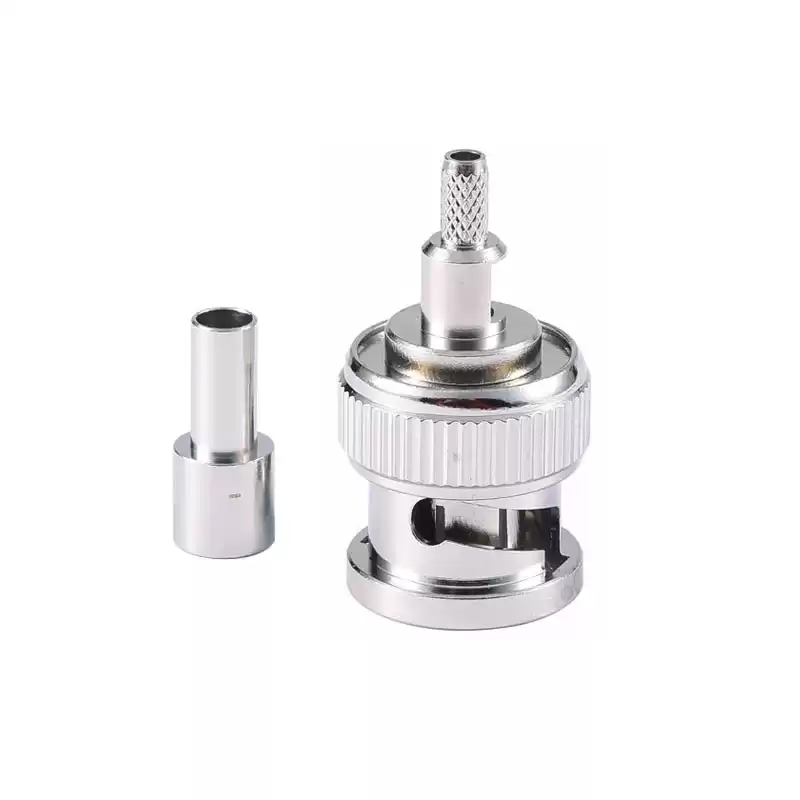

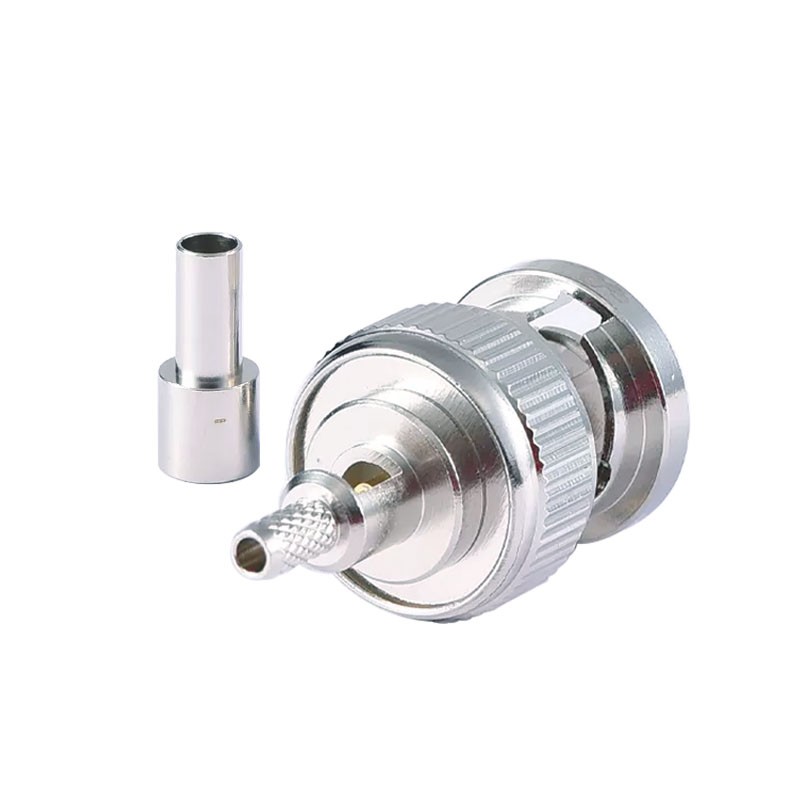

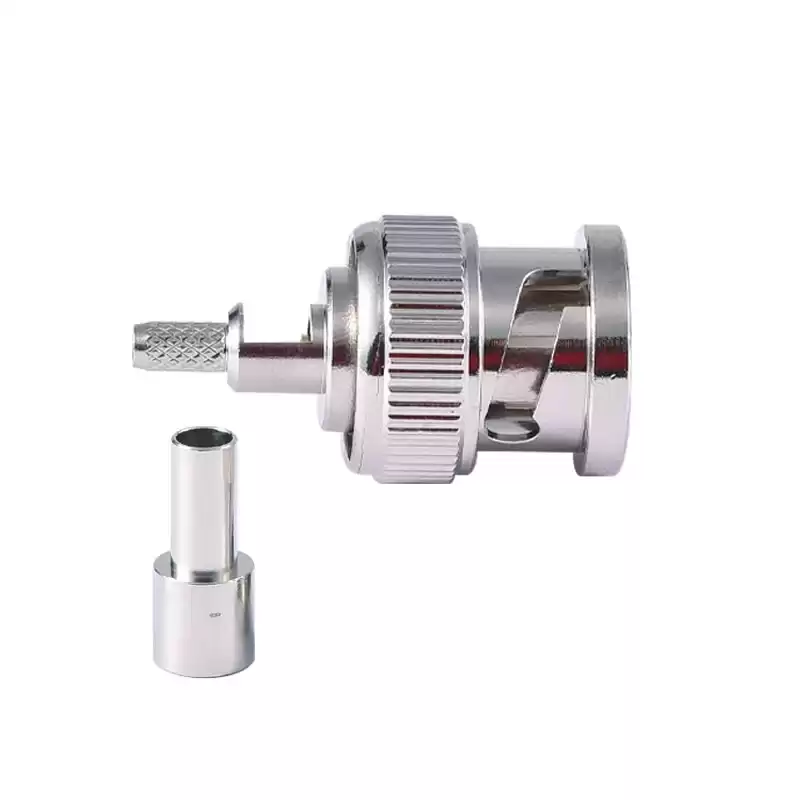

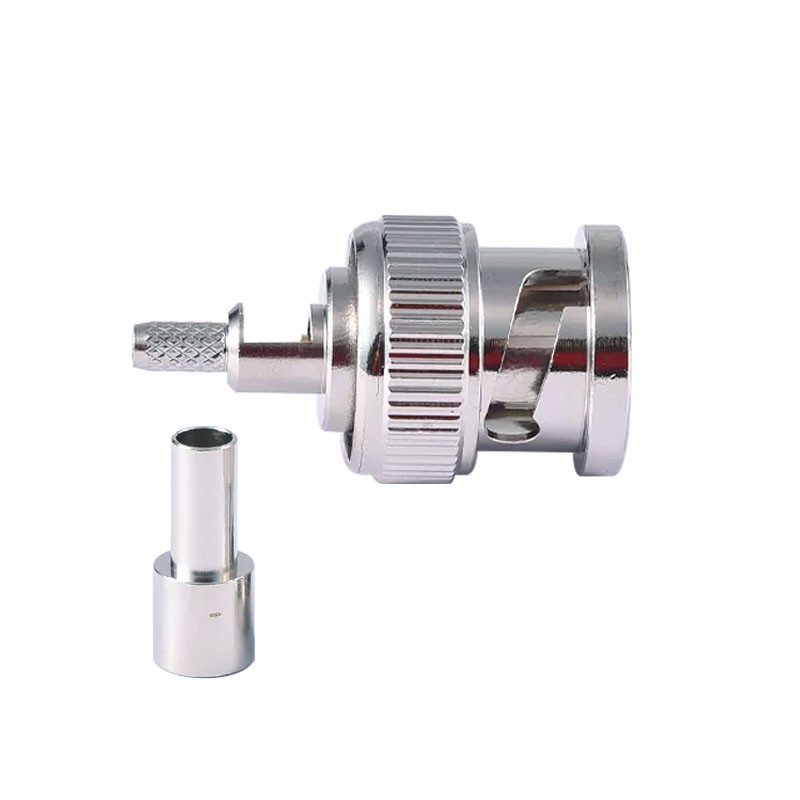

BNC Male Straight Connector Open Window Design Easy Welding for RG316 Cable



The BNC connectors are miniature, lightweight and reliable. 50 ohm BNC and 75 ohm BNC connectors are available in configurations ideal for commercial and military-grade applications; it are suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles; this BNC male connector has an interface type of RG316 and a 50ohm impedance, attachment method uses shield/contact crimp/solder, its straight body is brass with nickel plating.



Specifications

50 OHM

ELECTRICAL DATA
Impedance                                                                   50Ω
Frequency range (for connector interface) 4GHz (DC - 12 GHz on Extended Range Designs)
Dielectric withstanding Voltage (at sea level) 1500V rms, 50Hz (depending on cable)
Working voltage (at sea level) 500V rms, 50Hz (depending on cable)
Insulation resistance  5000 mΩ
Contact resistance centre contact1.5mΩ
outer contact:  1  mΩ
RF-leakage (between 2÷3 GHz) 55 dB
MECHANICAL DATA
Coupling nut torque 7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
Coupling nut retention force 450N / 101.2 lbs
Contact captivation 27N / 6.1 lbs
Durability (matings) 500
VSWR Right angle ≤ 1.3
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Ni plating
Pin contacts Brass--Au / Ag plating
Socket contacts Copper--beryllium Au / Ag plating
Crimp ferrules Copper alloy--Ni plating
Insulator PTFE
Gaskets Silicone rubber

75 OHM

ELECTRICAL DATA
Impedance                                                                   75Ω
Frequency range (for connector interface) 1GHz (DC - 12 GHz on Extended Range Designs)
Dielectric withstanding Voltage (at sea level) 1500V rms, 50Hz (depending on cable)
Working voltage (at sea level) 500V rms, 50Hz (depending on cable)
Insulation resistance  1000 mΩ
Contact resistance centre contact1.5mΩ
outer contact:  1  mΩ
Durability (matings) 500
VSWR Right angle ≤ 1.5
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Ni plating
Pin contacts Brass--Au / Ag plating
Socket contacts Copper--beryllium Au / Ag plating
Crimp ferrules Copper alloy--Ni plating
Insulator PTFE
Gaskets Silicone rubber



Applications

  • Antennas
  • Broadcast (75 ohm)
  • Telecommunications
  • Automotive
  • Computers/LANs
  • Medical Equipment
  • Medical Equipment
  • Base Stations
  • Cable Modems
  • Instrumentation
  • Military/Aerospace
