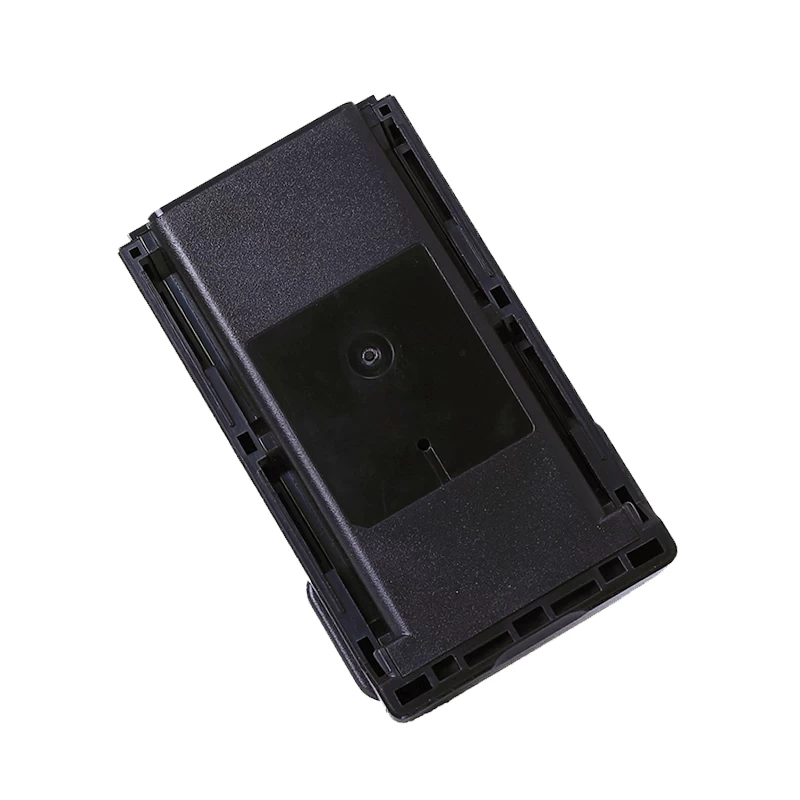

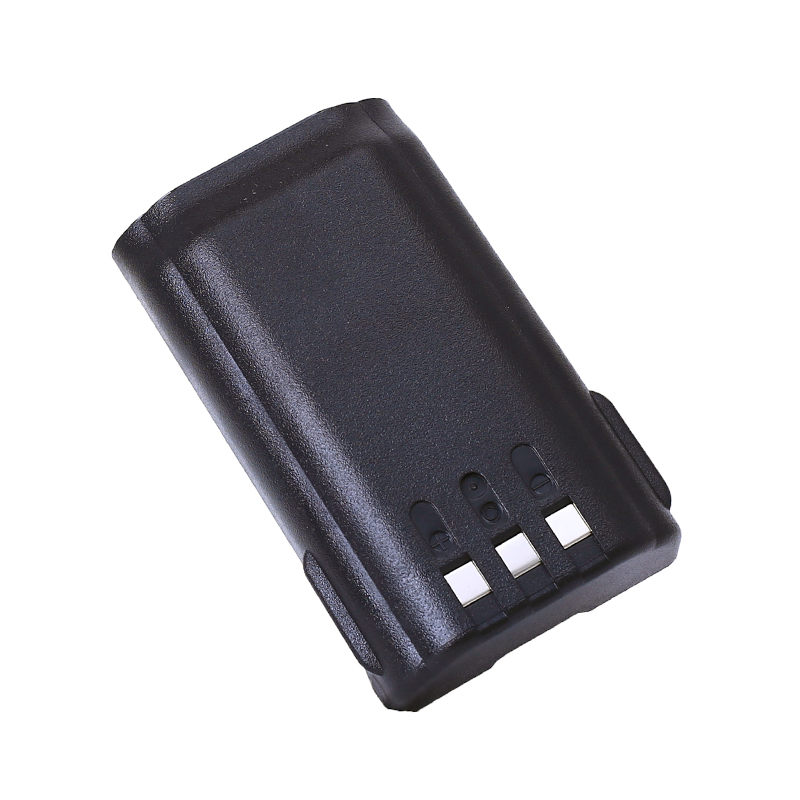

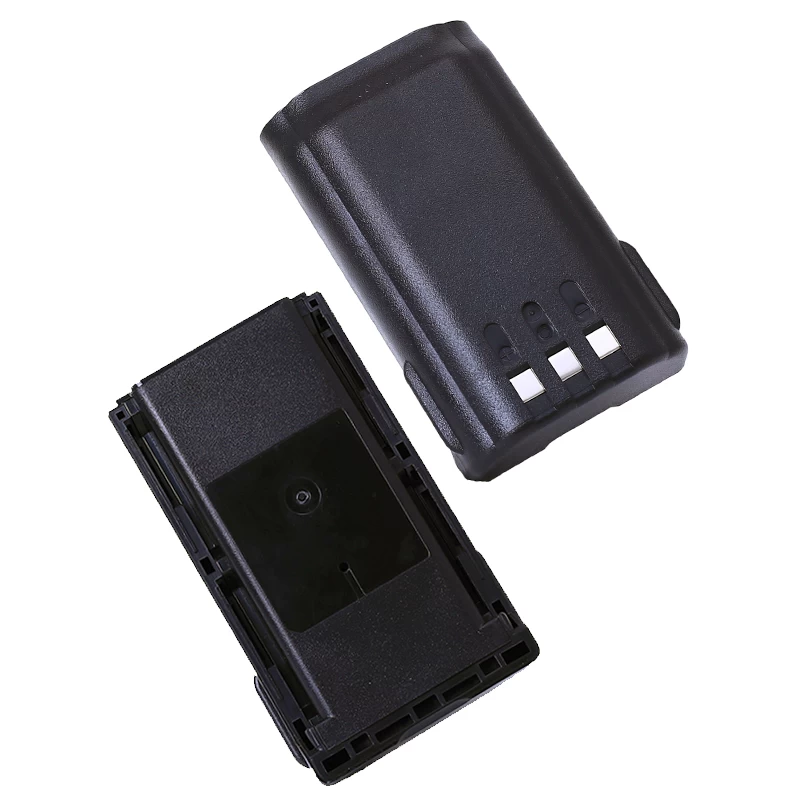

BP-232 LI-ION 7.4V battery for ICOM IC-F14, IC-F14S, IC-F15, IC-F15S, IC-F16, IC-F24, IC-F24S, IC-F25, IC-F25S, IC-F26, IC-F33, IC-F33GT, IC-F33GS, IC-F34, IC-F34GT, IC-F34GS, IC-36FI, IC-F43, IC-F43GT, IC-F43GS, IC-F43TR, IC-F44, IC-F44GT, IC-F44GS, IC-F44, IC-F3021, IC-F3023, IC-F3023S, IC-F3023T, IC-F3031S, IC-F3161, IC-F3161D, IC-F3161DT, IC-F3161DS, IC-F3163, IC-F3163T, IC-F3163S, IC-F3230D, IC-F3261D, IC-F3263D, IC-F3360D, IC-F4021, IC-F4023, IC-F4023T, IC-F4023S, IC-F4031S, IC-F4161, IC-F4163, F4161DT, F4161DS, F4163T F4163S, IC-F4230D, IC-F4261D, IC-F4263D, IC-F4360D F3011 41 RC, F4011 41 RC, F4011 42 RC series radio.
Similar product recommendation:
BP232N LI-ION 7.4V with IP67.
|
General Specifications
|
|
Original Model No.
|
BP232
|
|
Compatible Radio Models
|
IC-F14 IC-F15 IC-F16 IC-F24 IC-F25 IC-F26 IC-F33 IC-F34 IC-36FI IC-F43 IC-F44
|
|
Place Of Original
|
China
|
|
Voltage/Type
|
7.4V LI-ION
|
|
Capacity
|
2200/2600mAh
|
|
Dimensions (mm)
|
90(W)*54(D)*19(H)
|
|
Compatible Charger Models
|
BC160 BJ-300
|
|
Mechanical
|
|
Cells used
|
Chinese cell or Japanese cell
|
|
Plastic material
|
PC+ABS+fireproofing material
|
|
Assembly construction
|
Housings bonded by ultrasonic
|
|
Charger&radio contacts
|
Silver-plate
|
|
Environmental
|
|
Charging temperature
|
+0°C to +45°C
|
|
Discharging temperature
|
-20°C to +60°C
|
|
Storage temperature
|
+25°C + –5°C
|
|
Storage position
|
non-critical
|
|
Package
|
|
Inner packing
|
Polyethylene tape packaged batteries in white separate boxes
|
|
Outer packing
|
Put white separate boxes into 34*34*34cm carton, 100PCS each carton
|
