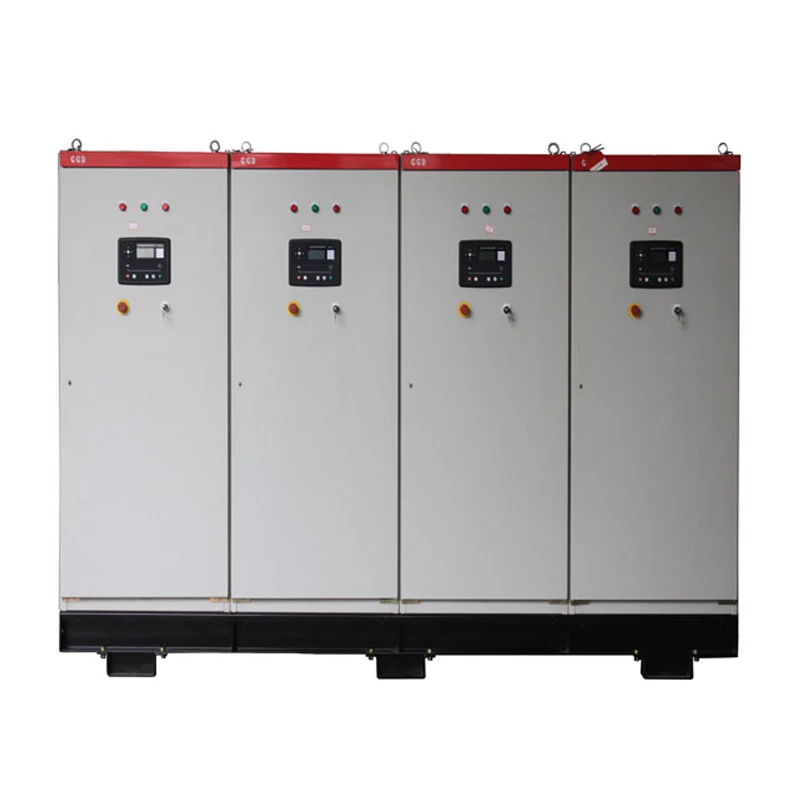

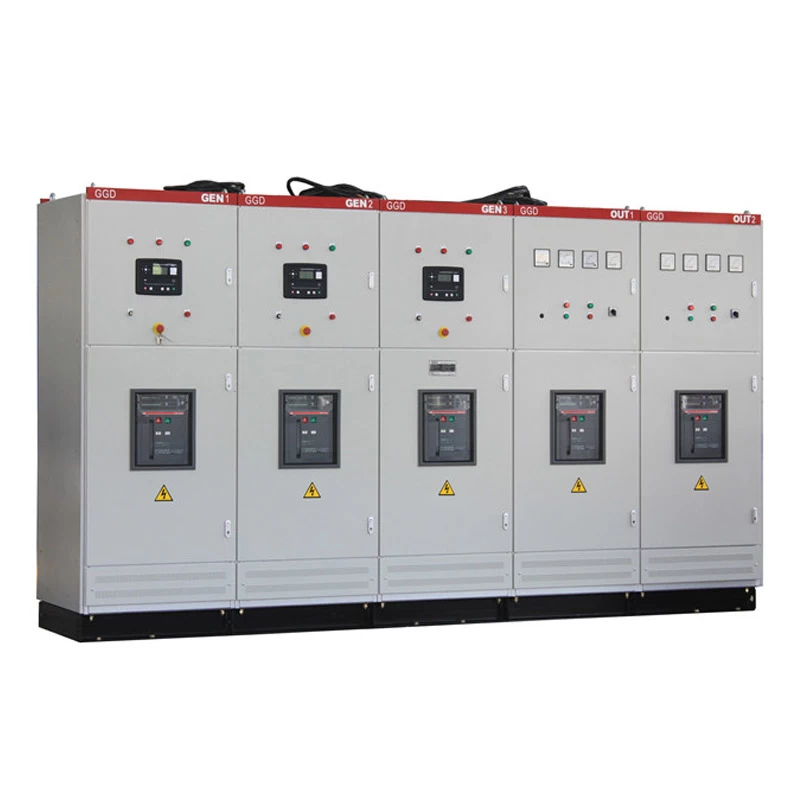

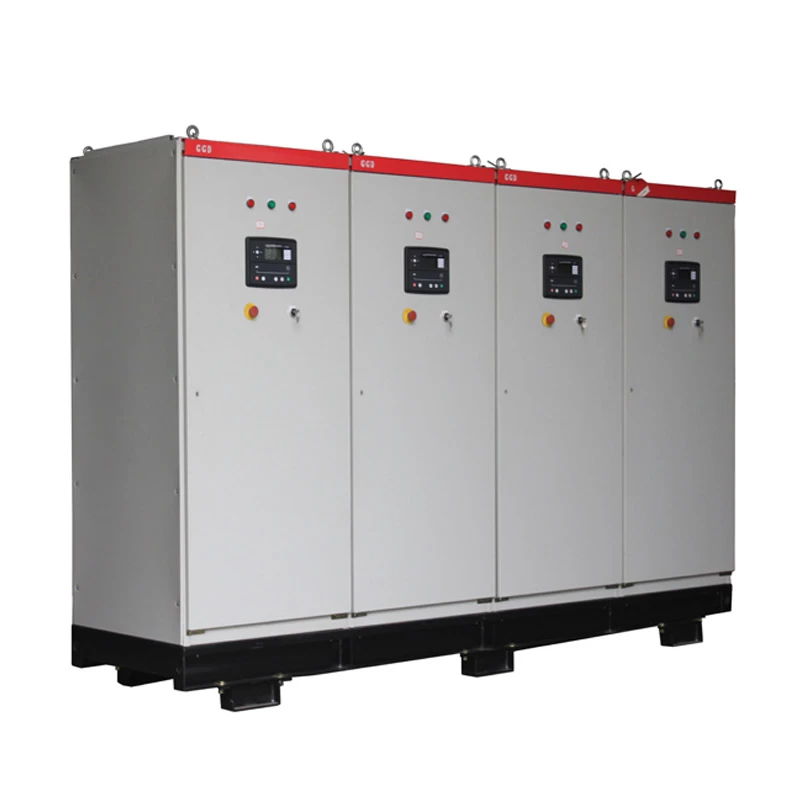

BPS Synchronization Control System

BPS synchronization panel is researched,developed and designed by our BIAO Power.



BA Series parallel control system is home-developed and designed which adopts advanced Deepsea DSE 8610 Auto Start Load Share Module for muti-generator loadshare system, designed to synchronize up to 32 generators including electronic and non-electronic engines. The DSE8610 monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition. System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder.


Key Load Share Features
• Peak lopping
• Sequential set start
• Manual voltage/frequency adjustment
• R.O.C.O.F. and vector shift
• Generator load demand
• Automatic hours run balancing
• Mains (Utility) de-coupling
• Mains (Utility) de-coupling test mode
• Dead bus sensing
• Bus failure detection
• Direct governor and AVR control
• Volts and frequency matching
• kW and kV Ar load sharing

BA Power Syn.system


Key Features
• Comprehensive loadshare capabilities
• Configurable inputs (11)
• Configurable outputs (8)
• Voltage measurement
• Built-in governor and AVR control
• kW overload alarms
• Comprehensive electrical protection
• Magnetic pick-up
• Electronic engine capability
• RS232 & RS485 remote communications
• Modbus RTU
• PLC functionality
• Multi event exercise timer
• Back-lit LCD 4-line text display
• Multiple display languages
• Automatic start/Manual start
• Audible alarm
• Fixed and flexible LED indicators
• Event log (250)
• Engine protection
• Fault condition notification to a designated PC
• Front panel mounting
• Protected front panel programming
• PC configuration
• Configurable alarms and timers
• Configurable start and stop timers
• SMS alert messaging
• Remote monitoring
• Compatible with DSE8700 Series


Key Benefits

• RS232 & RS485 can be used at the same time
• DSENet connection for system expansion
• PLC functionality
• Auto voltage sensing
• Five step dummy load support
• Five step load shedding support
• High number of inputs and outputs
• Worldwide language support
• Configuration Suite PC software
• Direct USB connection to PC
• Ethernet monitoring
• USB host
• Data logging & trending
