| Product name |

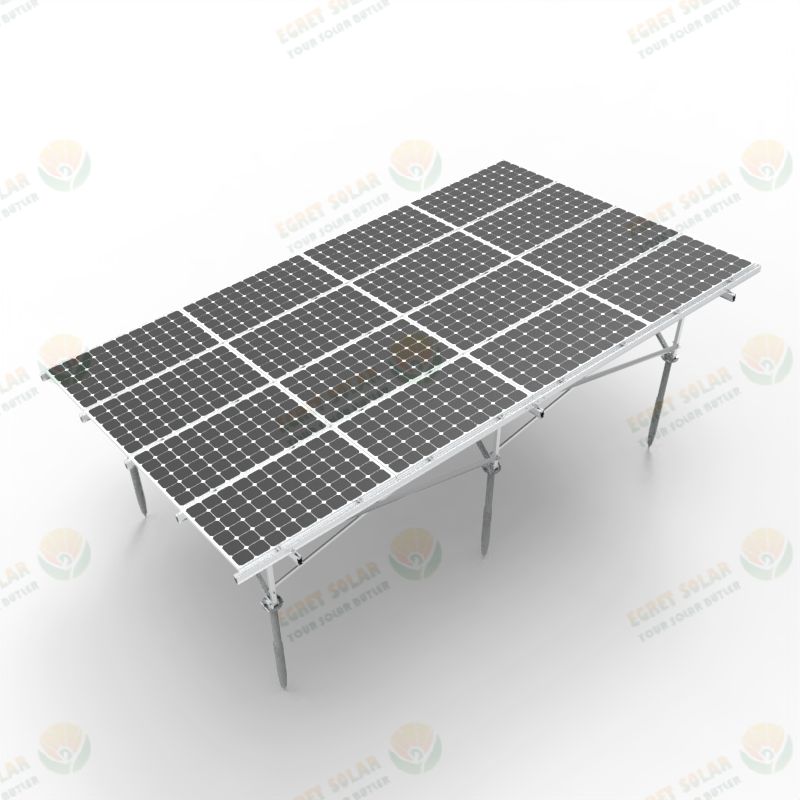

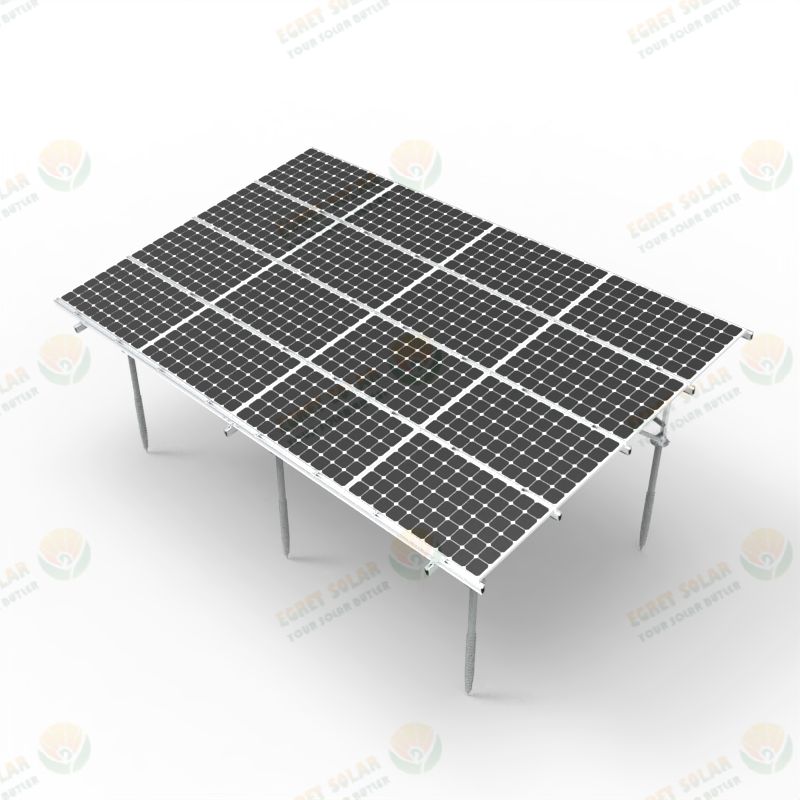

VV Type Aluminum Solar Ground mounting system （Horizontal row） |
| Model Number |
EG-GM01-VV-Horizontal |
| Installation Site |
Ground mounting system |
| Surface Treatment |
Aluminum Andized |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
25 YEARS |
| Specification |
1200mm/1600mm/1800mm/2000mm/2500mm |
Product Description
This product is specially designed for large-scale solar ground projects and can be used with concrete base or screw ground piles according to different soil conditions. Using AL6005 aluminum alloy material, the overall structure has better anti-corrosion performance and appearance than the steel structure. It is highly pre-installed and light in weight, which greatly saves labor costs and installation time.

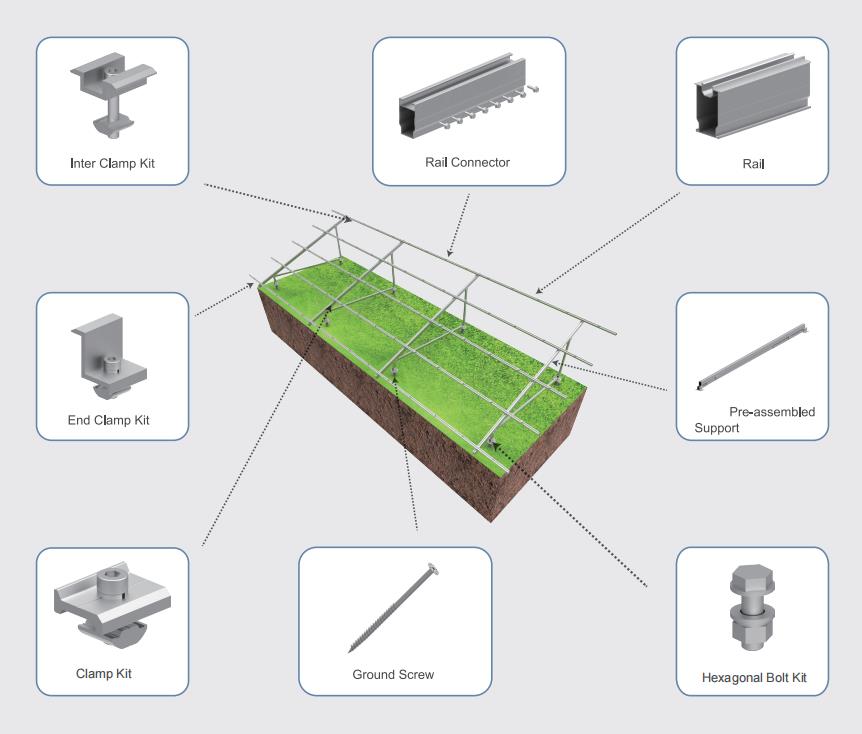

Exploded View

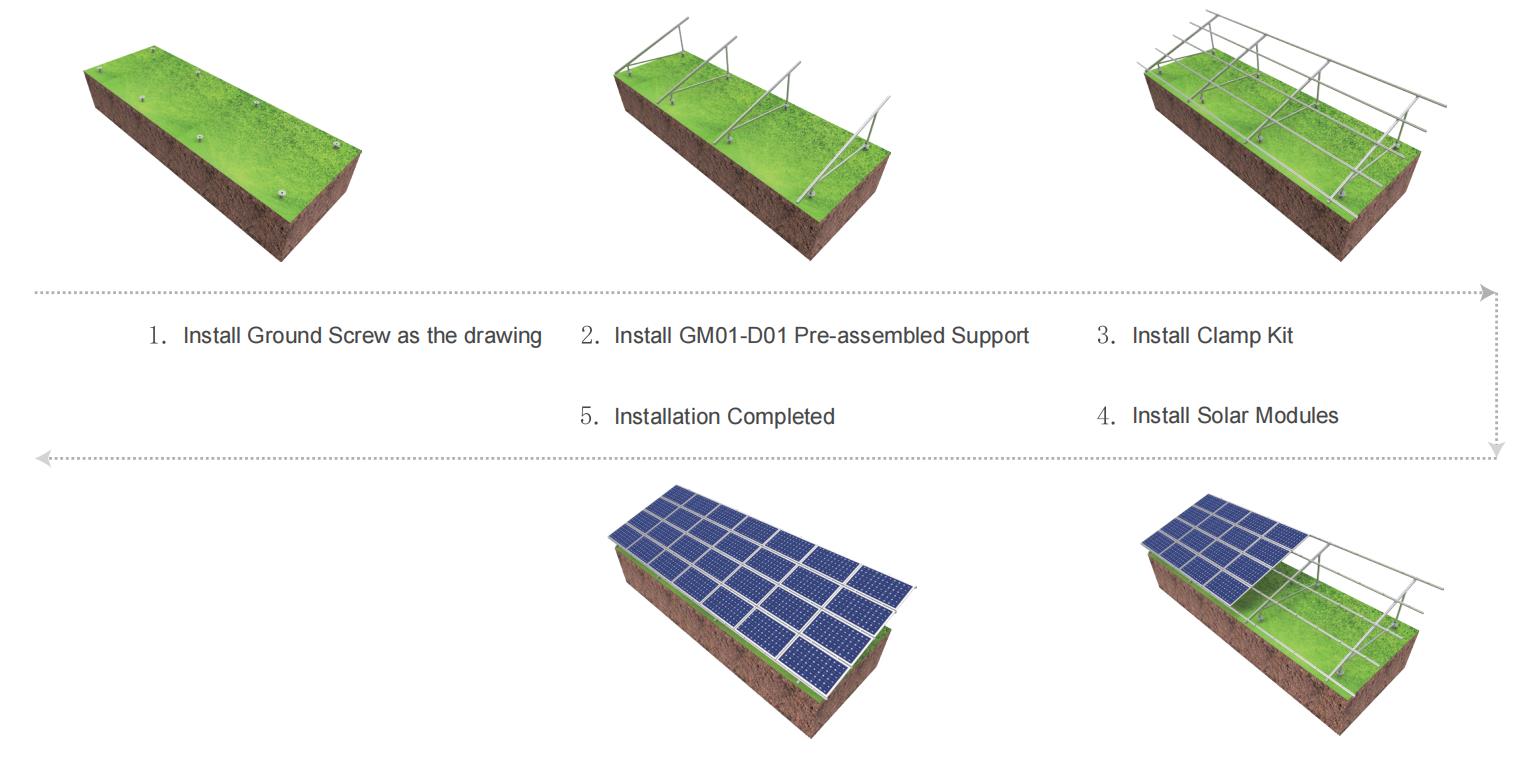

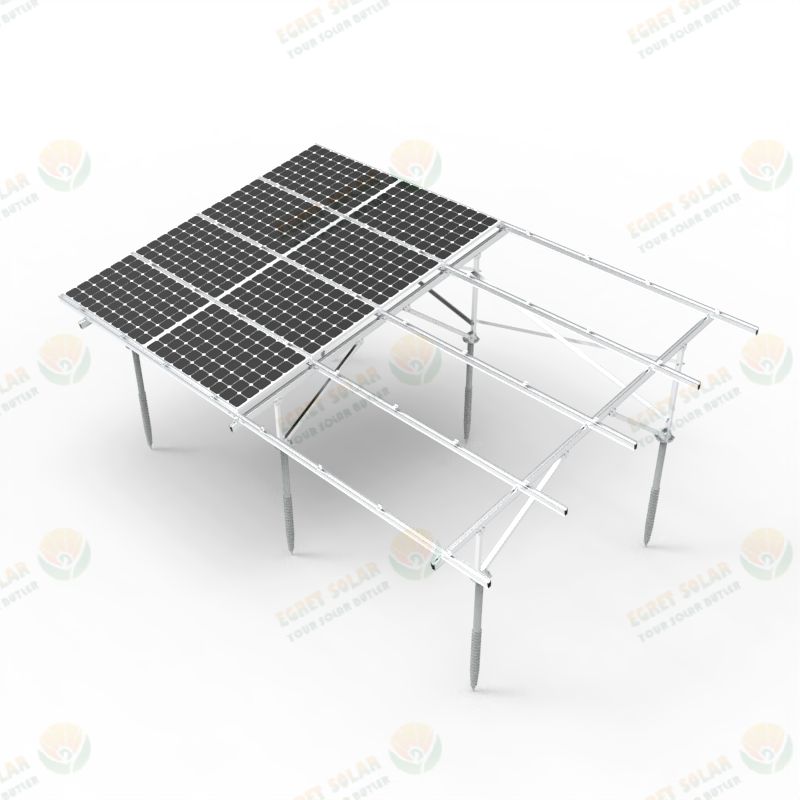

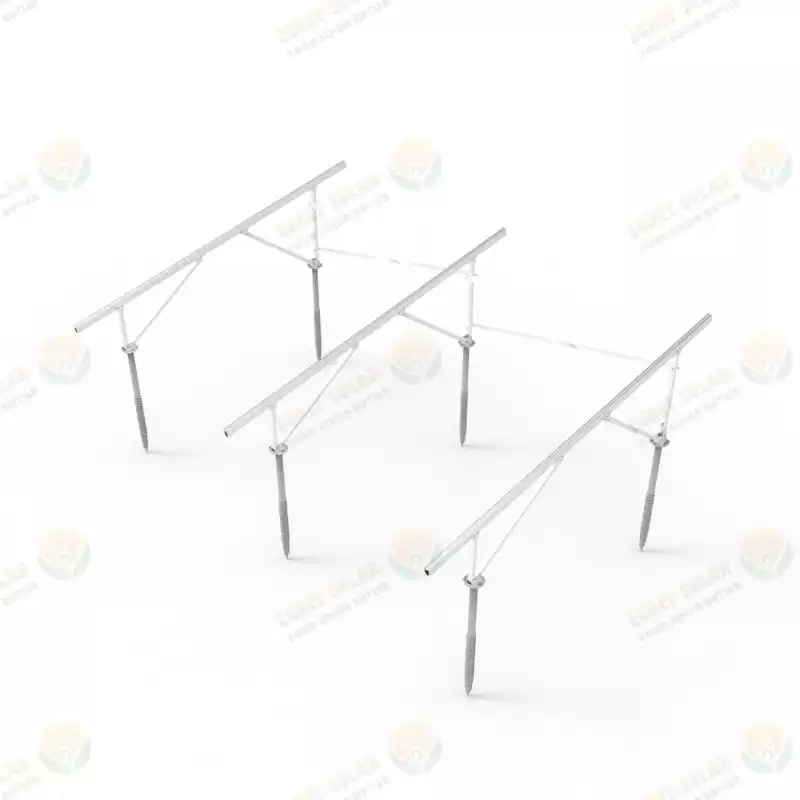

Installation Steps
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
