Description

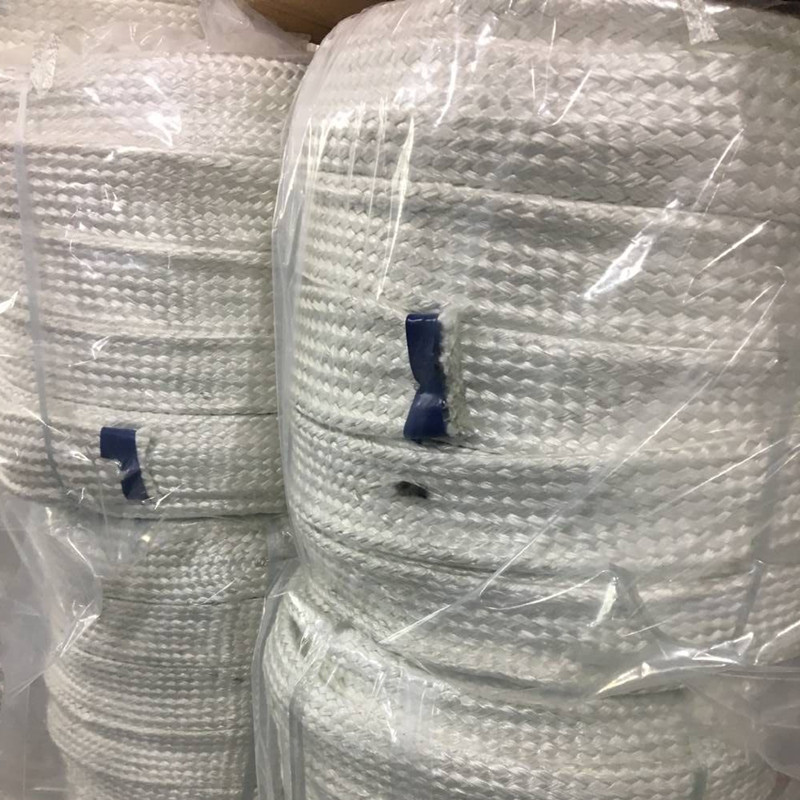

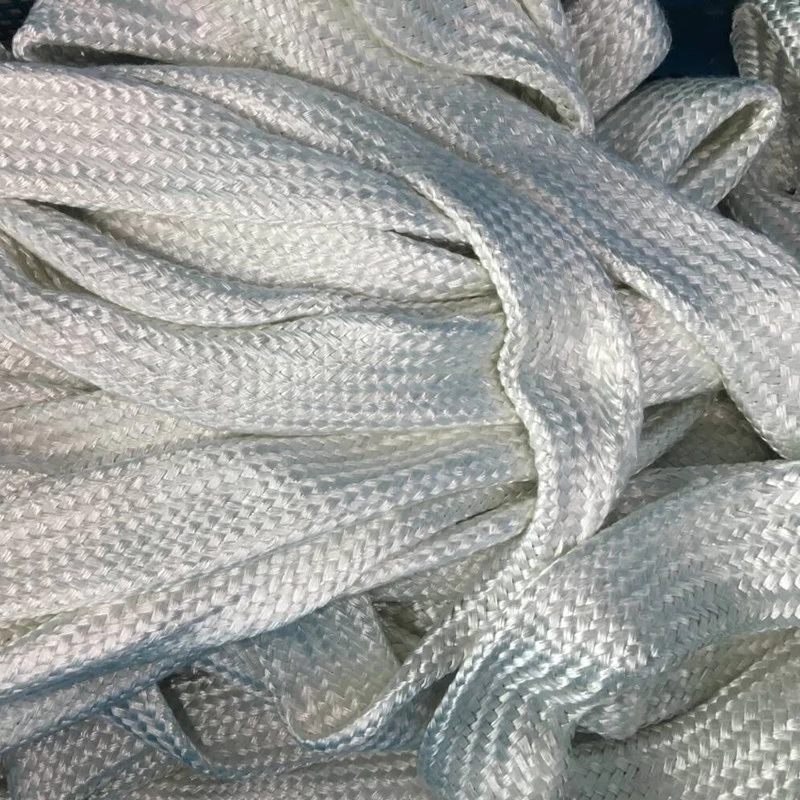

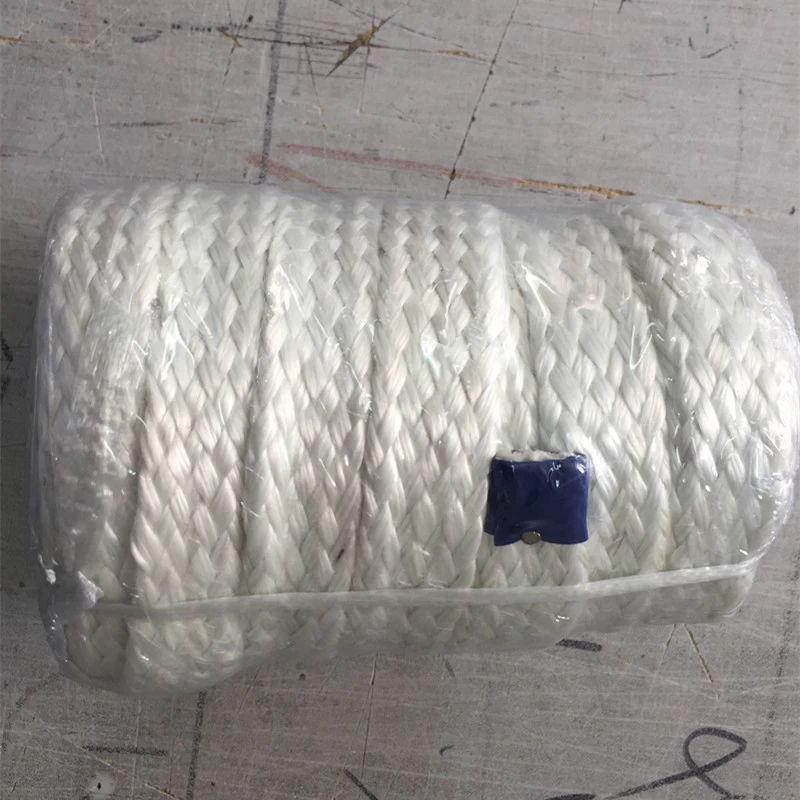

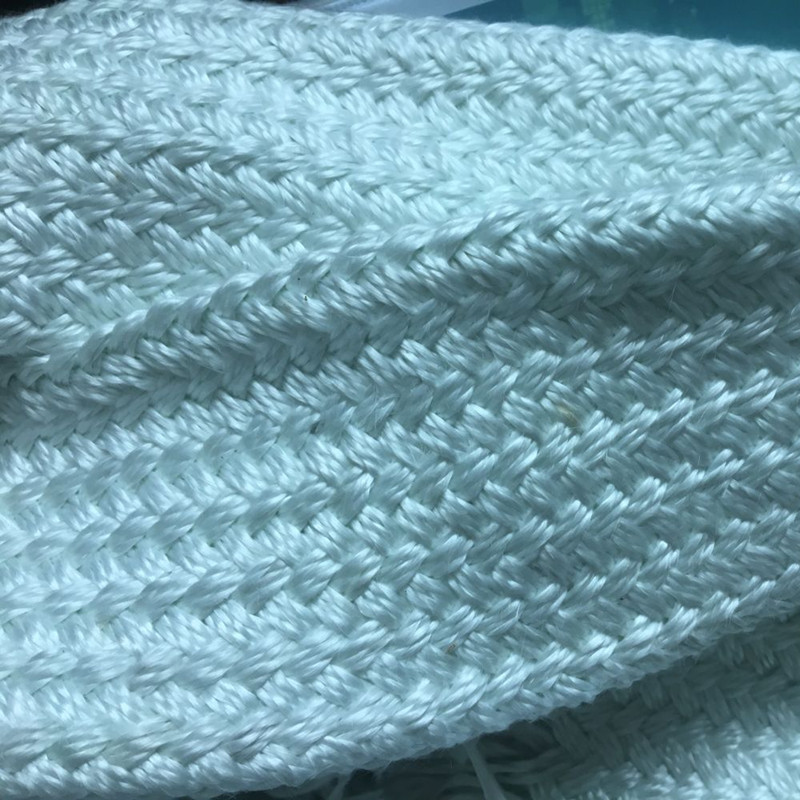

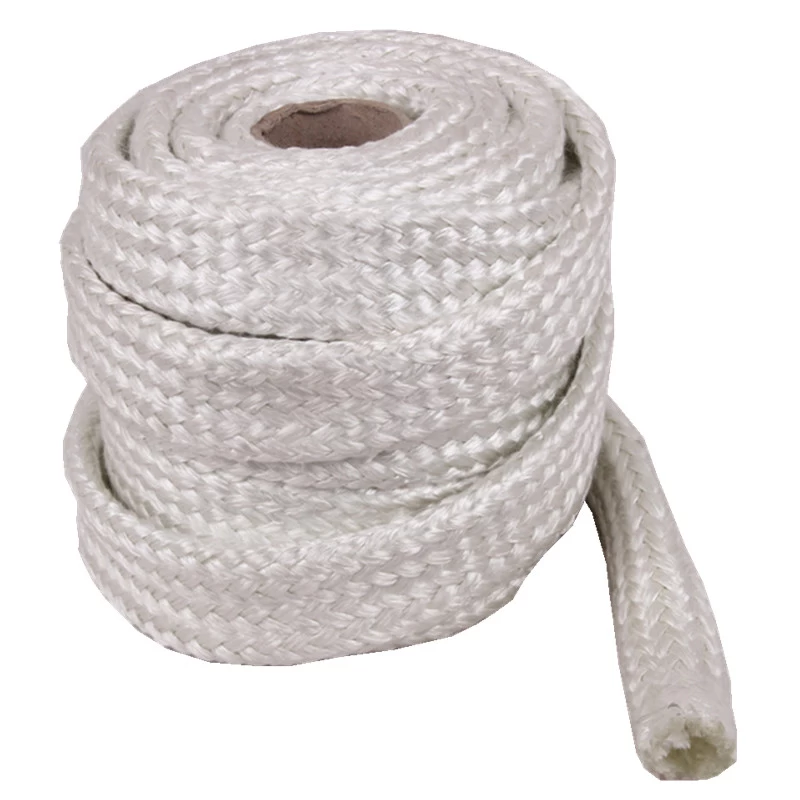

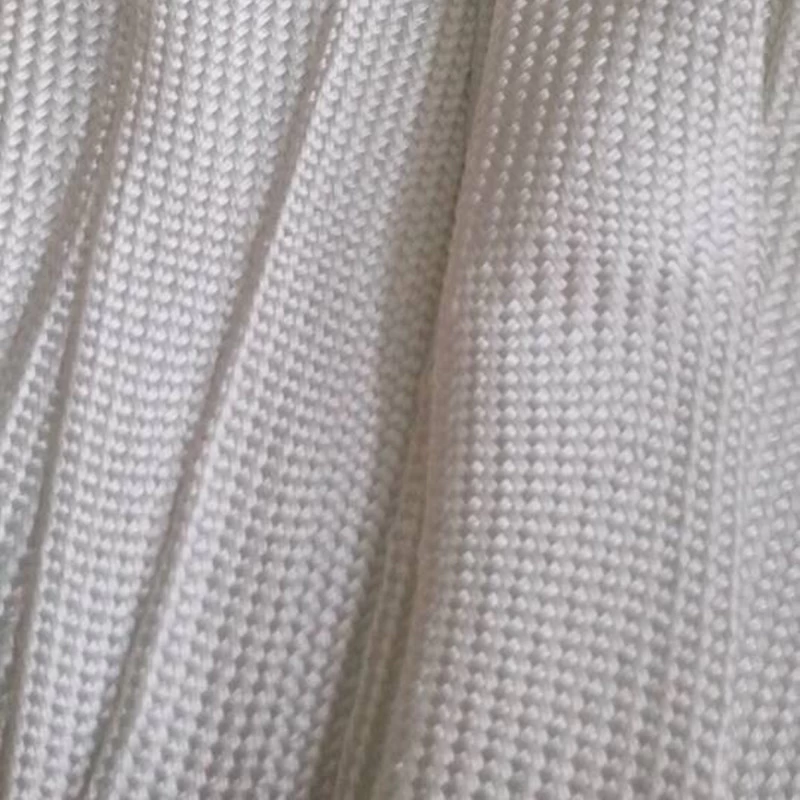

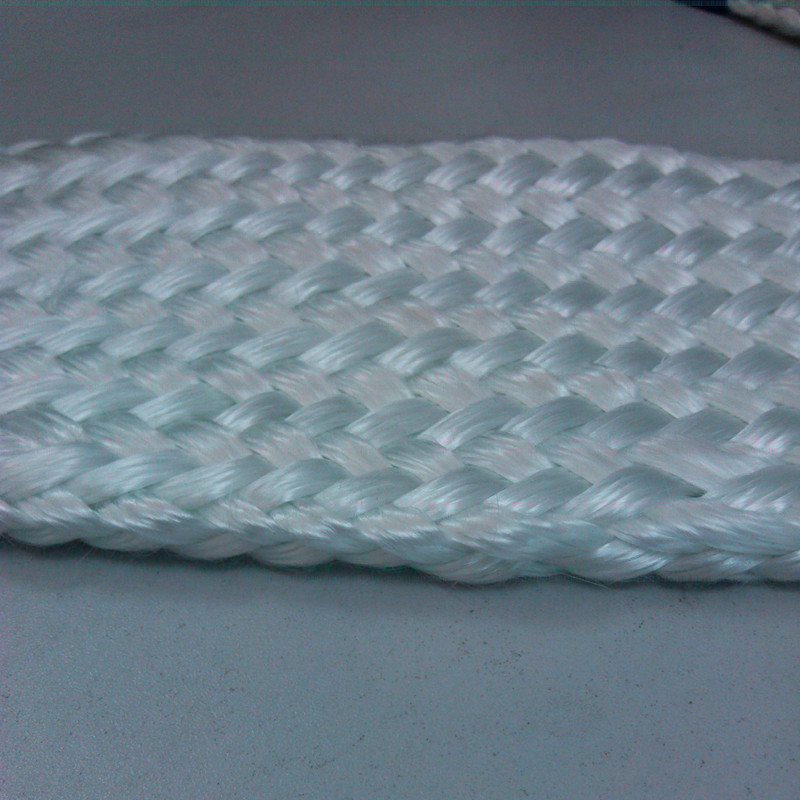

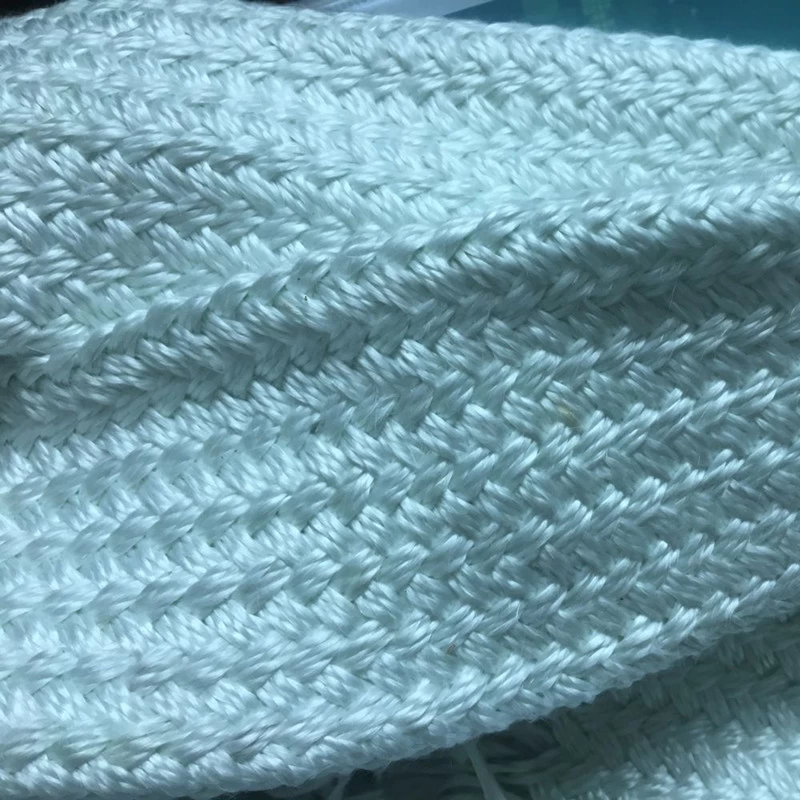

FGS braided fiber glass sleeve or fibre glass tubing is braided by high quality fiberglass, and resist most acids and alkslis. This sleeve is highly flexible and conformable. It is avaiiable with 1.0 mm, 1.5mm, 3.0mm thickness.
Features
It is resists most acids and alkalis and is unaffected by most bleaches and solvents. It is highly flexible and conformable.
This braided glass fiber sleeve capable of operating at a continuous temperature of 1000°F (538°C).
Application
It provides excellent protection for industrial wires, cables, hoses (hydraulics), tube and pipes and also provides thermal insulation and personnel protection.
Specifications
|
Part Number
|
Normal Inside diameter
|
Meter for spool
|
|
Inches
|
mm
|
Dash #
|
Meter
|
|
FGS-06
|
1/4
|
6
|
-4
|
50
|
|
FGS-08
|
5/16
|
8
|
-5
|
50
|
|
FGS-10
|
3/8
|
10
|
-6
|
50
|
|
FGS-11
|
7/16
|
11
|
-7
|
50
|
|
FGS-13
|
1/2
|
13
|
-8
|
50
|
|
FGS-16
|
5/8
|
16
|
-10
|
50
|
|
FGS-19
|
3/4
|
19
|
-12
|
50
|
|
FGS-22
|
7/8
|
22
|
-14
|
50
|
|
FGS-25
|
1
|
25
|
-16
|
50
|
|
FGS-29
|
1 1/8
|
29
|
-18
|
50
|
|
FGS-32
|
1 1/4
|
32
|
-20
|
50
|
|
FGS-35
|
1 3/8
|
35
|
-22
|
50
|
|
FGS-38
|
1 1/2
|
38
|
-24
|
50
|
|
FGS-41
|
1 5/8
|
41
|
-26
|
50
|
|
FGS-44
|
1 3/4
|
44
|
-28
|
50
|
|
FGS-48
|
1 7/8
|
48
|
-30
|
50
|
|
FGS-51
|
2
|
51
|
-32
|
50
|
|
FGS-57
|
2 1/4
|
57
|
36
|
50
|
|
FGS-60
|
2 2/5
|
60
|
-38
|
50
|
|
FGS-64
|
2 1/2
|
64
|
-40
|
50
|
|
FGS-67
|
2 5/8
|
67
|
-42
|
50
|
|
FGS-70
|
2 3/4
|
70
|
-44
|
50
|
|
FGS-73
|
2 7/8
|
73
|
-46
|
50
|
|
FGS-76
|
3
|
76
|
-48
|
50
|
|
FGS-83
|
3 1/4
|
83
|
-52
|
50
|
|
FGS-89
|
3 1/2
|
89
|
-56
|
50
|
|
FGS-95
|
3 3/4
|
95
|
-60
|
50
|
|
FGS-102
|
4
|
102
|
-64
|
50
|
|
FGS-114
|
4 1/2
|
114
|
-72
|
50
|
|
FGS-121
|
4 3/4
|
121
|
-76
|
50
|
|
FGS-127
|
5
|
127
|
-80
|
50
|
|
FGS-152
|
6
|
152
|
-96
|
50
|
|
Technical Datasheet
|
|
Material
|
Fiberglass
|
|
Working temperature
|
-40℃ - +260℃
|
|
Flammability
|
VW-1
|
|
Melting point
|
+550℃
|
|
Standard Color
|
White
|
|
MOQ
|
200 meter each size
|
|
Cutting tool
|
Scissors
|
Notes:
Special thickness, length or packing upon request.
Part nymber will be followed "-1.0" for 1.0 mm thickness“-1.5” for 1.5 mm thickness, “-3” for 3 mm thickness
