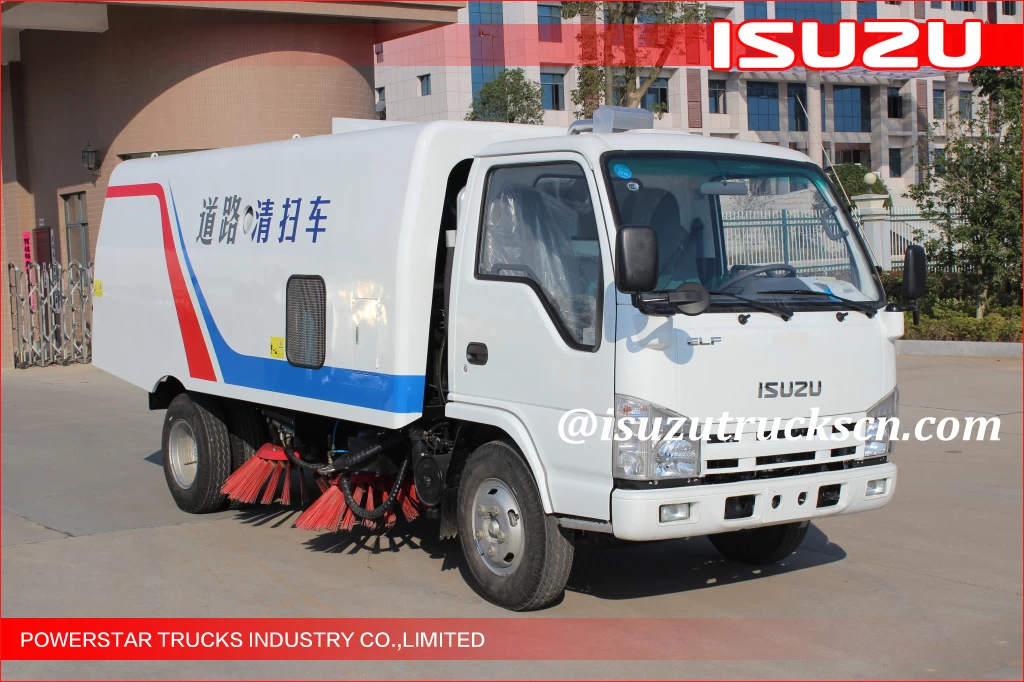

Brand new ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle

4-10cbm Road Sweeper Truck with Cleaning Brushes and Water spraying Functio,JAPAN ISUZU EQ5141G 4x2 VACUUM ROAD SWEEPER TRUCK,ISUZU sweeper truck road cleaner sweeping truck

Japan ISUZU RHD 4X2 floor sweeper new tow road sweeper for road sweeper truck,



Brand new 3cbm-5cbm Isuzu Road Sweeping Vehicle



 brnad new ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle

Basic Description

Road brush sweeper truck (also called as road sweeping vehicle, vacuum road sweeper, street sweeper truck, brush road sweeper, customer made road sweeper, high vacuum road sweeper truck, new road sweeper truck, road waste sweeping trucks) This Isuzu road sweeper truck has a simple and proper structure with four brushes in the middle and a suction port at the back part of the vehicle. The efficient suction system makes low noises when the vehicle is working. The whole vehicle is stable in performance.

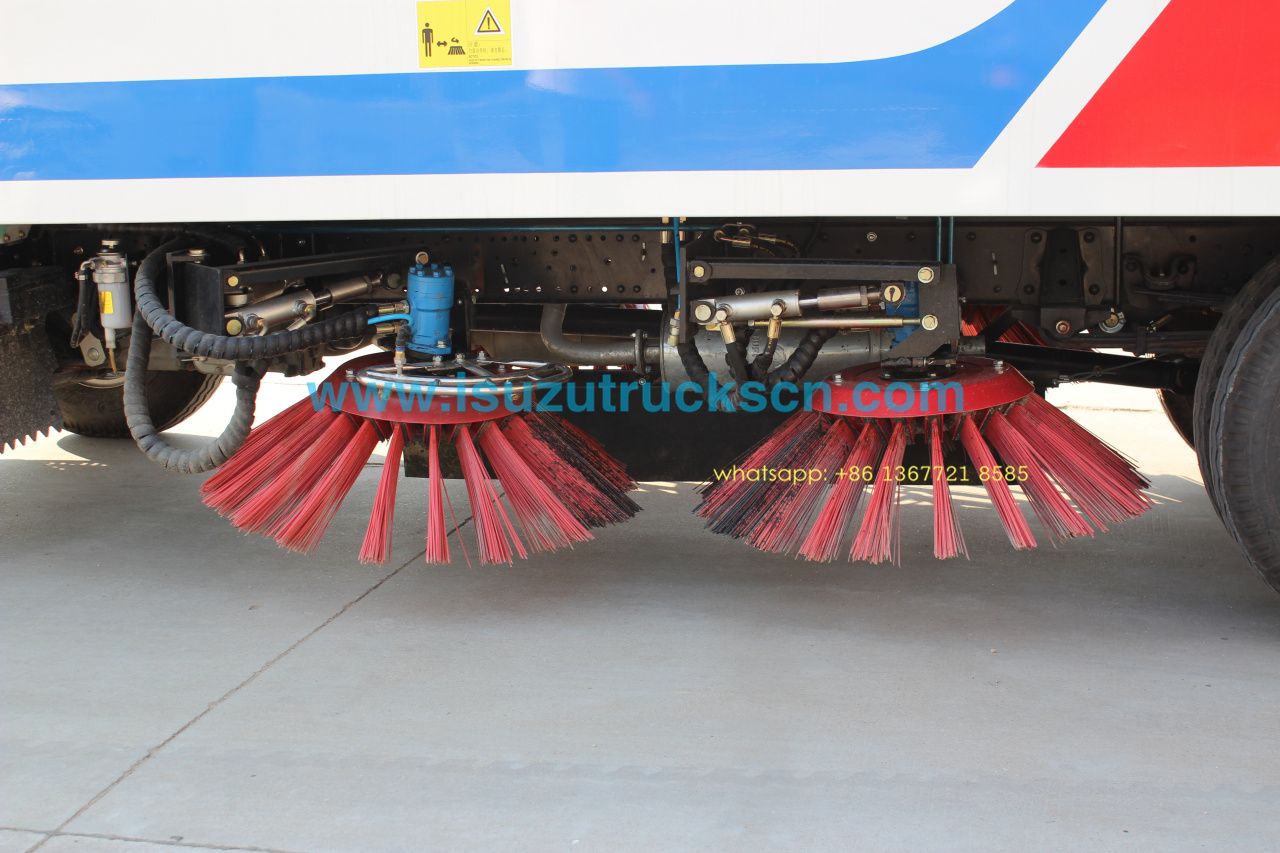

With the structure of four mid-mounted disk brushes and one rear-mounted suction nozzle, which provide a large sweeping width, high sweeping efficiency and good traffic ability. Also convenient for adjustment and maintenance of sweeper device and nozzle.

The sweeping disk has the protection function and automatic reset function, which can avoid obstacles automatically and return automatically.

Key Features

Key Features of road sweeper truck ISUZU    ISUZU NKR Chassis, Durable & Performance.

Key Features of road sweeper truck ISUZU    Sweeping, Sprinkling and garbage transportation

Key Features of road sweeper truck ISUZU     Stainless steeel garbage bin & Stainless water tank, longer service life

Key Features of road sweeper truck ISUZU     Fuel Dispenser, Flow meter, Level gauage can be optional

Key Features of road sweeper truck ISUZU     POWERSTAR 20 years’ experience on road sweeper truck exporting.

Techical drawing of Isuzu road sweeper trucks






Main specifications



Model

PT5070TSL

Driving Type

4x2    (Left hand drive)

Wheelbase

3360 mm

Overall Dimension

5935X1980X2430 mm

Cab

Forward control over engine, all-steel-welded construction

Sweeping System

Auxiliary engine

Isuzu tech engine

Stainless Steel Hopper Effective Volume

5 CBM

Stainless Steel Water Tank Volume (L)

1200

Sweeping Width (mm)

3000

Sweeping speed (km/h)

3~20

Sweeping Capacity (m2/h)

16500~82500

Blower rated rotation speed (rpm)

1800

Blower air capacity (m3/h)

8000

Blower air pressure (Pa)

7000

Side Brush Sweeping Brush Drive and Control

Electric control lever and switch control, Hydraulic driving

Engine

Model

4JB1CN

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

72 KW (98 HP)

Gearbox

MSB 5-shift, mechanical type, 5 forward and 1 reverse with

Tire

7.00-16

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h



Huge ISUZU Road sweeper truck chassis in store

 3cbm-5cbm Isuzu Road Sweeping Vehicle chassis  3cbm-5cbm Isuzu Road Sweeping Vehicle chassis
 Sweeper truck chassis Front left review
  Left side review
 3cbm-5cbm Isuzu Road Sweeping Vehicle chassis  3cbm-5cbm Isuzu Road Sweeping Vehicle chassis

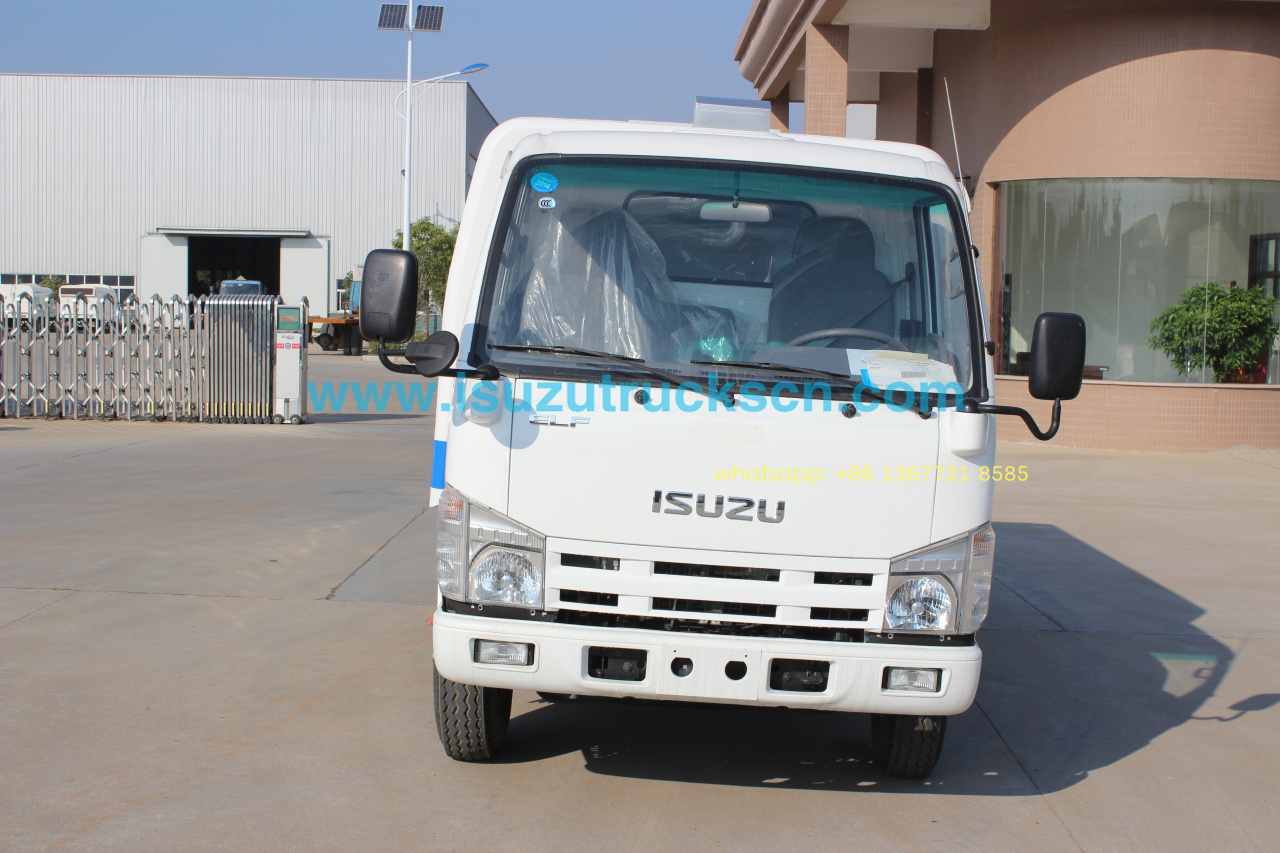

 Sweeper truck chassis Front review  Sweeper truck chassis Front left review



Customer build example:

 ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle  ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle

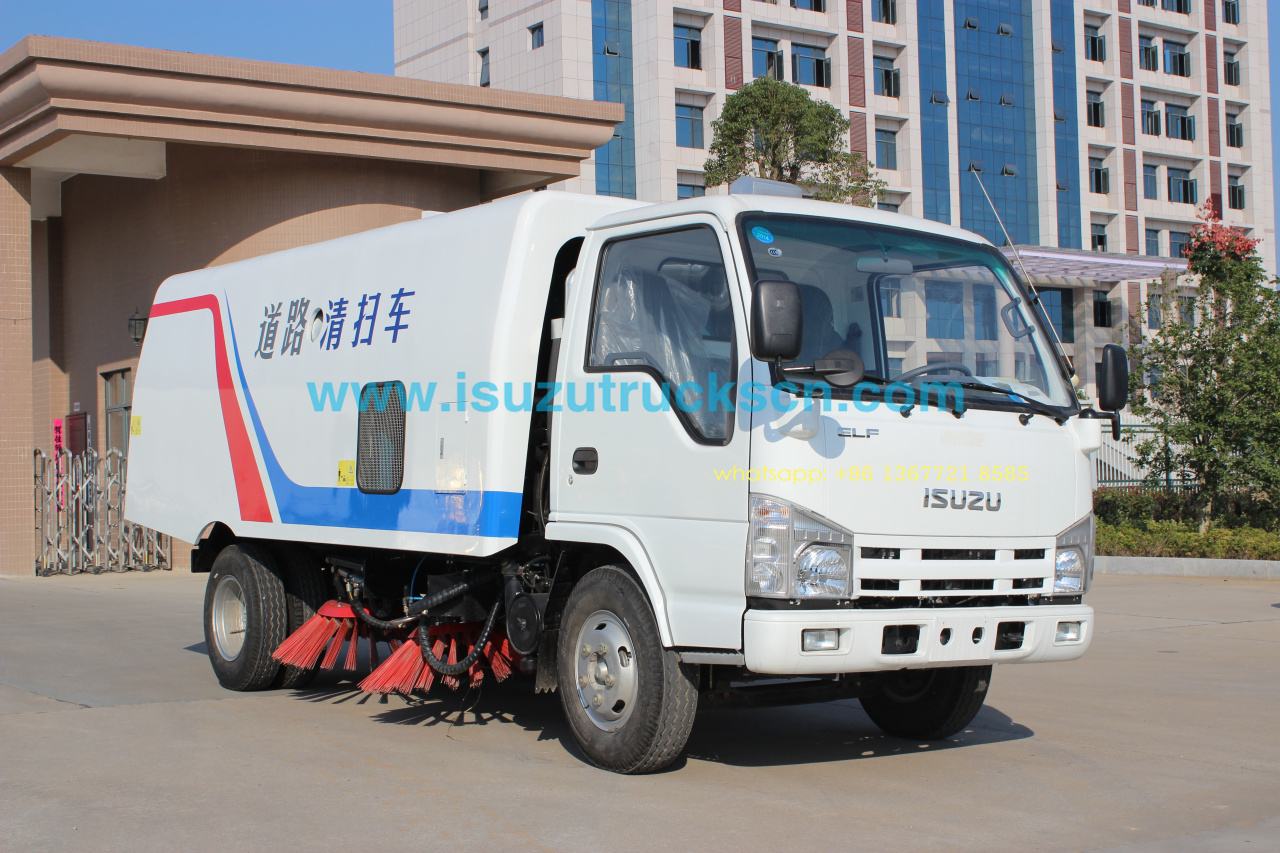

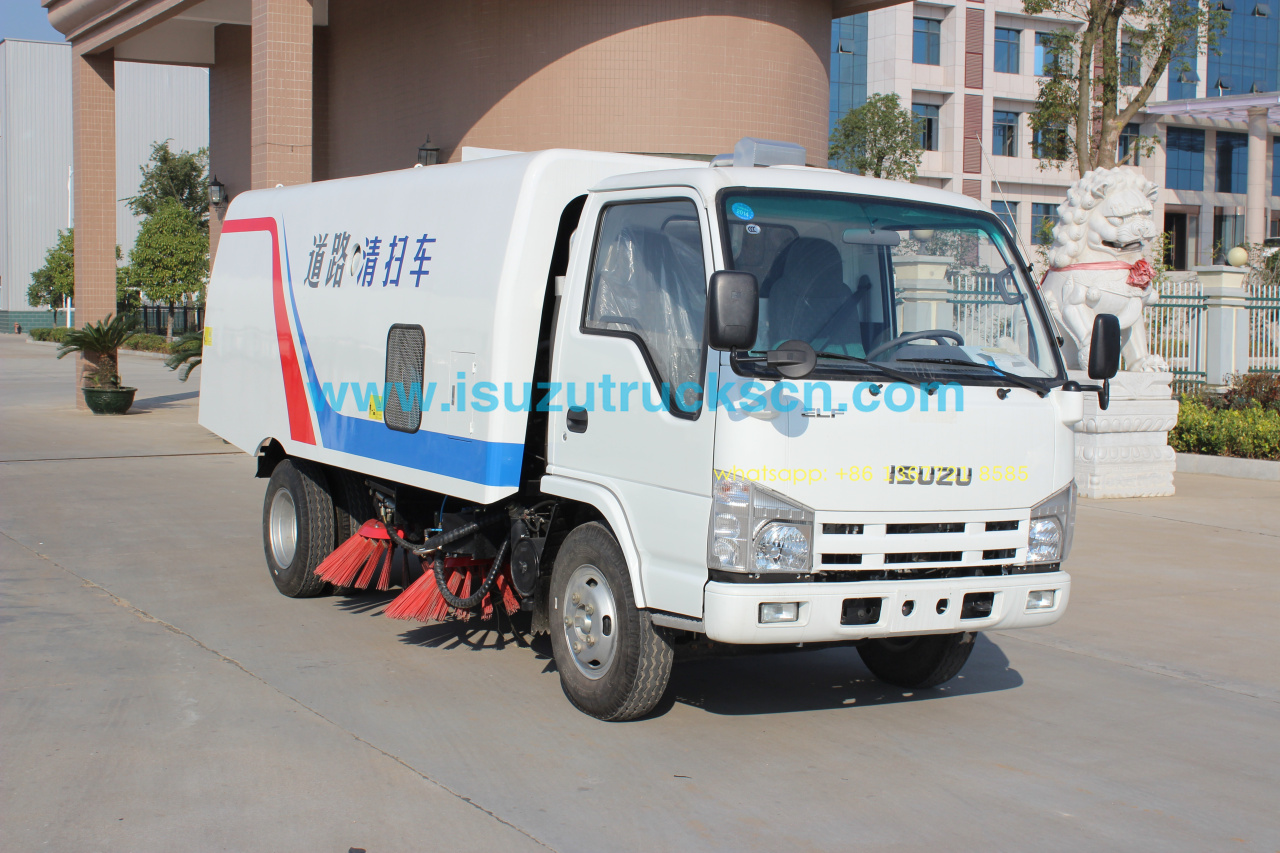

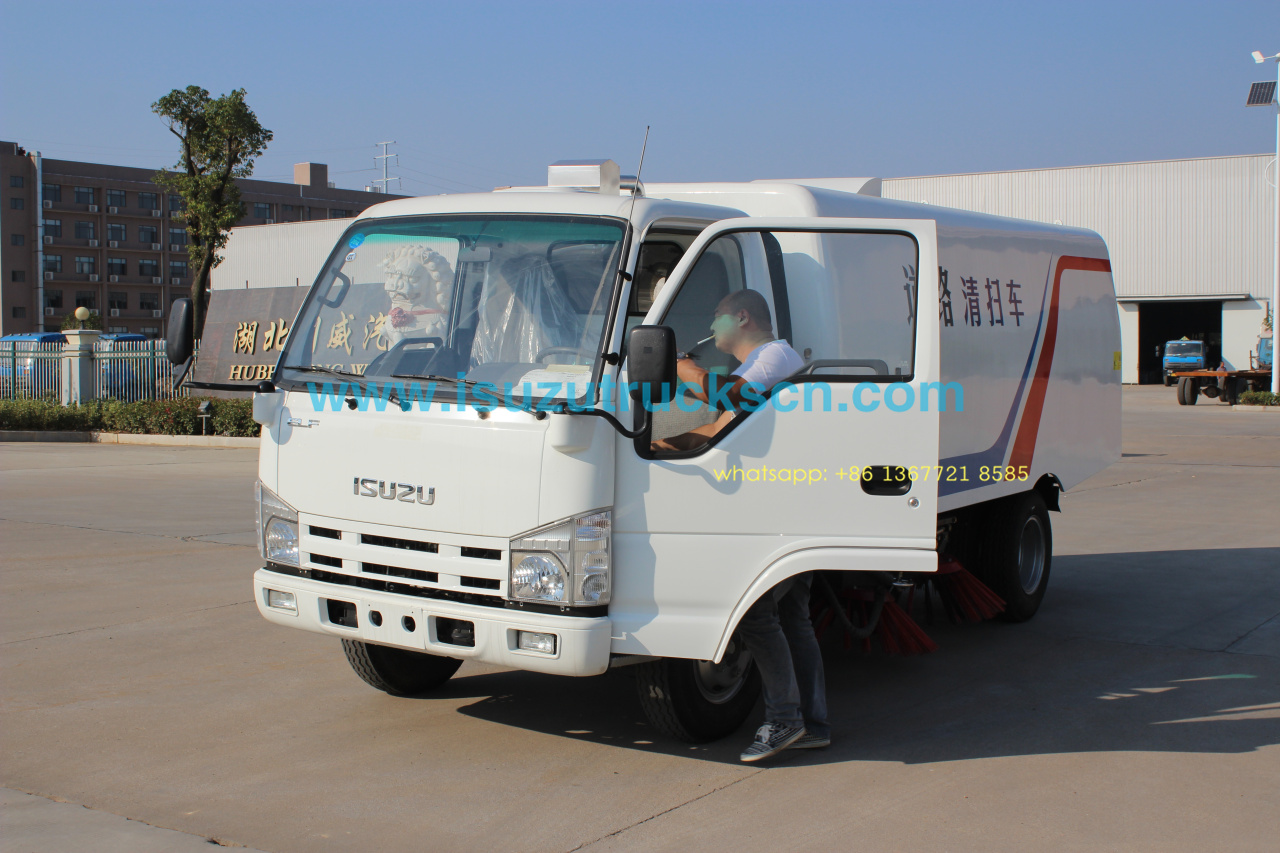

 Front right view

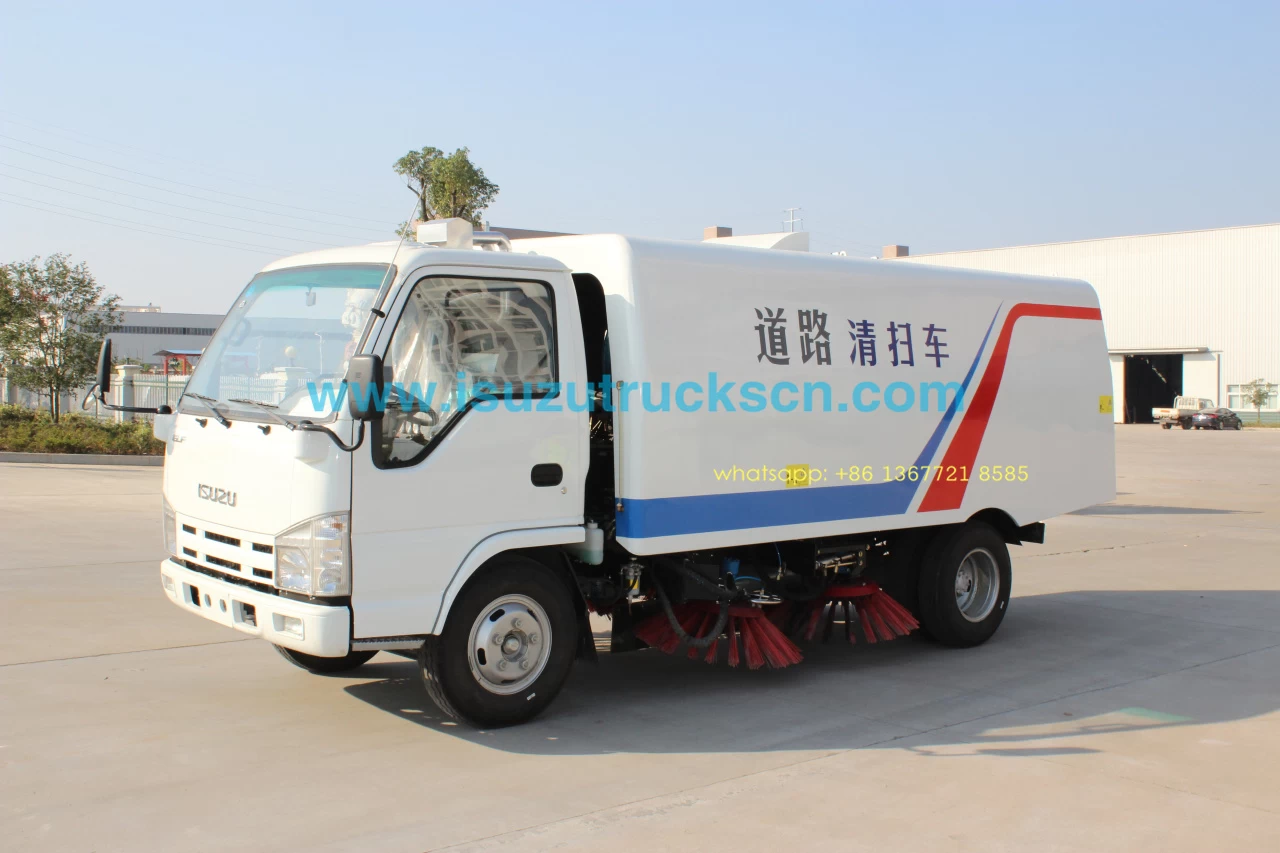

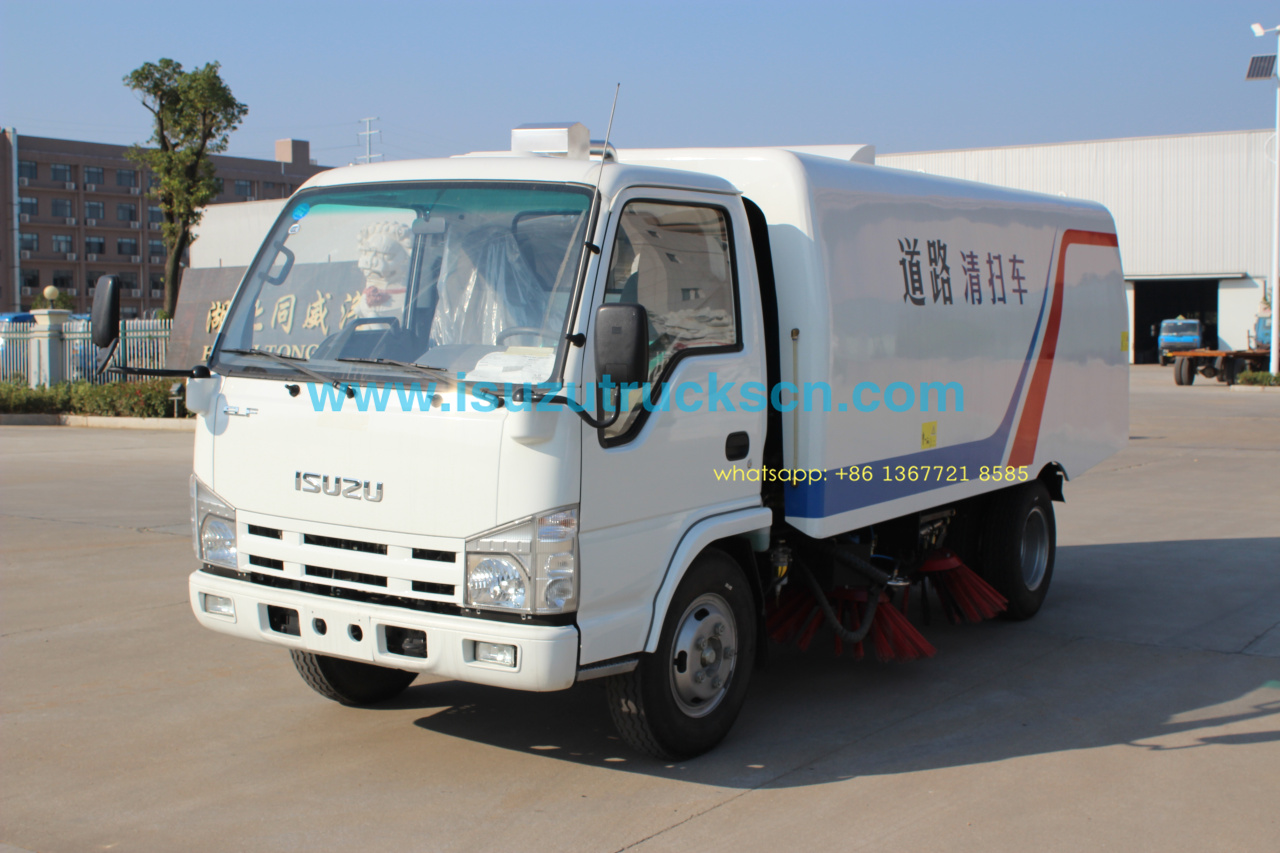

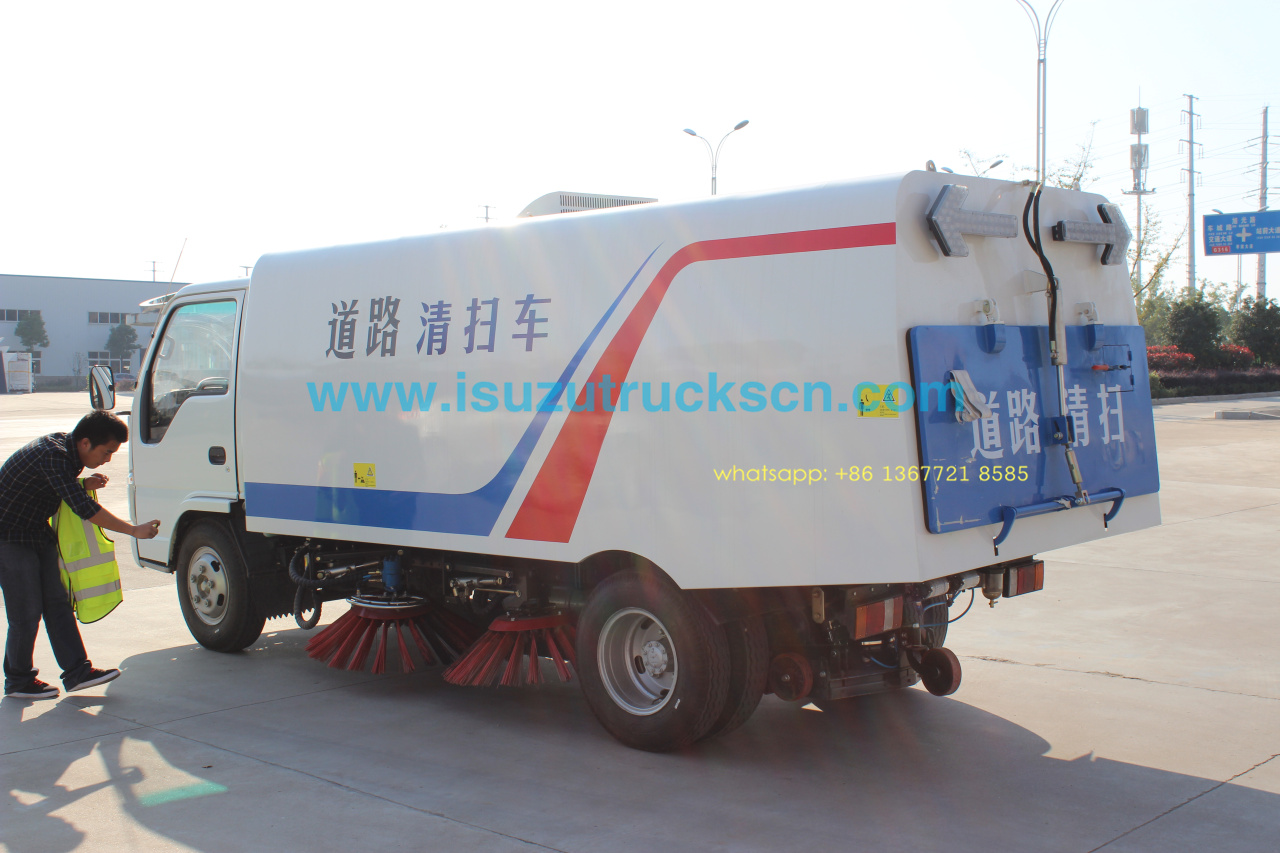

  Front left view
 ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle  ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle

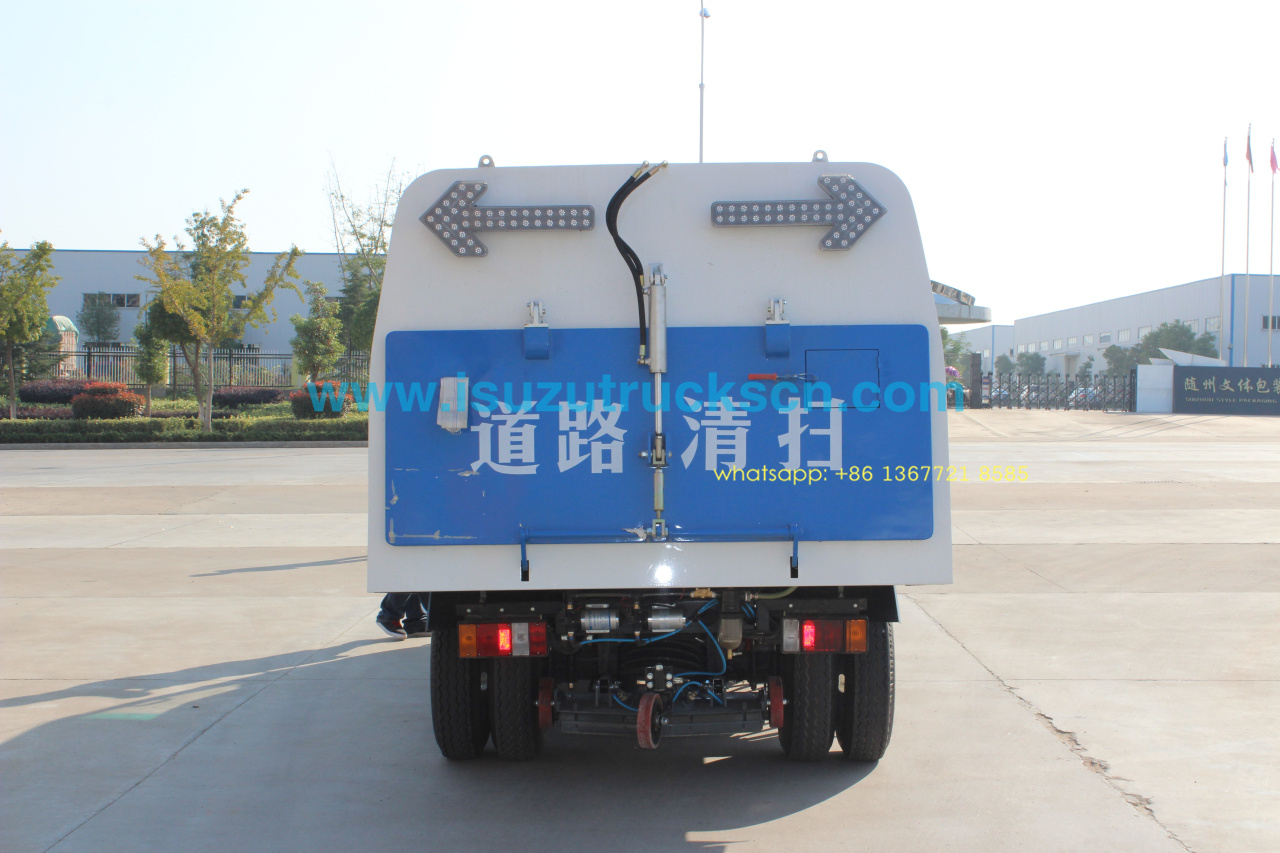

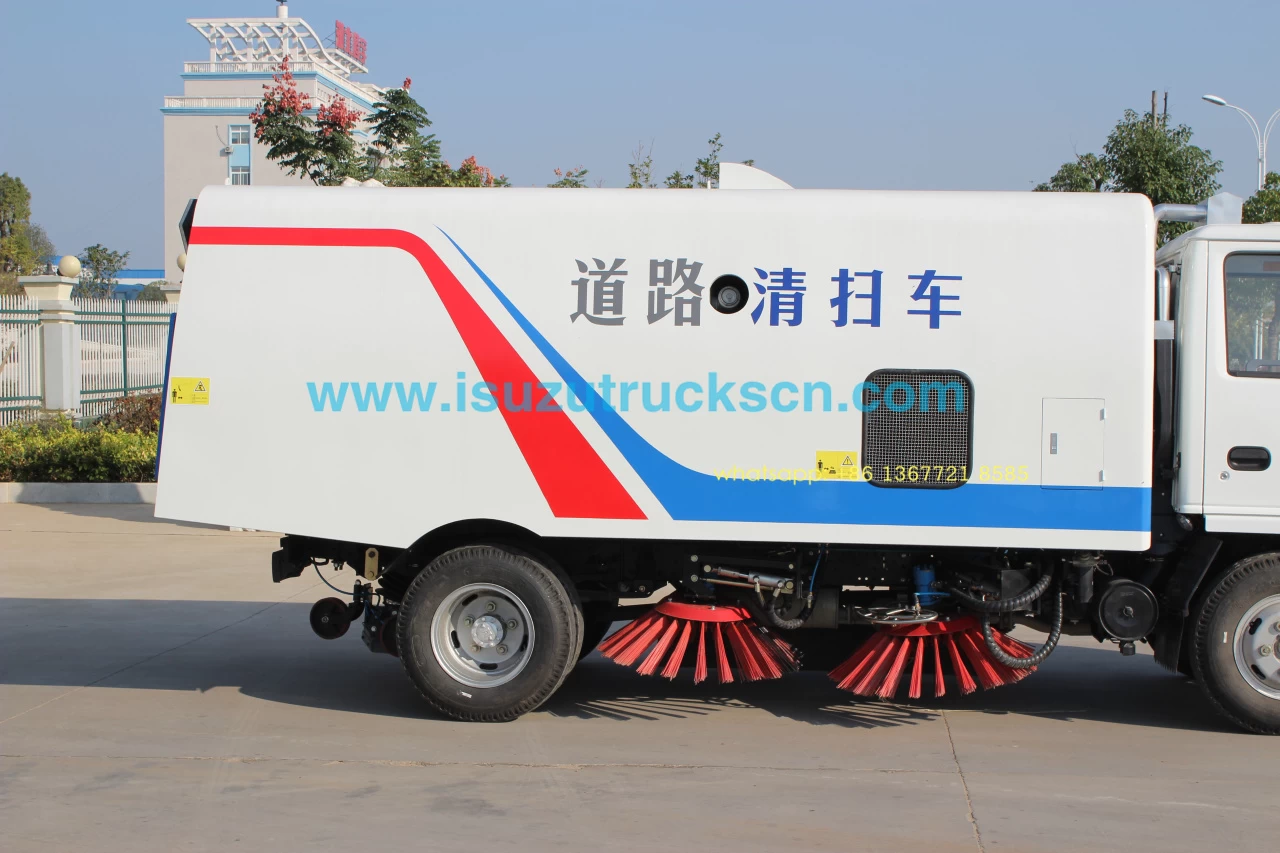

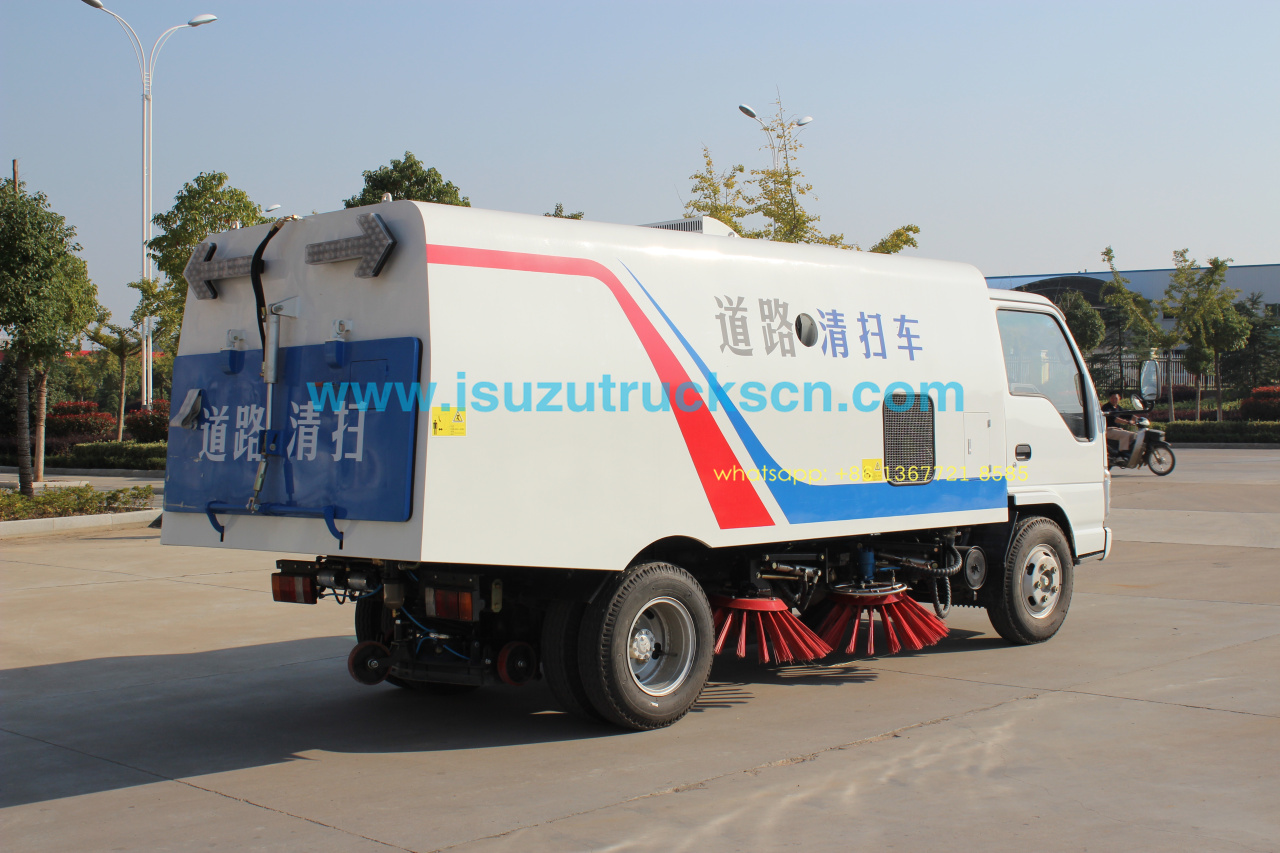

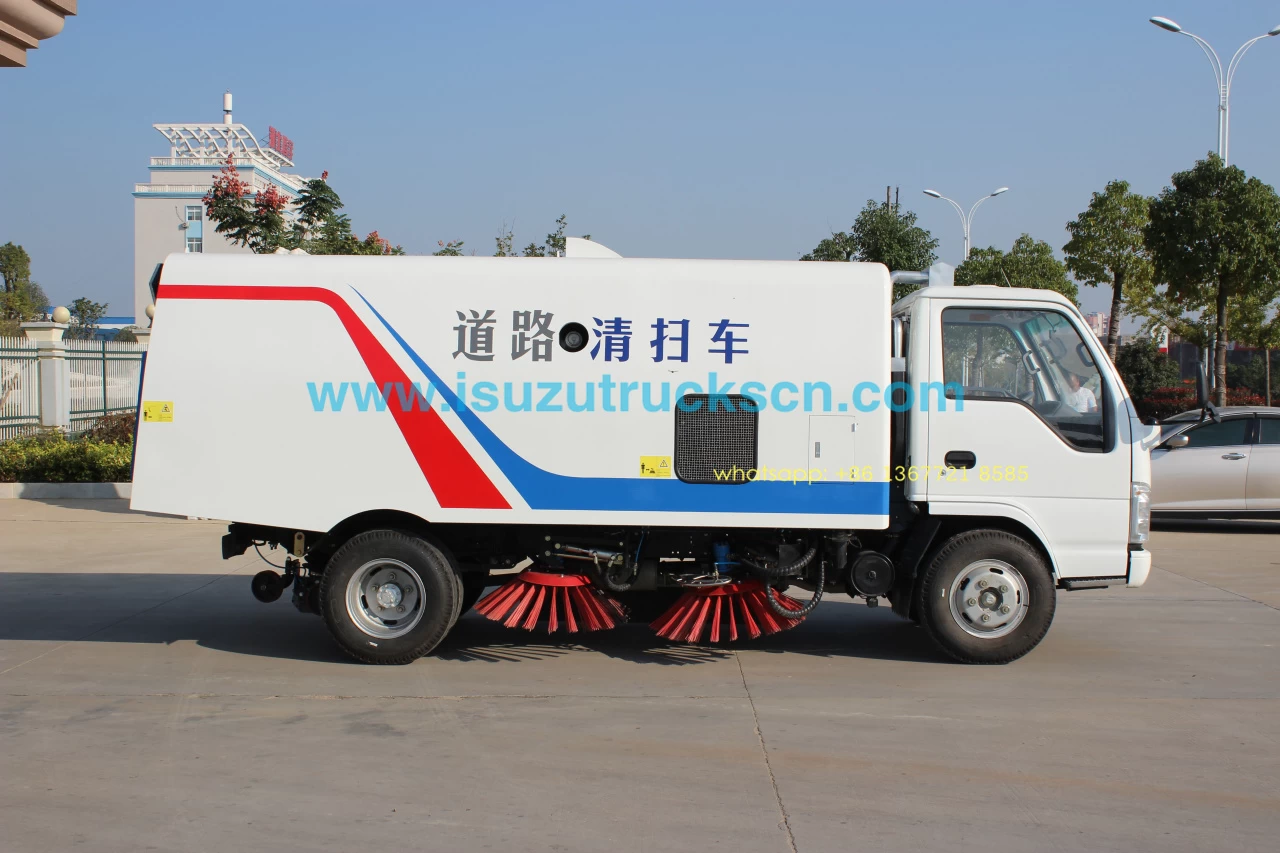

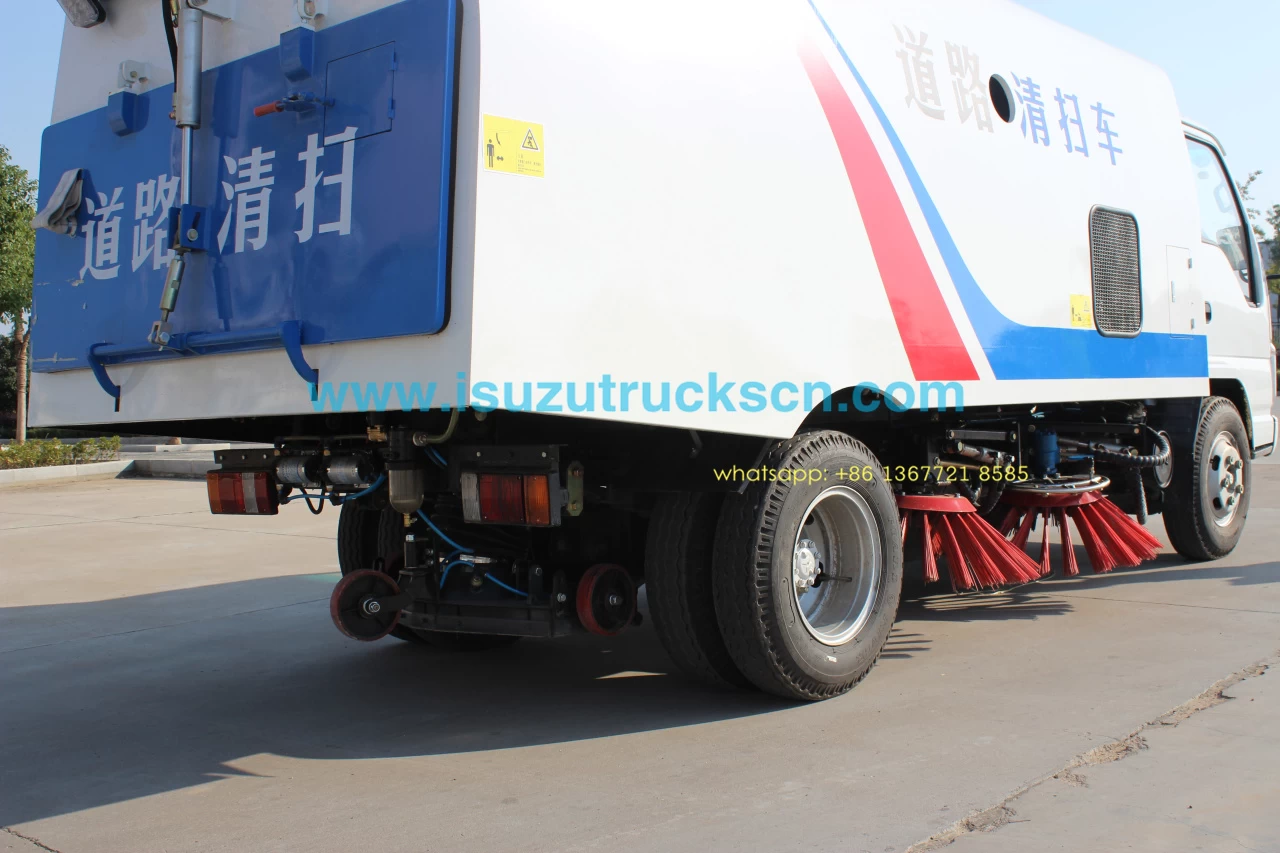

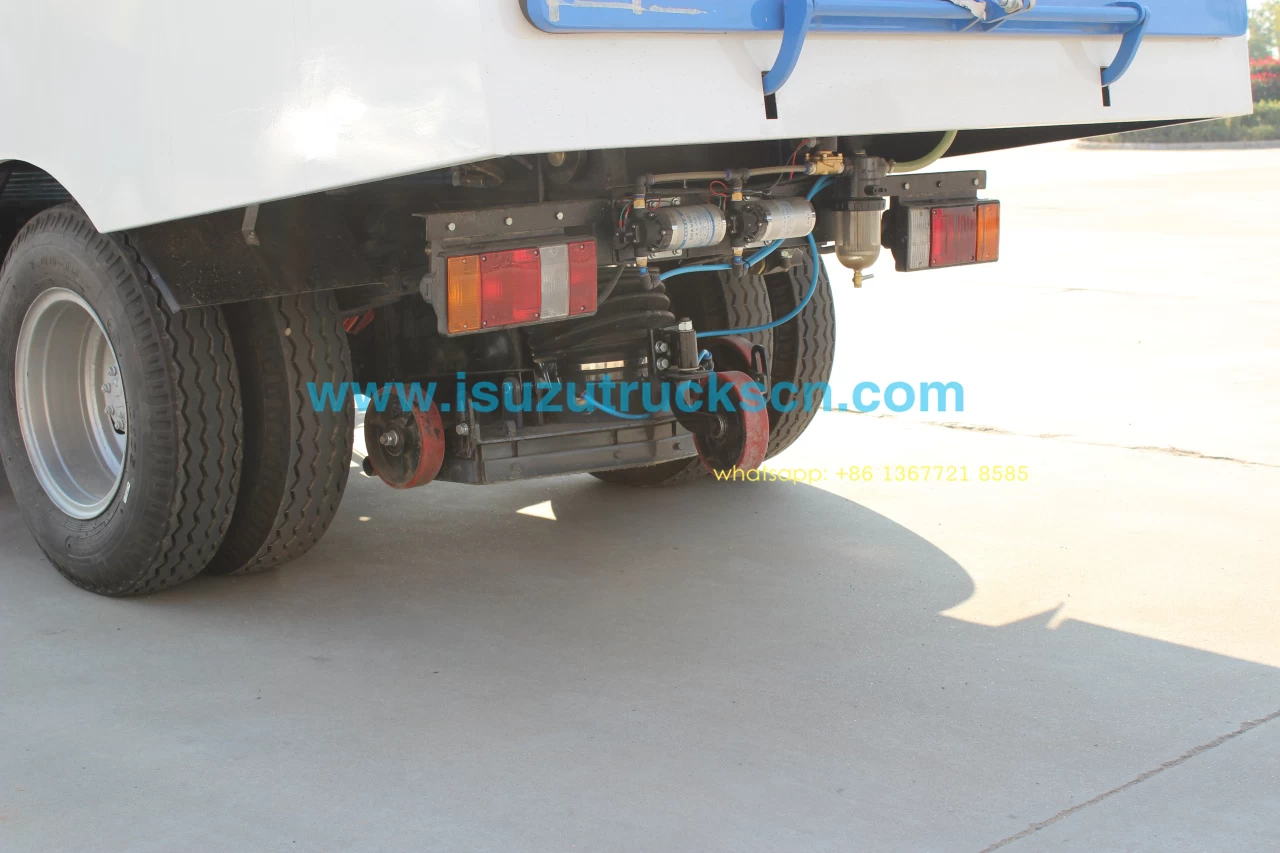

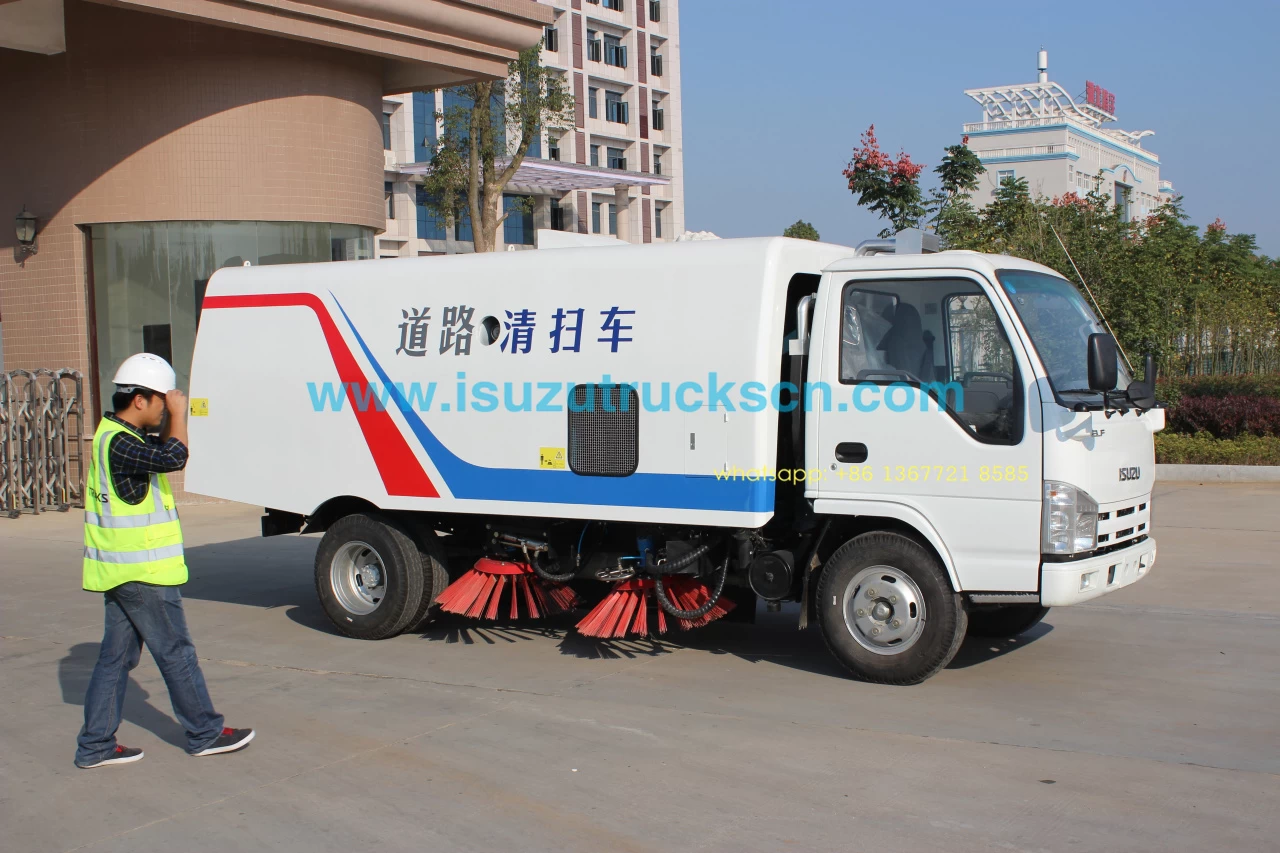

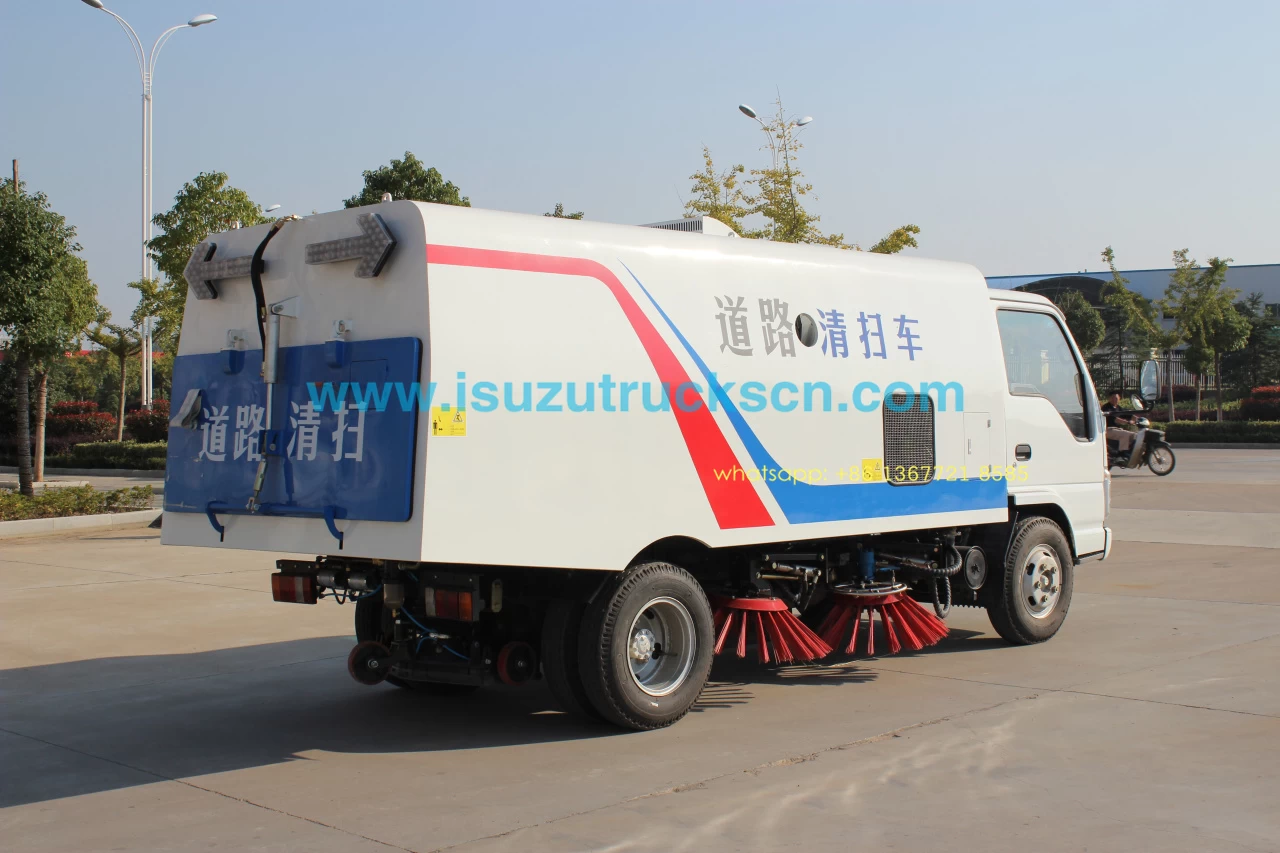

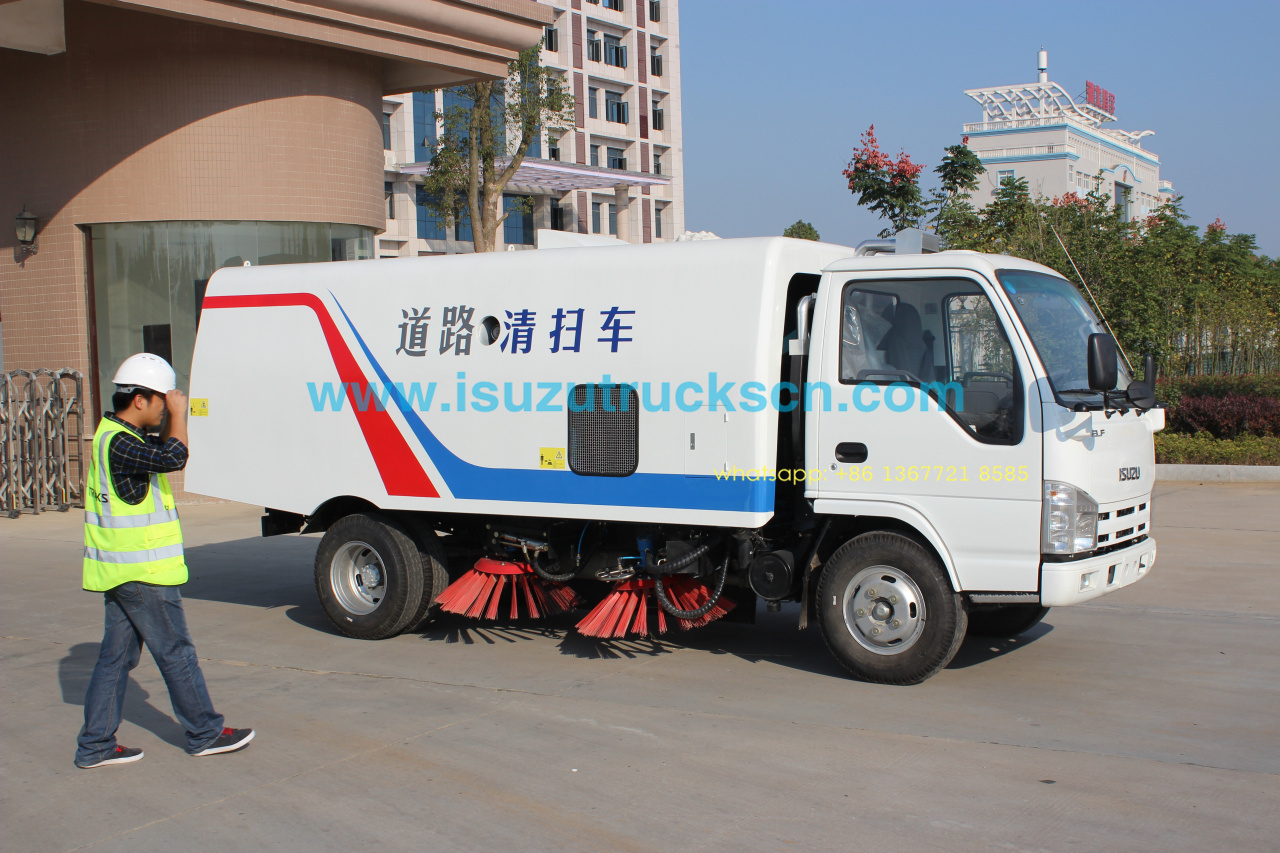

  Right side view     Rear right view

3cbm-5cbm Isuzu Road Sweeping Vehicle



3cbm-5cbm Isuzu Road Sweeping Vehicle

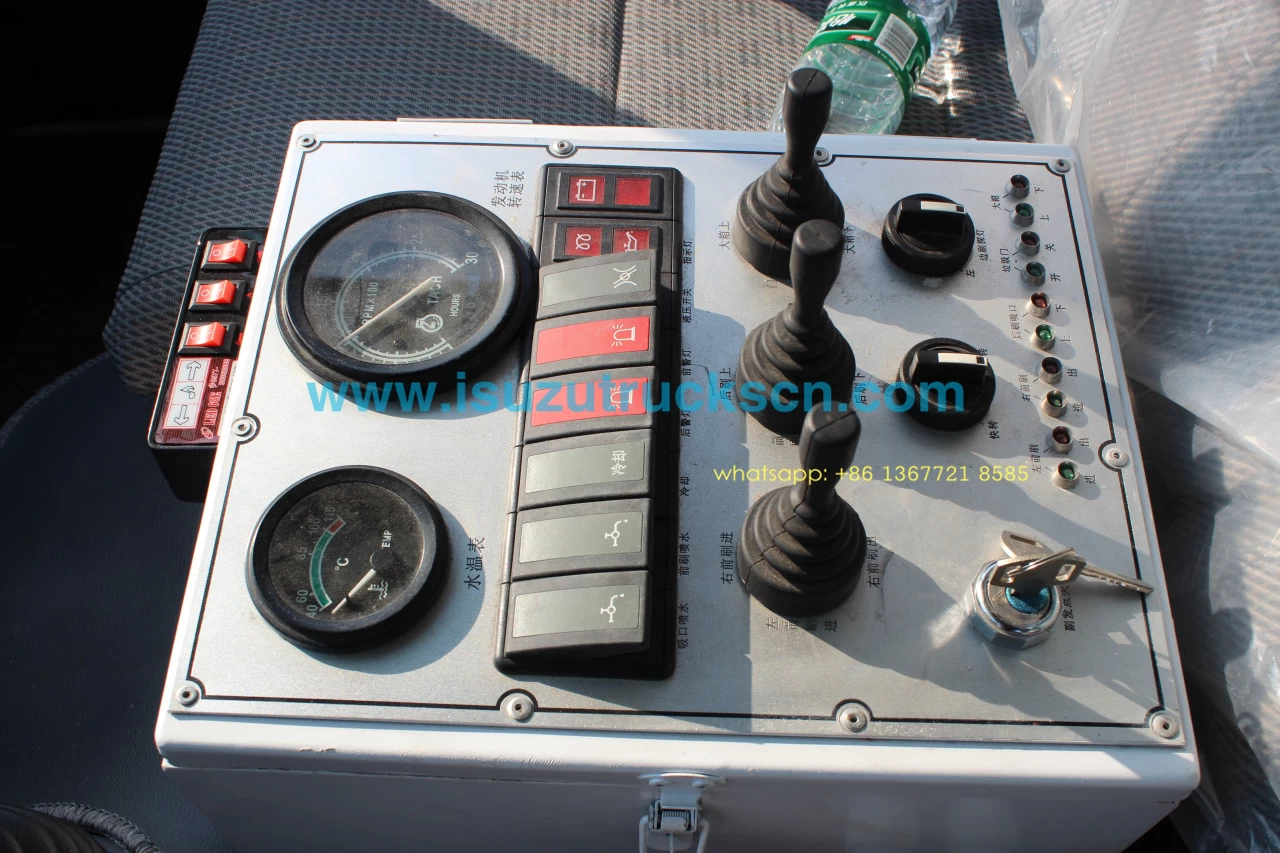

ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle control box



3cbm-5cbm Isuzu Road Sweeping Vehicle chassis



3cbm-5cbm Isuzu Road Sweeping Vehicle truck



3cbm-5cbm Isuzu Road Sweeping Vehicle 1



ISUZU NKR 3cbm-5cbm Isuzu Road Sweeping Vehicle
