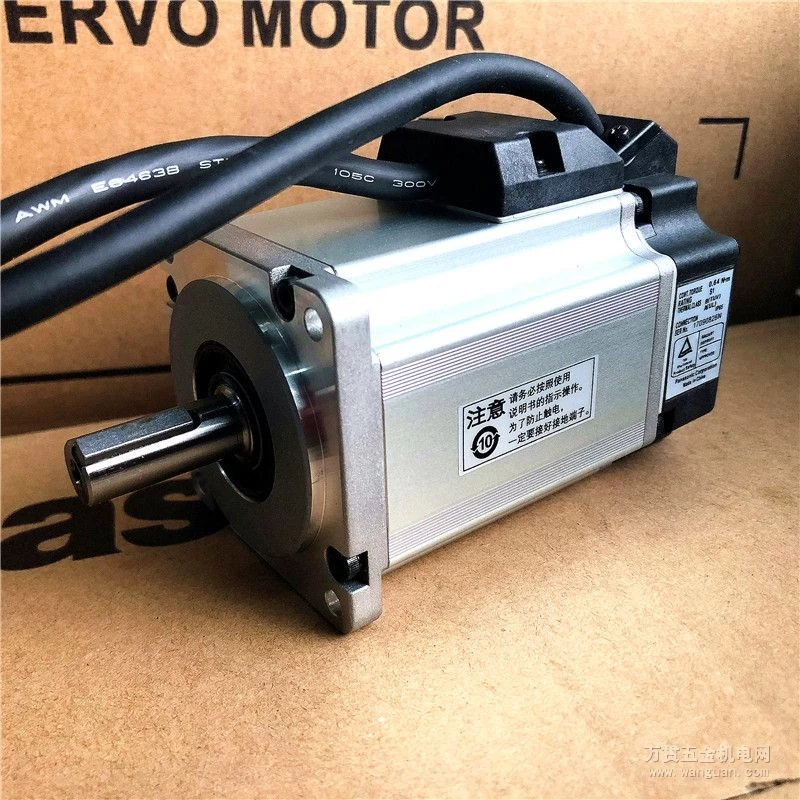

Brand New Panasonic MHMD022S1V AC Servo Motor

24 Months Warranty

17-bit Absolute/Incremental system



Our commitment

YUGUAN gives you a 2 year warranty on Panasonic series we sell.

1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.

2.Shipping cost &repair cost  by us within 1 year warranty.

3.Shipping cost by buyer, repair cost by us within 2 year warranty.


Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.

Each item has been checked and in good condition before shipping.


Description

Model Number: MHMD022S1V

  • MATSUSHITA ELECTRIC
  • PANASONIC
  • MHMD022S1V
  • SERVO MOTOR
  • REBUILT SURPLUS
  • NEVER USED SURPLUS
  • 2 YEAR RADWELL WARRANTY

Item Specifications
Part Number MHMD022S1V
Details High inertia, Lead wire type, IP65
Family Name MINAS A5
Series MHMD Series
Type High inertia
Enclosure IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
For more details Please contact us
Flange sq. dimension 60 mm sq.
Flange sq. dimension (Unit:mm) 60
Motor lead-out configuration Lead wire
Motor encoder connector Lead wire
Power supply capacity (kVA) 0.5
Voltage specifications 200 V
Rated output 200 W
Rated current (A (rms)) 1.6
Holding brake with
Mass (kg) 1.4
Oil seal with
Shaft Key-way, center tap
Rated torque (N ⋅ m) 0.64
Momentary Max. peak torque (N ⋅ m) 1.91
Max. current (A (o-p)) 6.9
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency Please refer to the details
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 5000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.45
Recommended moment of inertia ratio of the load and the rotor 30 times or less
About recommended moment of inertia ratio of the load and the rotor Please refer to the details
Rotary encoder: specifications 17-bit Absolute/Incremental system
Notice When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution 131072
