BRICK MAKING MACHINE QT10-15

BRICK MAKING MACHINE  high quality with best price and service.



BRICK MAKING MACHINE

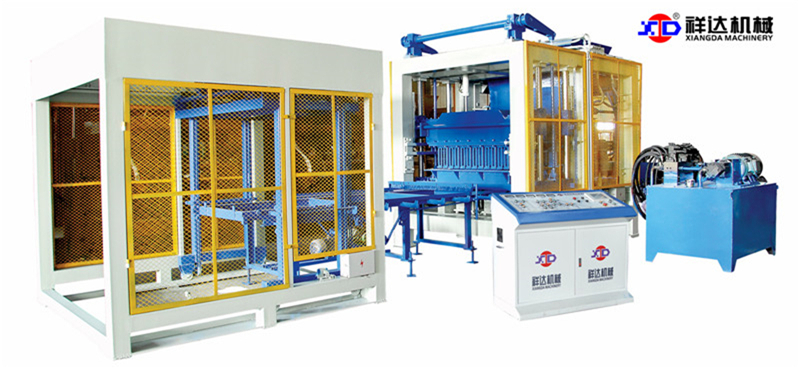

Block making machine XD10-15 is fully automatic vibrating force block machine.This block machine uses the European advanced flat vibration manufacturing technique for reference, with the lower power; it realizes the super strong vibration effect, mixing every material effectively. And the upper mould vibration compression makes the brick with average density and high strength, as well as the large-scale equipment.

Ourblock making machinesare with simple and compact structure, convenient operation and easy maintenance. It demands litter manpower and investment, but makes high output and quick ROI (return on investment). Especially suitable to produce standard bricks, hollow bricks, pavers, etc. The strength of which is higher than that of clay bricks. Various types of blocks can be produced with different molds. Therefore, It is an ideal choice for enterprises with small investment.

BRICK MAKING MACHINE


Technical Parameters

BRICK MAKING MACHINE

Dimension

3000*1980*2730mm

Vibrating style

Table mould vibration

Vibration frequency

50-70Hz

Rating pressure

20Mpa

Pallet size

1100*880mm

Cycle time

15-20s

Power

35 Kw

Weight

10500kg


Capacity

BRICK MAKING MACHINE

Name & picture

Size

PCS/MOULD

PCS/HOUR

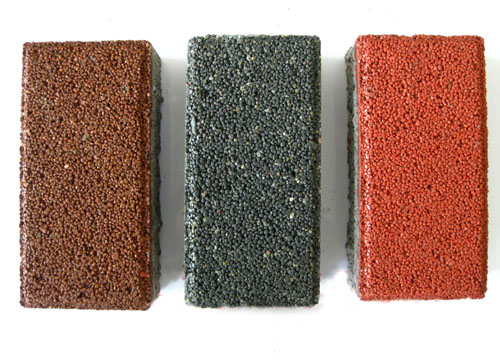

Hollow block



400*200*200mm

3



Porous block

240*115*90mm

8

1440

Solid brick

240*115*53mm

18

3240

Holland brick

200*100*60mm

10

1440

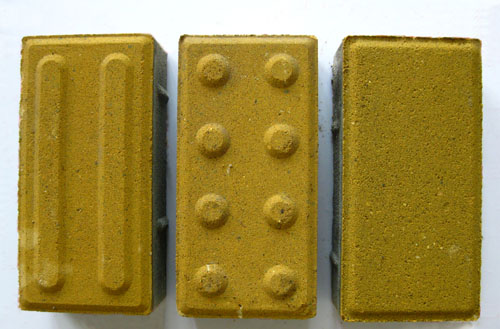

Paving block

225*112.5*60mm

10

1440


Feature and Advantage

BRICK MAKING MACHINE

BRICK MAKING MACHINE

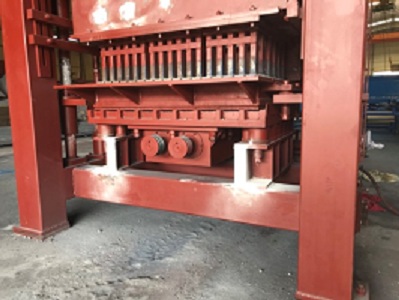

Machine has a very compact structure, uses high special steel and advance heat treatment, leading to a long lifespan.

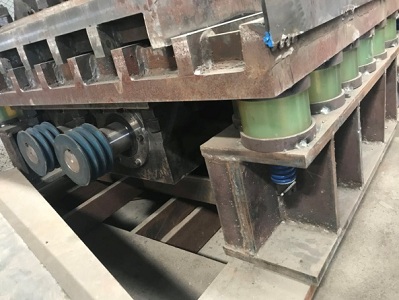

We used the Rubber pad (PU) under the Shaking box, Can reduce the noise when the machine working. More Stably.



BRICK MAKING MACHINE


BRICK MAKING MACHINE

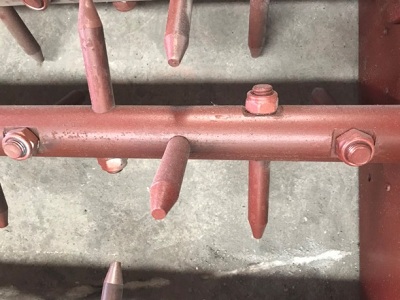

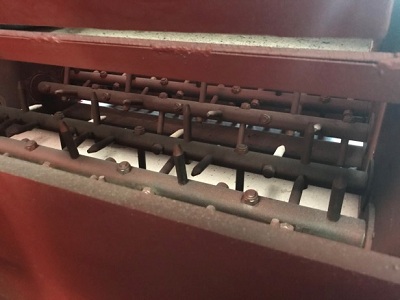

Our Aggregate box shaft will 360°rotation, Make sure the material stir evenly. The Mixing tooth could change easily.

Utilizes SEW or Simens motor (Frequency-Controlled) to ensure a extended type high-efficient vibrotechnique.

thus, the concrete product will be of high strength and high density.

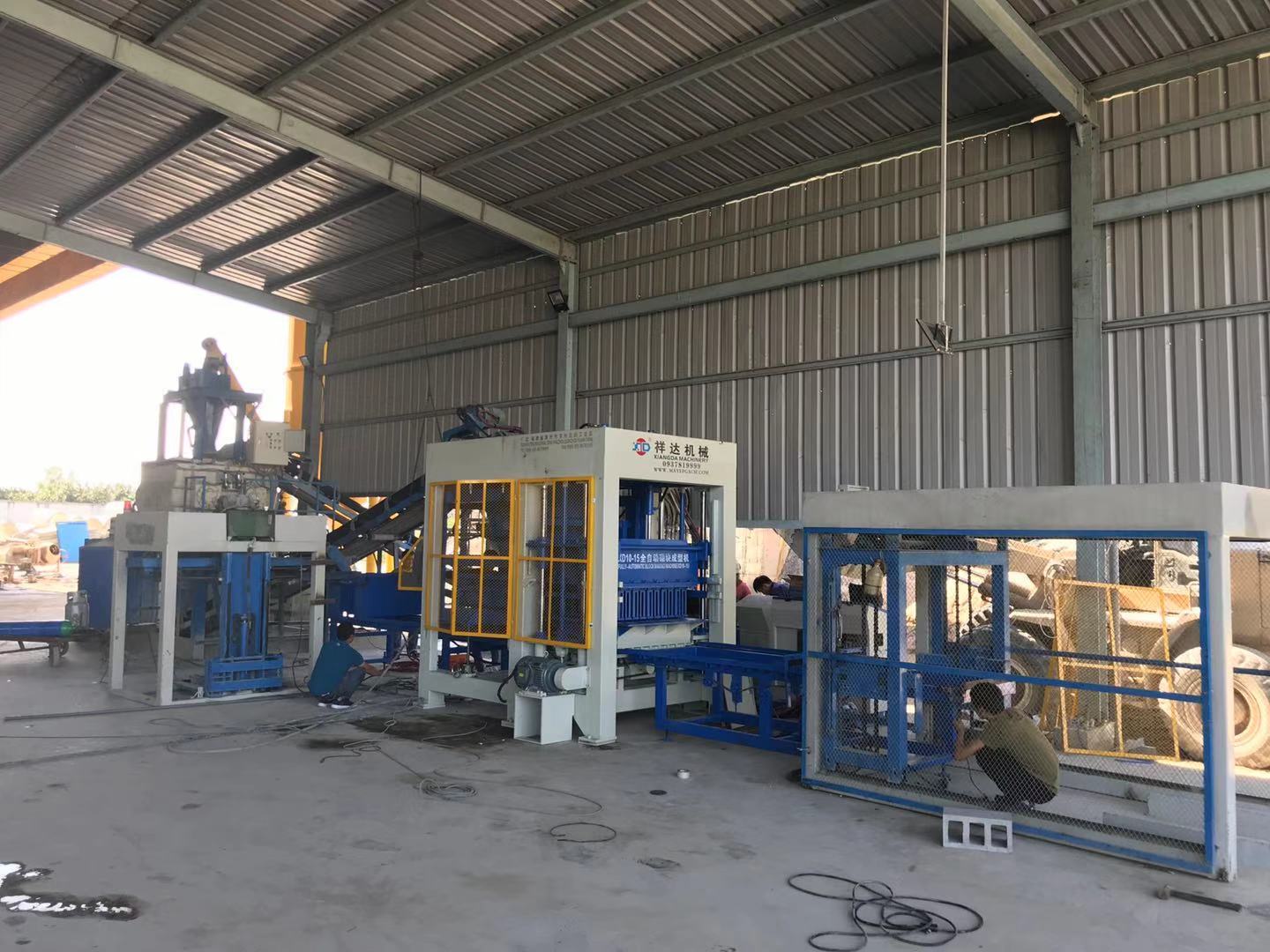

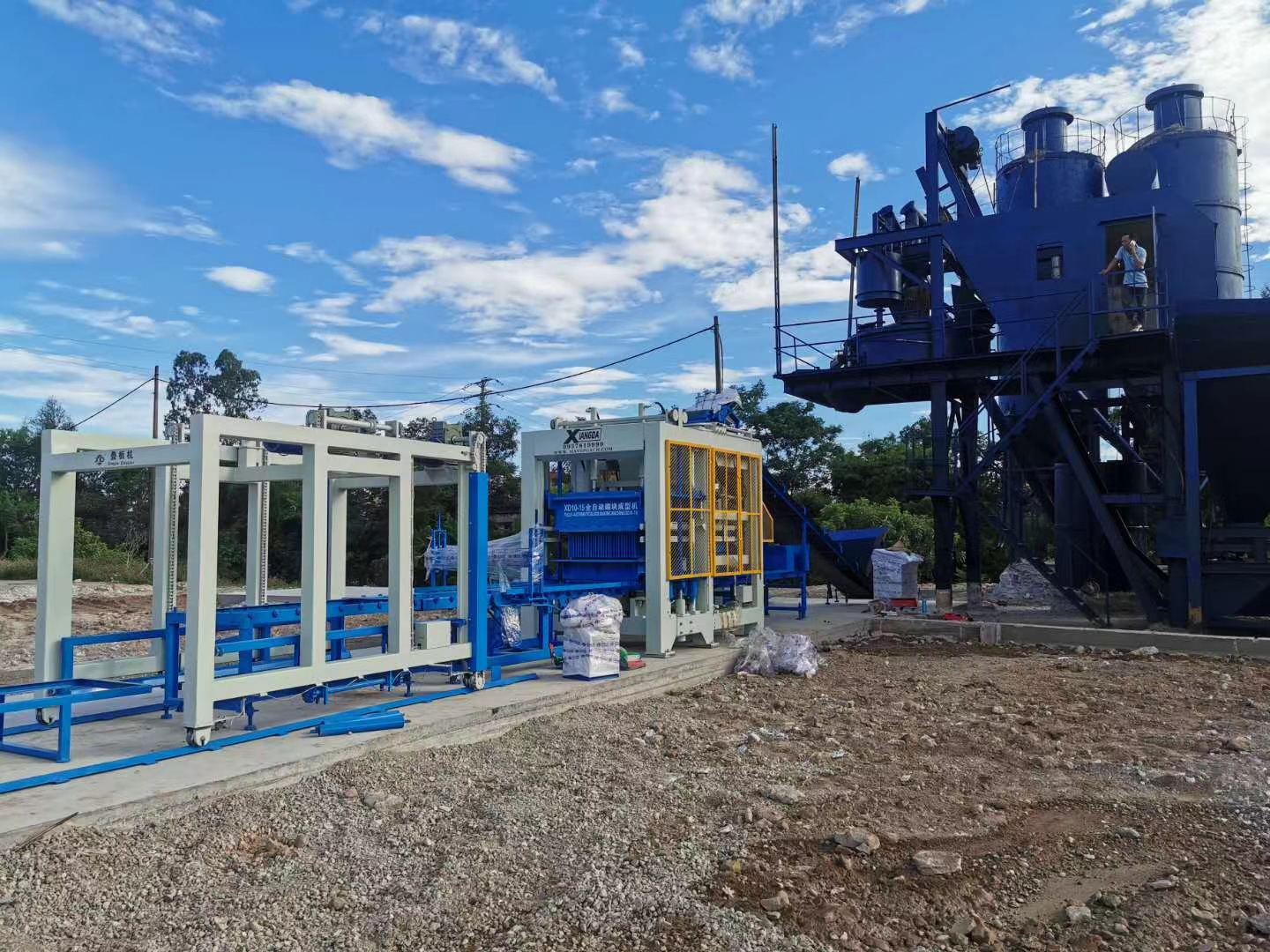

Product application scenarios

BRICK MAKING MACHINE

BRICK MAKING MACHINE

BRICK MAKING MACHINE


Packaging & Shipping

Packaging: standard Container, Nude Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.

Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request.

Most of the time,the equipment will be loaded to the containers in the factory.

Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.

Shipping: we deliver the cargo to China's main sea ports,like Xiamen port.And then the container will be transported to your country by sea.


Cooperative customer situation

BRICK MAKING MACHINE


FAQ

1.How many series of products XIANGDA have?

a)Concrete Block & Pavers Making Plant

b)AAC Blocks & Bricks Making Plant

c)Concrete batching Plant

d)Stone crusher


2.What’s kinds of raw material can produce concrete block?

Sand, stone, stone powder, cement, fly ash, slag, steel slag, coal gangue, ceramsite, perlite, construction waste, etc.,

but the specific formula ratio needs to be confirmed by technicians when encountering special raw materials.


3.What’s the feature of  Panasonic touch screen?

Reliability: It has strong resistance to shock and vibration;

The panel adopts an integrated seamless design, which is very dustproof, waterproof and oil resistant;

The high-brightness color display makes it easy to see the screen and perform correct manipulation even under strong light.

High-performance 32-bit ARM7 CPU processing chip, 8M large memory, enabling the device to have fast maneuver response time;


About Us

Quanzhou Xiangda Machinery Manufacture Co., Ltd. is a professional high-tech enterprise for concrete block making, owning R&D,

manufacturing,sale and after-sale service.Xiangda Corporation is established in the beginning of 1990s,

which is located in Quanzhou City, near to Xiamen Port, china. During over20 years,

we have been developing fast and getting more and more powerful with continous tech innovation and China patents.

Our main products as flws:concrete block machine. Composite insulation wall panel machine, Permeable brick production line,

Automatic palletizing system, paving block and curbstone machine, mixer batching plant and other construction machinery.

*We strictly obey the latest standard in block making industry.

*We have passed QM ISO9001:2000 and CE. Our products are popular for its stable quality and high tech.
