Product Introduction

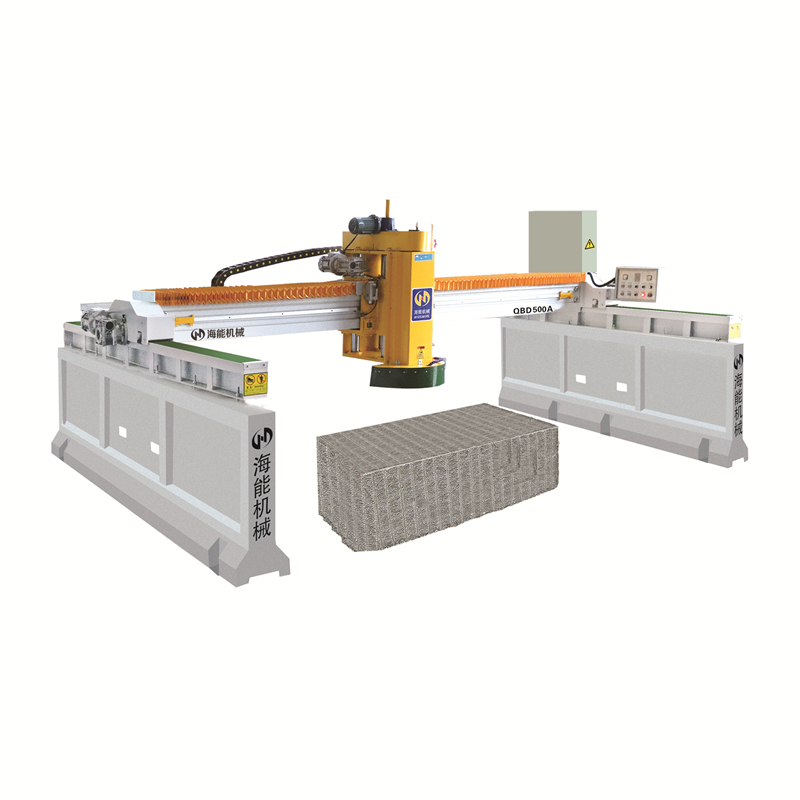

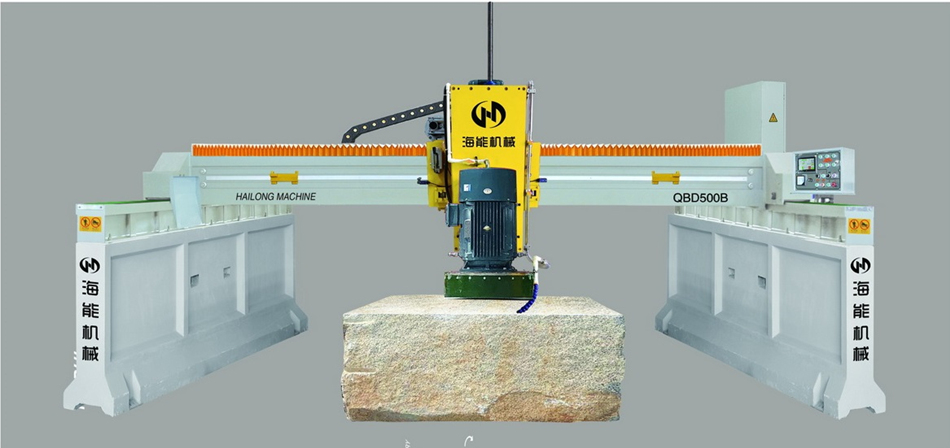

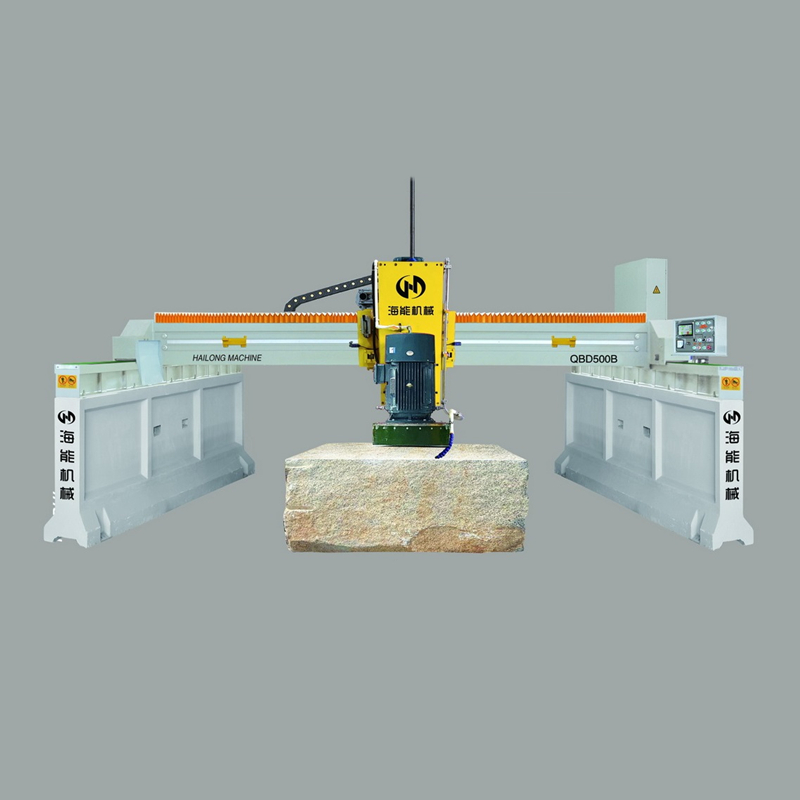

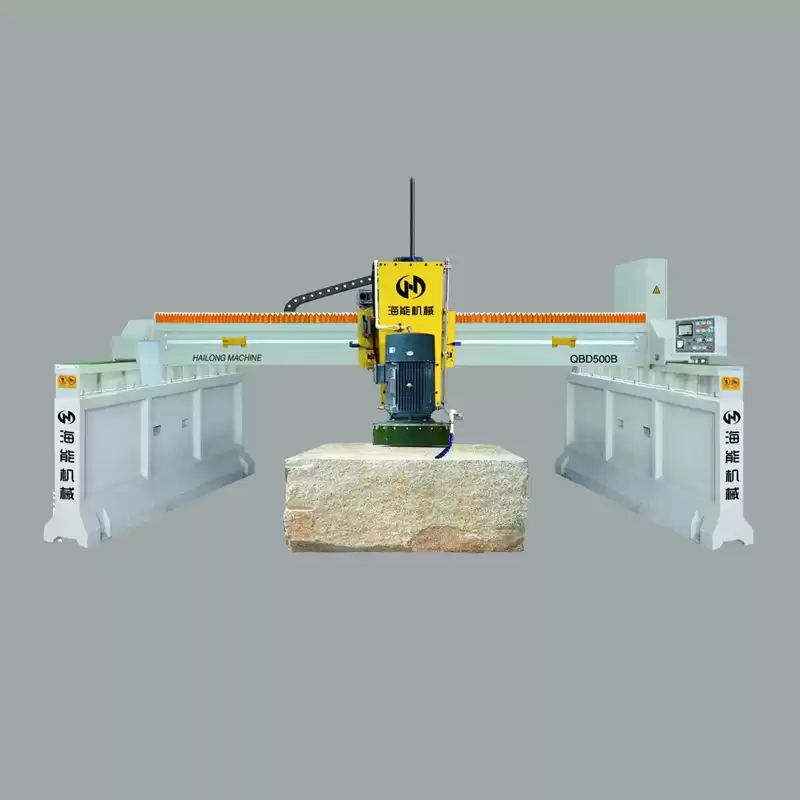

Bridge Bottom Trimming Machine is used for trimming plate bottom or thick material.
The machine adopts bridge structure and head moving working mode, which makes the machine agile and stable in precision .
Since the machine came into being,it has completely turned the bottom of the stone processing enterprisescrap board into treasure, greatly reduced the production cost ofthestone processing enterprises, and improved thebenefit.
Technical Parameters
|
Bridge Bottom Trimming Machine
|
|
Type
|
unit
|
QBD500A
|
QBD500B
|
|
Blade diameter
|
mm
|
Φ500
|
Φ500
|
|
Maximum processing size (L×W×H)
|
rpm
|
3000×2000×250
|
3000×2000×250
|
|
Main motor power
|
kw
|
22
|
22
|
|
Total power
|
kw
|
26.5
|
26.5
|
|
Water consumption
|
m³/h
|
4
|
4
|
|
Dimension (L×W×H)
|
mm
|
5000×4000×2500
|
5000×4000×2500
|
|
Total weight
|
kg
|
4500
|
5500
|
Processing
