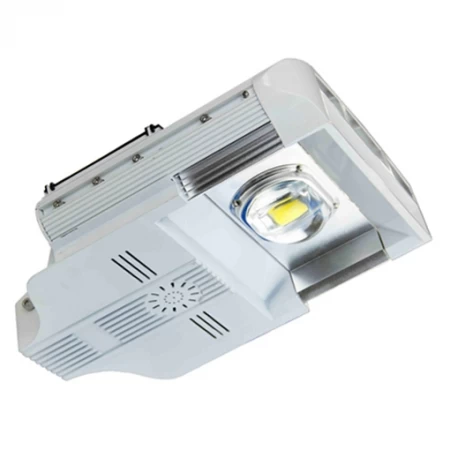

Bridgelux COB 60W Outdoor LED Street Lighting Fixtures

Dawn series 60W LED street light with Bridgelux 45mil COB chip, 120lm/w, PF>0.95, CRI>75, total 12,000lm, module design, easy maintenance, 5 year warranty.



Dawn Series Bridgelux COB 60W Outdoor LED Street Lighting Fixtures

60W LED street light installation height 6-8 m , widely used in urban slip roads, residential roads, rural roads.

LEDCENT dawn series LED street light are famous for high lumens, the brightness is higher than the industry average of 30%.

Dawn street lamps with strong weathering performance, -25 ~ +55 ℃ can be used stably. Products with a large number of applications in Russia, Africa, China Xinjiang, northeastern regions of China and other extreme temperatures area.

1、We use a higher luminous efficiency of the LED chip to ensure that solar street lights have a better performance output;
2、Pure copper chip holder, providing a strong thermal conductivity LED chip capacity;
3、The use of Dow Corning silicone encapsulation, to provide a more stable light-emitting chip environment;
4、Gold-free package  technology for LED chip optional,  greatly extend the life of the light source;

1、6030T high-performance aluminum alloy determines its physical properties, this radiator has excellent thermal conductivity, strength, toughness, weather resistance;
2、Surface anodizing treatment, with good anti-corrosion properties;
3、Radiator fin corrugated design, large area to increase the thermal radiation capacity;
4、Thermal design has a strong air convection capacity, can quickly take away the heat of solar street light;

1、Professional batwing lighting distribution, 135 ° beam angle;
2、More professional LED solar street light distribution, the light can be more uniform output to the lighting area;
3、A grade optical glass, light transmission rate of 92%;

All fasteners are made of 304 stainless steel

1、Modular design, lamps can quickly complete with the disassembly and maintenance;
2、Single module damage does not affect the work of other modules;

Patent design, open the lamp cavity in 2 seconds, to maintain the interior of the lighting fixture;

1、Lamps can achieve ± 15 ° multi-angle adjustment;
2、The series of LED solar street light has excellent protection, protection rating of IP67;
3、Through the professional wind tunnel test, the maximum wind speed 65m / s (i.e 17 level of the hurricane) environment, no deformation and loosening firmly;

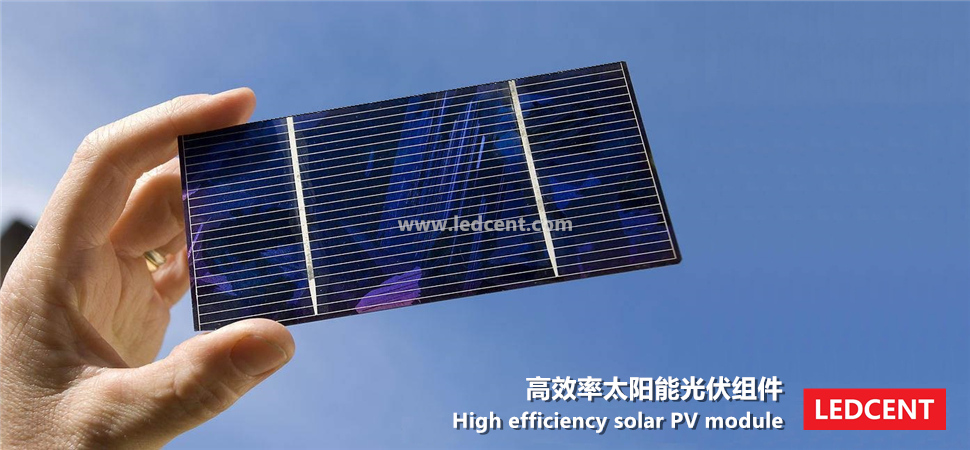

1、Polysilicon solar PV modules, the conversion rate of more than 17%;
2、Monocrystalline silicon solar PV modules, the conversion rate of more than 19%;
3、With a strong compressive capacity, can withstand 3800 Pa pressure and 5400 Pa snow pressure;
4、Surface covered with nano-coating, with automatic cleaning function;
5、Can work in low light conditions, maximum utilizing solar energy converting it to electric energy;

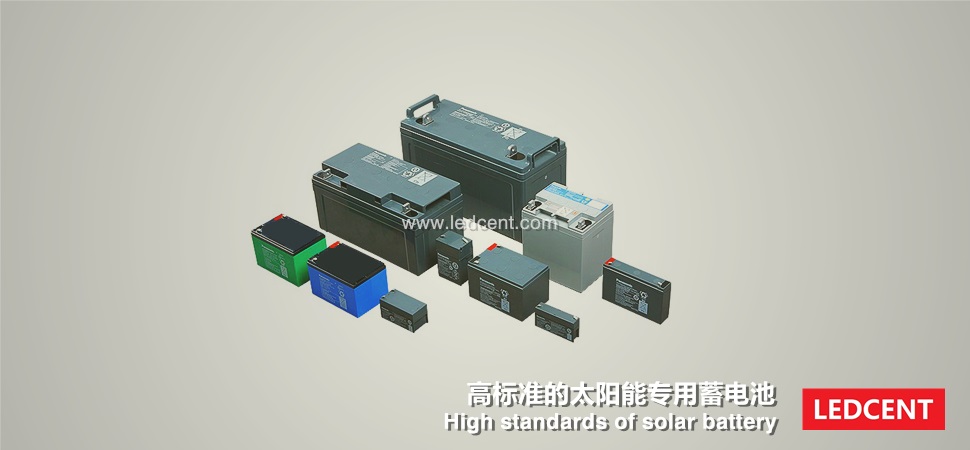

1、The use of high-quality solar dedicated battery to ensure the stability of LED solar street lights working;
2、According to different application of the environment, we provide lithium batteries, gel batteries, lead-acid batteries, and other different types of products;

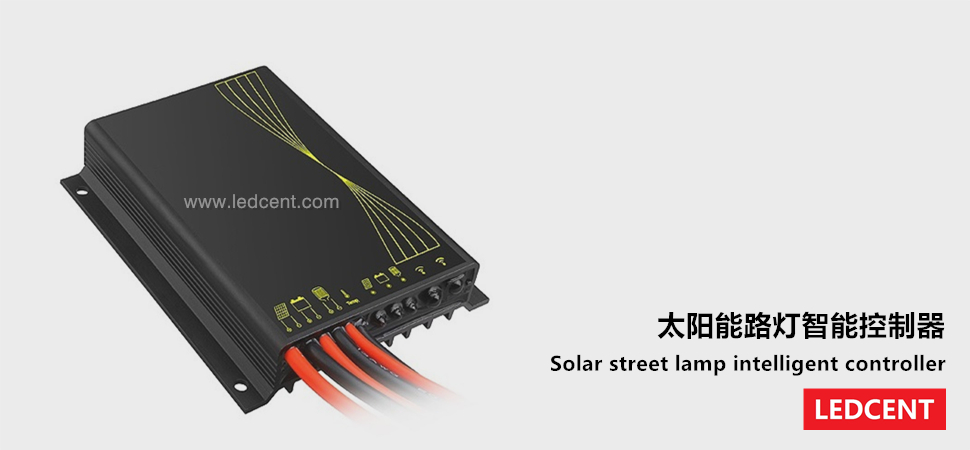

1、PWM charging;
2、High precision constant current control, the highest efficiency up to 96%;
3、Realize multi section dimming, 0-15 hours can be set, 0-100% power can be set;
4、Automatically adjusting load power according to battery power;
5、With over charge protection, over discharge protection, short circuit protection, open circuit protection, reverse connection protection;

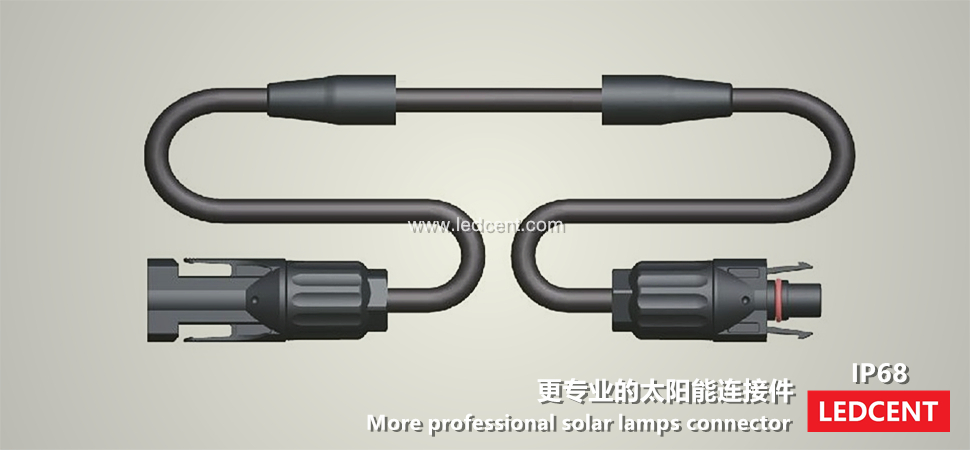

1、More professional solar LED street lamp special connectors optional, protection class IP68;
2、Strong corrosion resistance and aging resistance;
3、Plug and play, can achieve rapid installation;

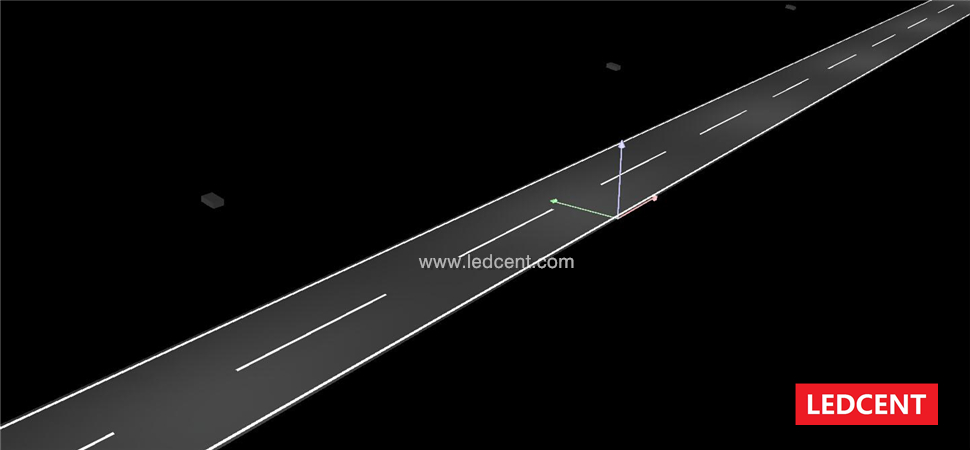

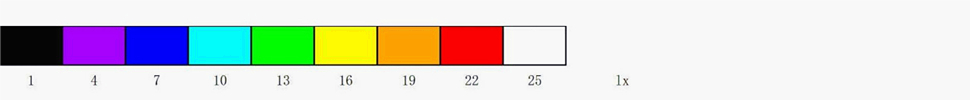

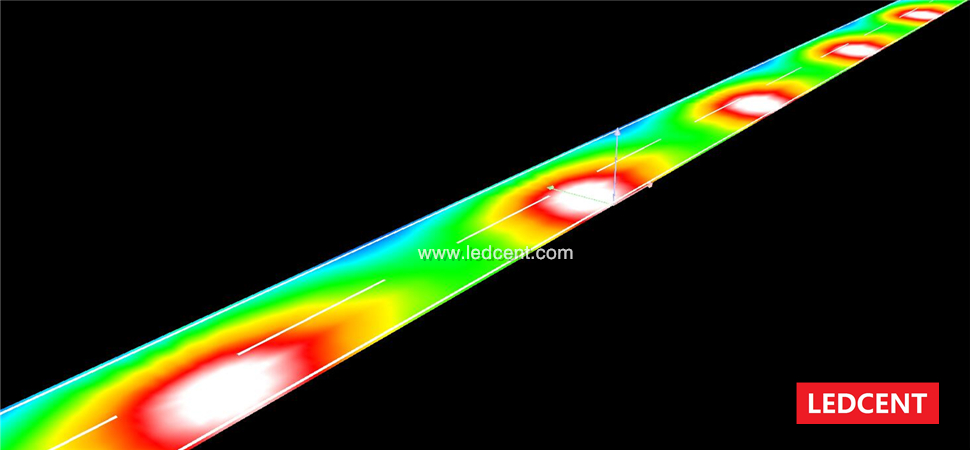

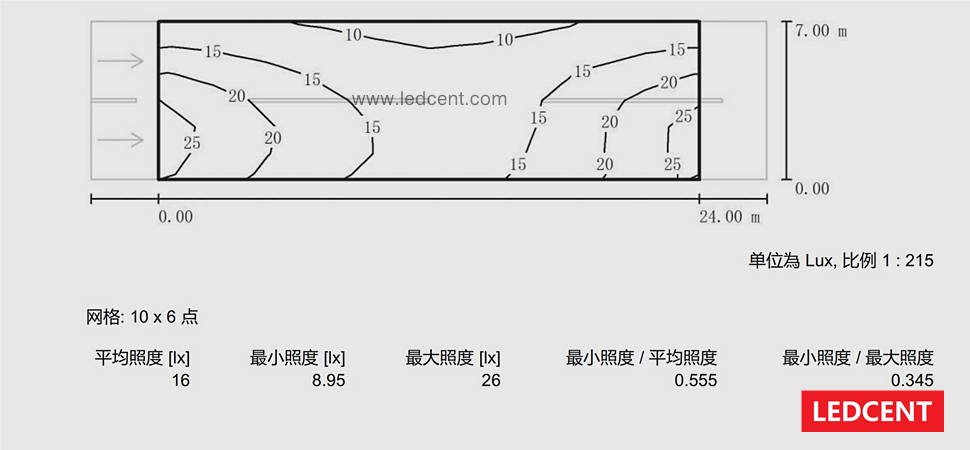

Road illumination simulation
Road width: 7 meters                   Arrangement mode: single side cloth lamp                 Height: 8 meters                   Installation distance: 25 meters
Lamp elevation: 5                       Product power: 50W



Product parameters

  Model :

 LC-T001-1-60

  Power

 60W

  Luminare Flux

 6600lm

  Color Temperature

 2700 ~ 6000K

  Color Rending Index

 75

  Input Voltage

 DC 12V / 24v

  Solar panel power

 220W  (3 hours of sunshine)       190W (3.5 h)      170W (4 h)       150W (4.5 h)      130W (5 h)

  Battery capacity

 50Ah, 12V

  Protection class

 IP67

  Workinging time

 10 hours

  Rainy days

 3-4 days

  Operating mode

 full 5 hours before the next 5 hours half-power operation

  Applicable temperature

 -25 ℃ ~ 55 ℃

  Applicable height

  7 ~ 8 meters

  Applicable distance

  25 to 30 meters



Note: the above data for reference only, according to the different areas of sunshine, environment, workinging time and other factors change, allocation will change
