BS 6004 6181Y BVV Single Core Electrical Wire And Cables
PRODUCTS NAME
BS 6004 6181Y BVV Single Core Electrical Wire And Cables
PRODUCTS KEYWORDS
6181Y, BVV, SDI electric cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
BS 6004 6181Y BVV Single Core Electrical Wire And Cables, fixed installation in dry or damp areas for domestic and light industrial wiring. Also used in connection to (smart) meters.

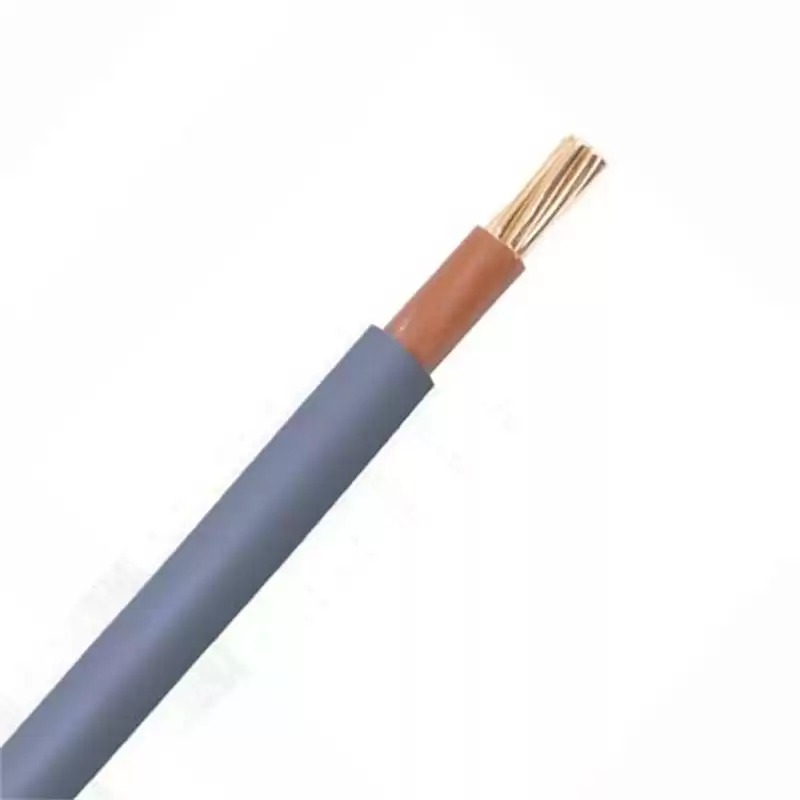

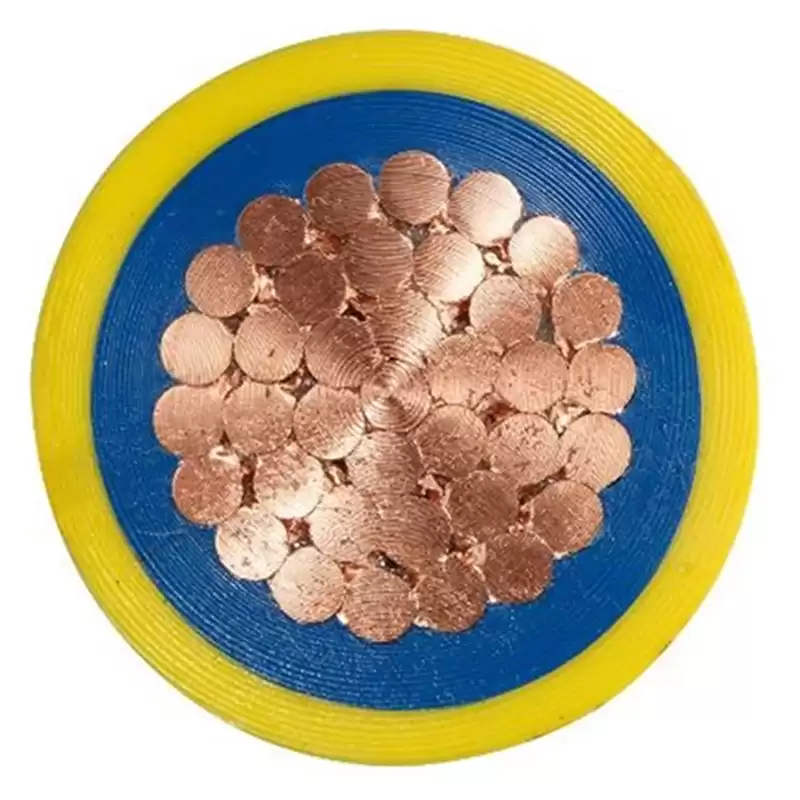

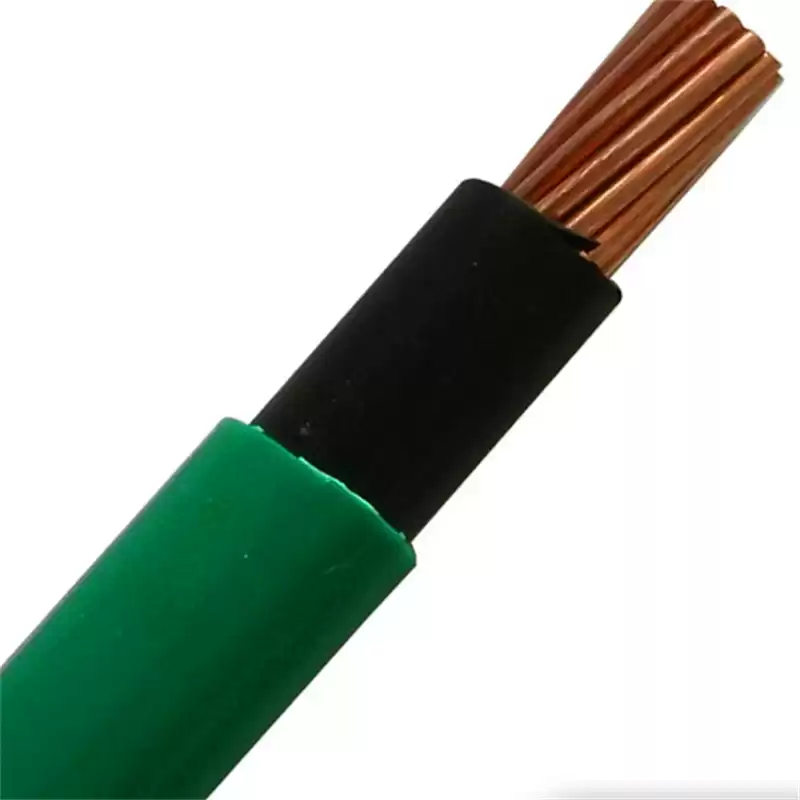

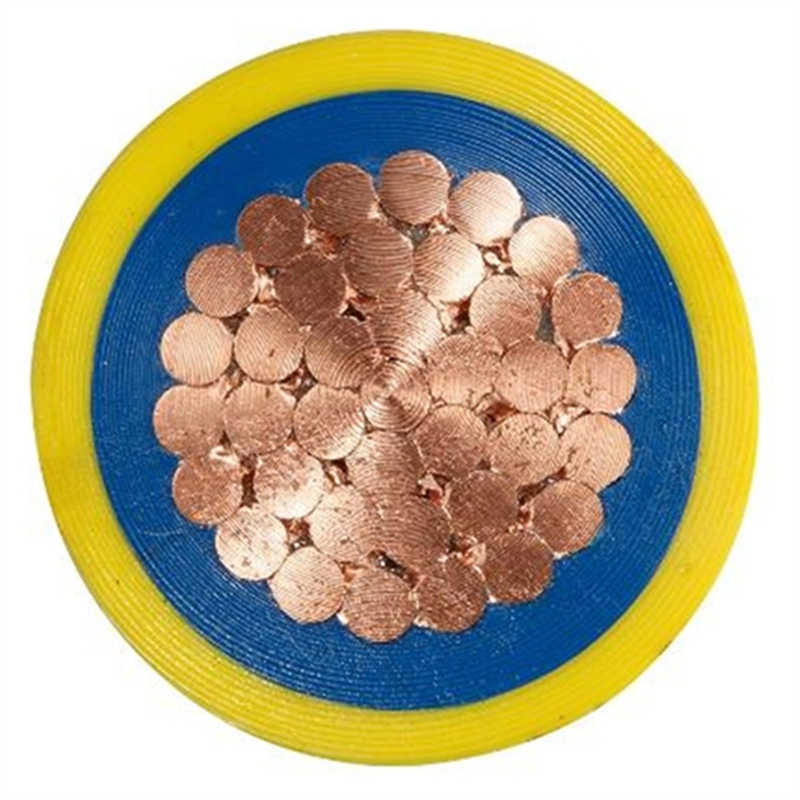

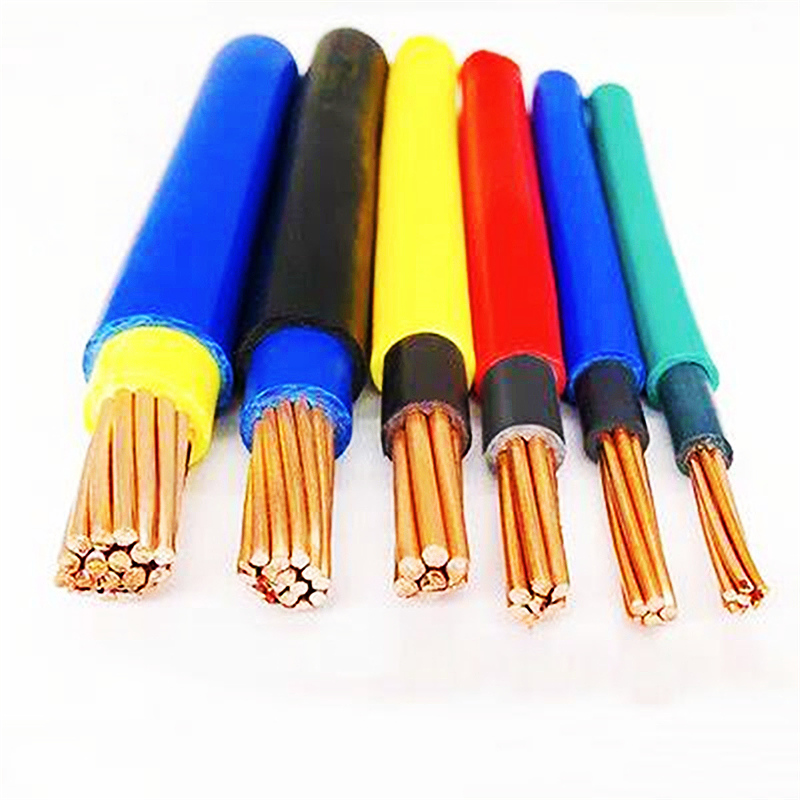

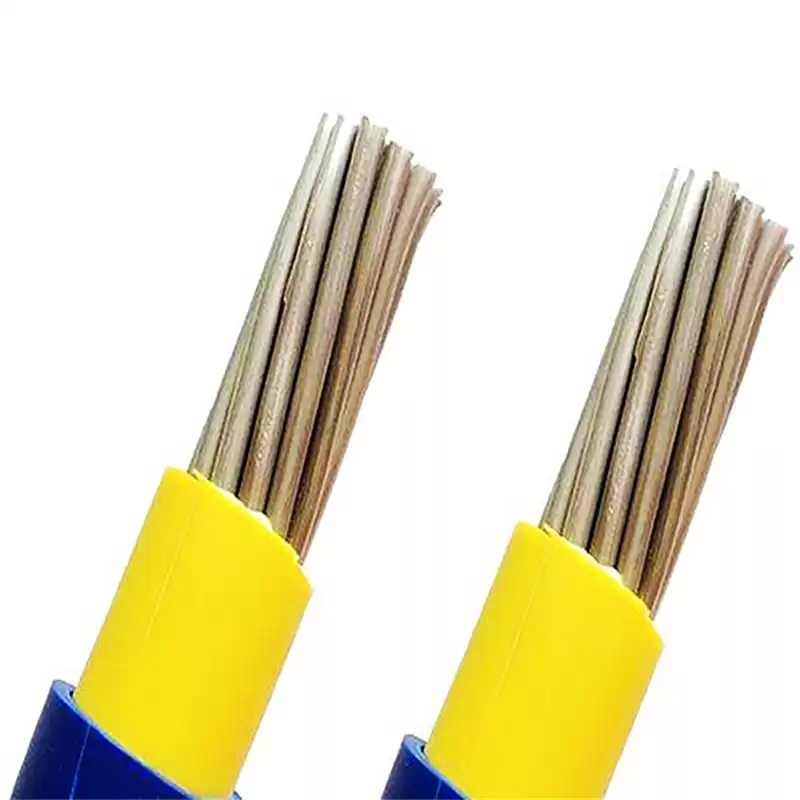

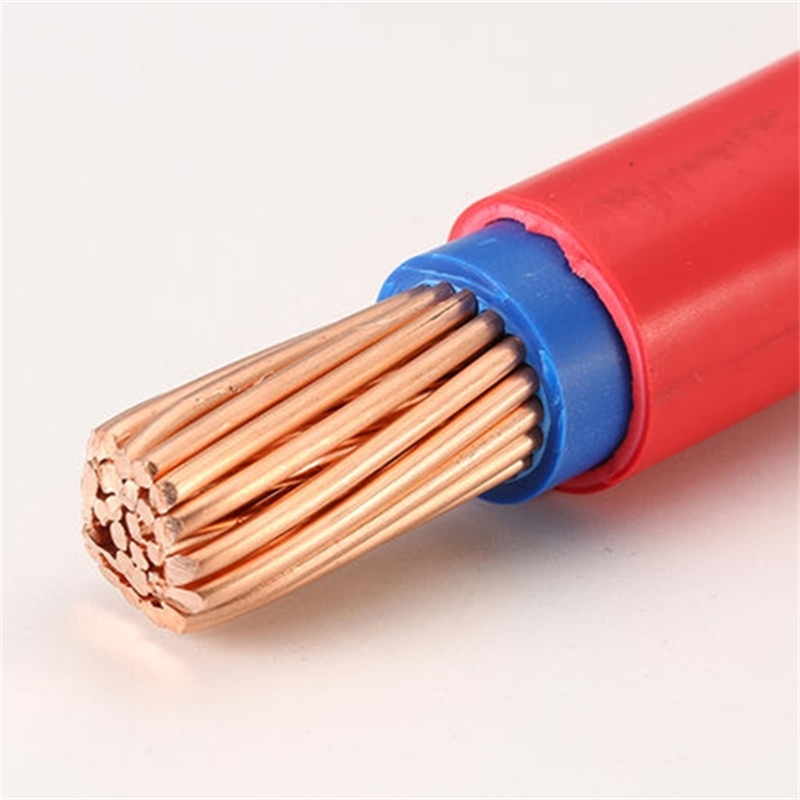

PRODUCTS STRUCTURE

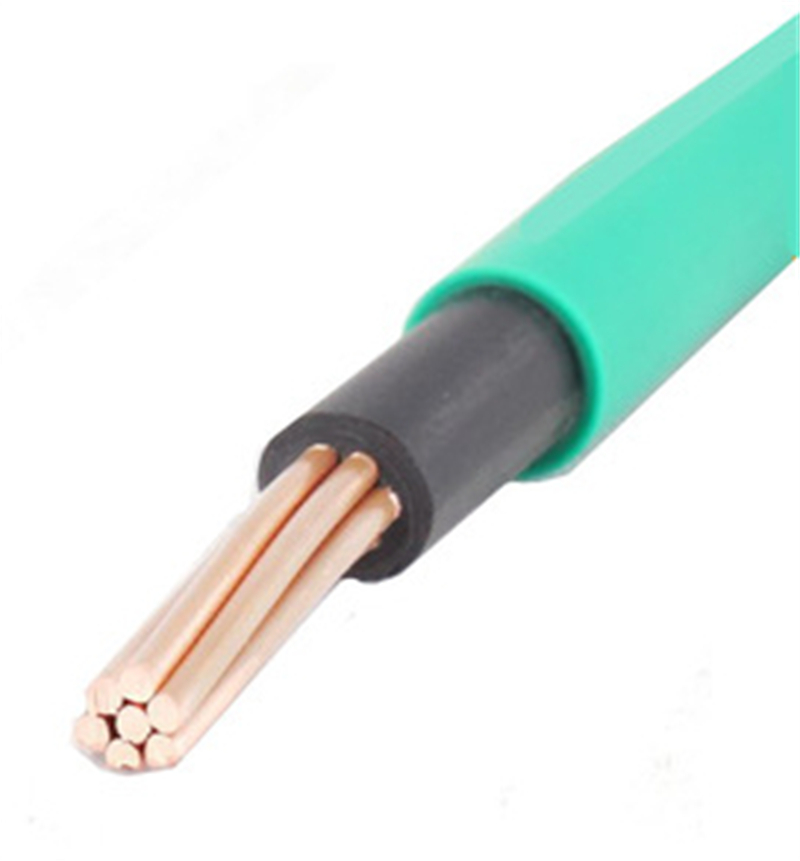

BS 6004 6181Y BVV Single Core Electrical Wire And Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
PVC (polyvinyl chloride).
---Core Number
Single core, one core, 1 core, 1C.
PRODUCTS DIMENSIONS
|
Items No.
|
Description of Products
|
|
Products Name
|
BS 6004 6181Y BVV Single Core Electrical
Wire And Cables
|
|
Conductor Material
|
Plain annealed copper wires, solid Class 1, or stranded Class 2.
|
|
Conductor Structure
|
1 x 1/1.78 mm.
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.8 mm.
|
|
Insulation Colour
|
Red, yellow, blue, green,black, grey, white, yellow/green, or others.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Thickness
|
0.8 mm.
|
|
Sheath Colour
|
Black, grey, red, blue, yellow, or others.
|
|
Conductor Cross-section
|
1 x 2.5 mm2.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
5.0 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
46 kg/km.
|
|
Production Standard
|
BS 6004, JB/T 8734.2-2016, IEC 60227.
|
|
Production Packing
|
100 Meters per Roll, or others.
|
|
Max. Conductor DC Resistance at 20℃ in Air
|
7.41 Ω/km.
|
|
Min. Insulated Resistance at 70℃
|
0.010 MΩ.km.
|
|
Max. Ampacity at 40℃ in air
|
43A.
|
