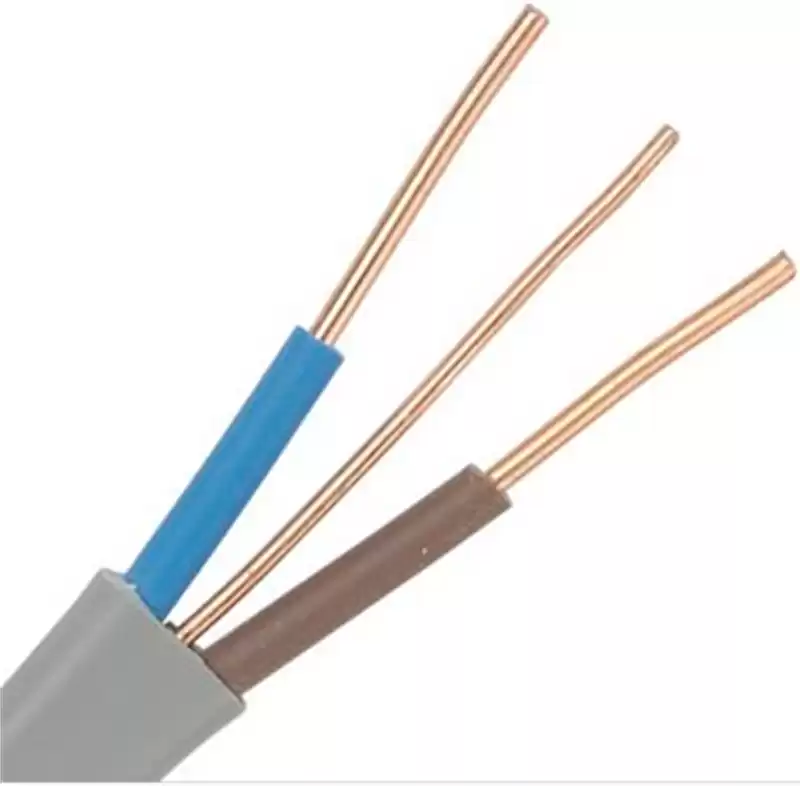

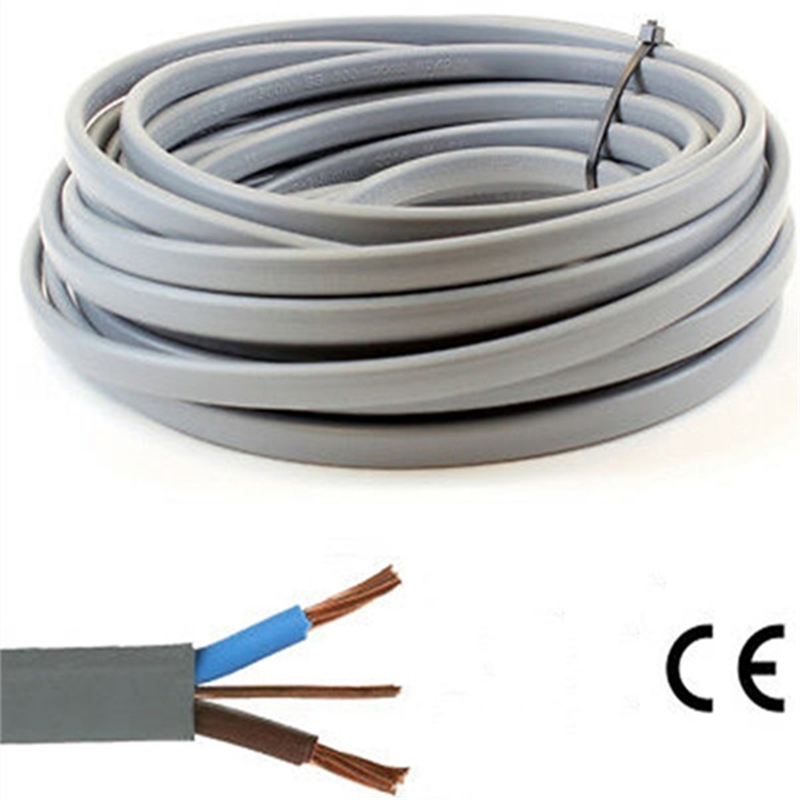

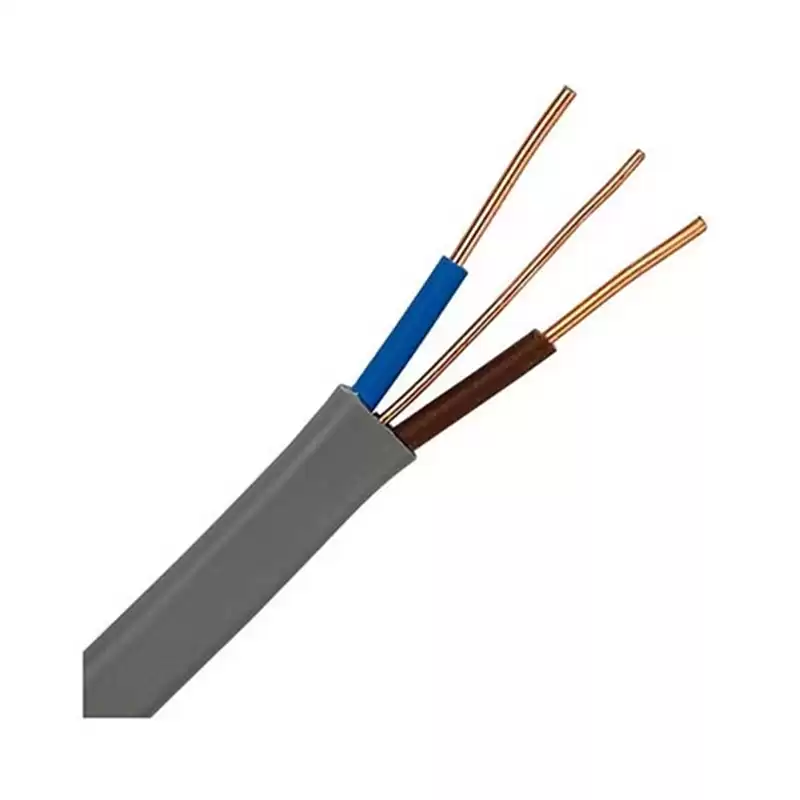

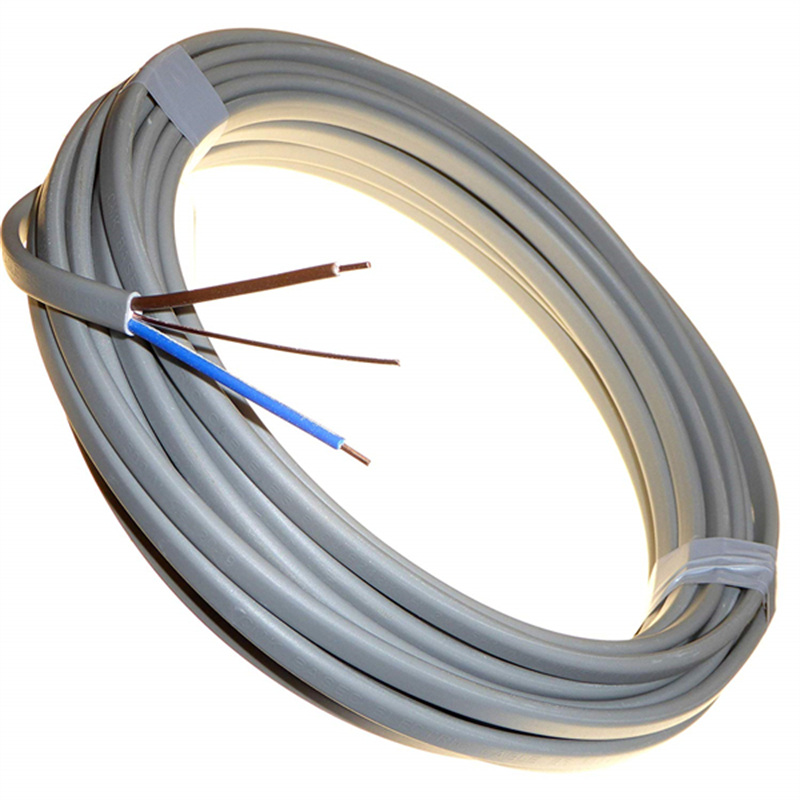

BS 6004 624-Y Twin and Earth PVC Cable
PRODUCTS NAME
BS 6004 624-Y Twin and Earth PVC Cable
PRODUCTS KEYWORDS
BS 6004, 6242Y, 6243Y, BVVB, flat twin cable, flat twin and earth cable, twin & earth cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
BS 6004 624-Y Twin and Earth PVC Cable, domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue. Suitable for laying in conduit or trunking where mechanical protection is required.
PRODUCTS STRUCTURE

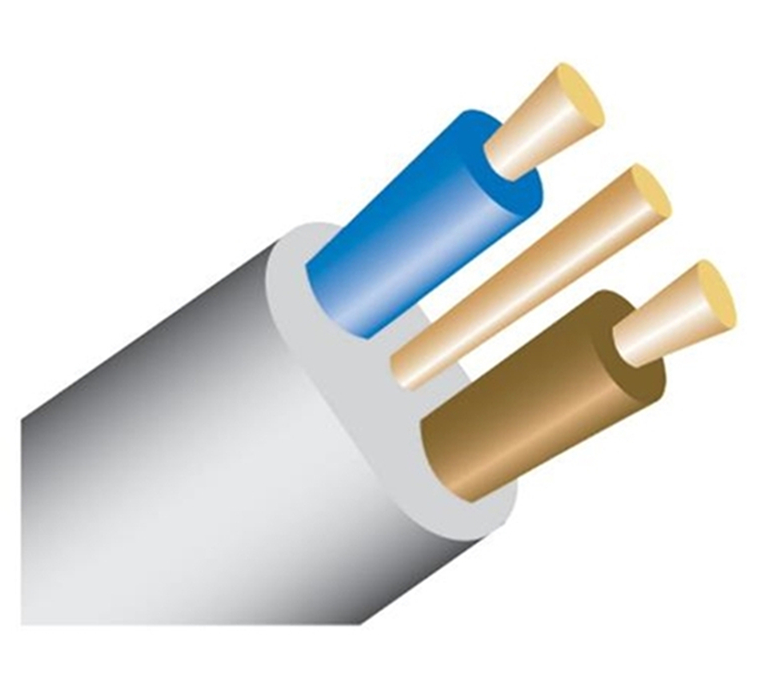

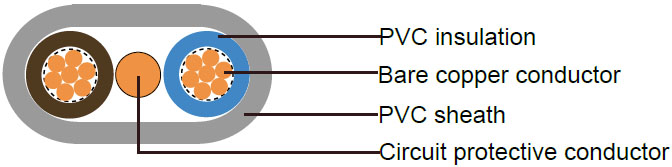

BS 6004 624-Y Twin and Earth PVC Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Earth Conductor Material
Bare copper wire, solid Class 1, or stranded Class 2.
---Sheath Material
PVC (polyvinyl chloride).
---Products Surface
Flat, it is not ground and circular.
PRODUCTS DIMENSION
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
BS 6004 624-Y Twin and Earth PVC Cable
|
|
Conductor Cross-section
|
2 x 2.5 + 1 x 1.5 mm2
|
Conductor Material
|
Plain annealed copper wire,
solid class 1 (0.75～4 mm²), or strand class 2 (6～16mm²)
|
|
Insulation Material
|
PVC (Polyvinyl Chloride).
|
|
Insulation Colour
|
2C: brown, blue.
|
|
Earth Conductor
|
Bare copper wire (optional), class 1 solid, or class 2 strand.
|
|
Earth Conductor Structure
|
1C x 1/1.38 mm.
|
|
Earth Insulated Material
|
Bare earth, without insulation material.
|
|
Sheath Material
|
PVC (Polyvinyl Chloride).
|
|
Sheath Colour
|
Grey, or others.
|
|
Core Number
|
2C, 2 cores (flat twin cable);
3C, 3 cores (flat twin and earth cable).
|
|
Out Diameter
|
Max: 5.2x9.8 mm.
|
|
Voltage Rate
|
300/500V (U0/U).
|
|
About Net Weight
|
120 kg/km.
|
|
Production Standard
|
BS 6004.
|
|
Packing Type
|

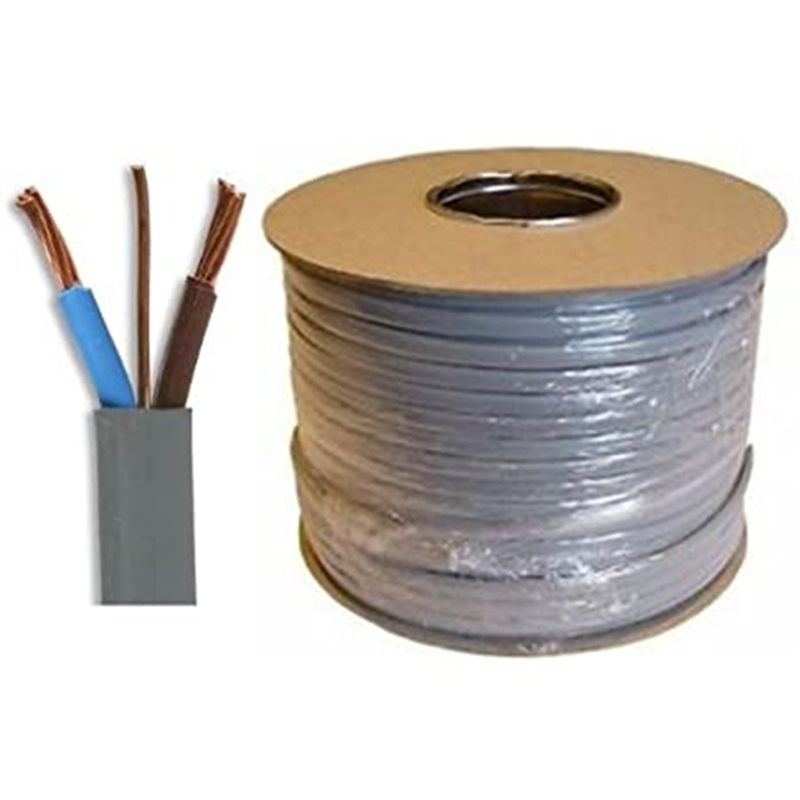

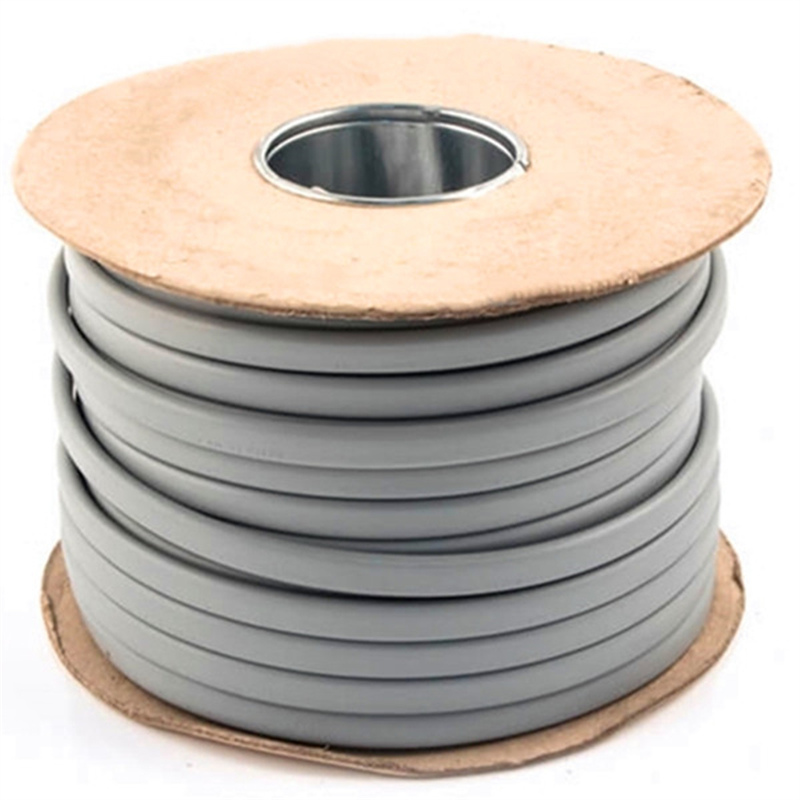

100 Meters per roll, 100 Yards per paper drum, or others.
|
COMPANY PROFILE
Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.
---ISO9001, CCC, CE, CB, RoHS, SAA, VDE, DEKRA, UL, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.
---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;
For the Power Cables more than 25mm2, the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
