Building Hoist SC200, SC200/200 for Construction
SC200 construction lift, SC200/200 building lift, SC200/200 construction hoist
Introduction of our Building Hoist:

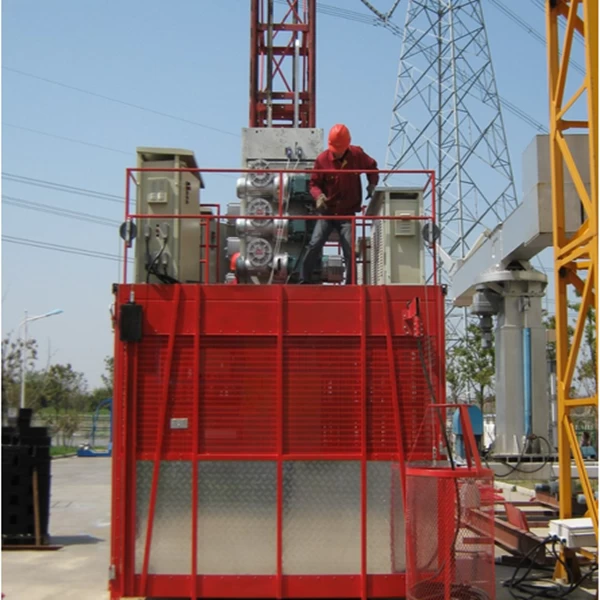

The SC200, SC200/200 construction hoist can be widely used in industrial and civilian construction, bridge, under well, big chimney as well as shipping industry to carry people and materials. As permanent or semi-permanent equipment, elevator can be used in different sites such as warehouse, high tower, etc.
With the advantages of reliable performance, safety, easy carrying, high adaptability, it can reduce operators’ work intensity.
With many advanced technology integrity, strict control on each making process, high ratio of price and quality, UNIQUE building hoist has become a symbol of lifter with high quality and excellent after-sales service.
Main Parameters of SC200, SC200/200 Building lift:
Model
|
SC200
|
SC200/200
|
Rated Capacity (kg)
|
2000
|
2x2000
|
Rated Hoist Speed (m/min)
|
36
|
36
|
Max. sling Height (m)
|
200
|
200
|

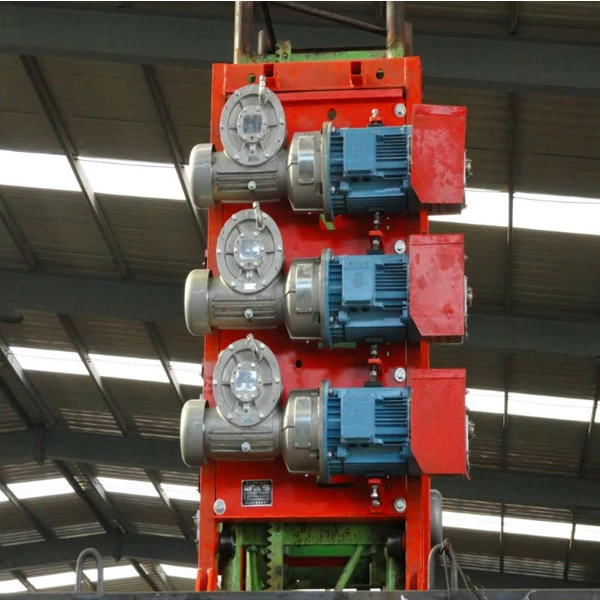

Motor Power (kw)
|
3x11
|
2x3x11
|
Cage Inner Dimension (m)
|
3x1.3x2.5
|
3x1.5x2.5
|
Cage Weight (kg)
|
1400
|
1400
|
Mast Section Weight （kg）
|
163
|
163
|
Mast Section Spec (mm)
|
1508x650x650
|
1508x650x650
|
Steeve Rated Sling Weight (kg)
|
180
|
180
|
Bottom Cage Exterior Dimension (mm)
|
3100x4200
|
3100x4200
|
SC series passenger lifts Advantages
1. SC series construction lifts have comprehensive and reliable electrical, mechanical interlock device, safety switches and protection hook interlock switches.
2. advanced progressive anti-crash safety device, a flexible and reliable overload protection devices and advanced computer automatically call-layer devices.
3. simple struction, controller microprocessor, photo-electric signal input
4. have the protective function of preventing illegal operation
5.superior anti-jamming performance
6. electronic calling devices to make the hoists accurately arrive the floor, and increase the work efficiency.
7.paint of cages and mast section process Pickling phosphating, it will be more smooth, and more durable for about 5 years.

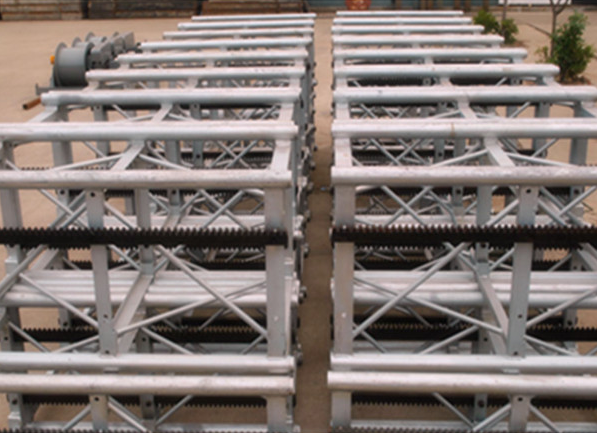

8. mast section apply new CNC stamping technology, connection will be more accurate and firm.
We can also supply construction hoist whose dimension of mast section is 800*800*1508mm. There are also inclined and curvilinear styles.
Commercial Terms
MOQ: 1set
Tradeterms: FOB (Qingdao) or as per your request
Theabroad market: MiddleEast, South Asia, Africa, Russia, etc.
Deliverytime: 10-15 days after receiving 30% advanced payment
Termsof Payment: T/T or L/C (30% advanced payment, 70% before shipment)
Package:nude in 1*40"HQ containers for basic height (50m)
Warranty:12 months
Our Service
----timely delivery, in time shipping notice
----1 year warranty of products quality and full set ofspare parts
----training installation, guidance of operation and maintenance
----engineers have rich experience, can solveall your problems
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
