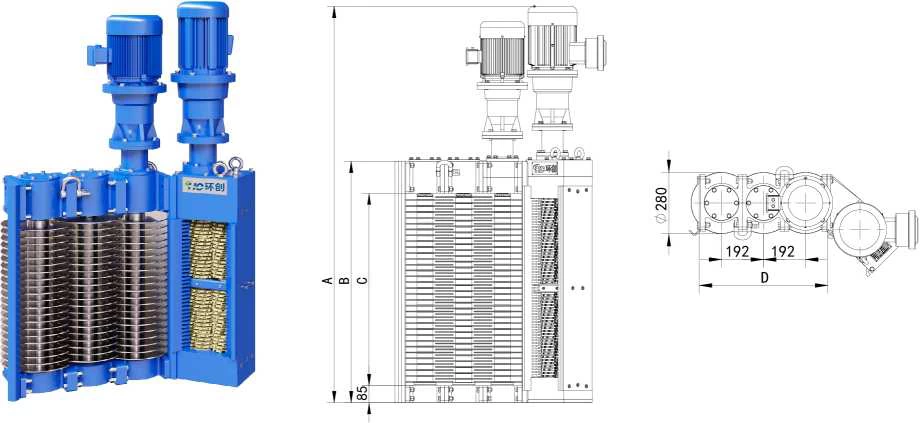

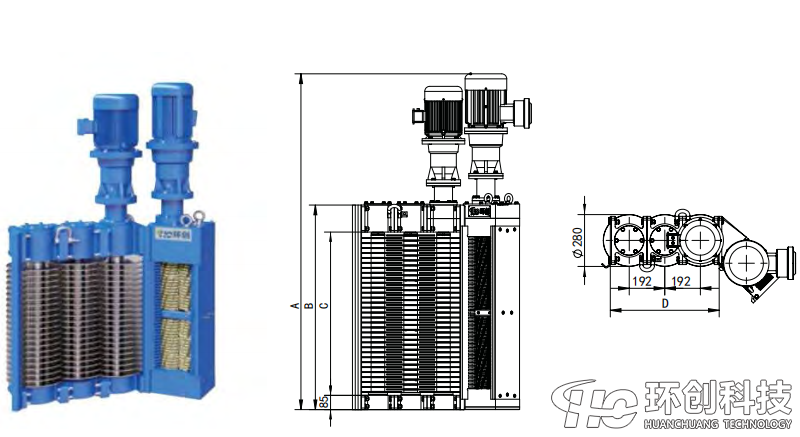

Butterfly Wastewater Grinder

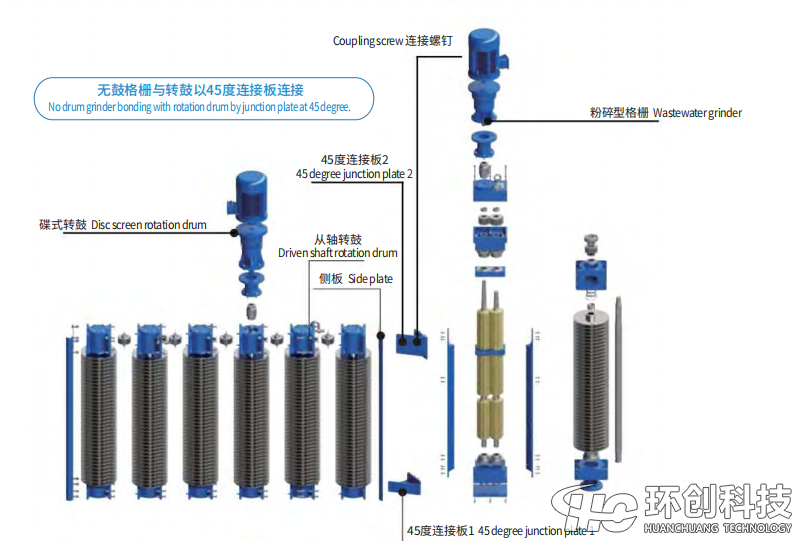

Butterfly Wastewater Grinder is consist of disc screen and cutter, disc screen parts can adding extra shaft in the required parts . All the shaft are rotating in same direction, to led trash to the cutting area, it has two counter rotating shaft,that can cutting the trash and avoid blocking.



The HC wastewater grinder is a high torque, low rotating speed and double shaft grinder underwater. It is designed to pulverizing all kinds of solid waste(clothing, plastics, trash, wood, aluminumca).

Working Principle:

According to the flow rate and medium to choose grinder flexibility. Grinder are easy to install, maintain and repair. After crushing size not more than 12mm, adopting rail installation, its easy for repair, no need to disassembly to lifting.

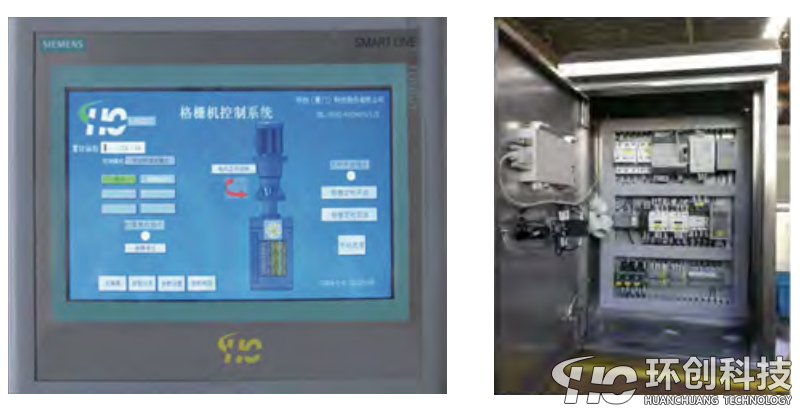

PLC Control System Introduction:

a. LCD display, with Chinese/English language interface. It can show the real-time running monitoring and error records for checking.

b. Auto-reversing setting: The motor load will increase an lead to a current rising, when the cutters blocked. Once the current reached a pre-set point, the motor will reverse automatically, the current, reversing times and time can be set according to the application.

c. Automatic running setting: Automatic running, stopping, and running time can be set by the actual flow rate. It can automatic start and stop, and no need to operate by manual handle to save the labor cost.

d. MODBUS communication port: Local/remote control function by PC or other equipment. Free PC controlling software available.

e. Password protection: you can set a password for the operating interface to prevent any mis operation.

f. Control cabinet was made of 304 stainless steel. IP55 for indoor and IP65 for outdoor cabinet. Simple and easy to install and maintain.

Characteristics:

Integrated grinder system

Achieve the perfect combination for pulverizing solid waste particles in high flow sewage and dehydration. Apply to most of the existing channels

Shaftless screw conveyor system

Organics as the sewage through the conveying groove hole back into channels.

Groove hole size according to the requirements of different conditions and withholding rate is optional.

Before de-slagging , the solid particles will through water washing,lifting and dehydration

Spray washing

To make solid particles more clean and reduce odor

Suitable for landfill

More suitable for landfill.
