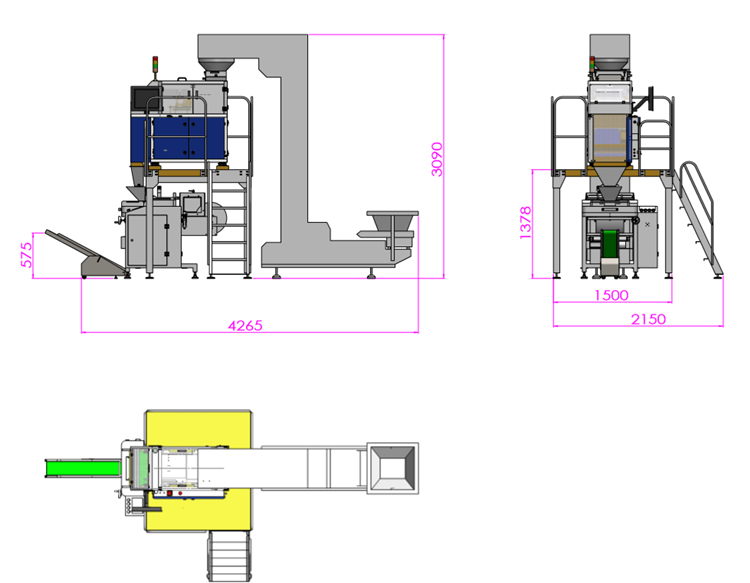

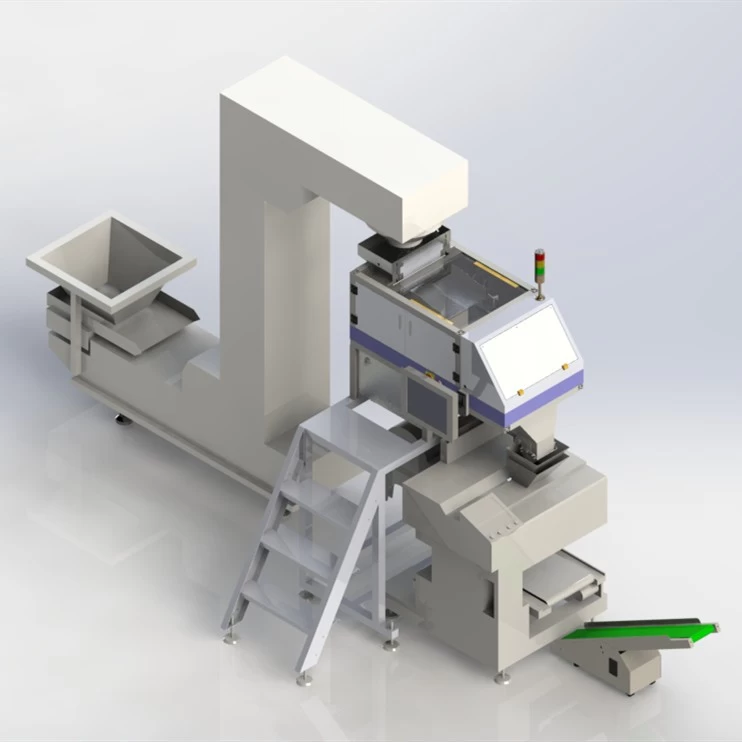

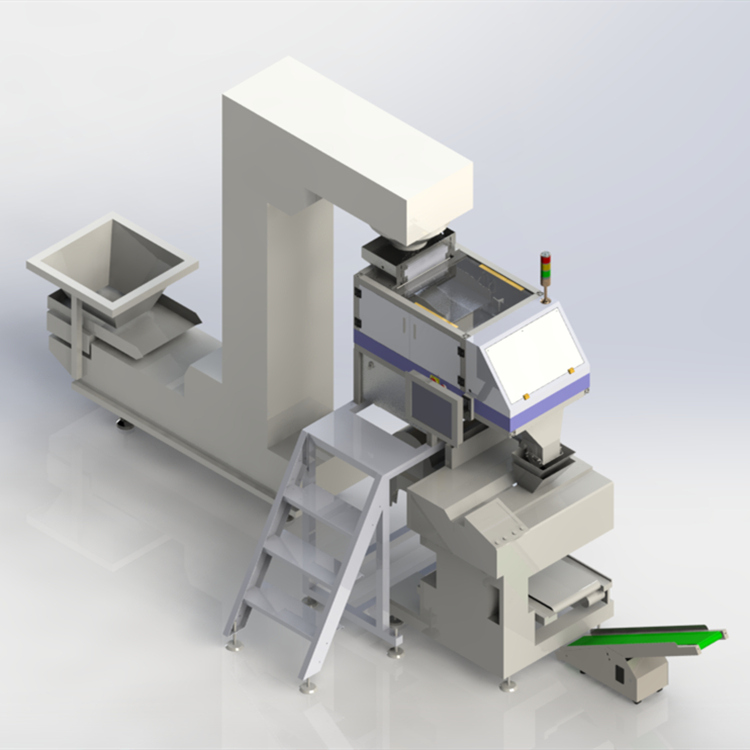

Automatic button CCD vision counting & packaging machine VB224

High speed CCD camera scans objects that fall from vibrating chutes to obtain full projection images through optimized algorithm, machine will count number of falling objects so as to realize the batch counting and packaging.

Advantage of Visual counting machine:

1. High efficiency: Vision based counter uses large track and scan falling objects , instead of using several narrow tracks to separate objects one by one.
2. 99.99% accuracy
3. Insensitive to dust
4. Fast changeover: One button operation for clearing to change objects
5. Self-learning software:Easy to calibrate for multiple objects counting
6. Extremely low maintenance
7. Reducing labor cost
8. Compacted design to save space

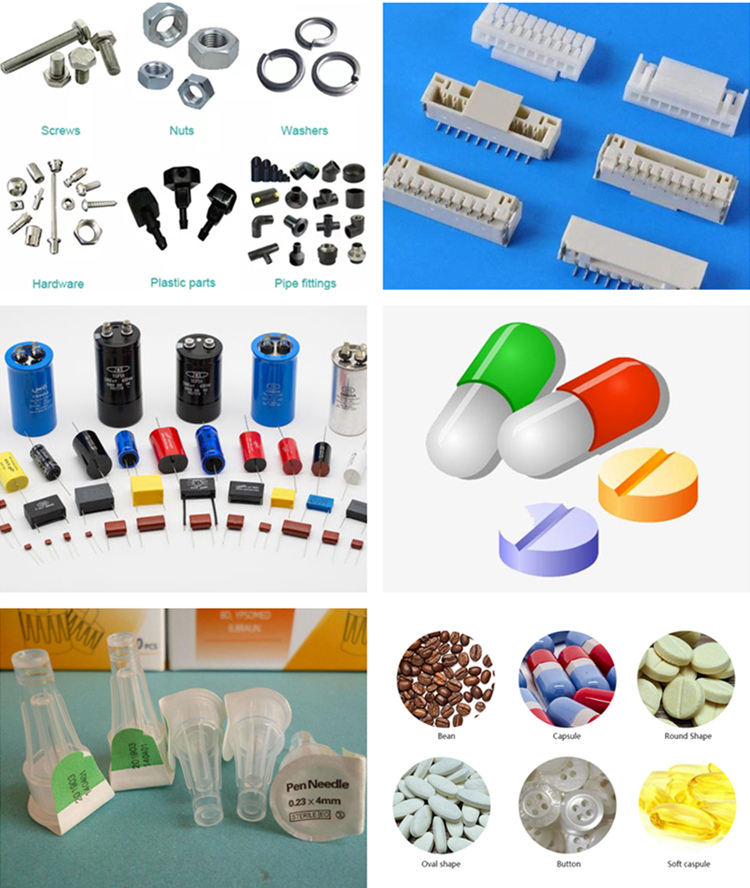

1. Electronic components: screws of cellphone or hard disc, capacitor, electric resistance,relay silver contact, electric connector

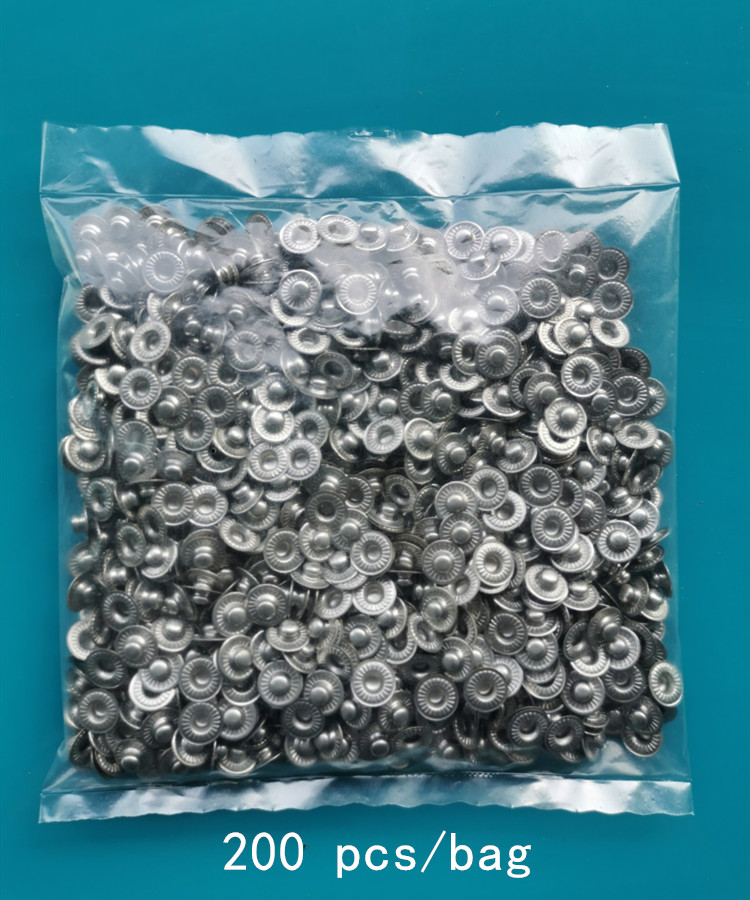

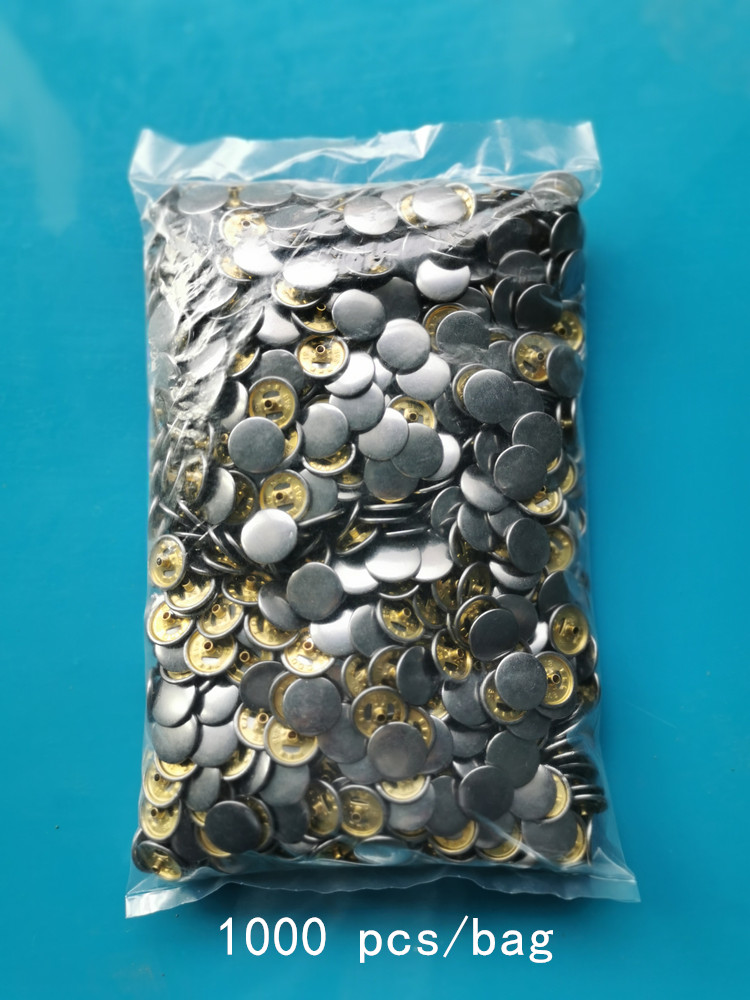

2. Plastic injection molded parts: pipe fittings, plastic parts, garment buttons, plastic components
3. Hardware: nuts and bolts, Screws & Bolts, washer, rivet nuts, pins, stud,inserts, cockbolts, fastener, self-piercing rivets
4. Agriculture: Seeds,flower bulbs, dry vegetable
5. Medicines: capsules,tablet,soft gel, pill
6. Food: sweet, candy, frozen food
7. Accessories
8. Engineering parts

1. High frequency CCD sensor, scanning frequency at 10,000 times per minutes,six million pixels optical lens with minimum recognition size of 0.2mm.
2. Advanced large capacity FPGA processing and control system, response time at 1 nanosecond.
3. Optimized algorithm software effectively identifies overlapping objects and micro impurity.
4. Industrial tablet computer with touch screen makes it easy to store program for different objects.
5. Intelligent alarming system for abnormal situation and shortage, screen will appear tips.
6. Patented self-learning technology can achieve to count different objects easily.
7. One button clearing function.
8. Connectable to ERP system.
9. Tailing materials collecting channel is optional.

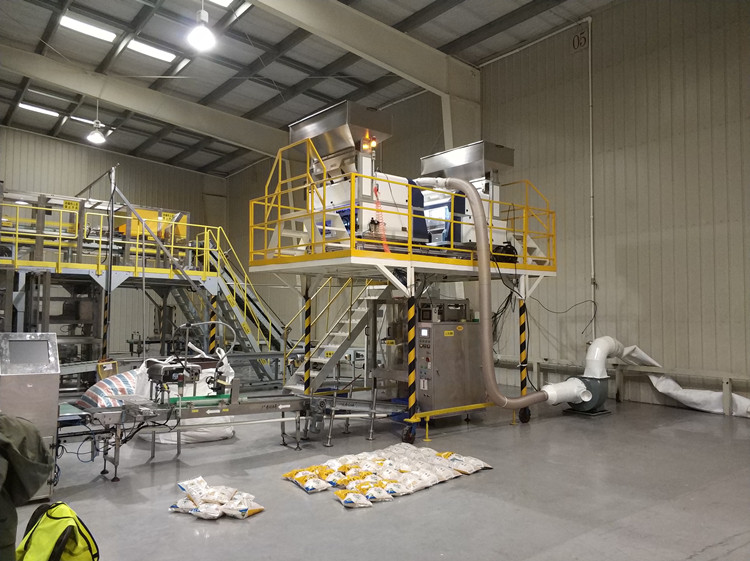

Project Show
