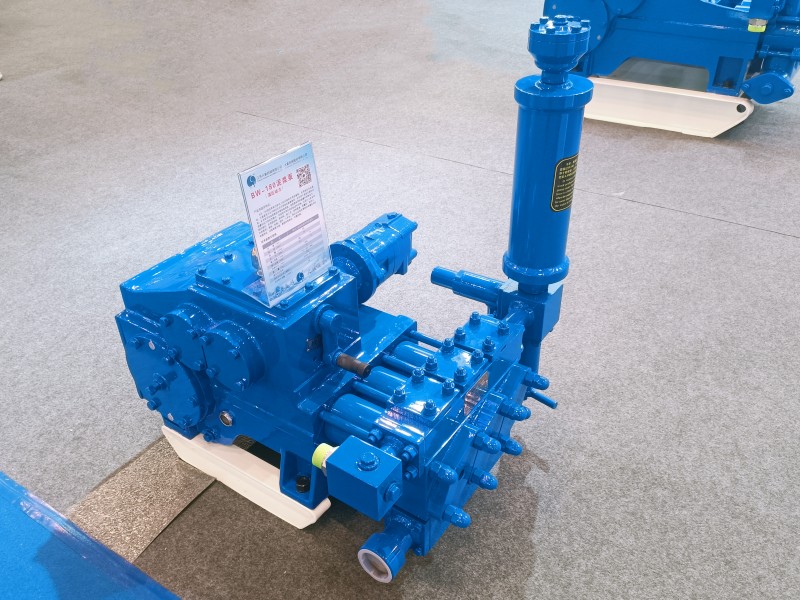

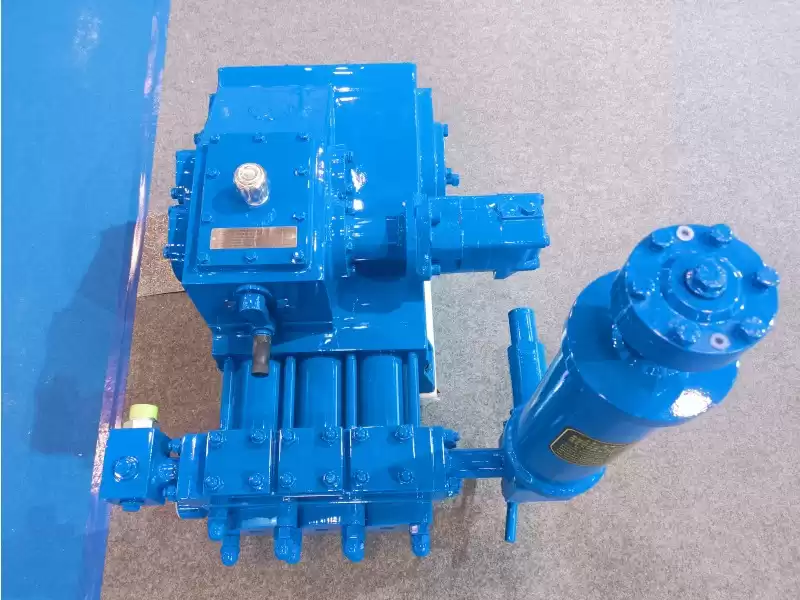

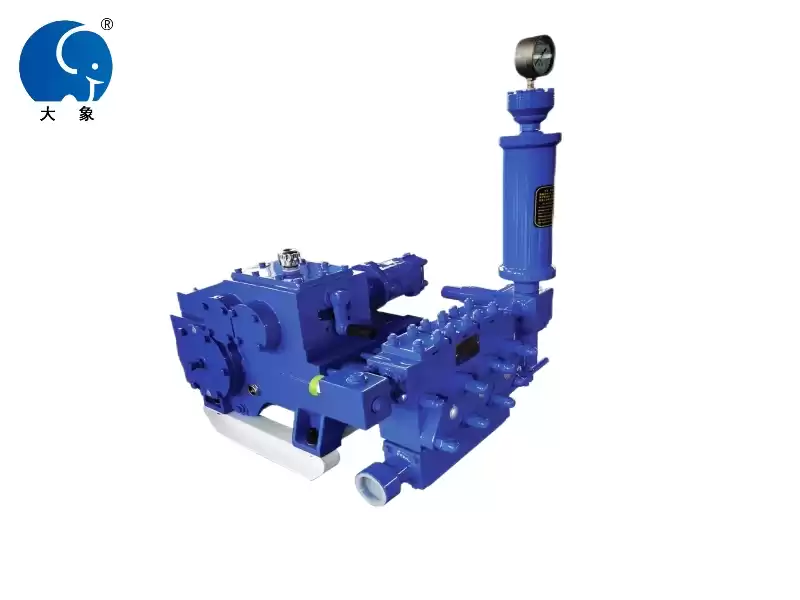

BW-180 drilling mud pump is a horizontal, triplex, single acting reciprocation piston pump, hydraulic motor drive.
Technical Parameters and Specifications:
| Type |
Horizontal Triplex Reciprocating Single Acting Piston Mud Pump |
| Stroke (mm) |
60 |
| Cyclinder Diameter (mm) |
70 |
| Flow ( L/min) |
180 71 |
| Pressure (Mpa) |
3.2 8 |
| Input Speed (r/min) |
640 |
| Input Power (KW) |
12 |
| Dimensions (mm) |
773*628*778 |
| Weight (kg) |
252 |
| Hydraulic Motor Model |
2K604-0041 |
| Hydraulic Motor Pressure (Mpa) |
17 |
| Maximum Motor Flow (L/min) |
56 |
Check this video to get more information regarding our BW-180 reciprocation mud pump.
Advantages:
1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.
- * Professional Design Team：customizing the mud pump as per your requirements,such as the shape, color,etc.
- * Production Team：guaranting the production time and the quality, never late for shipment.
- * Sales and after-sales Team：1 Year Warranty; 24 Hours Online Service; Video Technical Support.
-
-
Design Team
We could always meet your design requirements.
-
-
2 - The Partners we cooperate.
3 - Adopting advanced structure and new materials.
With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

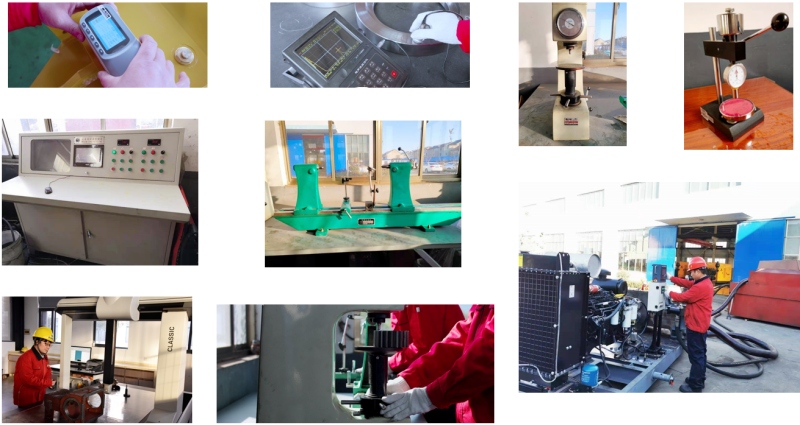

4- Advanced and professional testing and inspection equipment.
