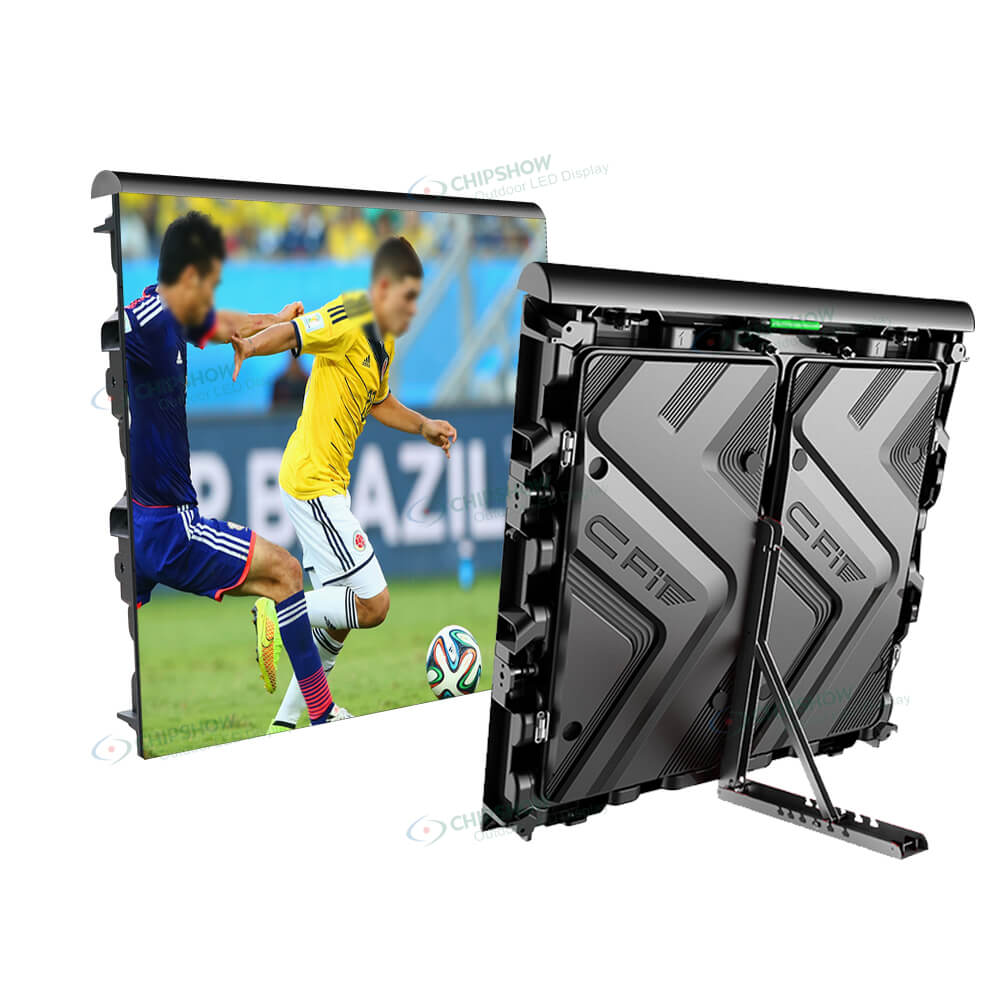

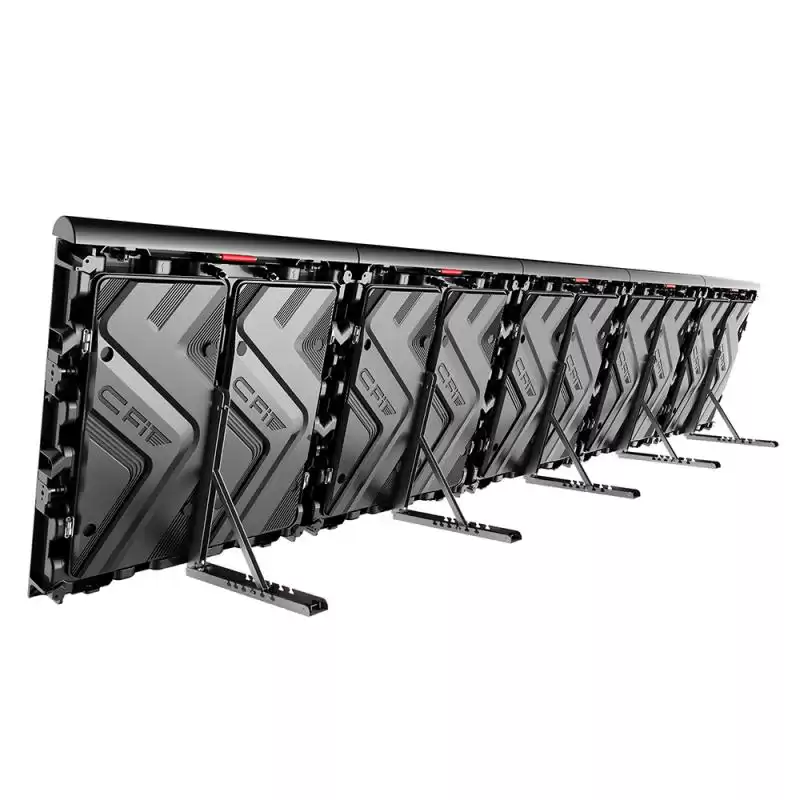

C-Fit-Sport P8,10 Stadium Perimeter LED Display

P8,P10 C-Fit-Sport LED display adopt virtual replacement technology. Virtual ads could be transmitted to different countries instead of the real ads in stadium.

Advantages:

1. Intelligent perimeter LED display.
2. Virtual replacement technology, powered by IR LED.
3. Fast Installation and maintenance cabinet design.
4. Soft protection kit design to protect players from harm.
5. Negative pressure heat-dissipation system, further guarantees the reliability.
6. Available for remote monitoring by App.

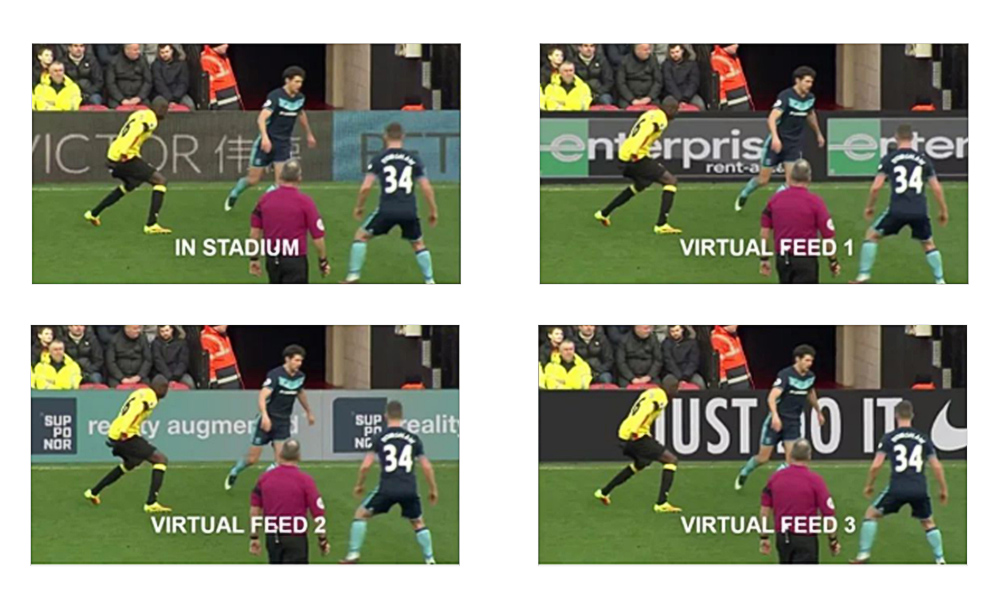

Virtual Replacement Technology

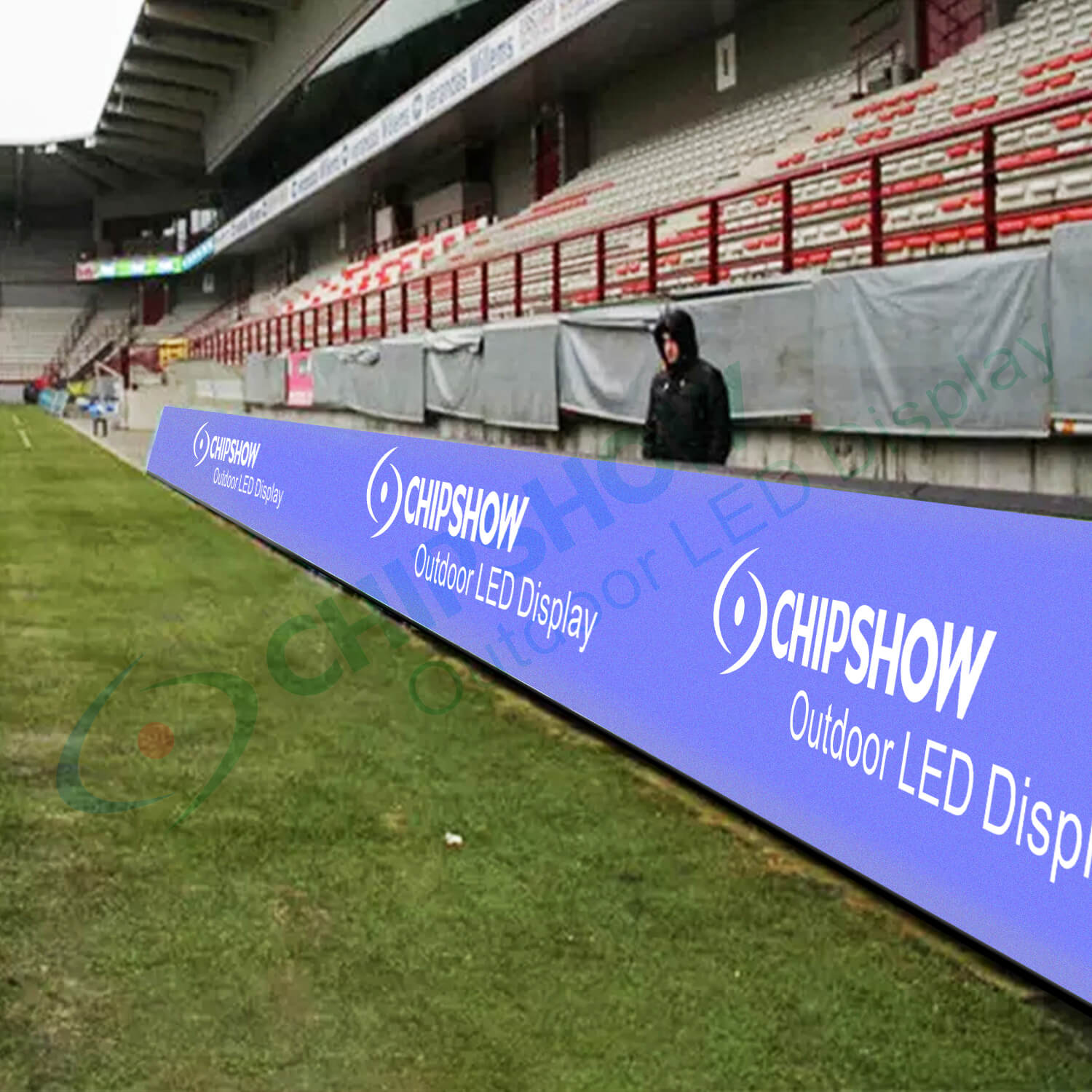

The ads seen on the stadium's perimrter LED display during broadcast coverage was completely different to that in the stadium and different in each targeted territory.

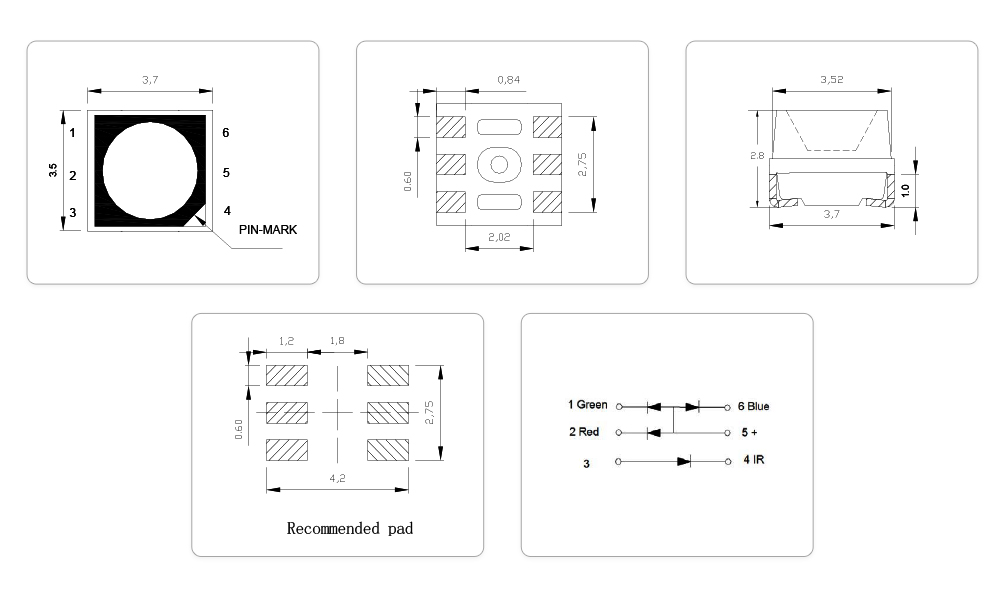

RGB & IR 4in1 encapsulation LED
It uses the special LED lamp which can emit infrared rays, has an IPX6 waterproof rating, wide viewing angle, perfect color consistency, and high reliability. This LED lamp is a special 4in1 encapsulation design that RGB and IR chips are encapsulated together. It looks like a regular SMD2727 LED lamp which emits visible RGB light, but it also emits infrared rays of wavelength in the range of 760nm-1mm which is invisible to eye.

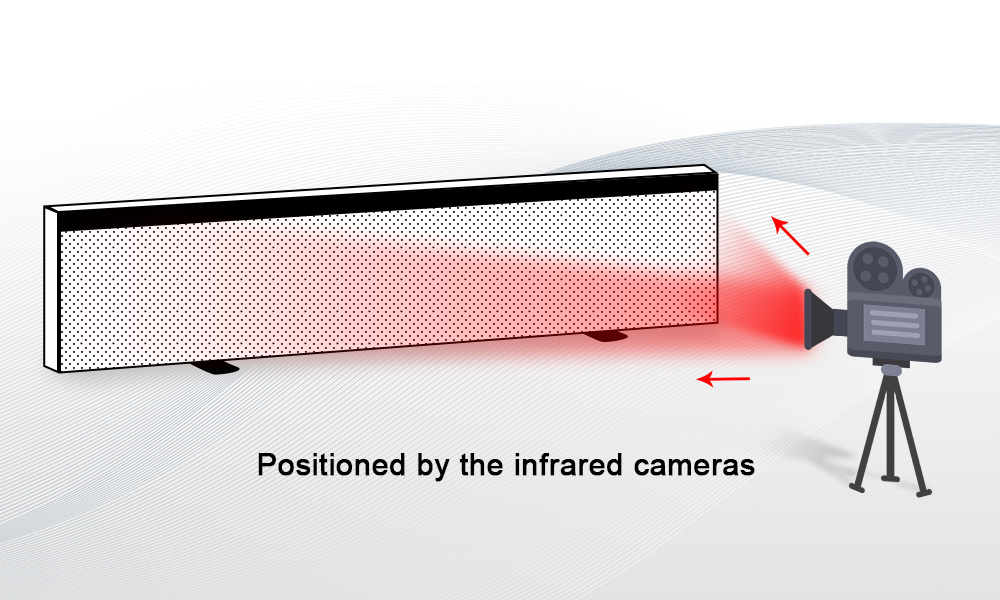

 Positioned by the infrared cameras

Each pixel is an infrared source, the infrared rays display area can be positioned by the infrared cameras,
and the image edge recognition technology is used to determine the position of the perimeter
displays in the moving lens

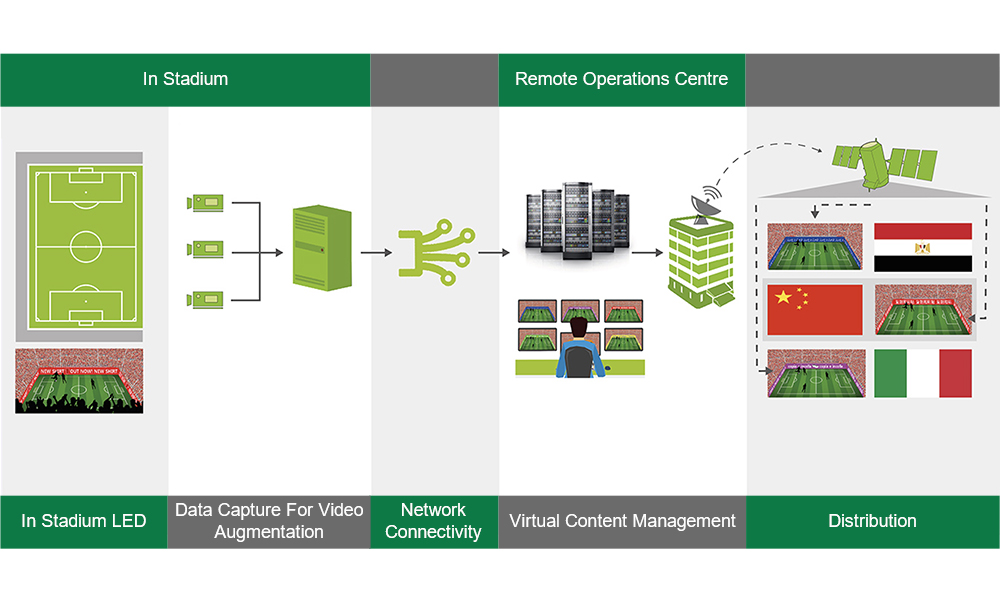

Virtual content management

Virtual content management can cover the infrared rays display area with the different virtual ads through video

processors, and these virtual ads could be transmitted to different countries instead of the real ads

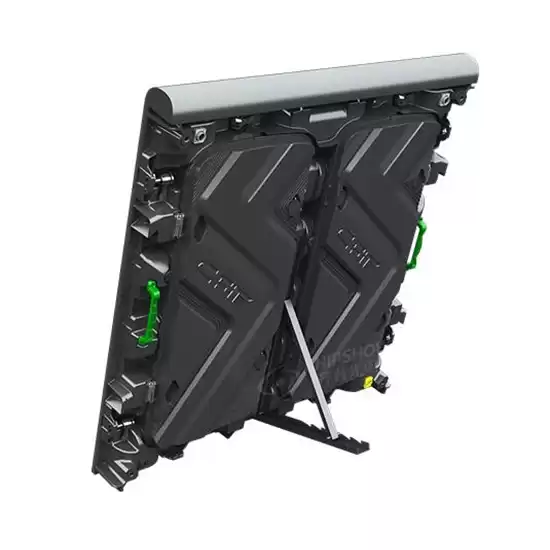

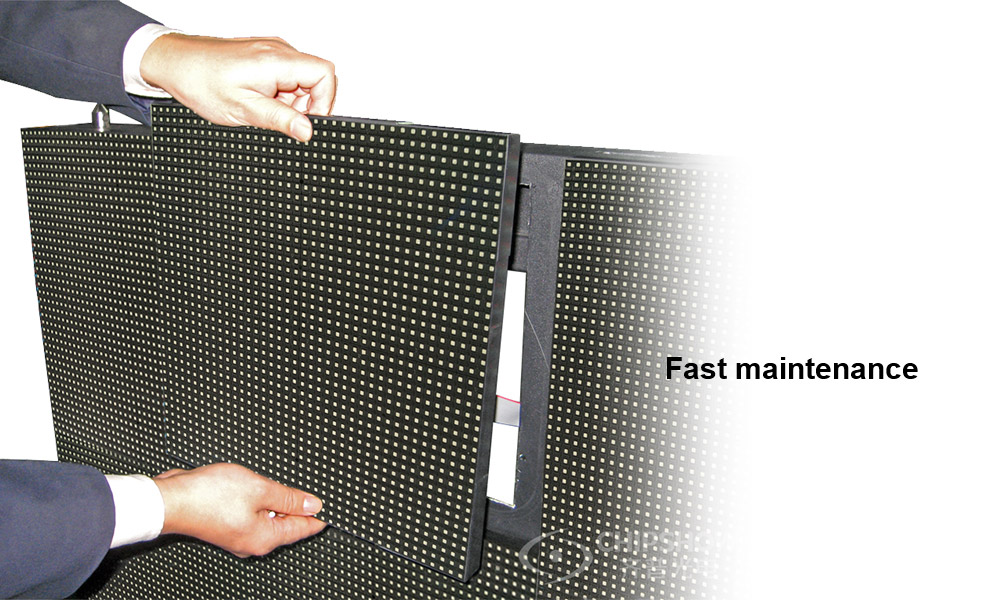

Front Maintenance

If any problem happened during the game, it could be resolved in seconds

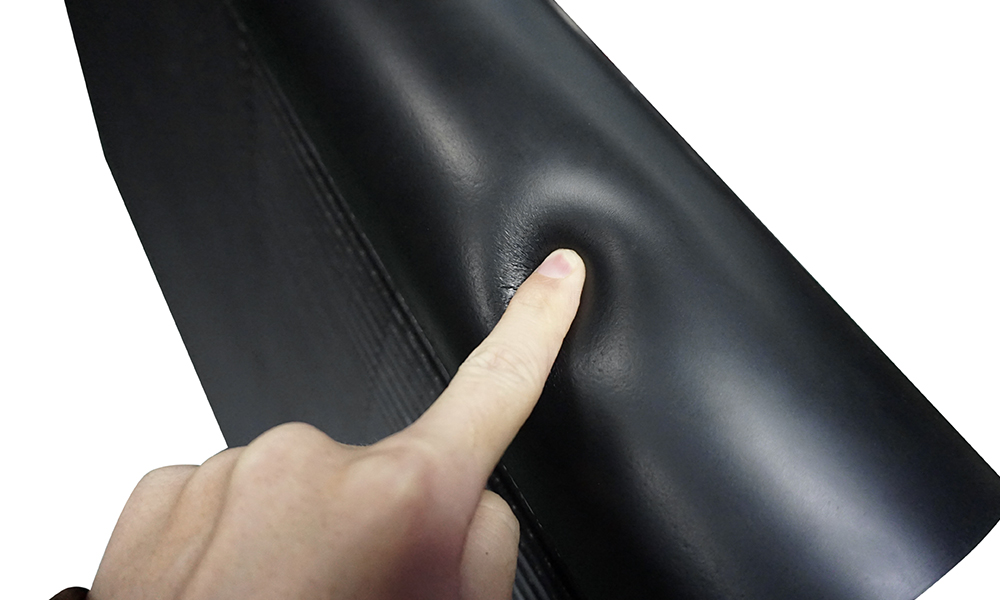

Soft Protection Kit Design

It can ensure player's safety when player hit against on the display.

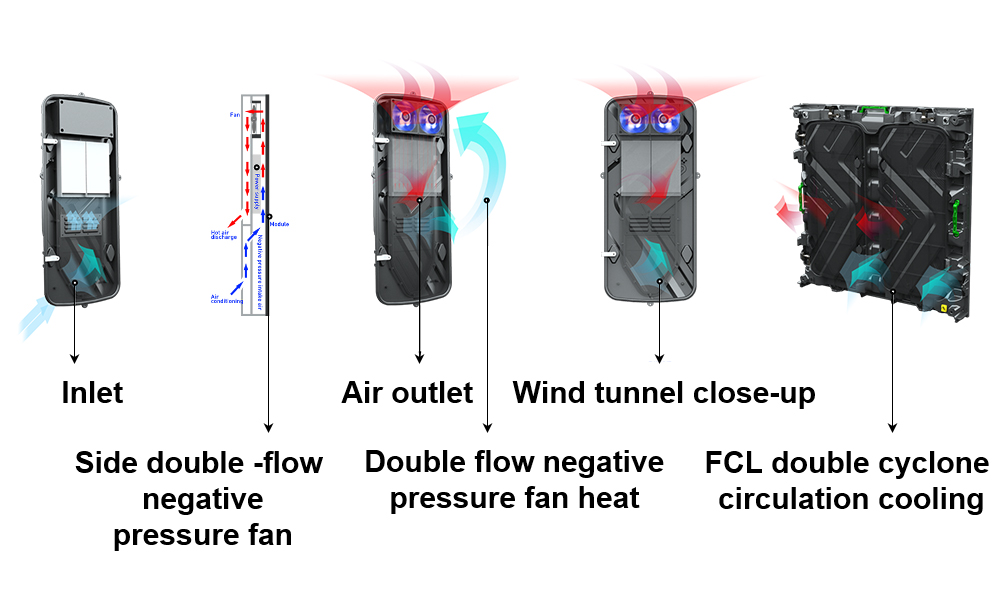

Efficient Cooling System

Double flow negative pressure cooling system and heat-dissipating technologies in the outdoor cabinets

Remote Monitoring By App

Avaiable for remote monitoring by App: Running hours, Humidity and Temperature inner cabinet, individual LED detection, stastus of power supplies, modules, cables, etc.


Specifications


Product

C-Fit-Sport

Pixel Pitch

 8, 10mm

Cabinet size

 960*960mm

Brightness

 ≤5800nit

Color temperature

 6000~8000K

Refresh frequency

 1920~3840HZ

Working temperature

 -20~50℃

Protection grade

 IP65/IP54
