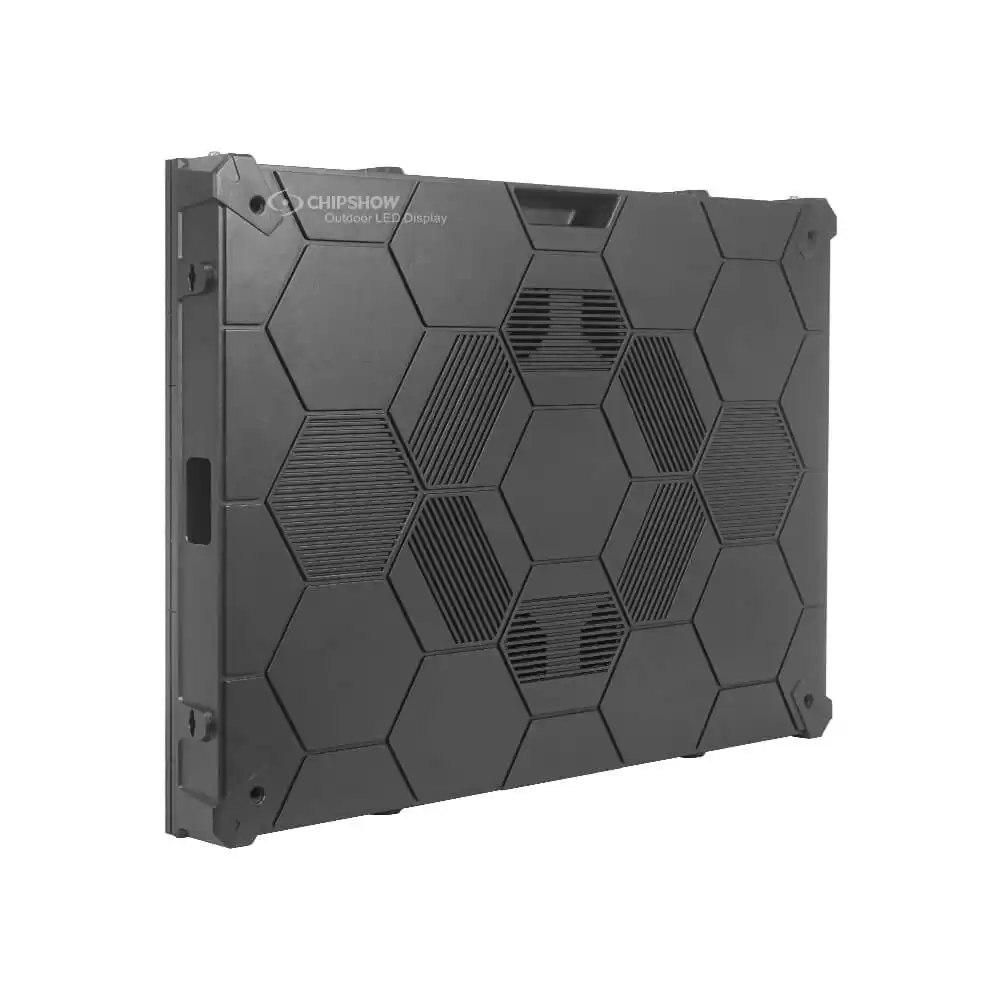

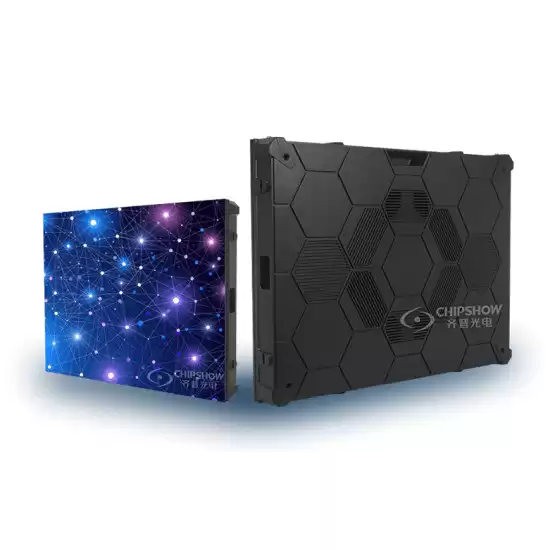

C-Max P2.5,3,3.3,4 Indoor Commercial LED Display

P2.5,P3,P3.3,P4 C-Max is indoor commercial preferred, simplicity and durable, the same proportion of video source as LCD, can direct replace LCD.

Advantages:

1. 640mm*480mm cabinet size. can be assmbled with variety of 4:3 and 16:9 large screens.

2. Direct mounted on the wall, save space and labor.

3. The cabinet is made of die-cast aluminum, which is light in weight.

4. Wall mounting installation, full front serviceable for module, power supply and cards.

5. Flatness, easy to install and disassemble.

6. The cabinet adopts simplicity internal wiring, which perfectly realizes the splicing of the cabinet.

7. Perfect design of lamp board PCB, high-end IC, easy to achieve high gray, refresh, brightness.

8. Good heat dissipation, no noise, energy saving and environmental protection.

Applications:

Widely used in commercial display, indoor fixed advertising, auditorium, conference room, banquet, vestibule, exhibition demonstration, transportation, studio, command control.

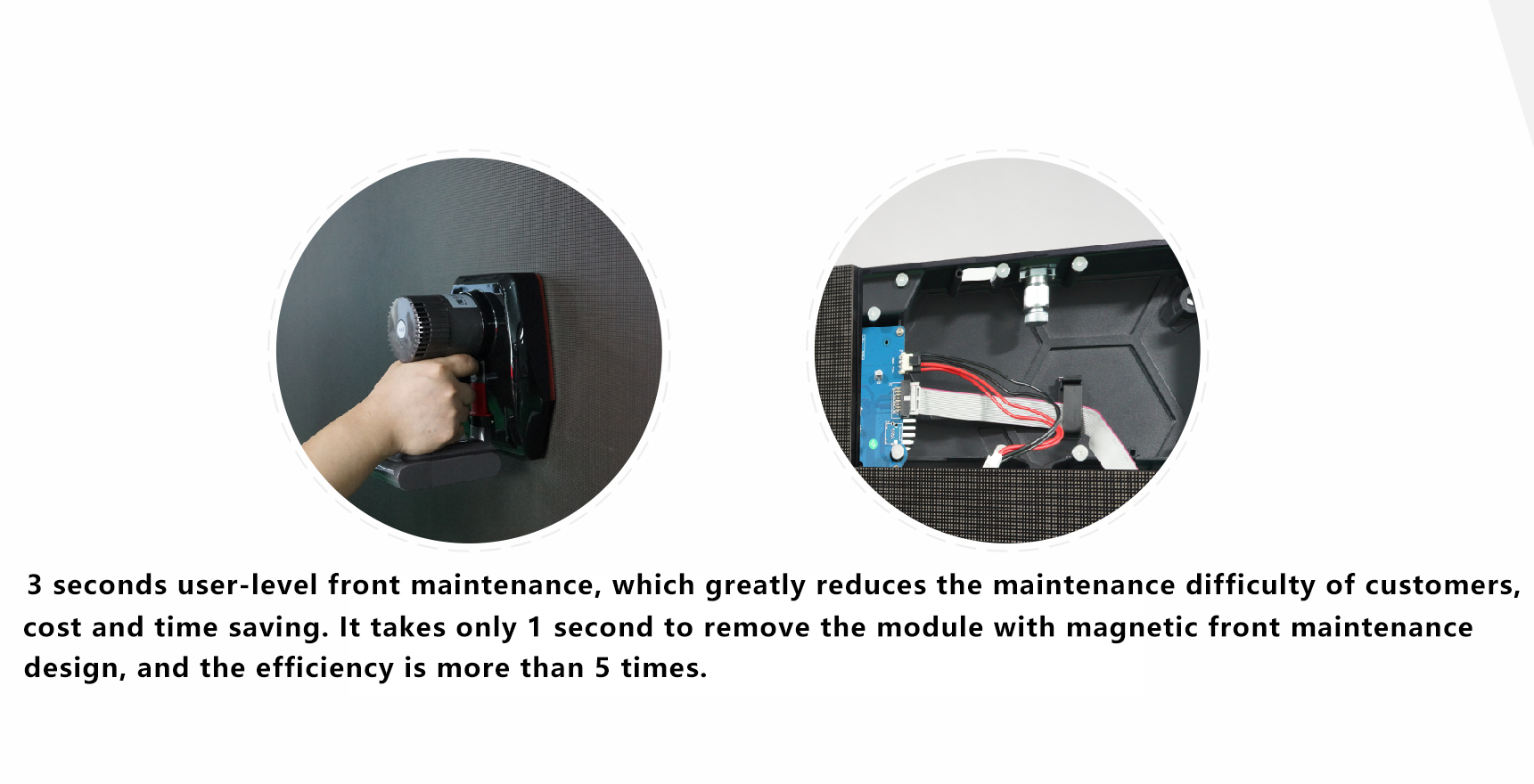

Fast Maintenance and disassemble

3 seconds front maintenance, maintenance be dumbed down. Save time, labor&money. Magnetic front service. 1 second disassemble a module.

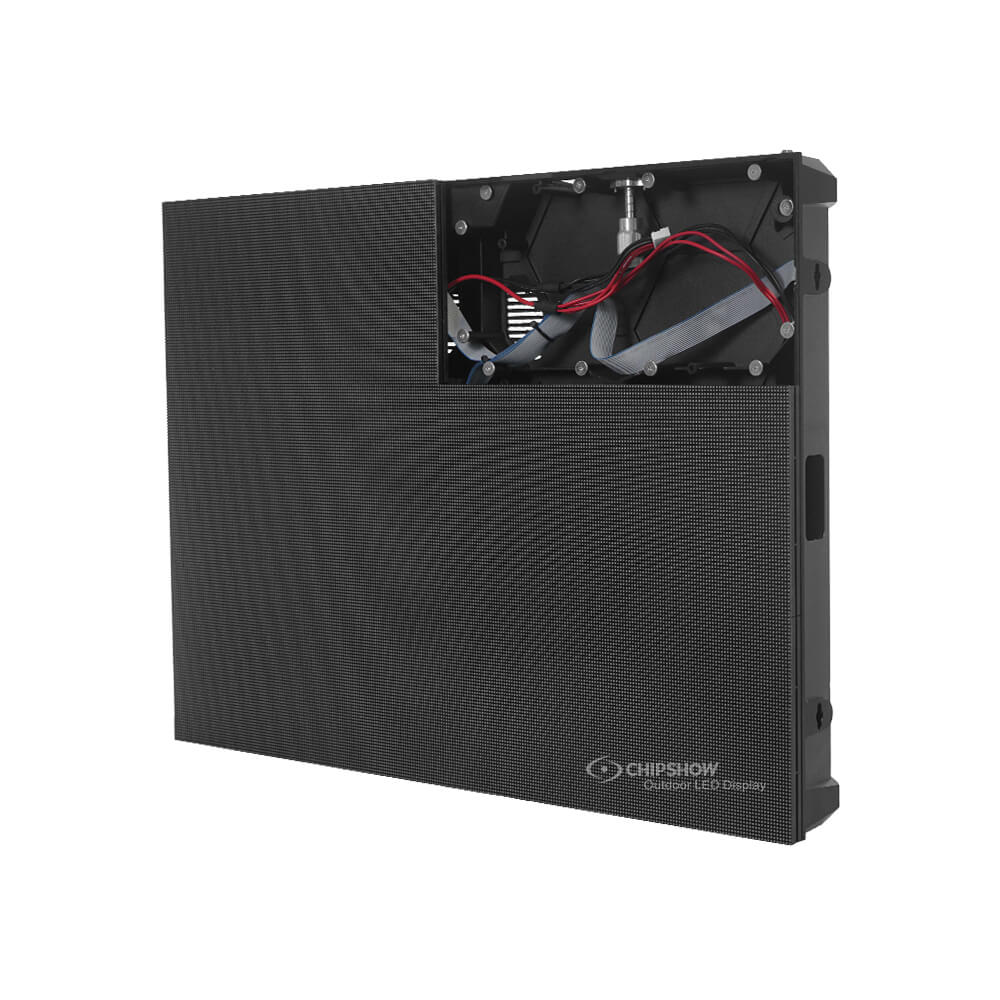

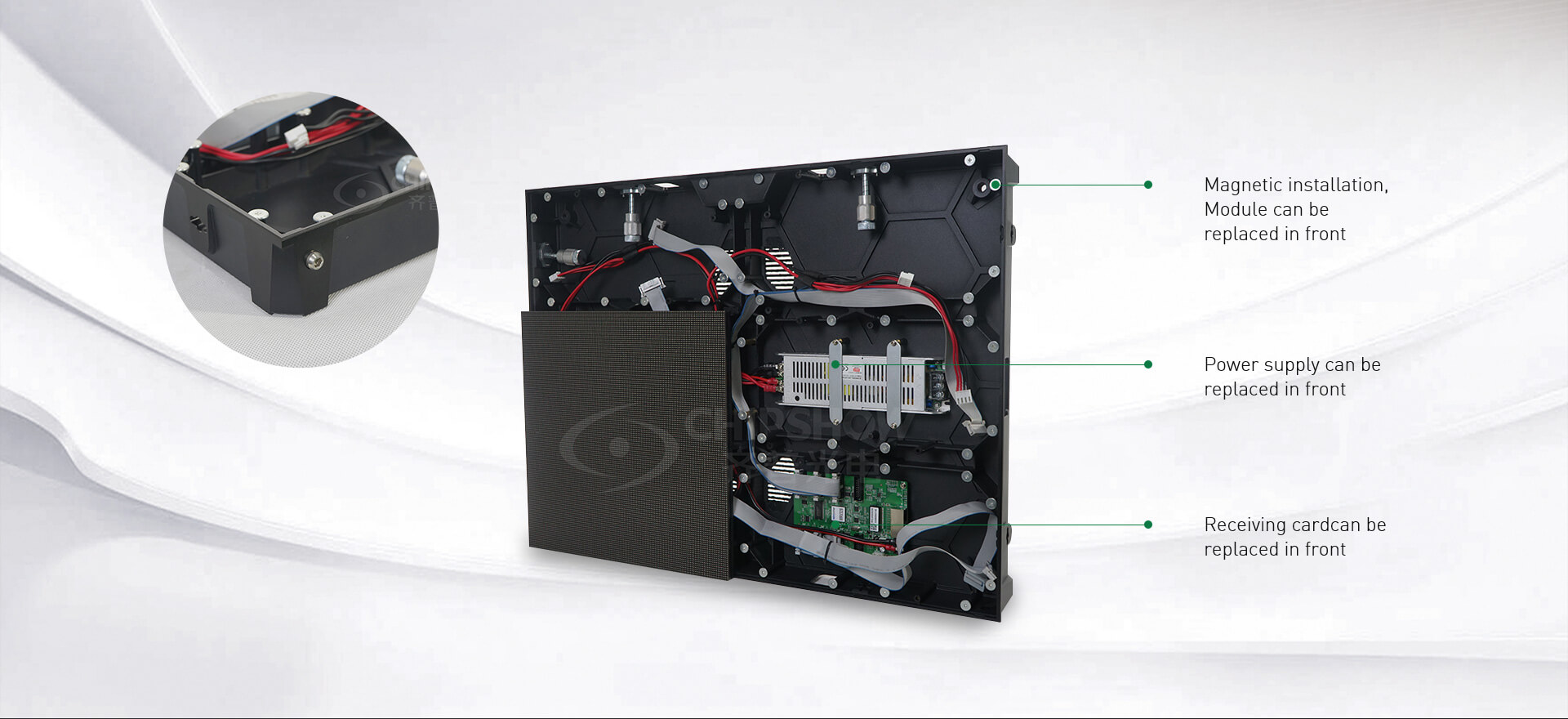

Full front serviceable

Wall mounting install, full front serviceable for module, power supply and receving card.

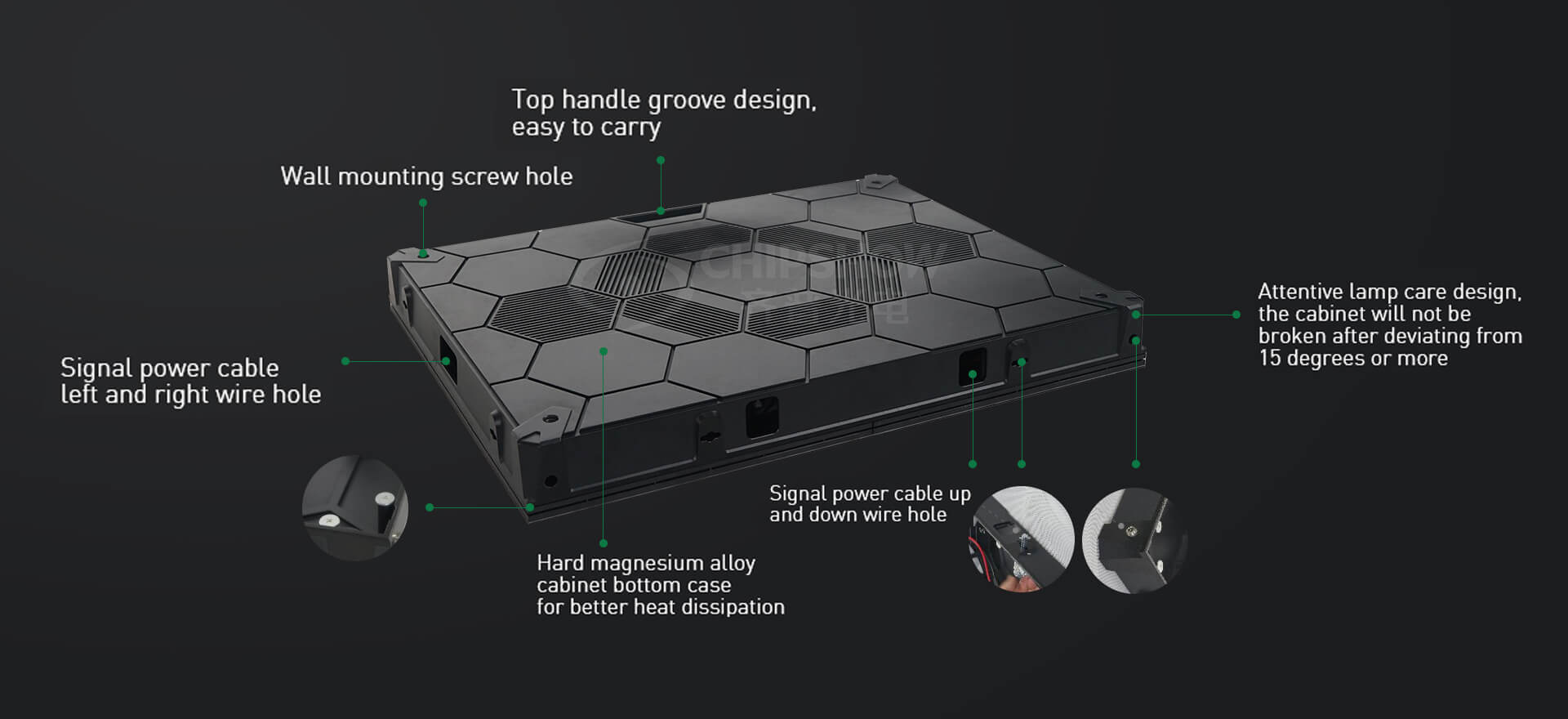

Cabinet Structure



Specifications

Products series

C-Max

Pixel Pitch

2.5, 3, 3.3, 4mm

Pixel color

1R1G1B

Pixel LED

SMD

Module size

320*160mm

Cabinet Material

Die-cast aluminum


Cabinet weight

9kg/pcs

Cabinet size

640*480*70mm

Brightness

800 nits

Color temperature

6000~8000 K

View angel

H:120°, V:120°

Refresh frequency

1920~3840HZ

Gray grade

≥14bit

Working temperature

-20℃~50℃

Protection grade

Front/Back:IP40
