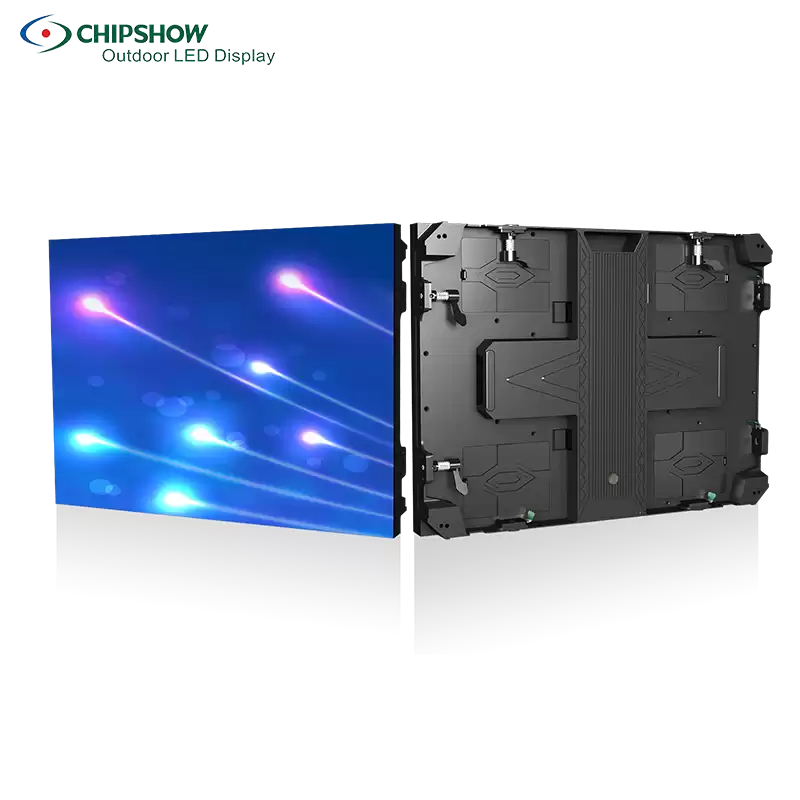

C-Max P3 Indoor SMD Die-Cast Aluminum Cabinet LED Display

Simplicity and durable, indoor commercial preferred.

640x480mm cabinet size, it can be assembled with a variety of 4:3 and 16:9 LED large screens, directly mounted on the wall, saving space and labor.

The same proportion of video source as LCD, directly replacing the original LCD.

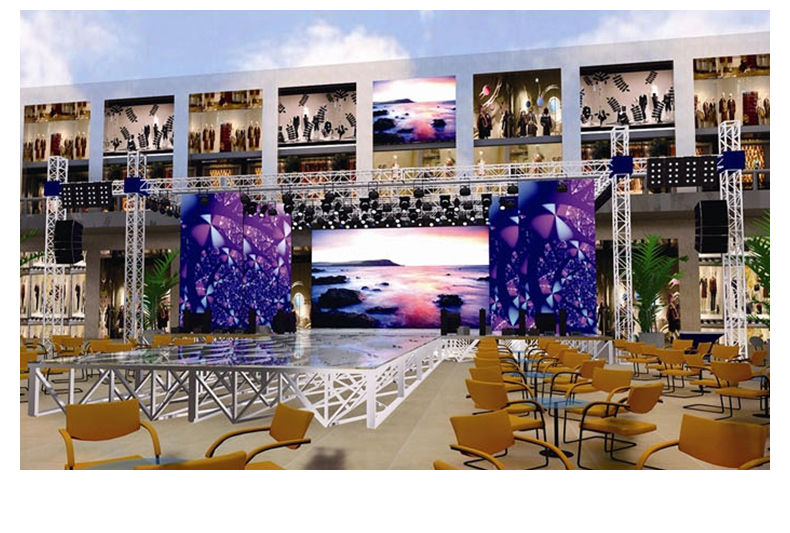

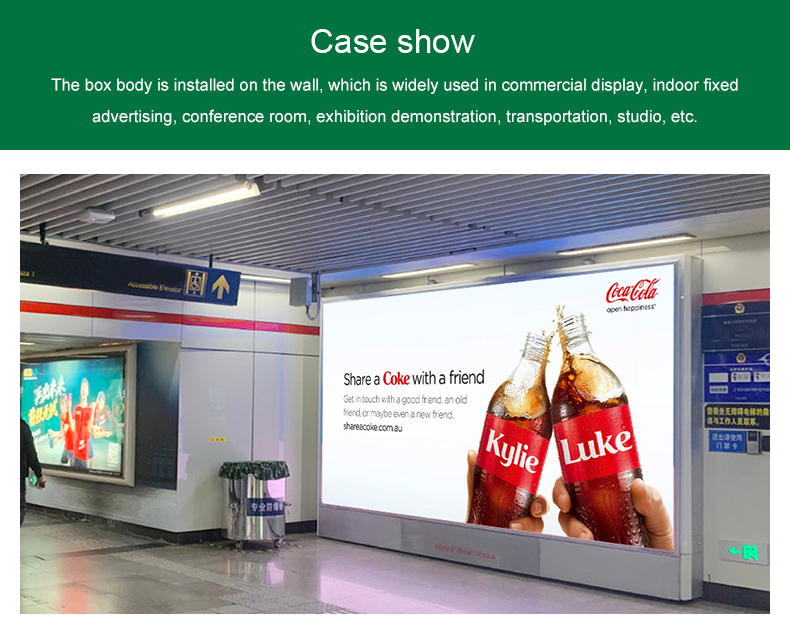

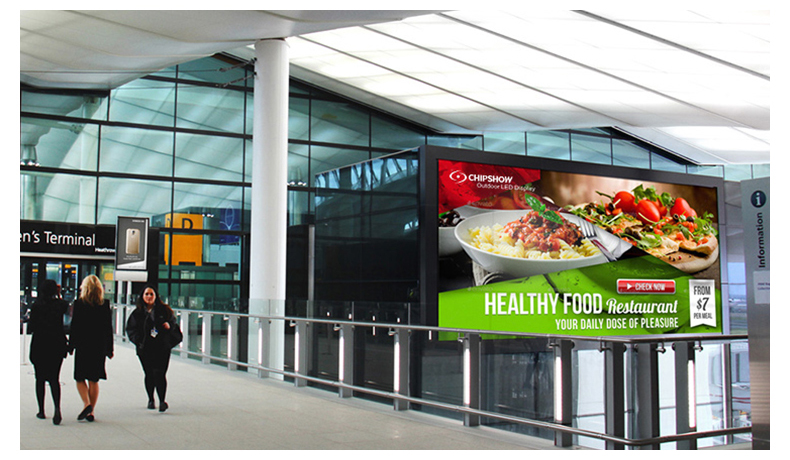

Widely used in auditorium, conference room, banquet hall, security monitoring, command system.

Module features:

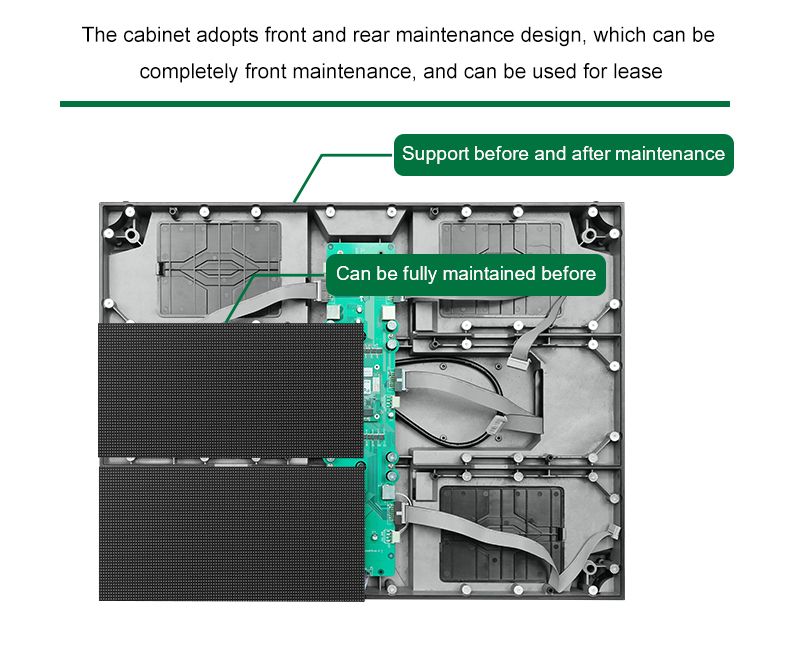

Easy: Modular design, easy assembly and maintenance.

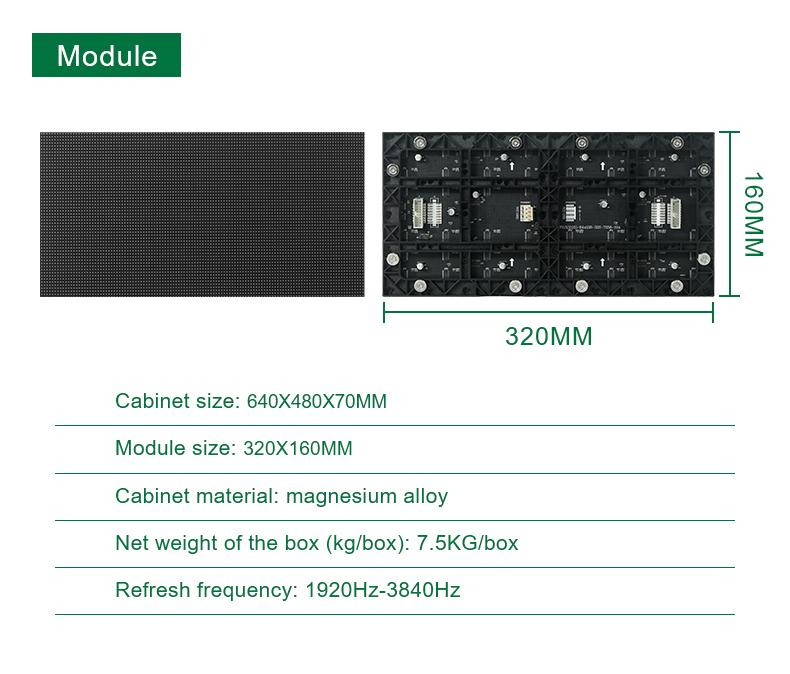

Module size: 320*160mm, Smooth surface, module gap small, high precision

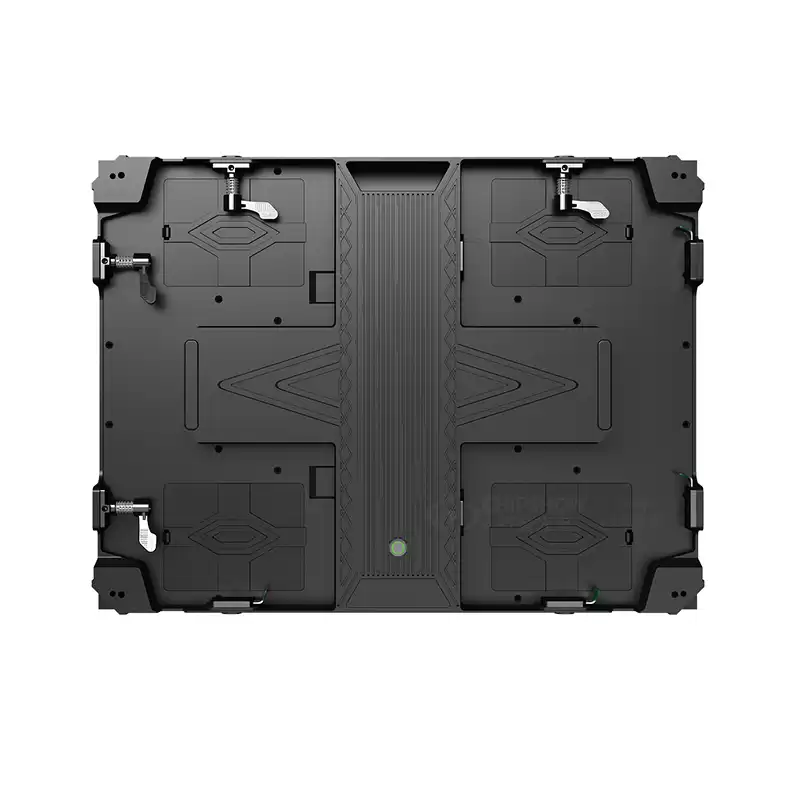

Cabinet features:

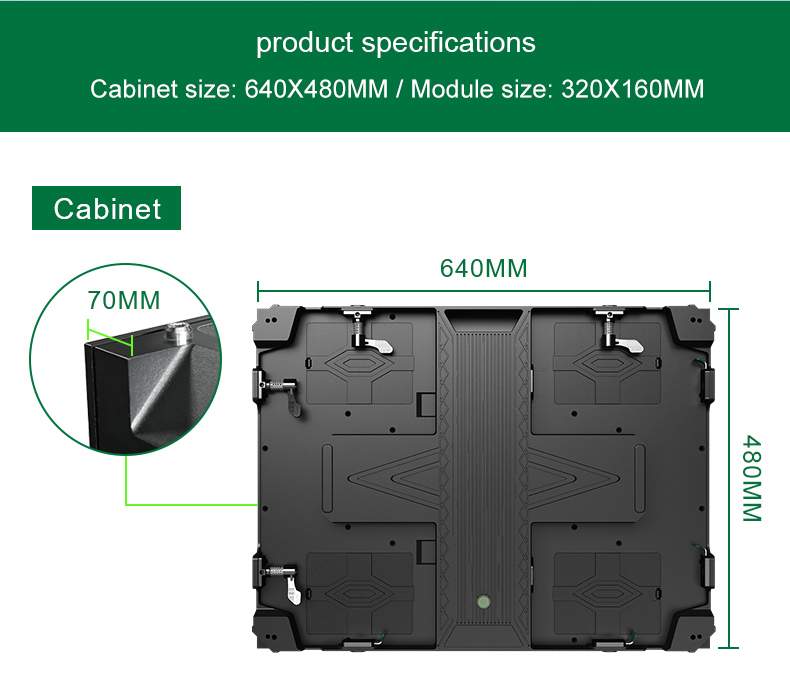

Light: Cabinet size: 640*480*72.5mm, Weight: 7.5kg/pc.

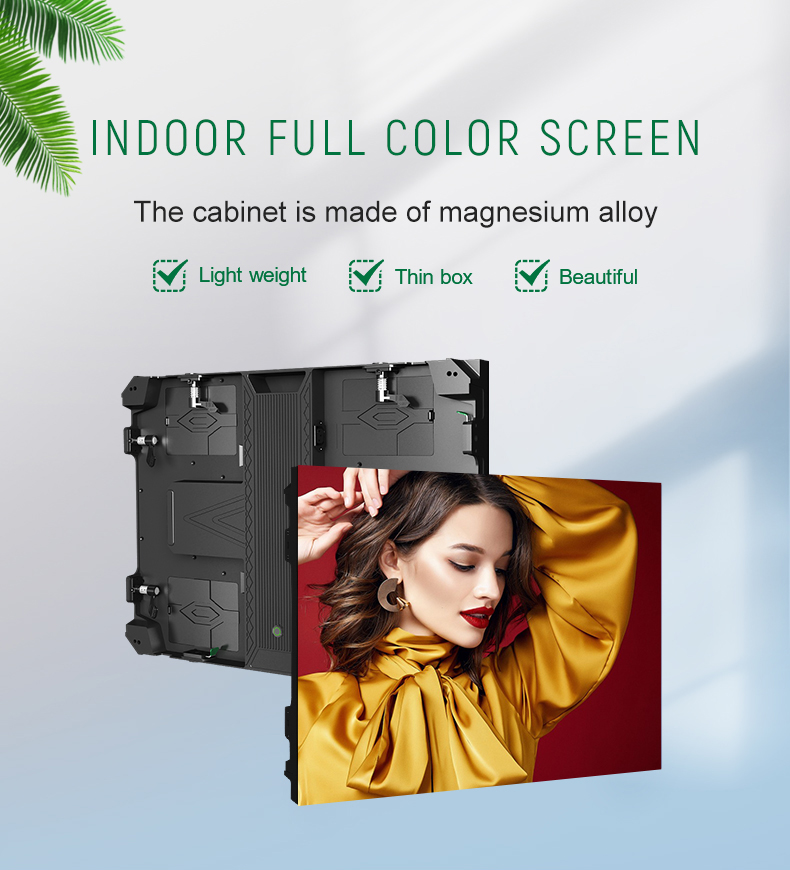

Thin: Die-cast aluminum design, high precision, thickness only 72.5mm.

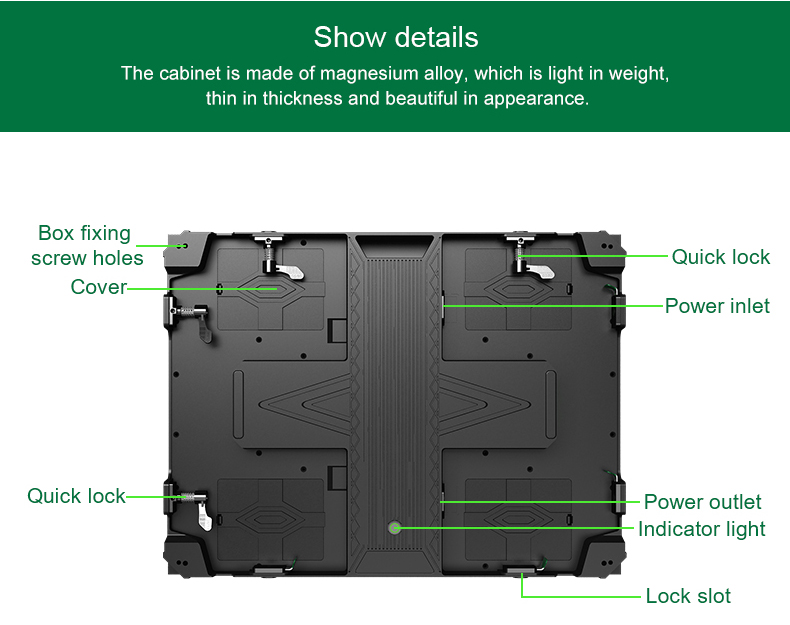

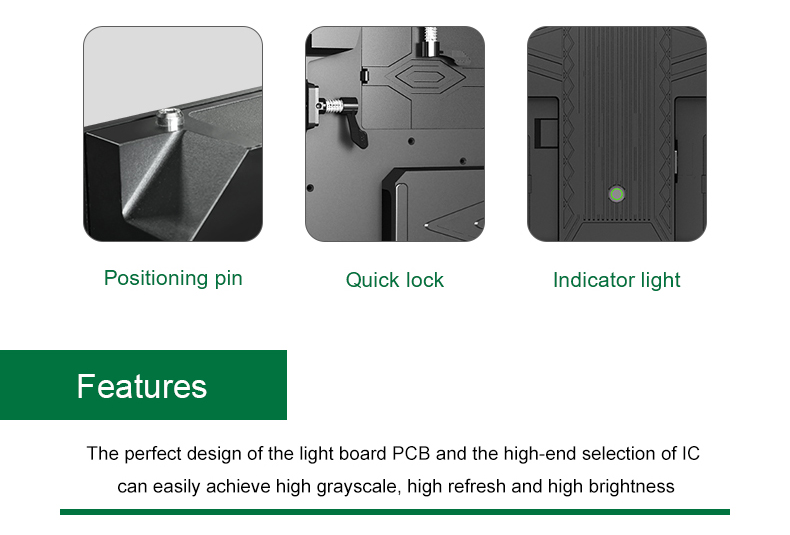

Fast: Fast locks, Easy to assemble and disassemble.

Compatibility: Available pixel pitch for P2.5, P3, P3.3, P3.91, P4, P5, P6.

Low: Excellent cooling design, no fans or air-conditioners needed. noiseless, low power consumption, cost-effective.









Specifications

Item

Description

LED Type

Black SMD 3in12121

Pixel Pitch (mm)

3

Panel Material

Die Casting Aluminum

Brightness (nit)

800

Refresh Rate (Hz)

3840

Contrast Ratio

6500: 1

Viewing Angle (H/V) ()

160/140

AC Operating Voltage (V)

100-240

Operating Temperature (c)

(-10 to +40)

IP Rating (Front/Rear)

IP40/lP21

Panel Installation Type

Stacking/Wall Mounting

Certificate

CE,ETL,FCC,ROHS




Product Tags p3 indoor led screen          p3 indoor smd led display          p3 smd led display
