C Shaped Channel Roll Forming Machine

Easy operation, low maintenance cost





         C Purlin Machine(web 3 inch,4 inch and 6 inch)


  C Shape Roll Forming Machine



Video Link:http://www.rollformingmachinerychina.com/automatic-c-purlin-roll-forming-machine_n102


1.Main features of C shape steel machine

    The advantages of C purlin machine are as follows:

    1.Beautiful appearance

    2.Stable and durable

    3.Easy operation, low maintenance cost

    4.Popular in Southeast Asia market



2.Detailed Images of C shaped steel forming machine

    Machine Parts

        1) C purlin machine feeding guide

        Brand: BMS    Original: China

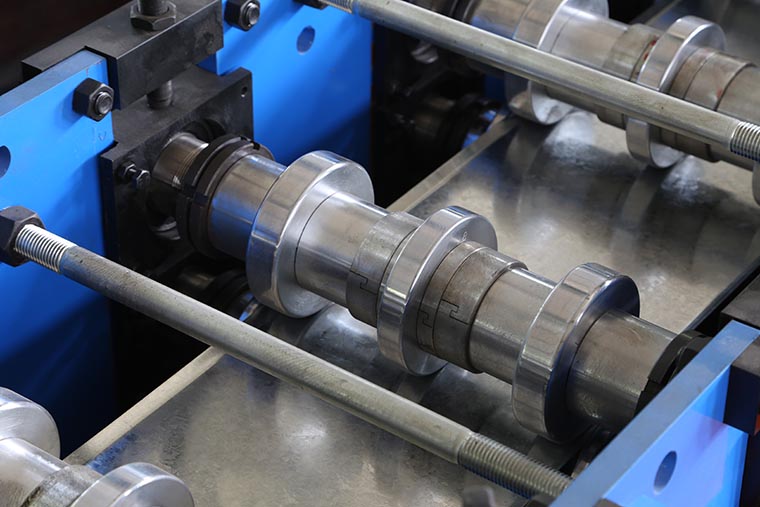

        2) C purlin machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body frame made from 300# H type steel by welding


c shaped machine

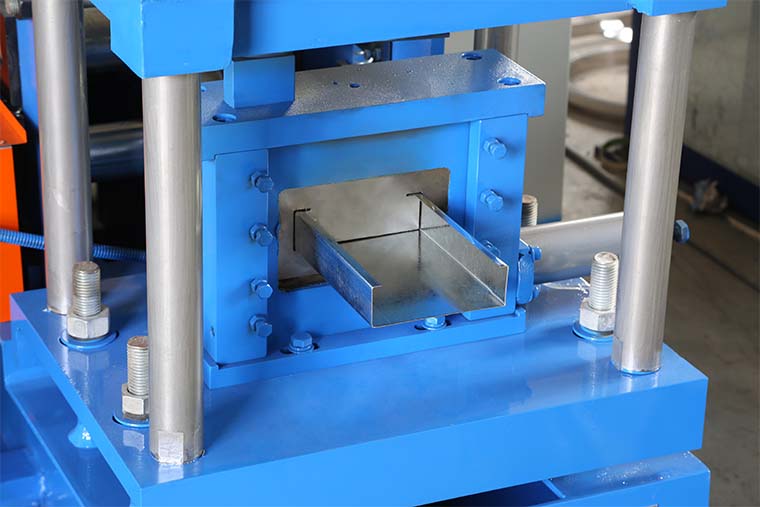

        3) C purlin machine post cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12MOV with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

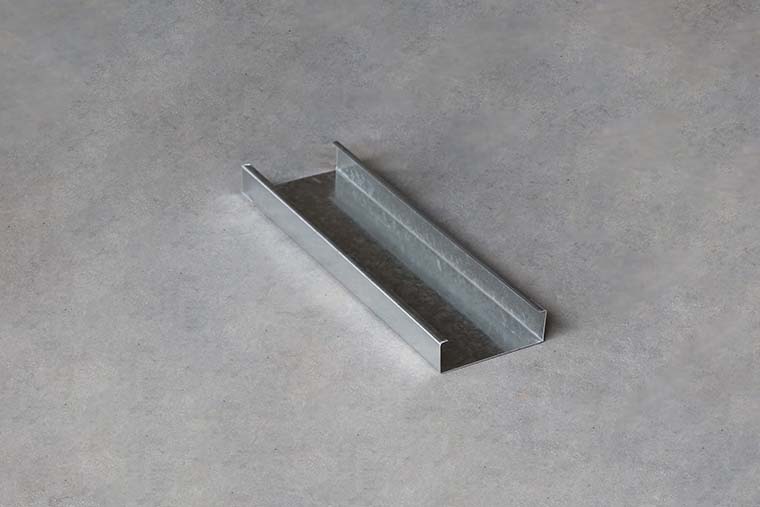

        4) C purlin machine product show





        5) C purlin machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton



        With 3 tons hydraulic decoiler for option



        6) C purlin machine exit rack

        Un-powered,one unit


Other details of C purlin roll forming machine



Suitable for material with thickness 0.7-1.8mm

Shafts manufactured from 45#,Main shaft diameter=φ65mm,precision machined

Motor driving,Gear chain transmission, 14 rollers to form

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Just adjust required WEB,HEIGHT and LIP by hand wheel with the help of

position clock(with digit display for easy operation) on it,

and then input the required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine  (which takes over 45 minutes for each production size changing).



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-length tolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of purlin roll forming machine



1. The warranty of c purlin roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
