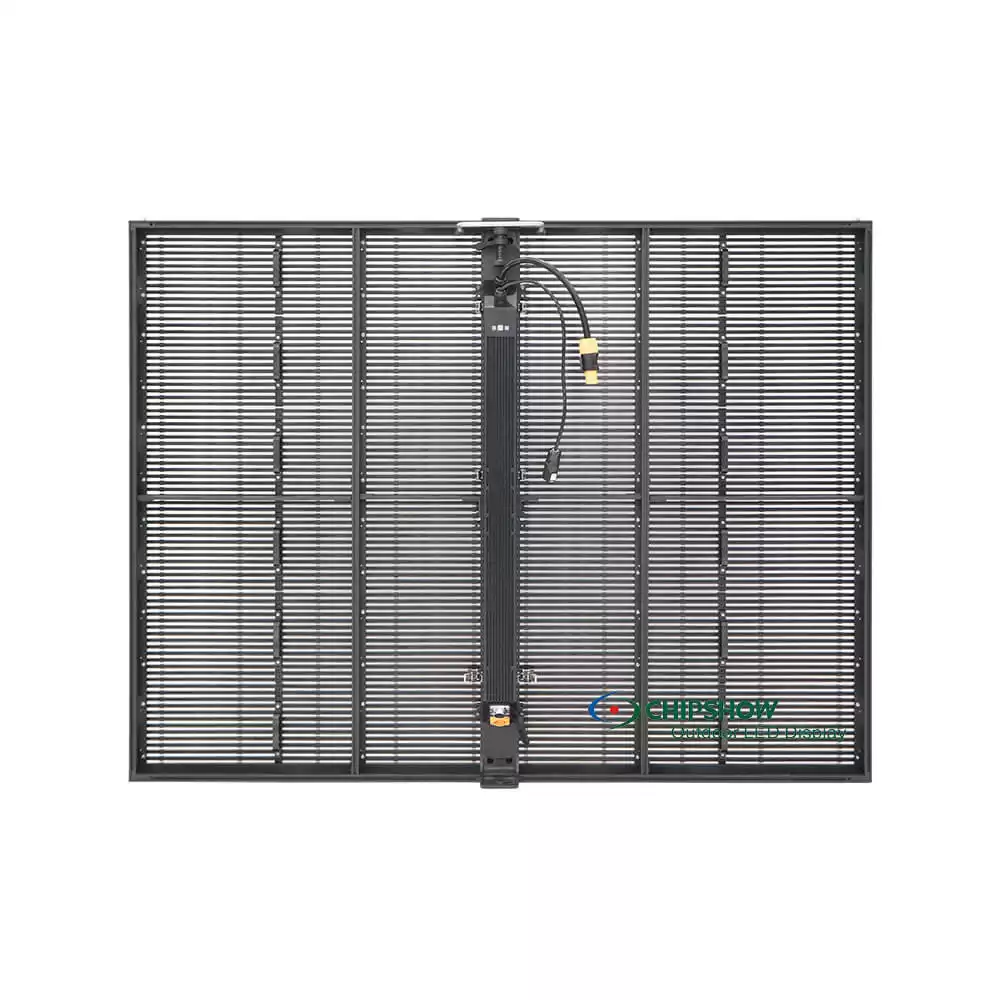

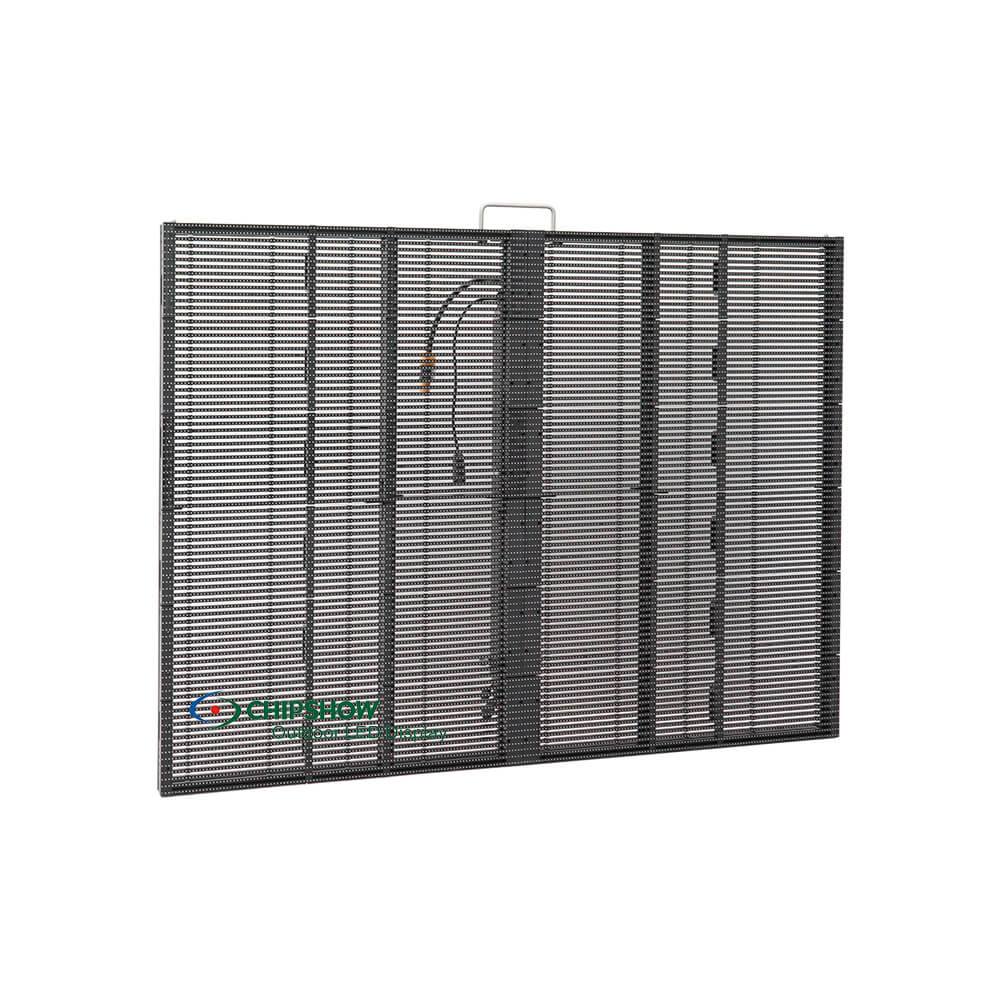

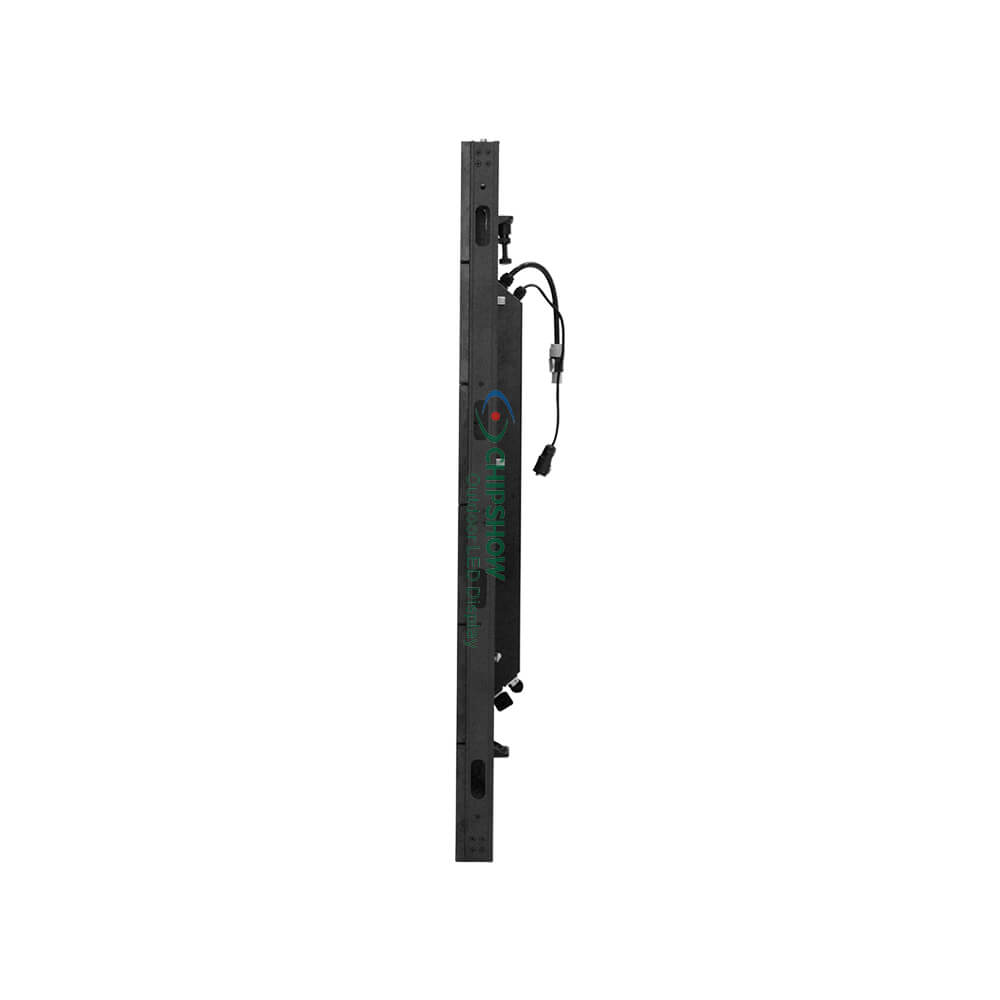

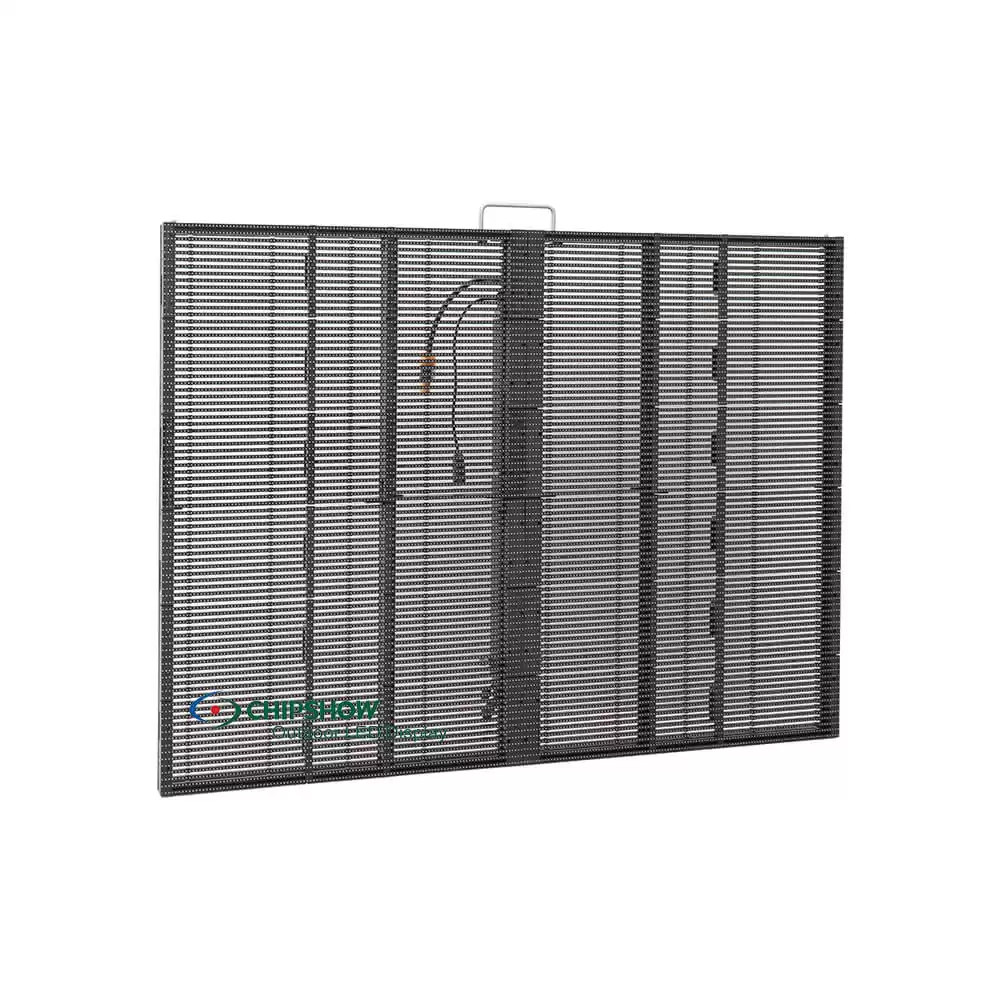

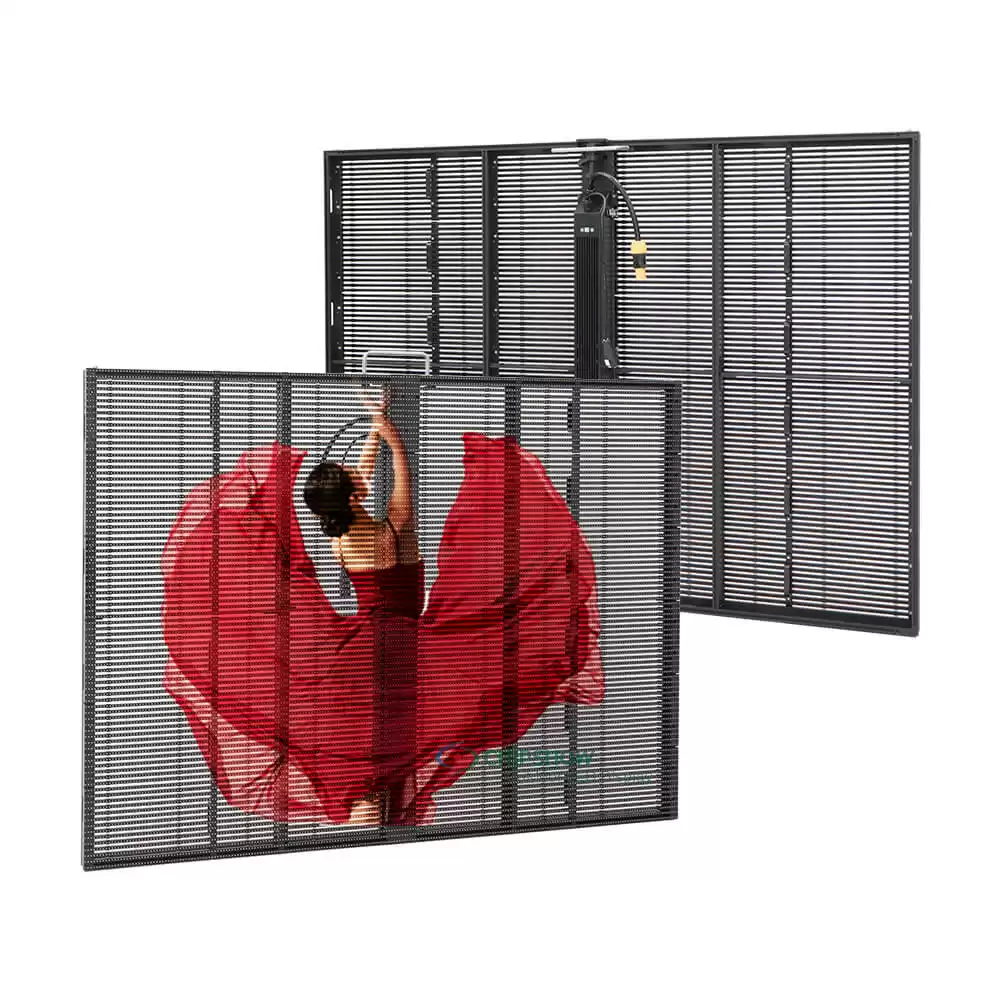

C-Trans P5.35 Outdoor Transparent LED Screen

Outdoor transparent LED display solutions

Features

1. Lightweight

2. Transparency rate≥48%

3. Low wind resistance

4. Front and rear maintenance

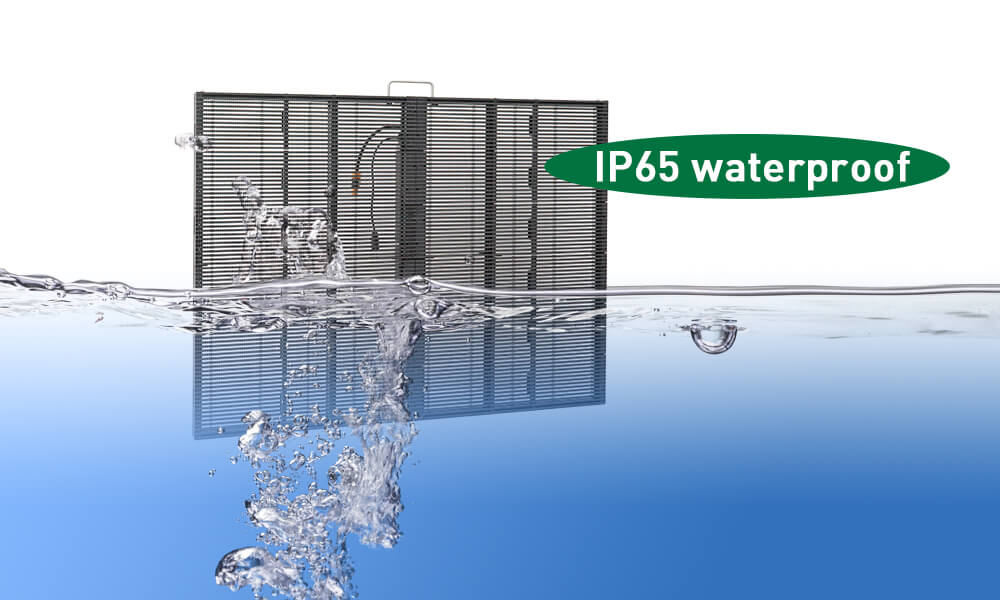

5. IP65 protect grade

Applications

shopping malls, terminal, car building, exhibition hall, office building glass curtain wall, etc.

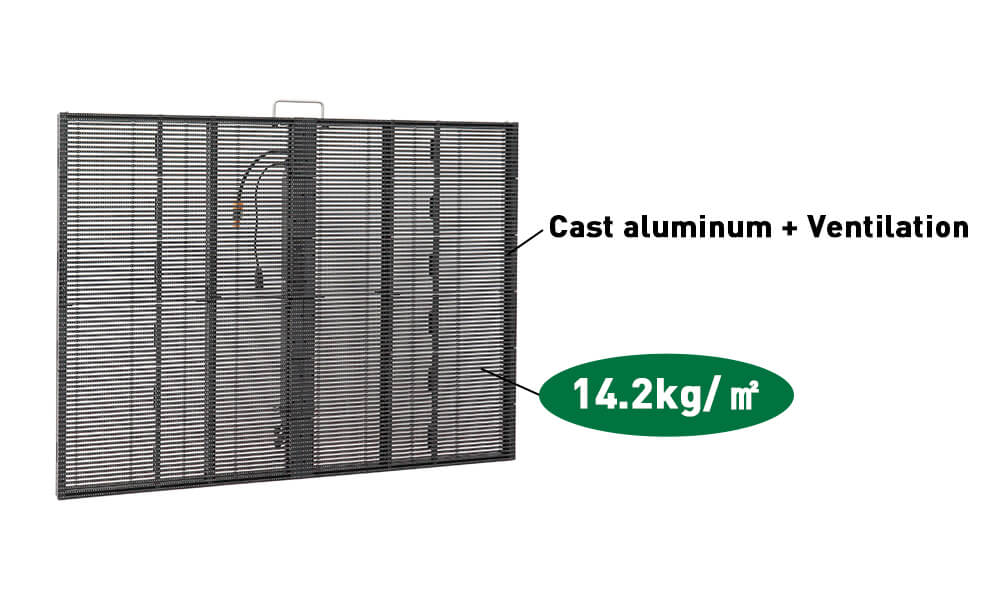

Light weight

The weight of the product is only 14.2kg/m², easy to install and maintain, low cost for supporting structure.

p5.35 outdoor transparent LED screen

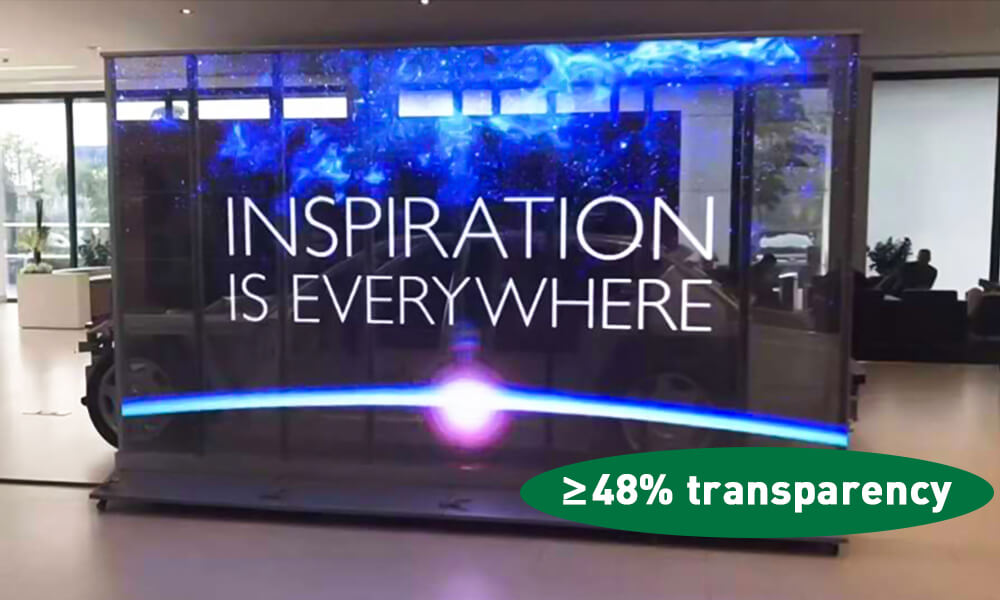

High transparency

Transparency rate≥48%, and do not affect the viewing for outdoor scenery with glass screen

p5.35 outdoor transparent LED screen


All-weather adaptability

Resistant to low and high temperature, humidity, and other all-weather environment

p5.35 outdoor transparent LED screen

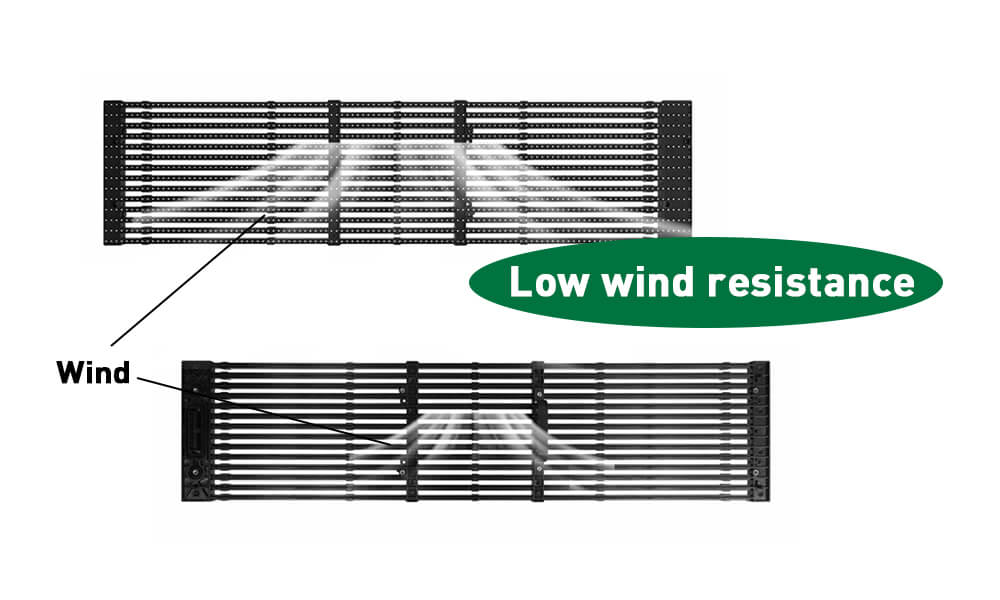

Low wind resistance

Strong wind directly penetrates of the grille module,
greatly saving the cost of steel structure
p5.35 outdoor transparent LED screen

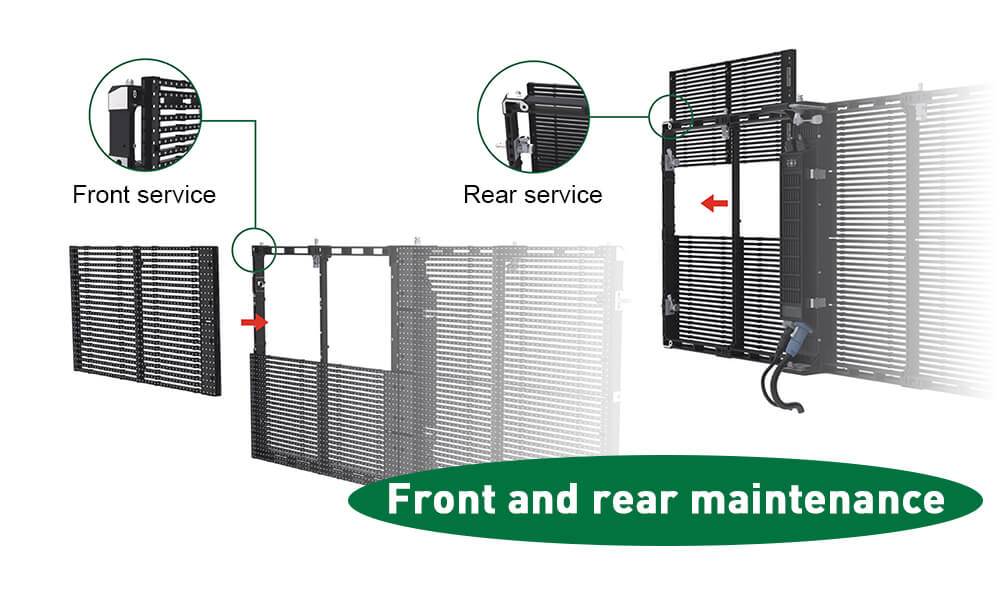

Front and rear maintenance

The module can be installed and maintained front/rear
to improve the adaptability of the product to on-site installation conditions

p5.35 outdoor transparent LED screen

Specifications


Product

C-trans 5.35

Module

Pixel pitch

5.35*10.71mm

Resolution rate
112*14
Size

600*150*12mm

Pixel color

1R1G1B

Pixel LED

1921

Cabinet

Material

Cast aluminum + profile

Cabinet weight

14.2kg/㎡
Resolution rate

224*84Dots

Size

1200*900*97mm

Module quantity
2*6

Density

17428 Dots/㎡

White balance

4500 CD/㎡

Color temperature

3200K-9300K

View angel

H/V:90°/55°

Transparency

48%

Maximal power

550W/㎡

Average power

180W/㎡

Frame frequency

60Hz

Refresh frequency

3840Hz

Gray grade

14bit

Working temperature

-40~55℃

Protection grade
front/rear: IP65
