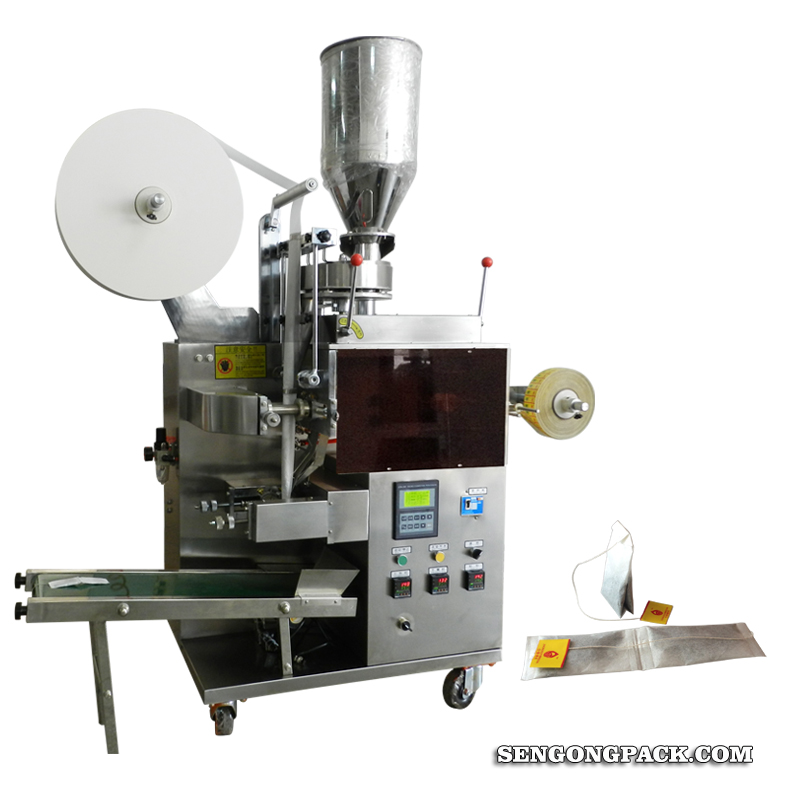

C13 Automatic Double Chamber Tea Bag Packing Machine

tea packaging equipment,Double Chamber Tea Bag Packing Machine









 Application:
It is suitable for double chamber tea bag products packing, such as broken tea, coffee, ginseng essence, diet tea, health care tea, medical tea and herbal tea, etc.

 Features:
1. This can automatically complete bag making, filling, measuring, sealing, thread feeding, tag attaching, cutting and counting etc. It would highly improve the working efficiency and reduce labor expense.
2. Pins only need to be stapled by hand.
3. PLC control system and automatic temperature control system are adopted, which can effectively control the sealing temperature within the standard range.

 Technical data

Type: Tea Bag Packing Machine Series
Product model: C13
Product name: Automatic Double Chamber Tea Bag Packing Machine
Packing material: Filter paper, Thread, Tag
Measuring: Measuring cup filler
Filling range:  3-15ml

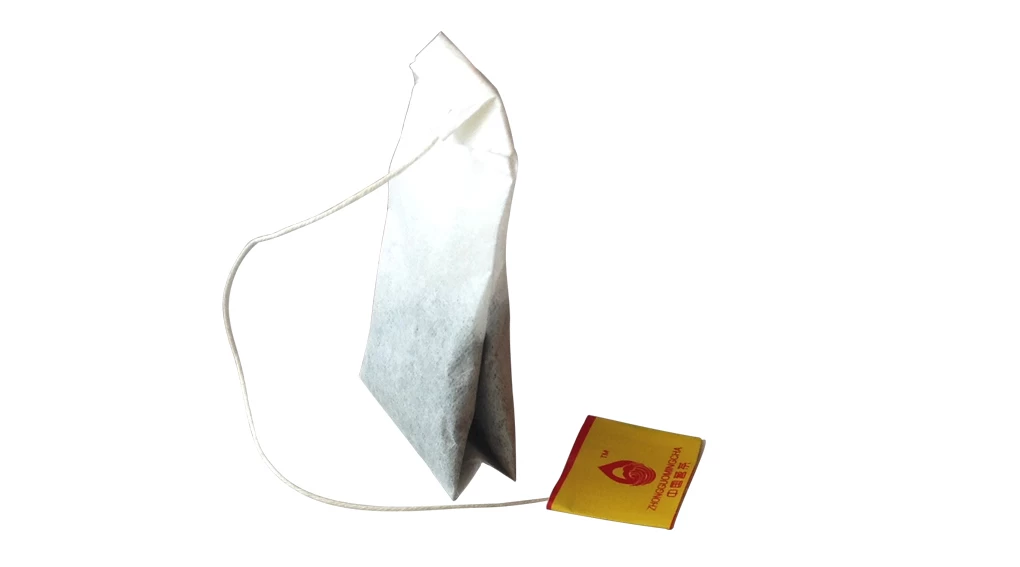

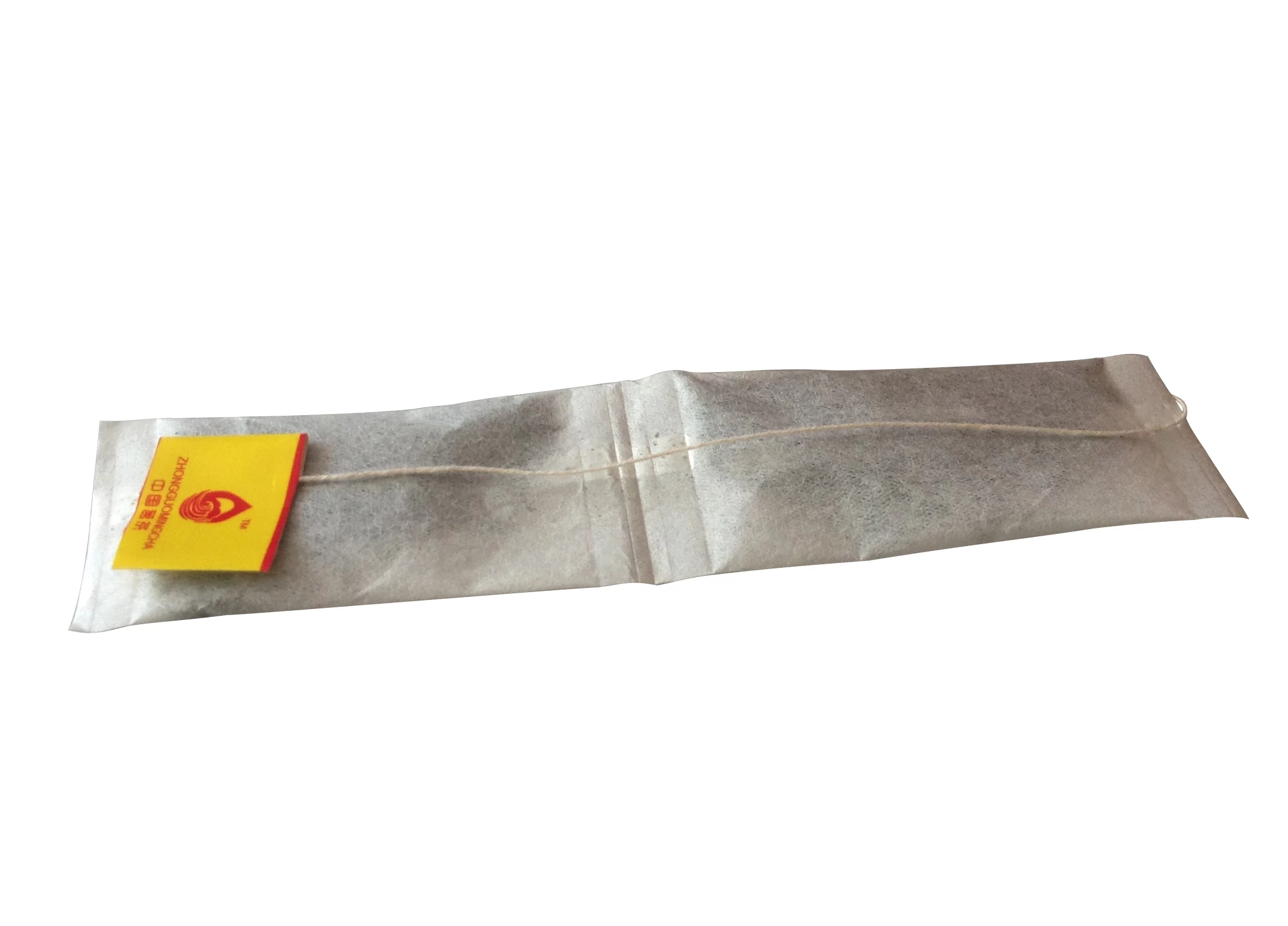

Bag size:  L:150mm (80 +70 mm, bi-fold double chamber bag);
W:40mm.  Similar to "Lipton" tea bags.
Filter paper width: 87mm
Tag size: L:20mm , W:25mm
Thread length: 155~200mm
Packing speed: 20~40 bags/min
Power: 220V/50HZ/1.6KW
