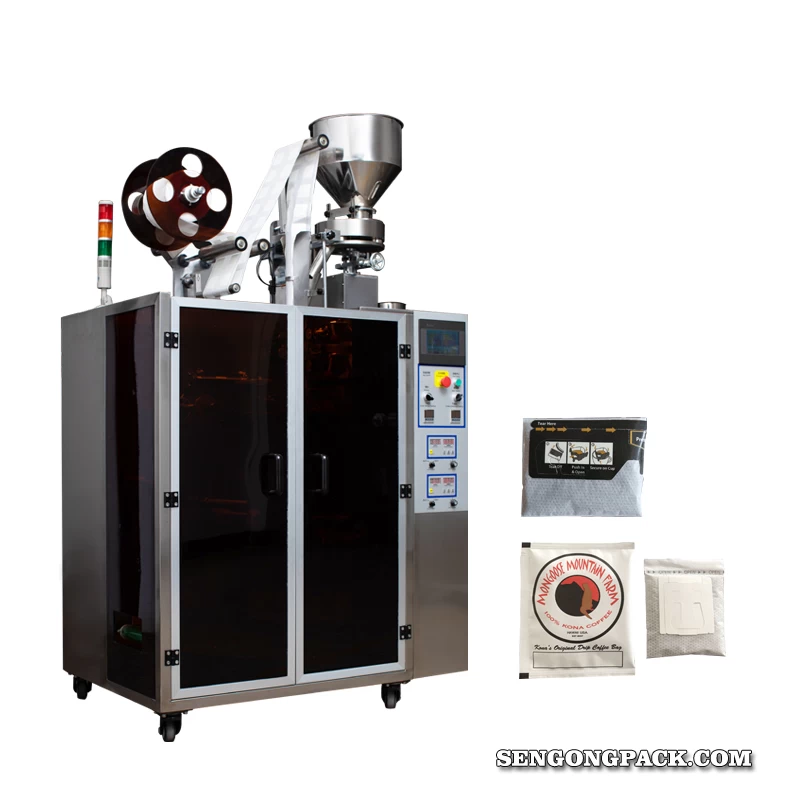

C19H drip coffee inner and outer bag packaging machines

We promise

1:On - site repair
2:Free one-year warranty
3:Free testing machine
4:Free operating machine training








Application;
It is suitable for inner and outer bag  packing granule coffee,coffee powder;5 to 15gram   drip coffee inner and outer bag packaging.
Features;
1.Outer bag sealing is controlled by the stepper motor,bag length positioning is accurate and stable.
2.Adopts PID temperature controller for more accurate temperature adjustment.
3.Adopts PLC control system ,human -machine interface,it is very easy to operate.
4. All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to food sanity standards.
5. Some cylinders are imported, ensuring the accuracy and stability of the machines’ performance.
6. It can make the inner and outer bag at the same time automatically, which would highly improve the working efficiency.
7. Optional devices: flat cut devices,date printer,easy tear device etc Date code printer.

9. There is a reserved connector to link with nitrogen making machine so as to flush nitrogen into the bag to extend its shelf life.
10. Adopts high specifications components.
Standard Technical Data;

Type Drip Coffee Packaging Machine Series
Model C19H
Product name C19H drip packaging machines for coffee
Bag type 3 side sealing
Packing material Paper/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Filter paper
Feeding system Volumetric cup filler
Package range 5-15g
Inner bag size L:50-75mm , W:50-90mm(film width 180mm,bag size:90x75mm)
Outer bag size L:85-120mm , W:75-100mm(film width200mm,bag size:120x100mm)
Inner bag film width (180mm) Bag size: L90mm*W75mm
Outer bag film width(200mm) Bag size: L120mm*W100mm
Power supply Single phase, 220V, 50HZ, 3.7KW
Packing speed 30-60bags/min
Weight 650KG
Dimension (L*W*H) 1200*900*1900mm
