Application:

It is suitable for tea packaging products such as loose leaf tea, herbal tea, health care tea, rose tea, ginseng and other Chinese kinds of local tea, etc.

Features:

1. The feasible package materials of the triangle bag machine is nylon, non-woven fabric materials imported from Japan, which is non-toxic, non-bacteria, heat-resistant, high-quality and food-grade, conforming to our national safety inspection standard.

2. The machine uses a unique sealing method - ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.

Technical data:

Machine type: Tea Bag Packing Machine Series

Product model: C20DX

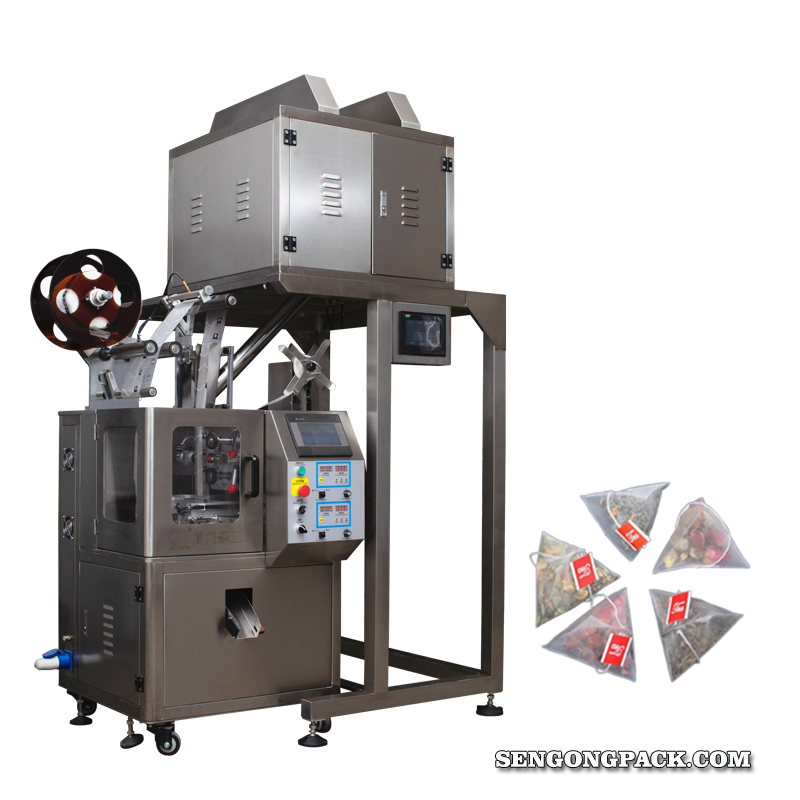

Product name: Automatic Pyramid Nylon Tea Bag Packing Machine

Package materials: Nylon material imported from Japan, non-woven fabric, 100% biodegradable transparent materials, PET, PLA, etc

Measuring: Measuring cup filler

Filling range: 1-10g/bag, accuracy: ≤ ±0.2g/bag

Packing speed: 40~60 bags/min

Packing roll width: 140, 160, 180(mm)

Sealing length: 50, 60, 70, 80(mm)

Sealing method : sealing and cutting by ultrasonic

Qty of sealing device : 2 sets

Air supply: ≥0.6MPa(can be equipped with air compressor)

Motor power: 220V, 50HZ, 1.2KW

Dimension : 1200*900*1800mm(L*W*H)

Weight: 350KGS
