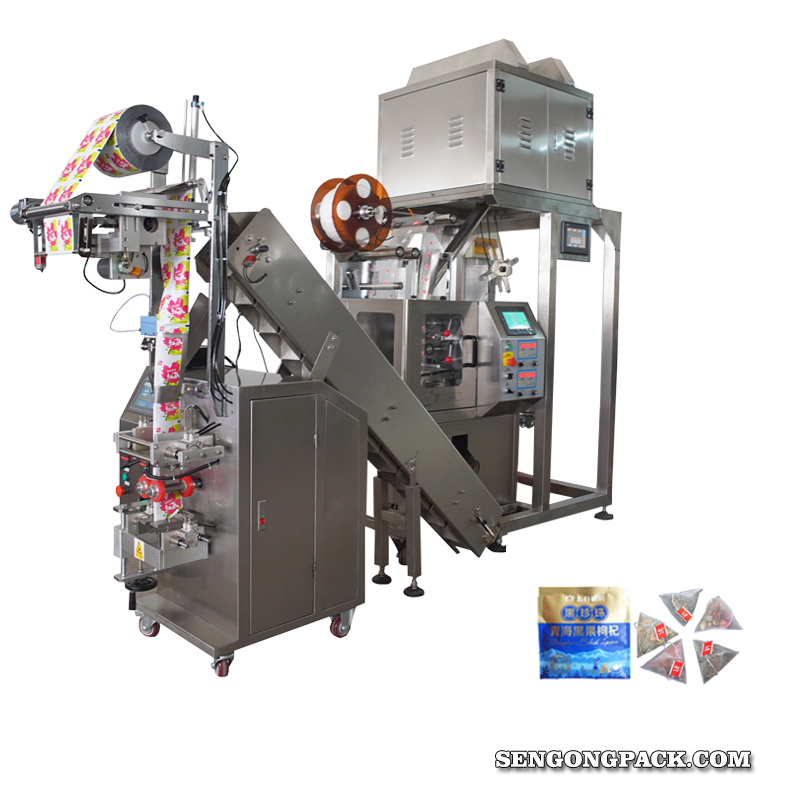

C21DX Automatic Pyramid coffee filling machine

tea pouch packing machine ,pyramid tea bag packaging,







l;Application:

It is suitable for  inner and outer teabag packaging for products such as loose leaf tea, herbal tea, health care tea, flower tea, and Chinese local tea like Darjeeling, Assam, Ceylon, etc.


We have over 18 year experience in Tea Pouch Packing Machine design, research, development, production, sales and service.



Features:

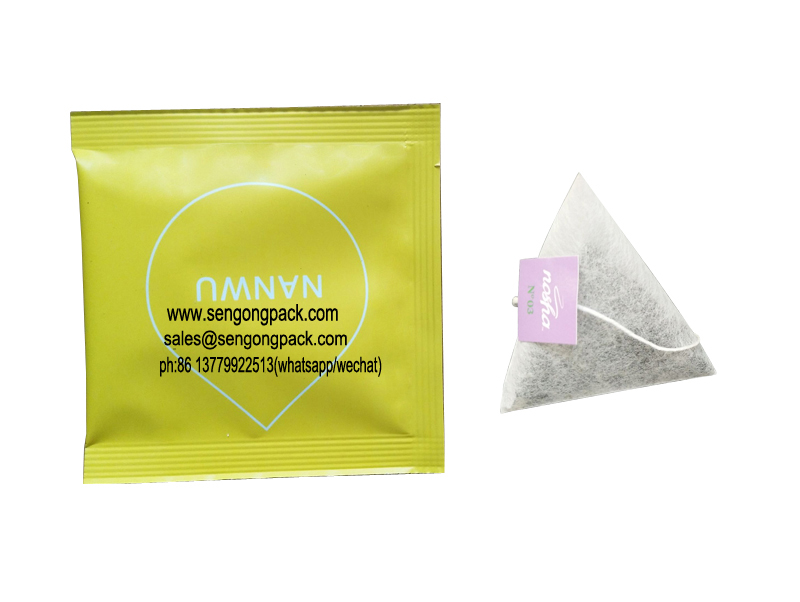

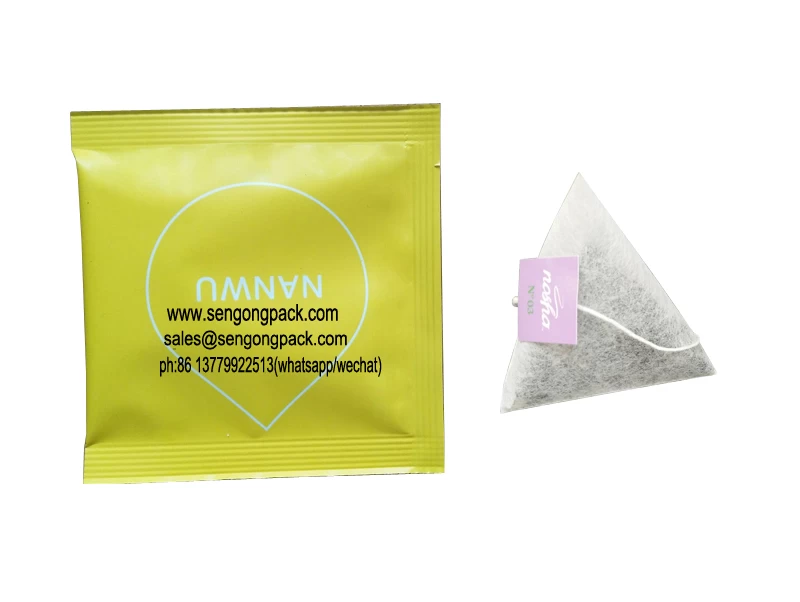

1.;The packing material of the;triangle packaging bag is nylon, non-woven fabric imported from Japan, which is non-toxic, non-bacteria, heat-resistant and high quality food-grade material, conforming to our national safety inspection standard.
2.;The machine uses a unique;sealing method--ultrasonic. It can seal tightly, safely, and reduce the width of the extra edge, avoiding any waste of packing materials.
l;Technical data:

Machine type: Tea Bag Packing Machine Series
Machine Model: C21DX
Machine;name: C21DX Automatic Pyramid  coffee filling machine
Packing speed: 40~60bags/min
Filling range: 10g
Accuracy: ±0.1g/bag
Packing roll width: 140, 160, 180(mm)
Outer bag size: W:80-100mm, L: 90-120mm
Sealing method: Cutting and sealing by ultrasonic
Quantity of seal device: 2sets
Power supply: 220V;, 50Hz,;1.85KW
Air supply: 0.6MPa (can be quipped with air compressor)
Dimensions:; 3000*900*2350mm(L*W*H)
Machine weight: 700KGS


;
