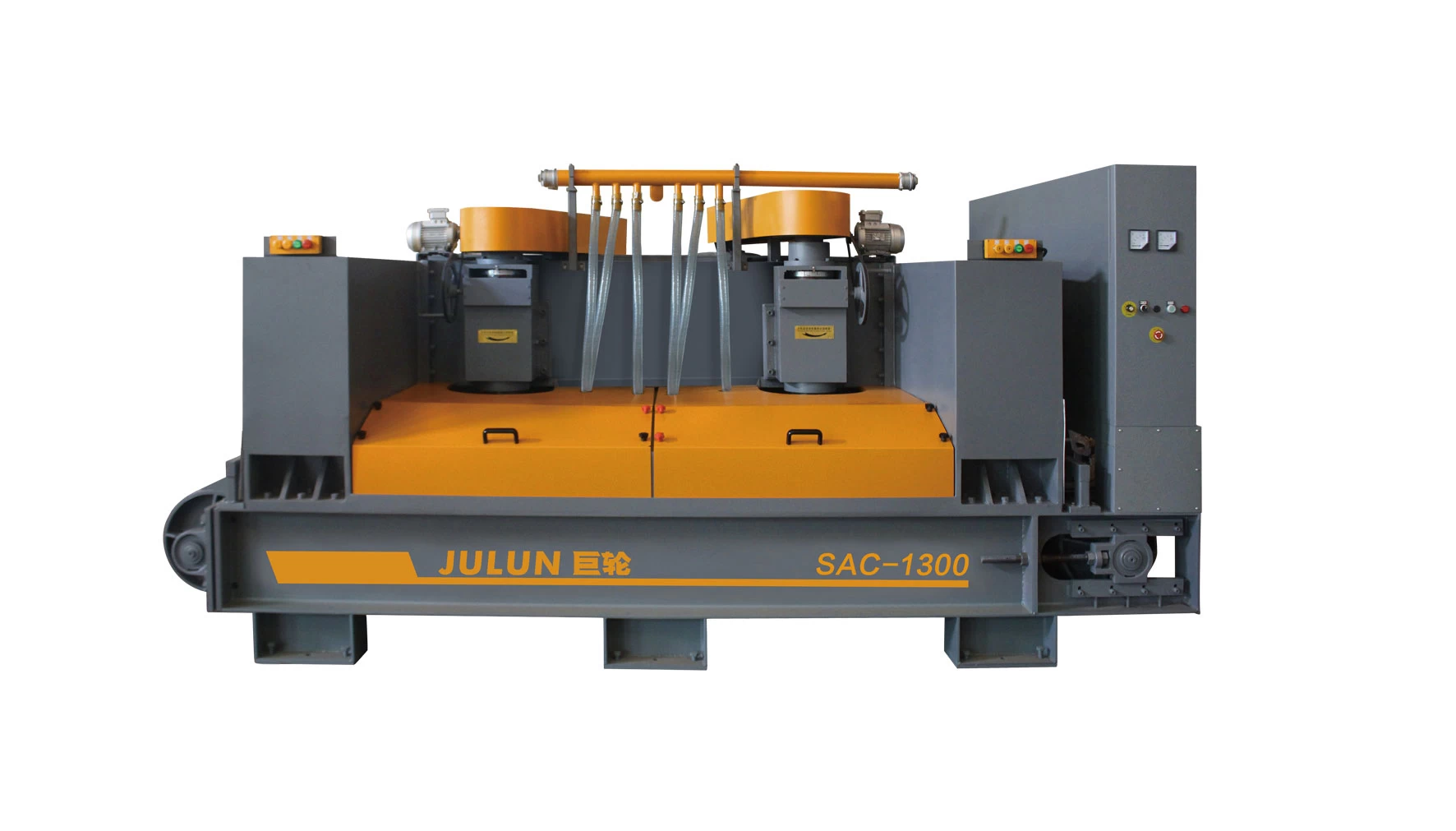

Gantry Automatic Calibrating Machine Double Head
1. It is mainly formed by main engine lifting system, spindle grinding system and conveyor belt driving system. The clearance fits well by using the cylinder as the lifting guide sliding surface, which stops the minor vibrations that others can't overcome during processing.

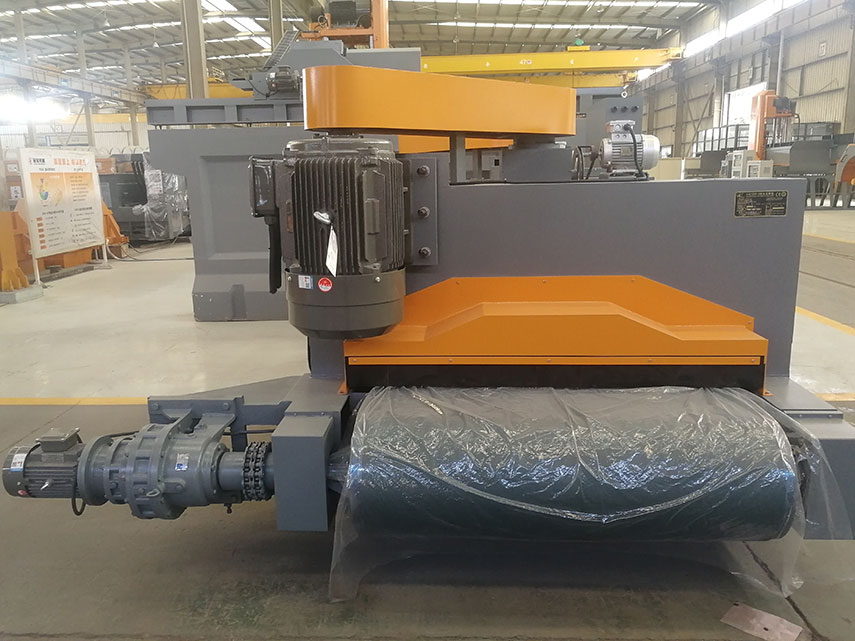

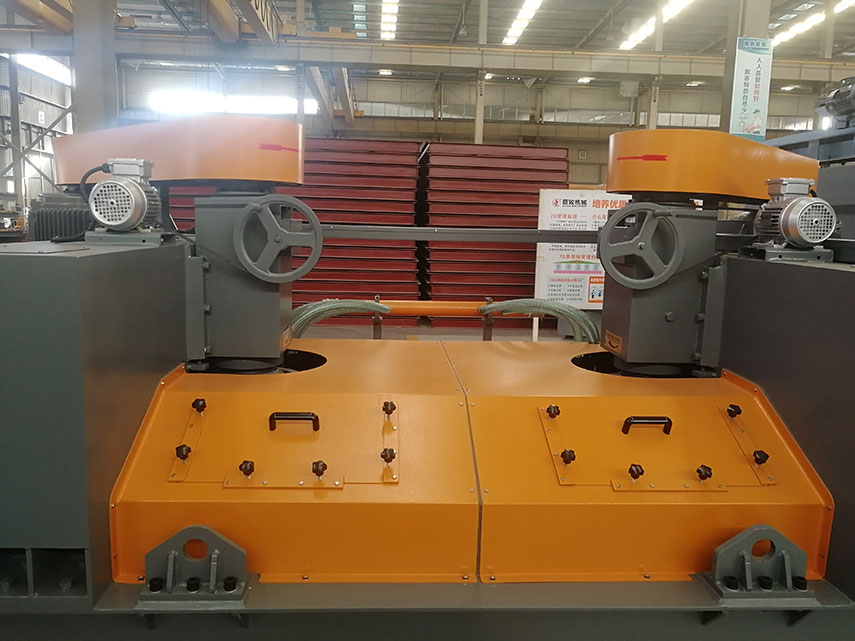

2. In the spindle grinding system, the structure is driving by long spline and connected the guide by long key. Thus the spindle drives steady, safe and reliable. The conveyor belt running system is moving freely by using frequency converter with continuously variable.
3. The whole set machine has the advantage of good working performance. It is the optimization equipment of slabs calibrating and leveling.
Specification
|
Appellation
|
Unit
|
SAC-1300
|
|
Grinding head diameter
|
mm
|
Φ1350
|
|
Grinding head lifting stroke
|
mm
|
100
|
|
Number of grinding head
|
PCS
|
2
|
|
Belt advanced speed
|
M/min
|
0-2.5
|
|
Water consumption
|
m3/h
|
16
|
|
Air consumption
|
kW
|
30( Optional 37）
|
|
Total power
|
kW
|
64
|
|
Dimension(LXWXH)
|
mm
|
4200X3100X2200
|
|
Weight
|
kg
|
11000
|
Photos
