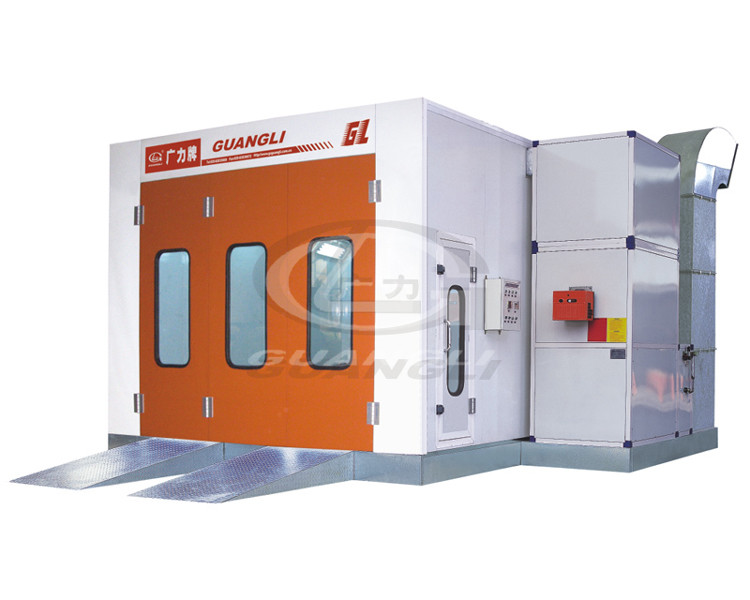

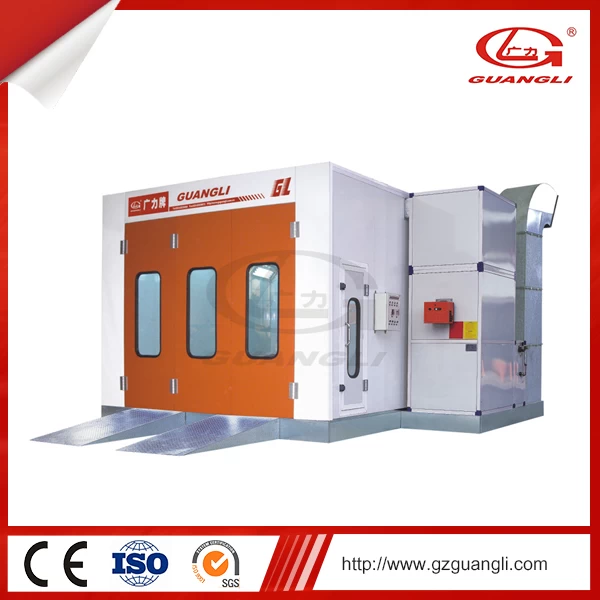

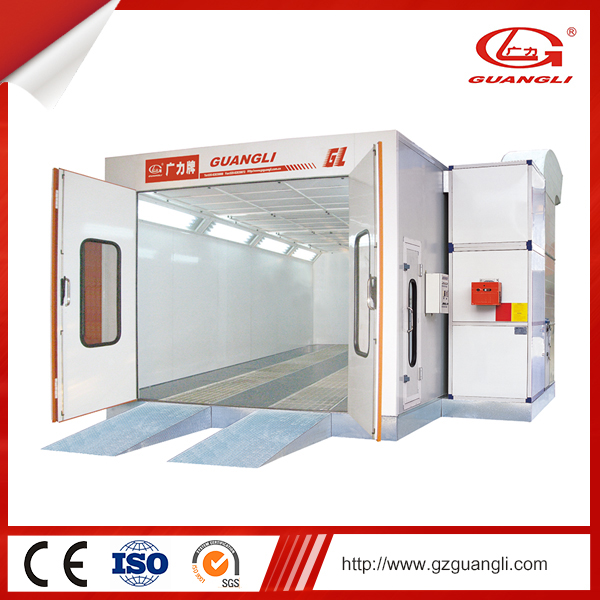

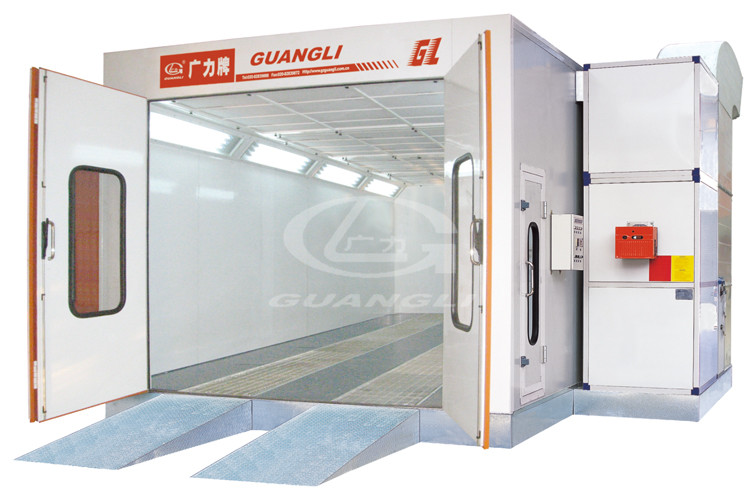

Car Body repair Spray Paint Booth GL1000-A1

Product Spec:

Main body & basement:

Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.

Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.

Door: 3 pieces of front door without aluminum side cover. 1 piece of emergency door with pressure lock.

Ramp: 2 pieces of vein board.

Fans & Ducts:

One unit of 7.5 kw intake fan and one unit of 4 kw exhaust fan.

4 meters straight exhaust ducts, one 90° bend, and one 60° bend. 4 meters straight chimney and 2 small bends.

Spraying/baking transition damper, automatically air controlled.--Heat ex-changer: stainless steel.

Burner & filter:

Riello G20 burner

Roof filter: 4 pieces of filter, mounted above support frame, which is made of steel and powder coated.

2 pieces of floor filter and 1 piece of air mouth filter.

Light & control box

Upper light: 10 sets, 4*40w per set.

Control box: components made in china, overload, overheat, phase-lacking protection, engine Y/△ start.

Automatically stop when preset time is up.

Constant temperature spraying.

Filters:High Efficiency Filter

Color:Orange white blue Red or Client's Requirements

Technical Specification:

GL1000-A1-CE

External size(m)(LxWxH)7.0×5.3×3.5     Internal size(m)(LxWxH)6.9×3.9×2.7

Door width(m)3.0  Door height(m)2.66      Air flow (m3/h)24000

Inside no-load air speed(m/s)0.3-0.5       Power (kw)16

Exhaust type Full-undershot,Bilateral,Semi-down, Unilateral Vehicle suited Saloon car

Heating System RIELLO Brand Diesel Burner/Gas Burner

Baking Temperature(ºC) 20-80

Water based device As optional

Environmental protection Device As optional
