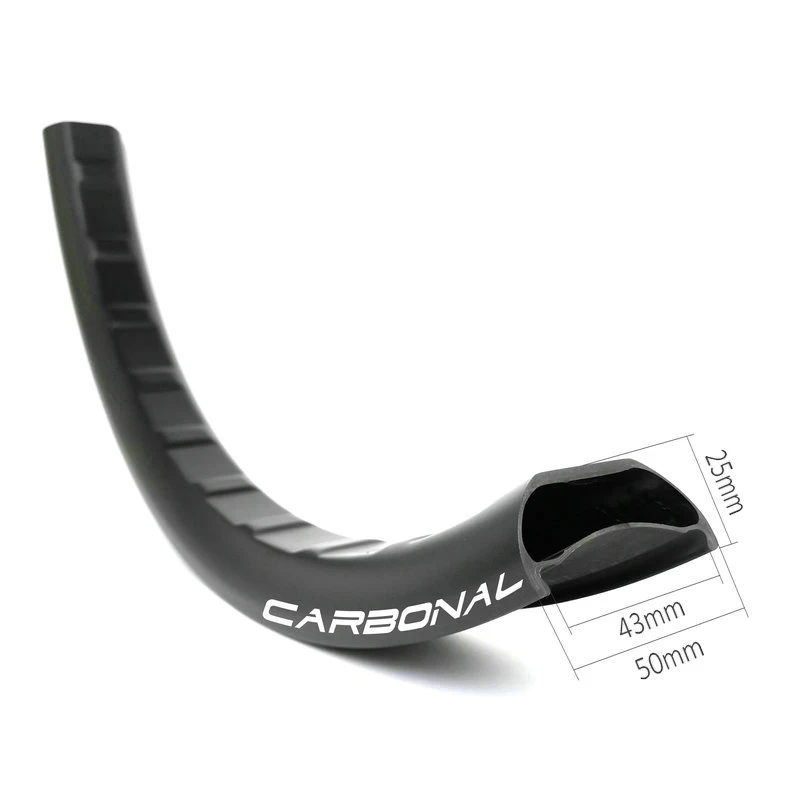

Carbon 27.5 plus rim 50mm wide 25mm deep hookless tubeless ready

Item MX750, weight 470g, ERD 557mm. A new wider, this 27.5 inch plus carbon rim is 43mm internal width providers a better platform for your favorite wide & plus tires.


  • Max weight limit140kg
  • Max spoke tension140kgf
  • Depth25mm
  • Outer width50mm
  • Inner width43mm
  • ERD557mm
  • Weight470g±20
  • Typehookless (tubeless ready)
  • Materialfull carbon Toray T700 & T800
  • Size27.5 inch

Product Item: Carbon 27.5 plus rim 50mm wide 25mm deep hookless tubeless ready

carbon rims for plus bike

A new wider, this 27.5 inch plus carbon rim is 43mm internal width providers a better platform for your favorite wide & plus tires.


Specification:

 Item:
 MX750
 Use:
 Plus bike
 Rim type:
 27.5" / 650b hookless
 Material:
 Toray T700 & T800 carbon fiber
 Tubeless ready:
 Yes
 Weight:
 470g±20

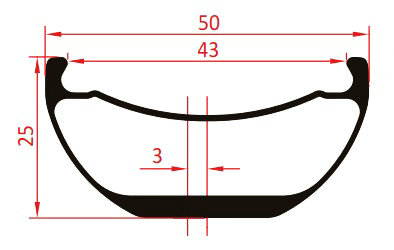

 External/Internal width:
 50mm / 43mm
 ERD:
 557mm
 Depth:
 25mm
 Finish:
 Matte, glossy
 Max weight limit:
 140kgs
 Weave:
 UD, 3k, 6k, 3k twill, marble  see different carbon weaves
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 60psi / 4.1bar
 Tire size:
 2.8" ~ 3.0" (recommended)
 Min tire pressure:
 25psi / 1.75bar
 Decal:
 Customized
 Standard:
 EN standard


Features:

  • Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


1.3 Million Liability Insurance Worldwide:

liability insurance for 27.5 plus carbon rims


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim. Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
