Carbon Bicycle Aero Road Frameset Manufacturer

-Type: Aero Road 700C (Rim Brake)
-Size: 480/510/530/550/570(C to T)
-Head Tube: Tapered 1-1/8’’ - 1-1/2”

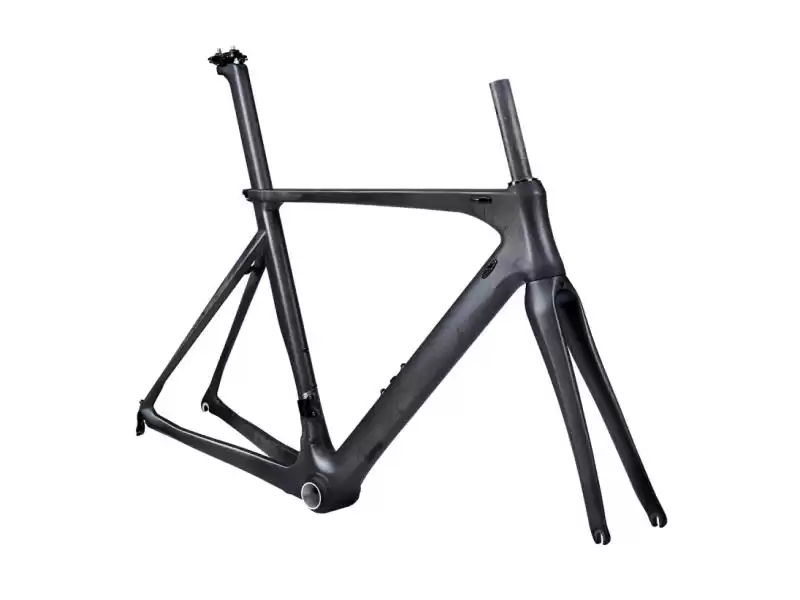

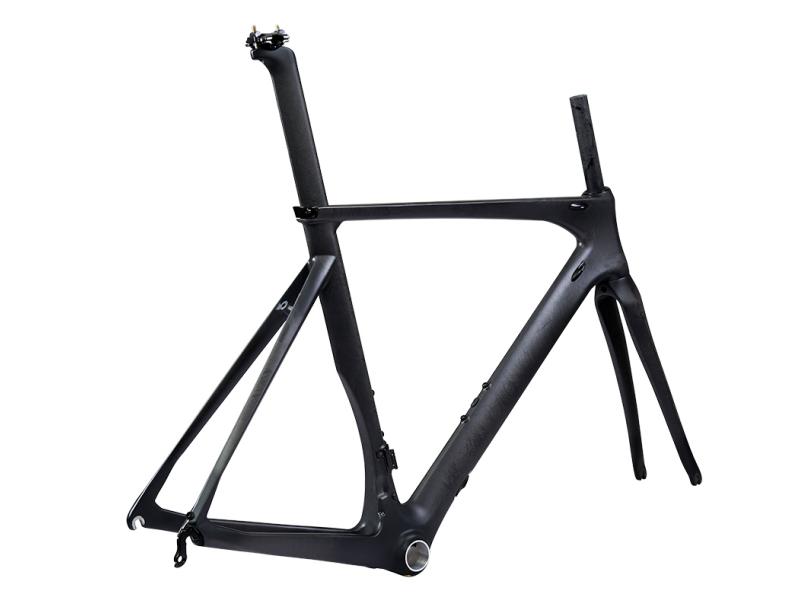

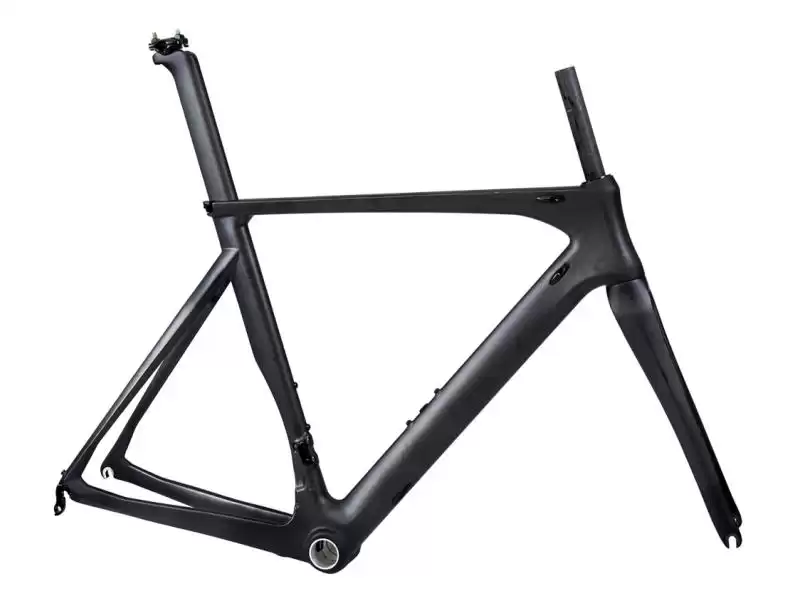

Carbon Bicycle Aero Road Frameset

  • Type: Aero Road 700C (Rim Brake)
  • Size: 480/510/530/550/570(C to T)
  • Head Tube: Tapered 1-1/8’’ - 1-1/2”
  • Bottom Bracket: BB86.5
  • Seat Post: TDC-E08
  • Fork model: TDC-FK08
  • Cable Routing: Internal and Di2 compatible
  • Brake type: Direct mount
  • Tire Spec.: 25C
  • Hub Spec.: Front 9*100mm / Rear 9*130mm
  • Weight:1050g+/-35g(M Size)
  • Material : Toray T800 / T700


Carbon Bicycle Aero Road FramesetMany kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

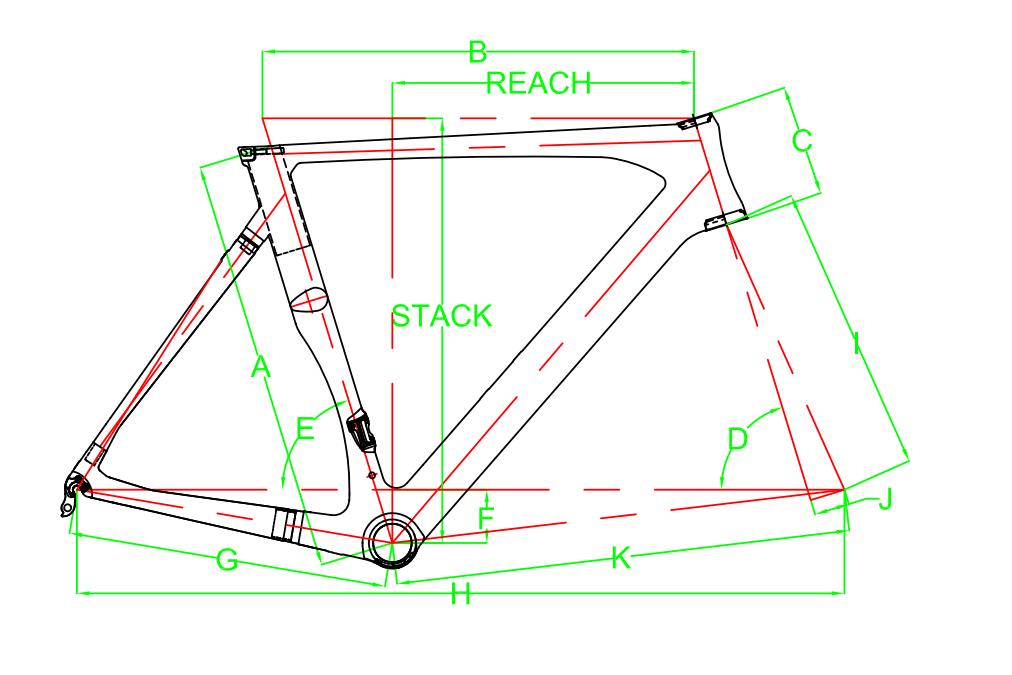

Size 480 510 530 550 570
Stack 507 526 542 557 571
Reach 370 379 385 389 394
Head Tube Angle 71.5 72.5 73 73.2 73.5
Head Tube Length 112 127 142 155 170
Seat Tube Angle 74.5 74 73 72.5 72
Seat Tube Length 480 510 530 550 570
Top Tube Length 511 530 550 565 580
BB Drop 68 68 68 68 68
Rear To BB Center 405 405 405 405 405
Fork To BB Center 569 575 581 587 594
Fork Built Height 370 370 370 370 370
Fork Rake 45 45 45 45 45
Wheel Base 964 970 979 983 990

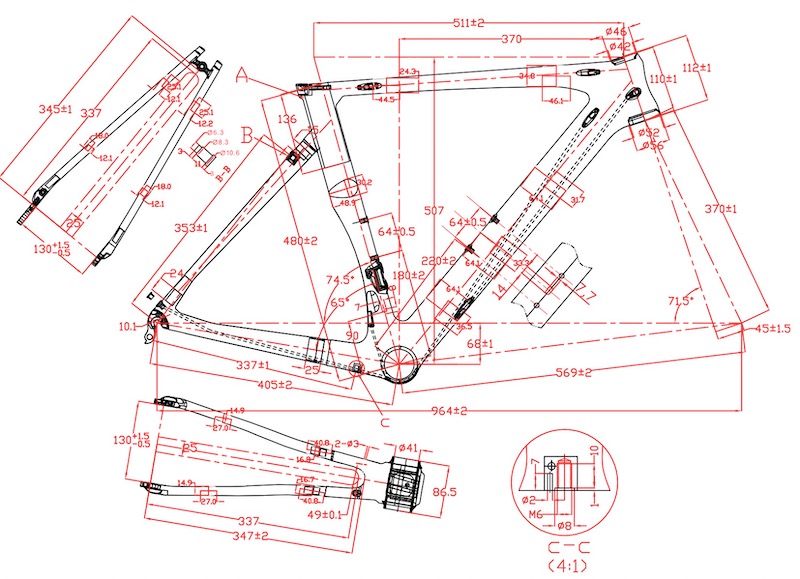

Technical drawings can help customer find the frame detail parameters and structure that they are interested.

Bicycle Aero Road Frameset


TECHNOLOGY

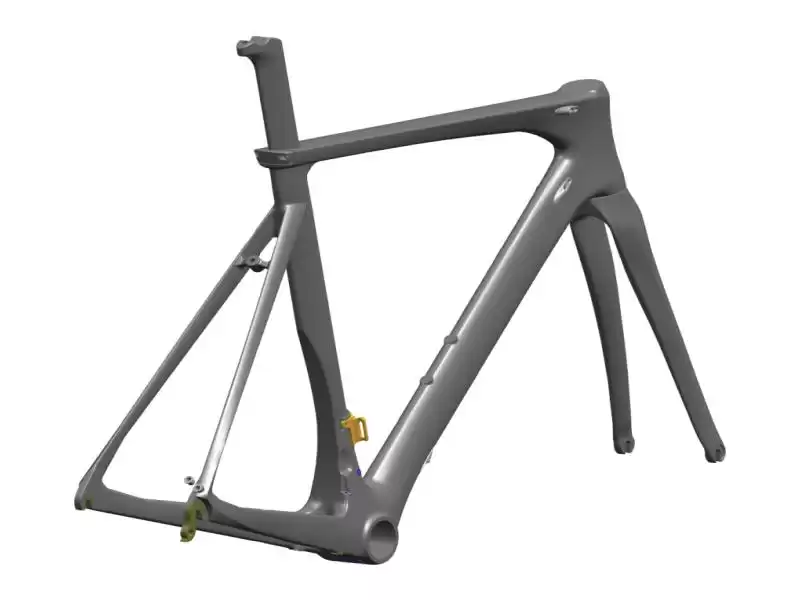

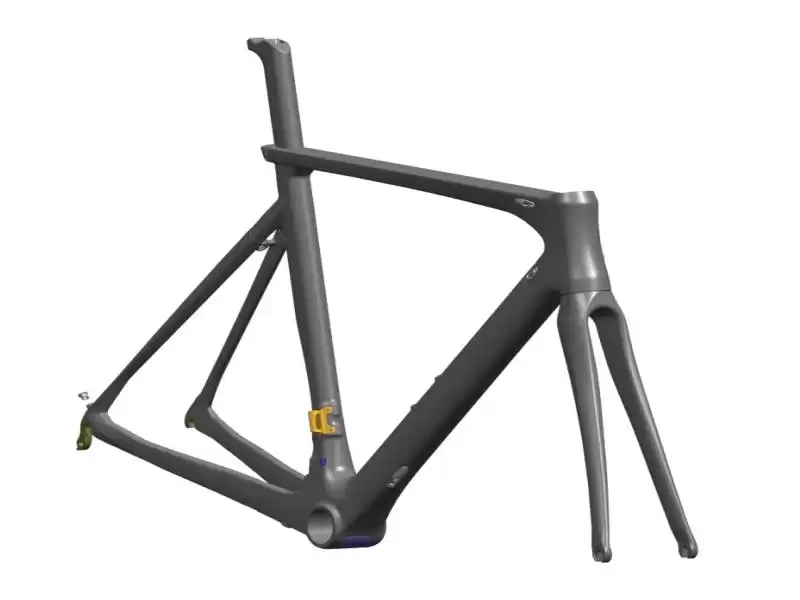

carbon fiber frames design

Italy Design Team

we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.


bicycle frame 3D print

3D latex mandrel technology

we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.


carbon fiber Tory for bicycle frameset

Carbon Fiber Material

Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.

Combining with stable resin system to make consistent quality and light weight frame.

BIKE FRAMES TEST LAB

Lab Test

All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.


Bicycle frameset wrannty

2-Year Warranty

We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty  to see more details in another page.


Why choose us ?

Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.. Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.


FAQ:


Q1: Wonder if you accept small orders?

A1: Yes, we accept small trial orders. Besides, trial order's product quality is the same to massive production.


Q2: Can you send samples to test?

A2: Sure, sample is welcomed, while the sample's fare and freight at your cost.


Q3: Can you do OEM/ODM for me?

A3: Yes, both is available, besides, we have design department, if you have problems, we can help solve them.


Q4: How can I place the order?

A4: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, plz pay the balance before shipment. Then delivery the goods.
