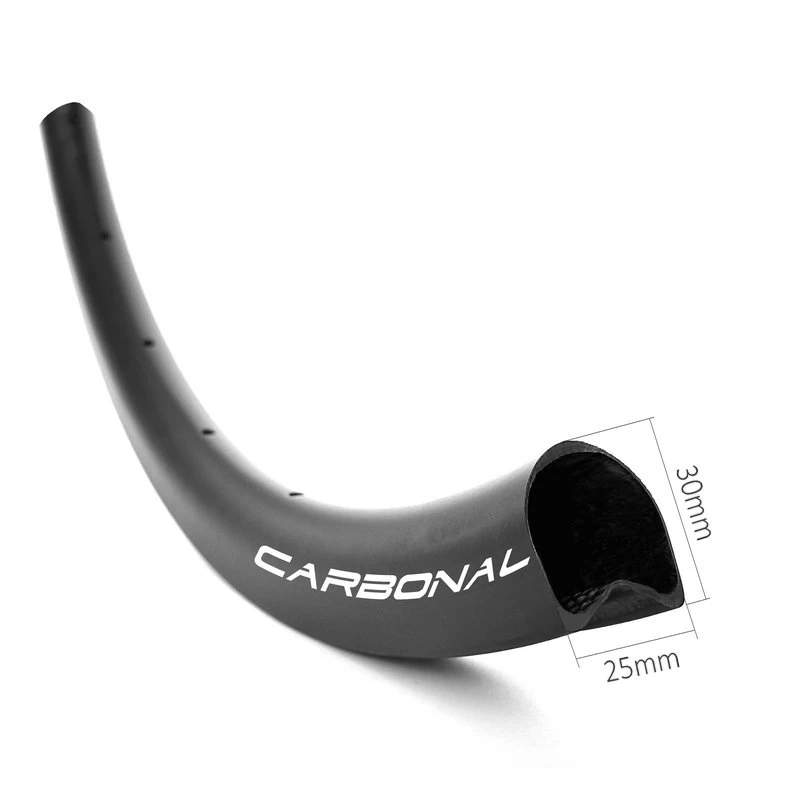

Product Item: Carbon bike road 700C U shape 30mm deep 25mm wide tubular rim
Wide and low profile makes these 30mm deep carbon bike tubular rims in
super lightweight. These 25mm wide 700c tubular rims work well with road
bike tubular tires size from 25mm to 35mm wide.
Specification:
Item:
|
RT30S
|
Use:
|
road bike, cyclocross
|
Rim type:
|
700C tubular - rim brake
|
Material:
|
Toray T700 carbon fiber
|
Width:
|
25mm
|
Weight:
|
310g±15
|
Depth:
|
30mm
|
ERD:
|
586mm
|
Weave:
|
UD, 3k, 6k, 3k twill, marble
|
Finish:
|
Matte, glossy
|
Spoke hole count:
|
16 - 36
|
Assemble hole diameter:
|
8.5mm
|
Spoke hole diameter:
|
4.5mm / 2.5mm or customized
|
Valve hole diameter:
|
6.5mm
|
Max spoke tension:
|
140kgf (recommended 110~130kgf)
|
Max / Min tire pressure:
|
N/A / 80psi (5.5 bar)
|
Decal:
|
Customized
|
Max weight limit:
|
115kgs
|
TG resin temperature:
|
210°C
|
Standard:
|
EN standard
|
Features:
-
Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
-
U areodynamic shape makes road tubular rims lightweight but still stiff, keeping them stable in cross winds condition.
-
Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
-
High TG 210°C resin temperature brake track, less than 0.1% heating problem on these tubular rim brake bicycle wheels.
-
Angled
spoke holes to avoid bends between the spoke and the nipple. This brings less
stress on the spoke and therefore reduces the chance of breaking spokes.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
More information about our Warranty Policy.
Manufacturing process:
Our
Engineering team creates a unique fiber orientation which amplifies the
desired riding characteristics for a given rim. And each rim carries
its own layup schedule documents which are followed meticulously by the
layup workers, it ensures the accuracy of each rim in the production
process.
Our
carbon rims are made in one piece molding, each rim is made by one piece
long carbon fiber, no wrinkles, to make the strength of rim is the
strongest. And we use a unique process to remove the air bladder from
the valve hole, so that the rim does not have to be patched like
traditional manufacturers use.
