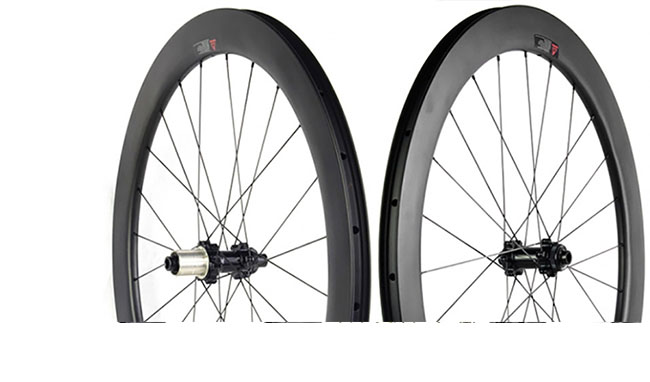

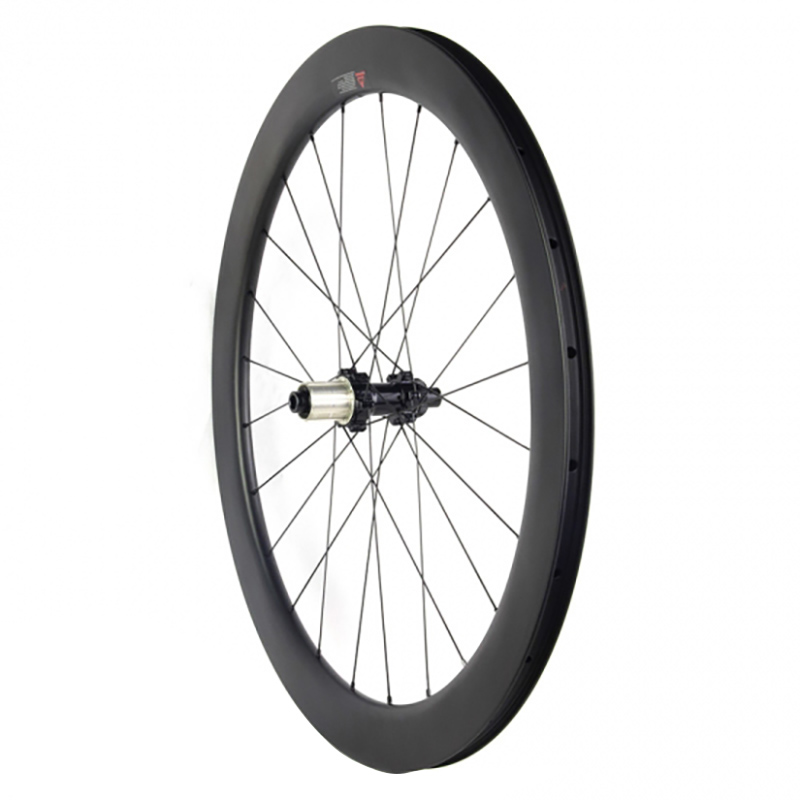

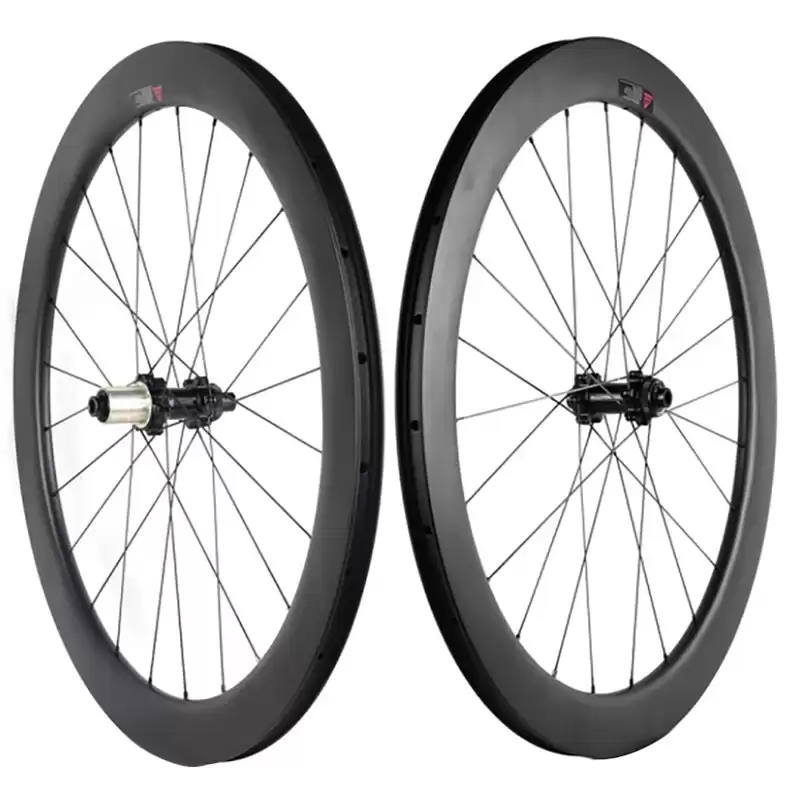

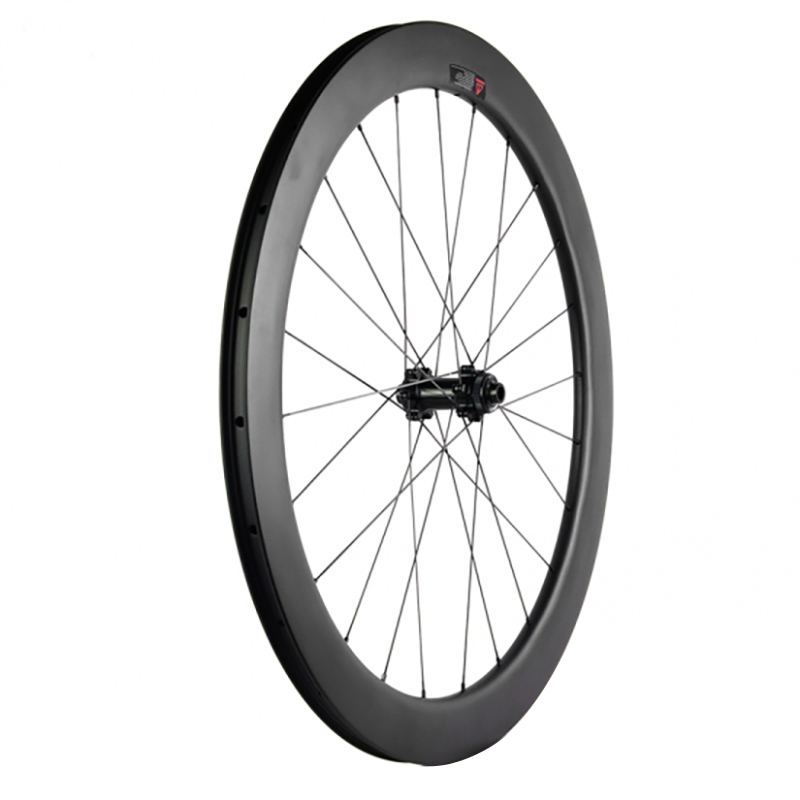

Carbon Disc Wheelset 700C Road Bike 23mm Wide Disc Brake Carbon Clincher

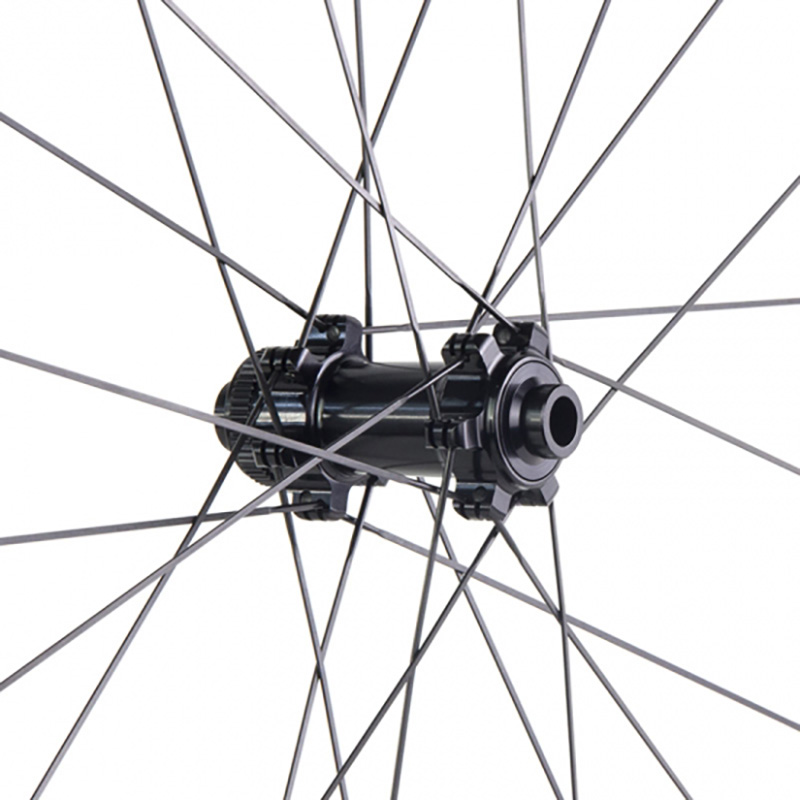

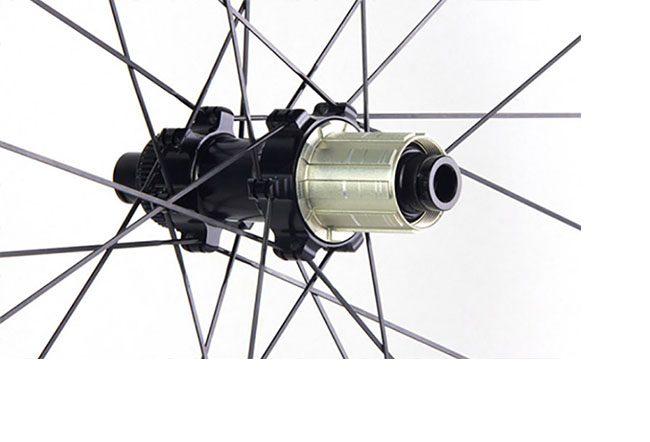

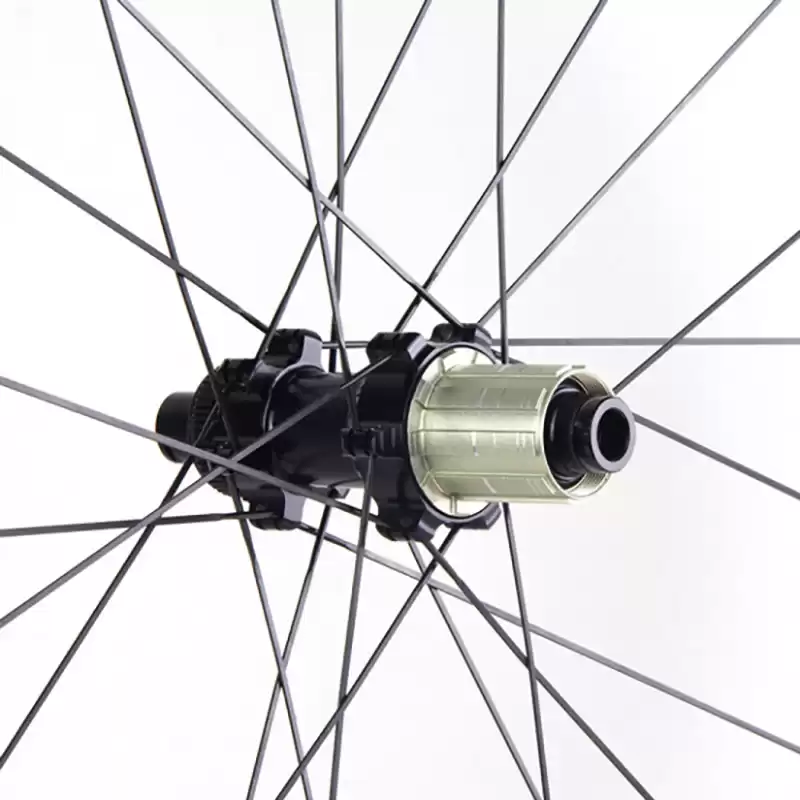

Hand-built carbon disc brake 700C wheelset with Powerway CT31 hubs and Pillar 1423 spokes, this is a more economical carbon wheelset. perfect for your daily training, riding use.


  • BrakeDisc Brake
  • Hole CountF-24H / R-24H


DESCRIPTION


Ornanbike disc wheelset 700C carbon rim

U-shaped design cross-section, hand-built carbon wheelset 700C disc brake, outer width 23mm, depth 38mm and 50mm, This design is based on the consideration that keeps the 19C ~ 25C tires smoother rolling aerodynamically. The deep depth wheels are specially designed to cycle in the crosswind, with Powerway CT31 hubs and Pillar 1423 spokes, more economical carbon wheelset. perfect for your daily training, riding use.














Ornanbike disc wheelset 700C carbon rimFEATURES:


 - Aerodynamic advantage


- Double wall design, for better strength and stiffness


- Compatible for both normal tube tire and tubeless tire


- Hubs optional: DT Swiss or Powerway hubs


 - Sram XDR or Shimano 11S driver bodies


 - 2 years' quality warranty








SPECIFICATIONS


Model
Orn723-38C-D
Orn723-50C-D
Cross Section
Orn723-38C-D
Orn723-50C-D
Sectional Drawing


Material T700 T700
Use Road Road
Type
Clincher Clincher
Tubeless
Ready Ready
Internal/External Width
16mm/23mm 16mm/23mm
Depth
38mm 50mm
ERD
568mm 544mm
Weight
465+/-15g 505+/-15g
Weight Limit
125kg 130kg
Spoke Tension
115 ~ 130kgf 115 ~ 130kgf

Max Tire Pressure(with 25C)

120psi / 8.27bar 120psi / 8.27bar
Tire Recommended
19C ~ 25C 19C ~ 25C


CARBON DISC WHEELSET CT31 HUB WITH 23MM WIDE CLINCHER RIM


Model-Wheels Rim Depth Outer Width Hub Front Size Rear Size Spoke Weight (+/-3%)
CT31-ORN723/38C-Pillar 1423
Orn723-38C-D 38mm 23mm Powerway CT31 12 x 100mm
12 x 142mm
Pillar 1423 1720g
CT31-ORN723/50C-Pillar 1423
Orn723-50C-D
50mm 23mm Powerway CT31
12 x 100mm
12 x 142mm
Pillar 1423
1800g


* All clincher rims are tubeless ready.

* Complete wheelset weights are subject to a ±3% variance.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.

* Choose your favorite carbon rim model and Hubs, leave a message below with the wheels item number (such as CT31-ORN723/38C-Pillar 1423) to get the best quote for your next carbon road wheelset!



Ornanbike disc wheelset 700C carbon rim


CHOOSE YOUR FAVORITE HUB ASSEMBLE WHEELS


HUBS

Spoke

Nipples

Driver Body

Disc Brake System

Front Thru Axle

Rear Thru Axle

Front Count

Rear Count

DT SWISS 180 Ratchet EXP 36

Sapim CX-Ray

Sapim Self-Locking

Shimano 11S

or

Sram XDR

Center Lock

12 x 100mm

12 x 142mm

24H

24H

DT SWISS 240 Ratchet EXP 36

DT SWISS 350 Ratchet 18

Sapim Race

 Sapim Self-Locking

Shimano 11S

Powerway-CT31

Pillar 1420

or

Pillar 1423

Pillar

Shimano 11S

or

Sram XDR

Powerway-CT11A



TECHNOLOGY


1. Tubeless Compatible Technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. The bead locks allow for an easy switch between clinchers and tubeless setup.


2. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.


3. Fast Tire Installation

Easy installation and removal of normal tube tires and tubeless tires.


4. Double Wall Design and Aero Technology

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.


5. Customized Spoke Hole Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. Check all drill holes to make sure they are free of burrs.



MANUFACTURING PROCESS:


Our carbon fiber rims are formed in one piece, and each rim is made of long carbon fiber without wrinkles, to make the strength of the rim is the strongest. Every component, including the rim serial number, airbag, and carbon fiber prepreg, is collected, inspected, and weighed to confirm that everything has been taken into account.

Read more about carbon rim manufacturing process: link here


100% QUALITY INSPECTION:


In the production process of each carbon fiber rim product, Ornanbike strictly conducts 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim To ensure the best after-sales service.

Read more about carbon rim quality control: link here


WARRANTY POLICY:


Coverage: 2-year warranty from the date of purchase.


Conditions:

1. The Standard Warranty program is not transferable and only applies to the initial purchaser. Valid proof of purchase, pictures of the defect, video, and the product serial number is required for a warranty claim.


2. If any manufacturing defect occurs within 90 days of the date of being received, Ornan Bike is obligated to replace the carbon rim and pay for the shipping cost. If any manufacturing defect occurs after 91 days and up to 2 years, Ornan Bike is obligated to replace the carbon rim, and the customer is responsible for the shipping costs.


3. Any problem found on the warranty replacement product should be claimed within 7 days after the replacement is received, otherwise, the replacement is viewed as settled. The warranty period applies to the original purchase date and does not reset with a replacement rim.


Warranty coverage does not cover:

1. Normal wear and tear (spokes, nipples, rim tape, decals, stickers, etc).


2. Improper assembly or maintenance, including maintenance by an unauthorized technician.


3. Damage or failures caused by a crash, accidental damage, misuse of the product, non-compliance with manufacturer specifications of usage, or any other fractious reasons.


CLAIMS FOR DAMAGE OR LOSS OF SHIPMENT:


Please thoroughly inspect the package before signing.


1. If there is no damage, sign for the product. If there is damage, report this on the delivery slip or, alternatively, refuse the shipment and it will be returned to Ornan Bike. If a claim is made against the shipping company, they will provide a compensation number. Please inform Ornan Bike of this number for delivery tracking. Arrangements for reshipment will be made within 10~15 business days upon receiving the returned item.


2. If the items are damaged but accepted and not reported, there is no recourse against the delivery company and you are responsible for purchasing any replacement product.


3. If the package is in good condition, but the product is significantly damaged in transit, please keep the waybill, packaging and the shipment gets lost in transit, please get in touch with us (info@ornanbike.com) immediately and all Ornan Bike packages have been covered by insurance.



Ornanbike disc wheelset 700C carbon rim

WHEEL BUILDING TECHNOLOGY:


Our carbon wheels are precise hand built.

Then trued by Holland Mechanics Pro Truer.

The perfect allocation of spoke tension in every spoke

relatively high spoke tension give many advantages:

- High radial, lateral and torsional stiffness.

- Less spoke tension loss over time.

- Longer durability.

- Less maintenance needed.


Wheel roundness tolerance: ≤0.3mm

Wheel lateral tolerance: ≤0.3mm

Wheel center tolerance: ≤0.3mm
