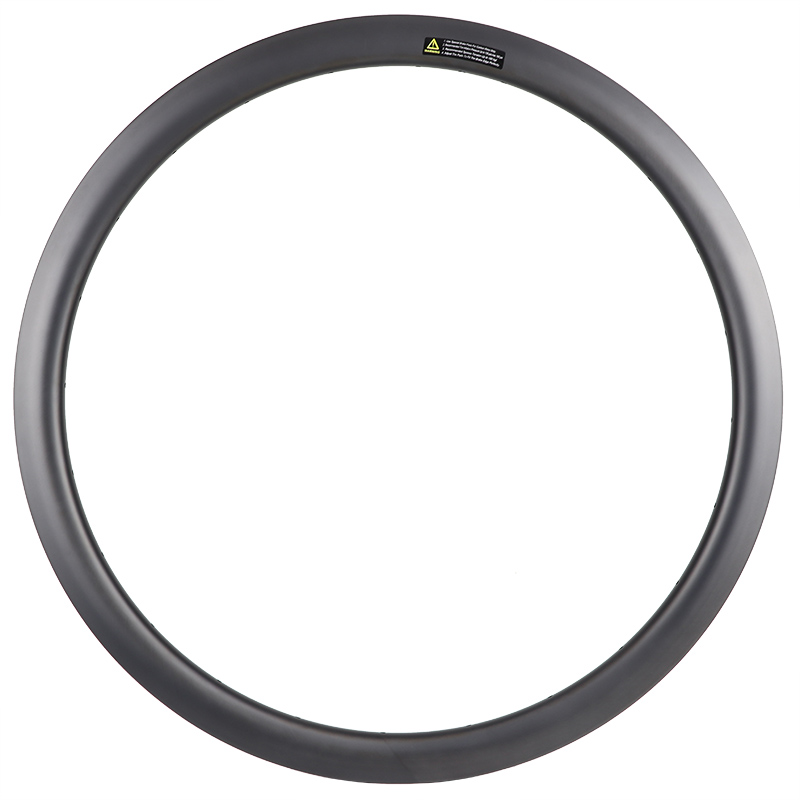

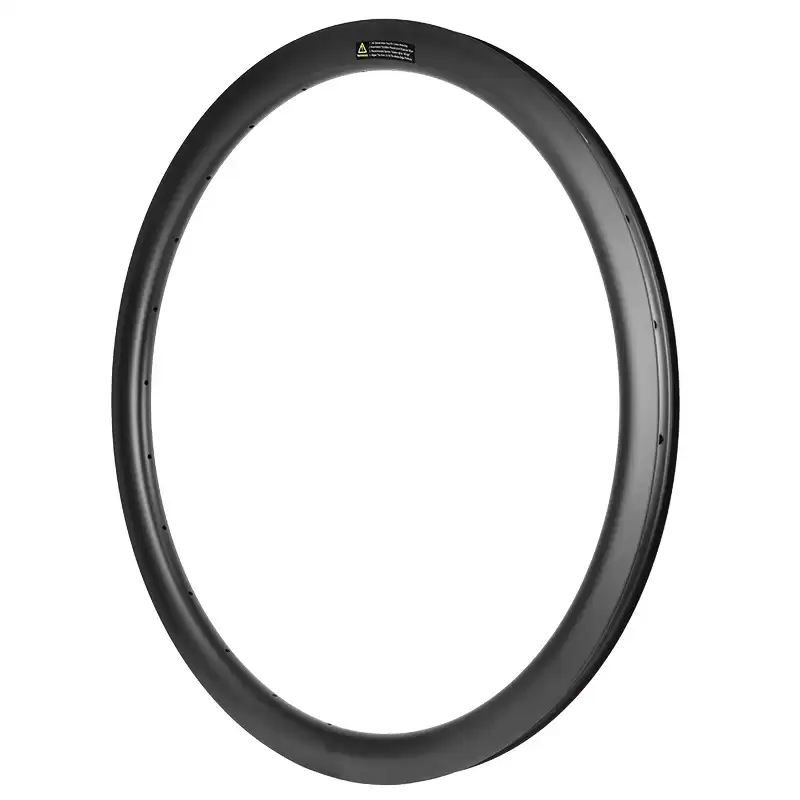

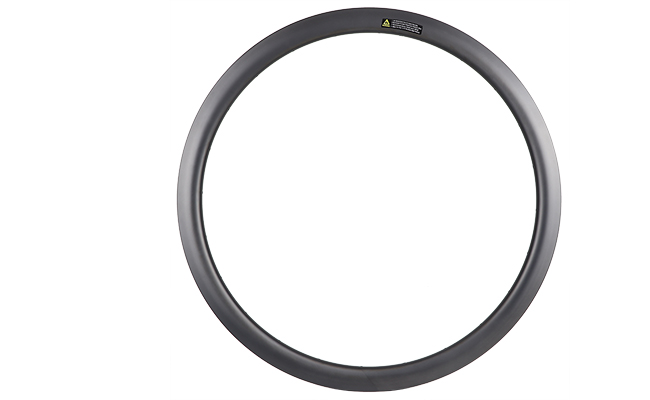

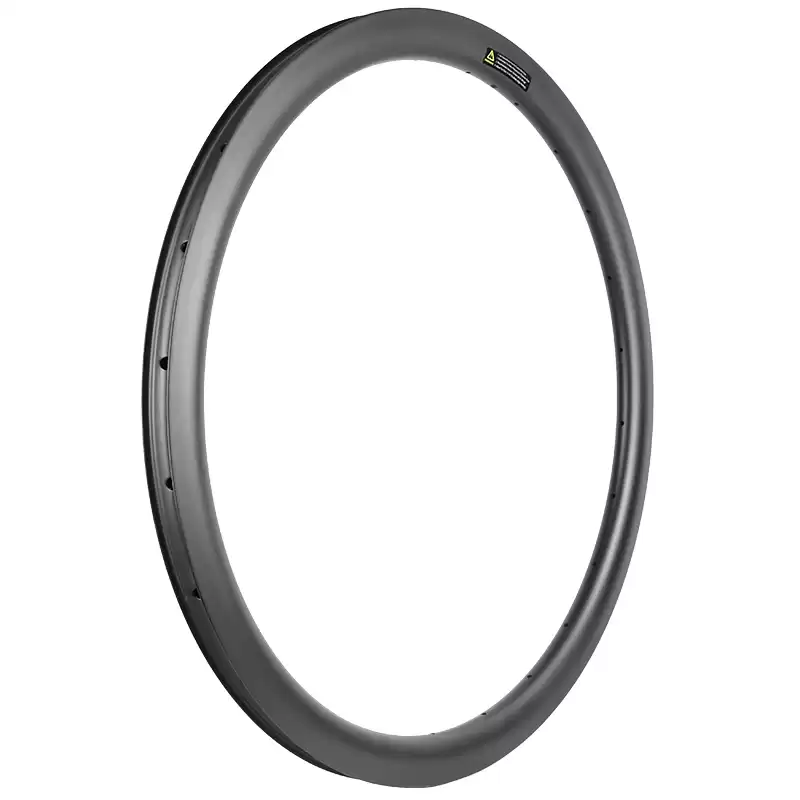

Carbon Rims 700C Road Bike 25mm Wide Carbon Clincher Disc Brake

700C carbon wheels disc brakes are compatible with tubeless ready and are suitable for faster driving in all road racing.


  • Hole CountF-24H / R-24H
  • BrakeDisc Brake

CARBON CLINCHER 25MM WIDE ROAD BIKE CARBON RIMS 700C DISC BRAKE



CARBON CLINCHER 25MM WIDE ROAD BIKE CARBON RIMS 700C DISC BRAKEDESCRIPTION


Orn725 is a disc wheels 700C carbon road bike. The internal width of the (Orn725) 700C wheels disc brake carbon rim is 18mm, which is suitable for road tires from 23mm to 28mm. For example, the depth of this wheel is 45mm, which provides all the aerodynamic benefits of a deeper profile in a lighter package and is easier to keep balance in crosswinds. If you want to climb a mountain, that might be your best choice.

If you are in a time trial, triathlon, or crit racing bike carbon rims with a depth of 60mm, it is also your best choice. These build up into some of our stiffest and most aerodynamic carbon wheelsets and maintain top speed like no other. The 25mm outer width keeps things aerodynamically optimized with smoother rolling for your 25C and 28C tires.










ORN725 CARBON RIM CLINCHER DISC BRAKE FEATURES:


- Aerodynamic advantage


- Double wall design, for better strength and stiffness


- Compatible for both normal tube tire and tubeless tire


- Hubs optional: DT Swiss or Powerway hubs


- Sram XDR or Shimano 11S driver bodies


2 years' quality warranty





SPECIFICATIONS


Model
Orn725-30C-D
Orn725-35C-D
Orn725-38C-D
Orn725-45C-D
Orn725-50C-D
Orn725-56C-D
Orn725-60C-D
Orn725-80C-D
Cross Section








Sectional Drawing








Material T700 T700 T700 & T800 T700 & T800
T700 & T800
T700 & T800
T700 & T800
T700 & T800
Use Road Road Road Road Road Road Road Road
Type
Clincher Clincher
Clincher
Clincher
Clincher
Clincher
Clincher
Clincher
Tubeless
Ready Ready
Ready
Ready
Ready
Ready
Ready
Ready
Internal/External Width
18mm/25mm 18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
Depth
30mm 35mm 38mm 45mm 50mm 56mm 60mm 80mm
ERD
584mm 574mm 569mm 555mm 545mm 532mm 524mm 485mm
Weight
445+/-15g 480+/-15g 390+/-15g 420+/-15g 450+/-15g 530+/-15g 535+/-15g 660+/-15g
Weight Limit
125kg 125kg 125kg 130kg 130kg 130kg 135kg 145kg
Spoke Tension
115 ~ 130kgf 115 ~ 130kgf 115 ~ 130kgf 115 ~ 130kgf 115 ~ 130kgf 115 ~ 130kgf 115 ~ 130kgf 115 ~ 130kgf

Max Tire Pressure

(with 25C)

120psi/8.27bar 120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
Tire Recommended
23C ~ 28C 23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C



TECHNOLOGY


1. Tubeless Compatible Technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. The bead locks allow for an easy switch between clinchers and tubeless setup.


2. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.


3. Fast Tire Installation

Easy installation and removal of normal tube tires and tubeless tires.


4. Double Wall Design and Aero Technology

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.


5. Customized Spoke Hole Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. Check all drill holes to make sure they are free of burrs.



MANUFACTURING PROCESS:


Our carbon fiber rims are formed in one piece, and each rim is made of long carbon fiber without wrinkles, to make the strength of the rim is the strongest. Every component, including the rim serial number, airbag, and carbon fiber prepreg, is collected, inspected, and weighed to confirm that everything has been taken into account.

Read more about carbon rim manufacturing process: link here


100% QUALITY INSPECTION:


In the production process of each carbon fiber rim product, Ornanbike strictly conducts 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim To ensure the best after-sales service.

Read more about carbon rim quality control: link here


WARRANTY POLICY:


Coverage: 2-year warranty from the date of purchase.


Conditions:

1. The Standard Warranty program is not transferable and only applies to the initial purchaser. Valid proof of purchase, pictures of the defect, video, and the product serial number is required for a warranty claim.


2. If any manufacturing defect occurs within 90 days of the date of being received, Ornan Bike is obligated to replace the carbon rim and pay for the shipping cost. If any manufacturing defect occurs after 91 days and up to 2 years, Ornan Bike is obligated to replace the carbon rim, and the customer is responsible for the shipping costs.


3. Any problem found on the warranty replacement product should be claimed within 7 days after the replacement is received, otherwise, the replacement is viewed as settled. The warranty period applies to the original purchase date and does not reset with a replacement rim.


Warranty coverage does not cover:

1. Normal wear and tear (spokes, nipples, rim tape, decals, stickers, etc).


2. Improper assembly or maintenance, including maintenance by an unauthorized technician.


3. Damage or failures caused by a crash, accidental damage, misuse of the product, non-compliance with manufacturer specifications of usage, or any other fractious reasons.


CLAIMS FOR DAMAGE OR LOSS OF SHIPMENT:


Please thoroughly inspect the package before signing.


1. If there is no damage, sign for the product. If there is damage, report this on the delivery slip or, alternatively, refuse the shipment and it will be returned to Ornan Bike. If a claim is made against the shipping company, they will provide a compensation number. Please inform Ornan Bike of this number for delivery tracking. Arrangements for reshipment will be made within 10~15 business days upon receiving the returned item.


2. If the items are damaged but accepted and not reported, there is no recourse against the delivery company and you are responsible for purchasing any replacement product.


3. If the package is in good condition, but the product is significantly damaged in transit, please keep the waybill, packaging and the shipment gets lost in transit, please get in touch with us (info@ornanbike.com) immediately and all Ornan Bike packages have been covered by insurance.



ORN725 CARBON RIM CLINCHER DISC BRAKE


CHOOSE YOUR FAVORITE HUB ASSEMBLE WHEELS


HUBS

Spoke

Nipples

Driver Body

Brake System

Front Thru Axle

Rear Thru Axle

Front Count

Rear Count

DT SWISS 180 Ratchet EXP 36

Sapim CX Ray

Sapim Self-Locking

Shimano 11S

or

Sram XDR

Center Lock

12 x 100mm

12 x 142mm

24H

24H

DT SWISS 240 Ratchet EXP 36

DT SWISS 350 Ratchet 18

Sapim Race

Sapim Self-Locking

Shimano 11S

Powerway-CT31

Pillar 1420

or

Pillar 1423

Pillar

Shimano 11S

or

Sram XDR

Powerway-CT11A



ORN725 CARBON RIM CLINCHER DISC BRAKE
