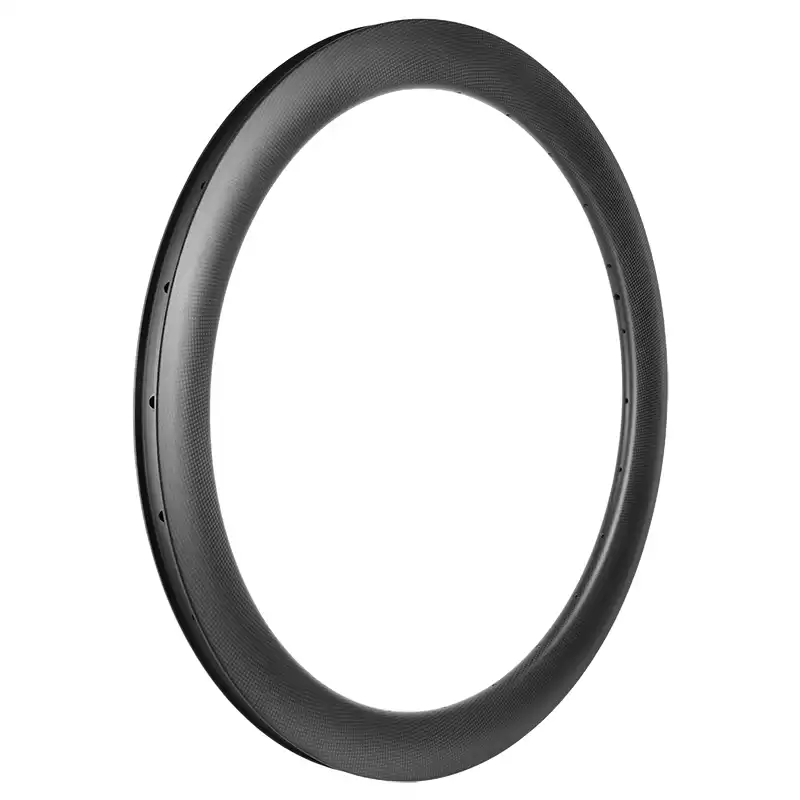

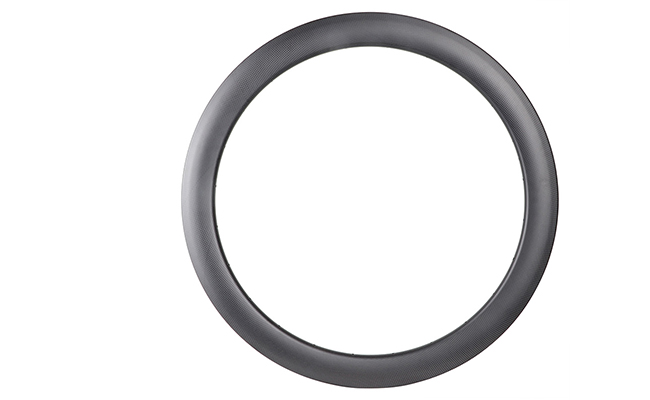

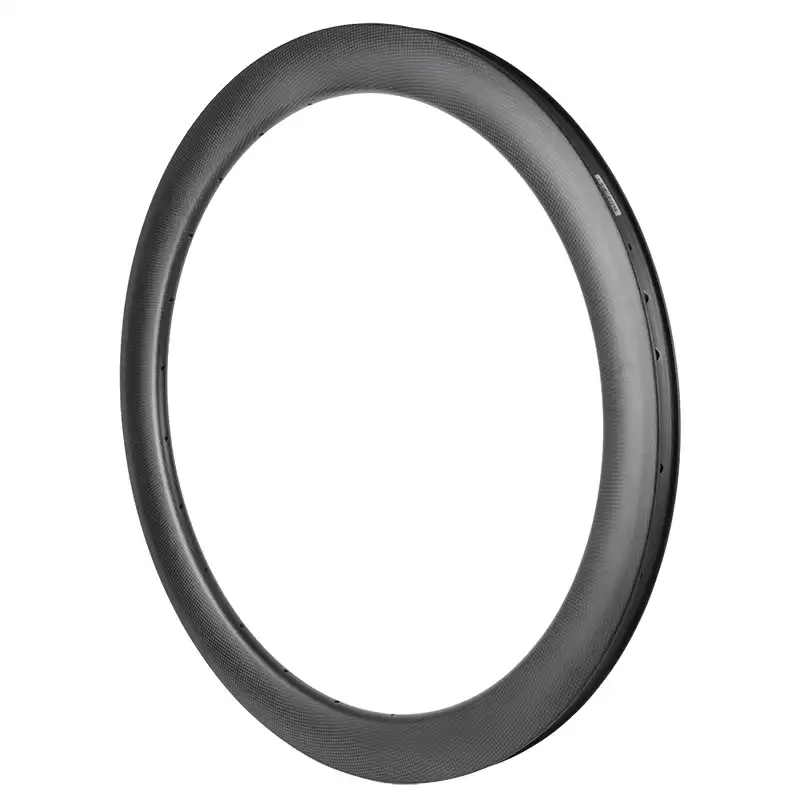

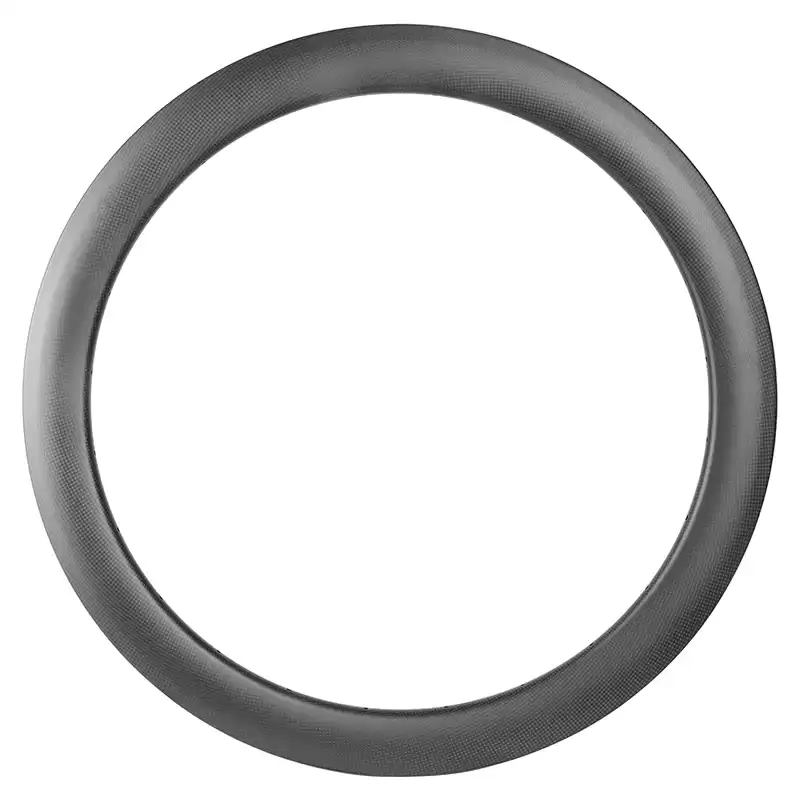

Carbon Rims 700C Road Bike 28mm Wide Carbon Clincher Disc Brake

The 700C disc wheelset has tubeless compatibility, and the Aero shape design will provide you with unparalleled Aero advantages.


  • Hole CountF-24H / R-24H
  • BrakeDisc Brake

CARBON CLINCHER 28MM WIDE ROAD BIKE CARBON RIMS 700C DISC BRAKE



ORN728 CARBON RIM CLINCHER DISC BRAKE DESCRIPTION


Carbon clincher 700C disc brake is excellent carbon fiber wheels speed.

The 700C disc brake carbon clincher wheels (Tubeless ready), Disc-brake design a new rim shape with greater aerodynamic efficiency and reduced side force. as well as the benefits of tubeless include superior flat protection, the ability to run lower pressures, and a smoother ride with high cornering grip and low rolling resistance. The 28mm external and 21mm internal width has different depths (22mm/33mm/38mm/44mm/50mm/55mm deep), which is suitable for road bike carbon wheels.











ORN728 CARBON RIM CLINCHER DISC BRAKE FEATURES:


- Aerodynamic advantage


- Double wall design, for better strength and stiffness


- Compatible for both normal tube tire and tubeless tire


- Hubs optional: DT Swiss or Powerway hubs


- Sram XDR or Shimano 11S driver bodies


- 2 years' quality warranty




SPECIFICATIONS


Model
Orn728-22C-D
Orn728-33C-D
Orn728-38C-D
Orn728-44C-D
Orn728-50C-D
Orn728-55C-D
Cross Section






Sectional Drawing






Material T700 & T800 T700 & T800
T700 & T800
T700 & T800
T700 & T800
T700 & T800
Use Road Road Road
Road Road
Road
Type
Clincher Clincher
Clincher
Clincher
Clincher
Clincher
Tubeless
Ready Ready
Ready
Ready
Ready
Ready
Internal/External Width
21mm/28mm 21mm/28mm
21mm/28mm
21mm/28mm
21mm/28mm
21mm/28mm
Depth
22mm 33mm 38mm
44mm 50mm
55mm
ERD
601mm 579mm 569mm
557mm 545mm
535mm
Weight
380+/-15g 400+/-15g 410+/-15g 430+/-15g 460+/-15g 480+/-15g
Weight Limit
110kg 125kg 125kg
130kg 130kg
135kg
Spoke Tension
115 ~ 130kgk 115 ~ 130kgk 115 ~ 130kgf
115 ~ 130kgk 115 ~ 130kgf
115 ~ 130kgk

Max Tire Pressure(with 25C)

110psi / 7.58bar 110psi / 7.58bar
110psi / 7.58bar
110psi / 7.58bar
110psi / 7.58bar
110psi / 7.58bar
Tire Recommended
25C ~ 35C 25C ~ 35C
25C ~ 35C
25C ~ 35C
25C ~ 35C
25C ~ 35C

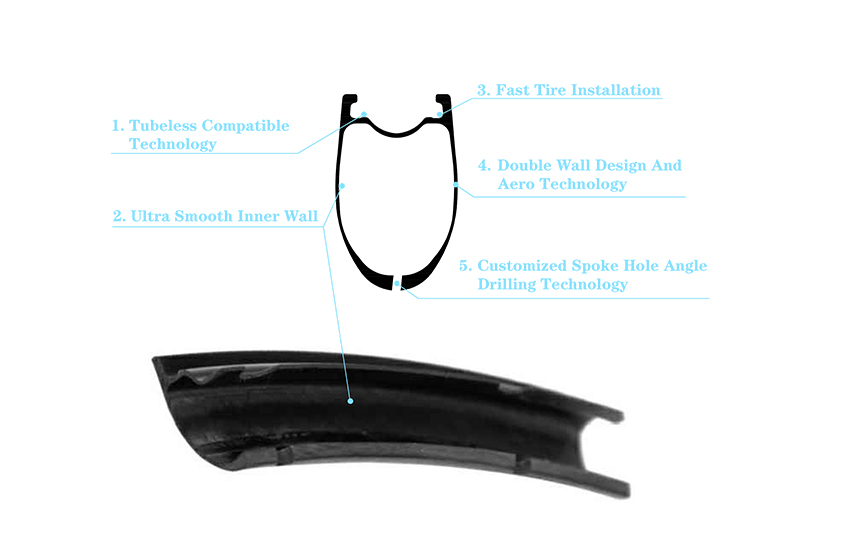

TECHNOLOGY


1. Tubeless Compatible Technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. The bead locks allow for an easy switch between clinchers and tubeless setup.


2. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.


3. Fast Tire Installation

Easy installation and removal of normal tube tires and tubeless tires.


4. Double Wall Design and Aero Technology

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.


5. Customized Spoke Hole Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. Check all drill holes to make sure they are free of burrs.



MANUFACTURING PROCESS:


Our carbon fiber rims are formed in one piece, and each rim is made of long carbon fiber without wrinkles, to make the strength of the rim is the strongest. Every component, including the rim serial number, airbag, and carbon fiber prepreg, is collected, inspected, and weighed to confirm that everything has been taken into account.

Read more about carbon rim manufacturing process: link here


100% QUALITY INSPECTION:


In the production process of each carbon fiber rim product, Ornanbike strictly conducts 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim To ensure the best after-sales service.

Read more about carbon rim quality control: link here


WARRANTY POLICY:


Coverage: 2-year warranty from the date of purchase.


Conditions:

1. The Standard Warranty program is not transferable and only applies to the initial purchaser. Valid proof of purchase, pictures of the defect, video, and the product serial number is required for a warranty claim.


2. If any manufacturing defect occurs within 90 days of the date of being received, Ornan Bike is obligated to replace the carbon rim and pay for the shipping cost. If any manufacturing defect occurs after 91 days and up to 2 years, Ornan Bike is obligated to replace the carbon rim, and the customer is responsible for the shipping costs.


3. Any problem found on the warranty replacement product should be claimed within 7 days after the replacement is received, otherwise, the replacement is viewed as settled. The warranty period applies to the original purchase date and does not reset with a replacement rim.


Warranty coverage does not cover:

1. Normal wear and tear (spokes, nipples, rim tape, decals, stickers, etc).


2. Improper assembly or maintenance, including maintenance by an unauthorized technician.


3. Damage or failures caused by a crash, accidental damage, misuse of the product, non-compliance with manufacturer specifications of usage, or any other fractious reasons.


CLAIMS FOR DAMAGE OR LOSS OF SHIPMENT:


Please thoroughly inspect the package before signing.


1. If there is no damage, sign for the product. If there is damage, report this on the delivery slip or, alternatively, refuse the shipment and it will be returned to Ornan Bike. If a claim is made against the shipping company, they will provide a compensation number. Please inform Ornan Bike of this number for delivery tracking. Arrangements for reshipment will be made within 10~15 business days upon receiving the returned item.


2. If the items are damaged but accepted and not reported, there is no recourse against the delivery company and you are responsible for purchasing any replacement product.


3. If the package is in good condition, but the product is significantly damaged in transit, please keep the waybill, packaging and the shipment gets lost in transit, please get in touch with us (info@ornanbike.com) immediately and all Ornan Bike packages have been covered by insurance.


ORN728 CARBON RIM CLINCHER DISC BRAKE

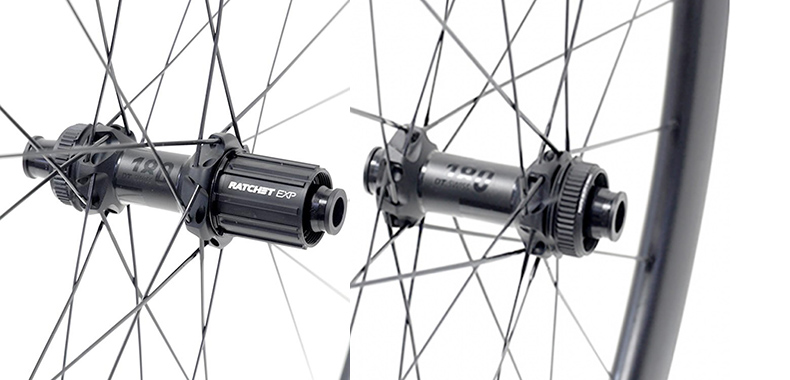

CHOOSE YOUR FAVORITE HUB ASSEMBLE WHEELS


HUBS

Spoke

Nipples

Driver Body

Brake System

Front Thru Axle

Rear Thru Axle

Front Count

Rear Count

DT SWISS 180 Ratchet EXP 36

Sapim CX Ray

Sapim Self-Locking

Shimano 11S

or

Sram XDR

Center Lock

12 x 100mm

12 x 142mm

24H

24H

DT SWISS 240 Ratchet EXP 36

DT SWISS 350 Ratchet 18

Sapim Race

Sapim Self-Locking

Shimano 11S

Powerway-CT31

Pillar 1420

or

Pillar 1423

Pillar

Shimano 11S

or

Sram XDR

Powerway-CT11A



ORN728 CARBON RIM CLINCHER DISC BRAKE
