Carbon Rims 700C Road Bike Rim Brake 25mm Wide Carbon Clincher

700C tubeless road bike carbon wheels is designed Aero-shaped carbon fiber rims with the width of 25mm and the depth of 30mm to 80mm.


  • Hole CountF-20H / R-24H
  • BrakeRim Brake

CARBON CLINCHER 25MM WIDE ROAD BIKE CARBON RIMS 700C RIM BRAKE



ORN725 CARBON CLINCHER RIM BRAKE DESCRIPTION


Ornan bike 725 is made of full carbon 700C wheels. These series have a completed specification. The external width of Orn725 is 25mm, the internal width is 18mm, and the different depths are 30mm / 35mm / 38mm / 45mm / 50mm / 56mm / 60mm / 80mm. Among them, the depth of 38mm/45mm/50mm/80mm is based on the original design and we have optimized the cross-section to reduce the weight and ensure a proper strength and pressure. It is comfortable as a race-oriented carbon wheelset or for a daily driver, the 25mm external width keeps things aerodynamically optimized with smoother rolling for your 25c and 28c tires. Besides, there are two another advantages of his high-temperature resistance and his high-friction braking surface on rim brake versions.











FEATURES: ORN725 CARBON CLINCHER RIM BRAKE


- Aerodynamic advantage


- Double wall design, for better strength and stiffness


- Compatible for both normal tube tire and tubeless tire


- High TG 255°C braking surface


 - Hubs optional: DT Swiss or Powerway hubs


 - Sram XDR or Shimano 11S and Campy 11S driver bodies


 2 years' quality warranty





SPECIFICATIONS


Model
Orn725-30C
Orn725-35C
Orn725-38C
Orn725-45C
Orn725-50C
Orn725-56C
Orn725-60C
Orn725-80C
Cross Section








Sectional Drawing








Material T700 T700 T700 & T800 T700 & T800
T700 & T800
T700 & T800 T700 & T800
T700 & T800
Use Road Road Road Road Road Road Road Road
Type
Clincher Clincher
Clincher
Clincher
Clincher
Clincher
Clincher
Clincher
Tubeless
Ready Ready
Ready
Ready
Ready
Ready
Ready
Ready
Internal/External Width
18mm/25mm 18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
18mm/25mm
Depth
30mm 35mm 38mm 45mm 50mm 56mm 60mm 80mm
ERD
584mm 574mm 569mm 555mm 545mm 532mm 524mm 485mm
Weight
445+/-15g 480+/-15g 460+/-15g 480+/-15g 500+/-15g 540+/-15g 560+/-15g 660+/-15g
Weight Limit
125kg 125kg 125kg 130kg 130kg 130kg 135kg 145kg
Spoke Tension
100 ~ 110kgf 100 ~ 110kgf 100 ~ 110kgf 100 ~ 110kgf 100 ~ 110kgf 100 ~ 110kgf 100 ~ 110kgf 100 ~ 110kgf

Max Tire Pressure

(with 25C)

120psi/8.27bar 120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
120psi/8.27bar
Tire Recommended
23C ~ 28C 23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C
23C ~ 28C



TECHNOLOGY


1. High TG 255°C Brake Surface

High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.


2. Tubeless Compatible Technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. The bead locks allow for an easy switch between clinchers and tubeless setup.


3. Ultra Smooth Inner Wall

Use specific, thinner, high-pressure air bladders to control the inner wall smoothness, The result is that we could see a very clean and smooth inner wall, which means the carbon fabrics are stretched smoothly and optimized. This could ensure the best strength of the fabrics.


4. Fast Tire Installation

Easy installation and removal of normal tube tires and tubeless tires.


5. Double Wall Design and Aero Technology

We use a double wall design to better control the rim strength and stiffness during layup. Rim profiles are specially designed with aero gains and drag reduction in mind.


6. Customized Spoke Hole Angle Drilling Technology

High-speed CNC machine tools drill carbon fiber rim spoke holes. Customized according to the geometric angle of the hub. Check all drill holes to make sure they are free of burrs.

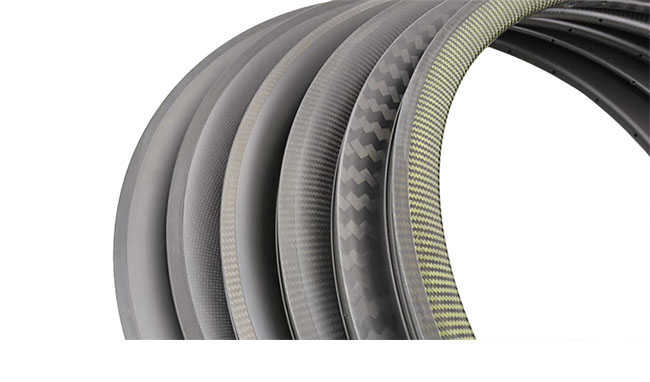

CARBON 700C RIM BRAKE WITH DIFFERENT BRAKING SURFACES






BRAKE SURFACE:


We have 5 different brake systems for professional cyclists to choose from. The high TG resin temperature of the 250° brake track solves the heating problem on the bicycle wheel of the rim brake.

If you have special requirements for the brake system, Grooved 3K twill will be your best choice.

The grooved track helps to evacuate trapped moisture between the brake pad and carbon rim under wet. it bears a higher temperature while braking, but for faster braking heat elimination. More friction, less lever force needed, and shorten about 30% braking distance. More friction to shorten the braking distance.

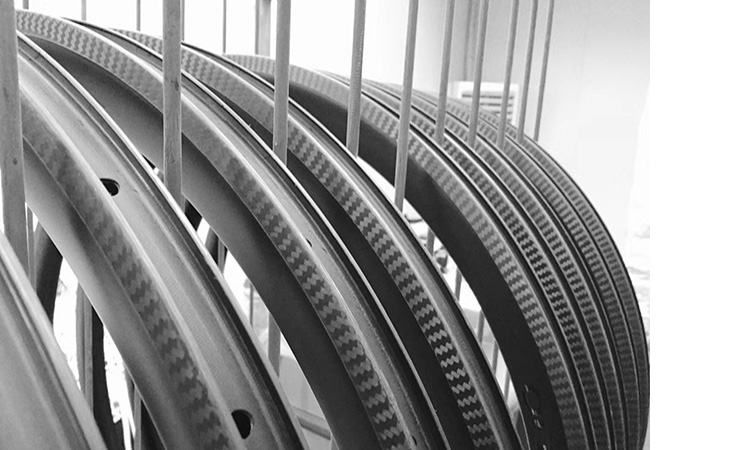

MANUFACTURING PROCESS:


Our carbon fiber rims are formed in one piece, and each rim is made of long carbon fiber without wrinkles, to make the strength of the rim is the strongest. Every component, including the rim serial number, airbag, and carbon fiber prepreg, is collected, inspected, and weighed to confirm that everything has been taken into account.

Read more about carbon rim manufacturing process: link here


100% QUALITY INSPECTION:


In the production process of each carbon fiber rim product, Ornanbike strictly conducts 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim To ensure the best after-sales service.

Read more about carbon rim quality control: link here


WARRANTY POLICY:


Coverage: 2-year warranty from the date of purchase.


Conditions:

1. The Standard Warranty program is not transferable and only applies to the initial purchaser. Valid proof of purchase, pictures of the defect, video, and the product serial number is required for a warranty claim.


2. If any manufacturing defect occurs within 90 days of the date of being received, Ornan Bike is obligated to replace the carbon rim and pay for the shipping cost. If any manufacturing defect occurs after 91 days and up to 2 years, Ornan Bike is obligated to replace the carbon rim, and the customer is responsible for the shipping costs.


3. Any problem found on the warranty replacement product should be claimed within 7 days after the replacement is received, otherwise, the replacement is viewed as settled. The warranty period applies to the original purchase date and does not reset with a replacement rim.


Warranty coverage does not cover:

1. Normal wear and tear (spokes, nipples, rim tape, decals, stickers, etc).


2. Improper assembly or maintenance, including maintenance by an unauthorized technician.


3. Damage or failures caused by a crash, accidental damage, misuse of the product, non-compliance with manufacturer specifications of usage, or any other fractious reasons.


CLAIMS FOR DAMAGE OR LOSS OF SHIPMENT:


Please thoroughly inspect the package before signing.


1. If there is no damage, sign for the product. If there is damage, report this on the delivery slip or, alternatively, refuse the shipment and it will be returned to Ornan Bike. If a claim is made against the shipping company, they will provide a compensation number. Please inform Ornan Bike of this number for delivery tracking. Arrangements for reshipment will be made within 10~15 business days upon receiving the returned item.


2. If the items are damaged but accepted and not reported, there is no recourse against the delivery company and you are responsible for purchasing any replacement product.


3. If the package is in good condition, but the product is significantly damaged in transit, please keep the waybill, packaging and the shipment gets lost in transit, please get in touch with us (info@ornanbike.com) immediately and all Ornan Bike packages have been covered by insurance.



ORN725 CARBON CLINCHER RIM BRAKE

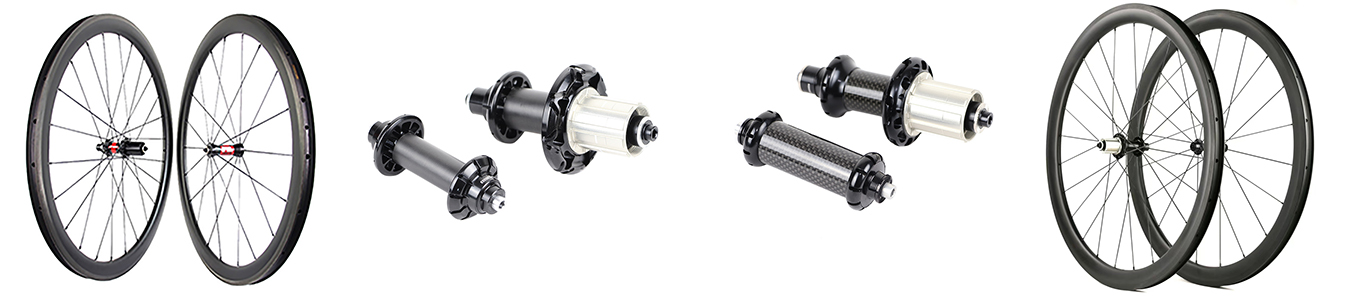

CHOOSE YOUR FAVORITE HUB ASSEMBLE WHEELS


HUBS Spoke
Nipples
Driver Body
Front Axle Size
Rear Axle Size
Front Count Rear Count
DT SWISS 180 Ratchet EXP 36
Sapim CX Ray
Sapim Self-Locking

Shimano 11S

 or

Sram XDR

5 x 100mm QR 5 x 130mm QR 20H 24H
DT SWISS 240 Ratchet EXP 36
DT SWISS 350 Ratchet 18
Sapim Race
Sapim Self-Locking
Shimano 11S
Powerway-R51

Pillar 1420

or

Pillar 1423

Pilla

Shimano 11S

or

Campy 11S

Powerway-R36




ORN725 CARBON CLINCHER RIM BRAKE
