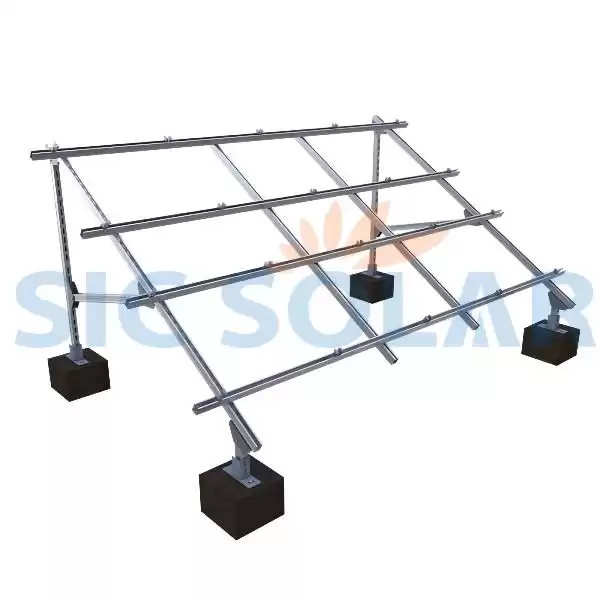

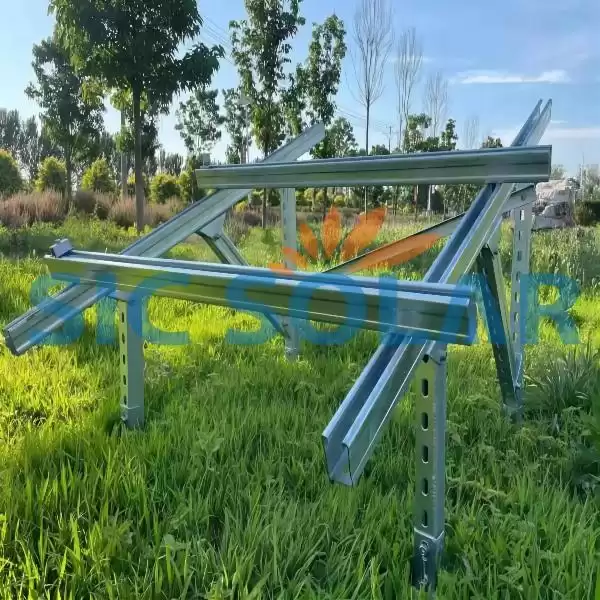

Steel C Channel Solar Ground Mounting System
SIC Carbon Steel
C Channel Ground Mounting System is designed to engineer with a minimum amount of installed

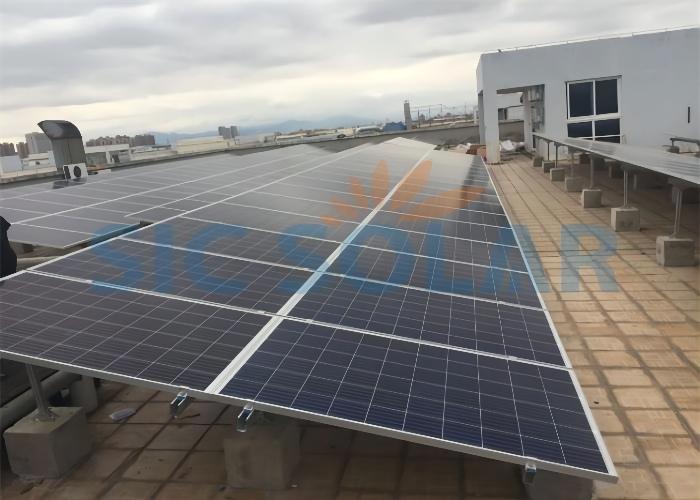

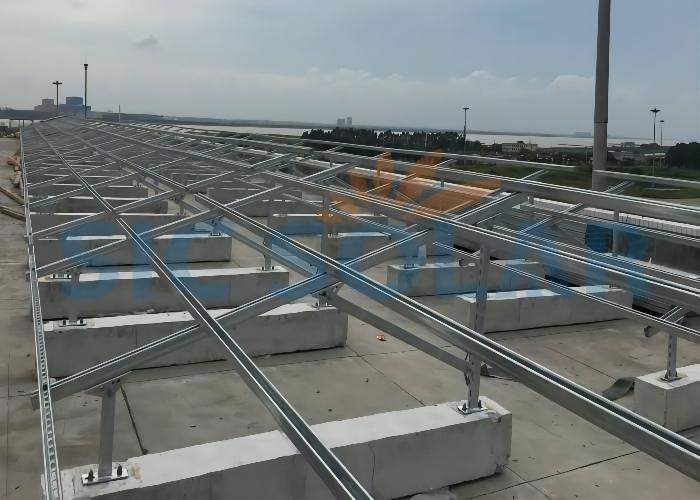

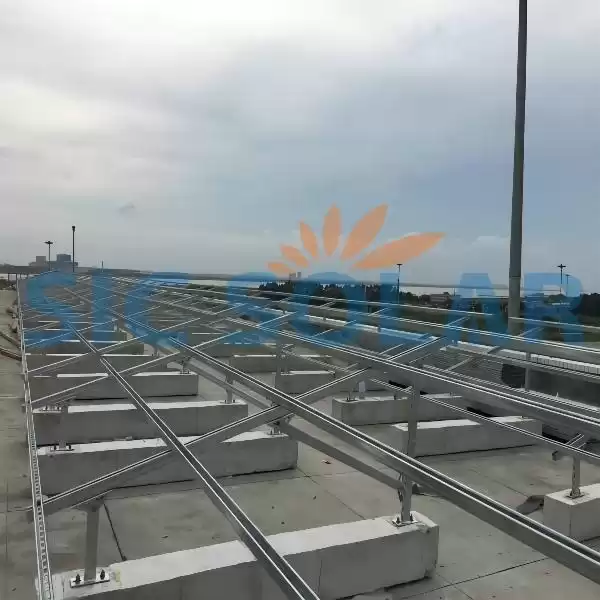

footing at greatly reduces labor. This bracket is applicable to flat concrete
roof and large pv system in open terrain. The custom C channel can reduce the
weld and cut on site to keep the high anticorrosive performance, the structure
strength and the appearance, making the installation easy and quick.
Category: Ground mounting system
|
Installation Site
|
Flat Roof or Ground
|

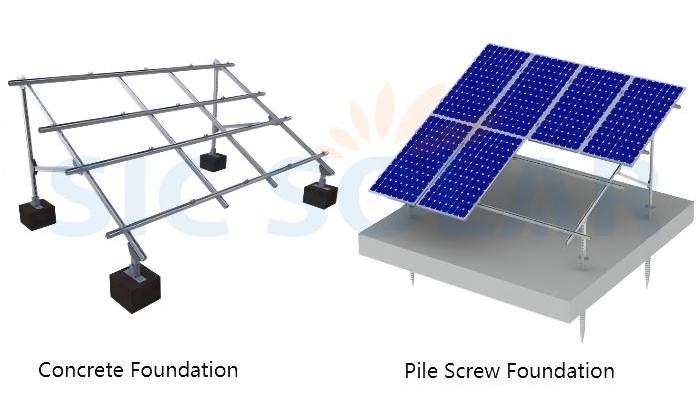

Foundation
|
Concrete or Ground screw pile
|
Material
|
Q235B & SUS304 & AL6005-T5
|
Color
|
Natural Silver or Customized
|
Anticorrosive
|
Galvanized steel & Anodized aluminum & Stainless steel
|
Tilt Angle
|
0-60 degree
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Standards
|
AS/NZS 1170.2, JIS C 8955:2011
|
|
Warranty
|
10 years warranty and 25 years service time
|
Advantages as follow:
☆ Easy installation – simple components make it easy to transport and
install.
☆ Good Anti-Corrosion
Performance – high-quality carbon steel, with hot dip
galvanized surface treatment, make corrosion
resistance much better.

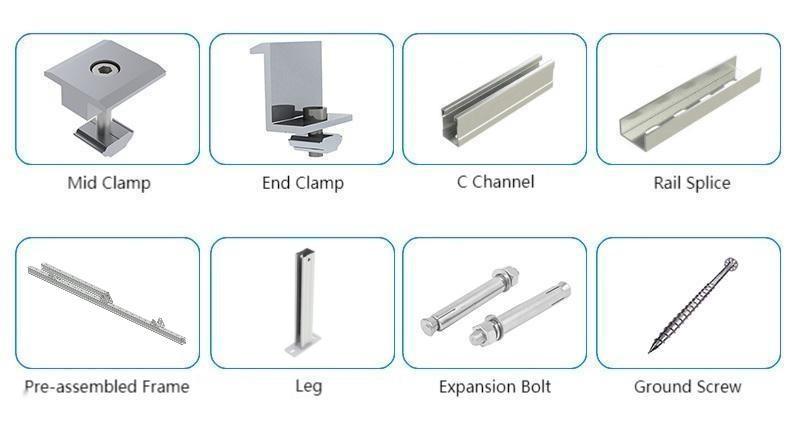

☆ High Quality Components – all connection part adopts are high quality
stainless steel screws, make the structure more durable and strong.
☆ Low Labor Cost – highly pre-assembled parts help
to reduce the installation time and labor cost.
Related certificate:
Strength Analysis report -- mountings will be test to meet your target strength, like wind speed and snow load.
Our standard package is steel pallet for long components, while small components will be packed into cartons with plywood pallet.
