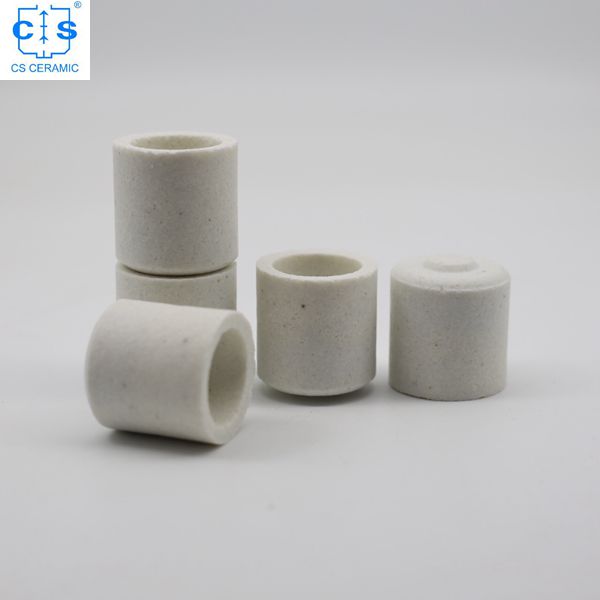

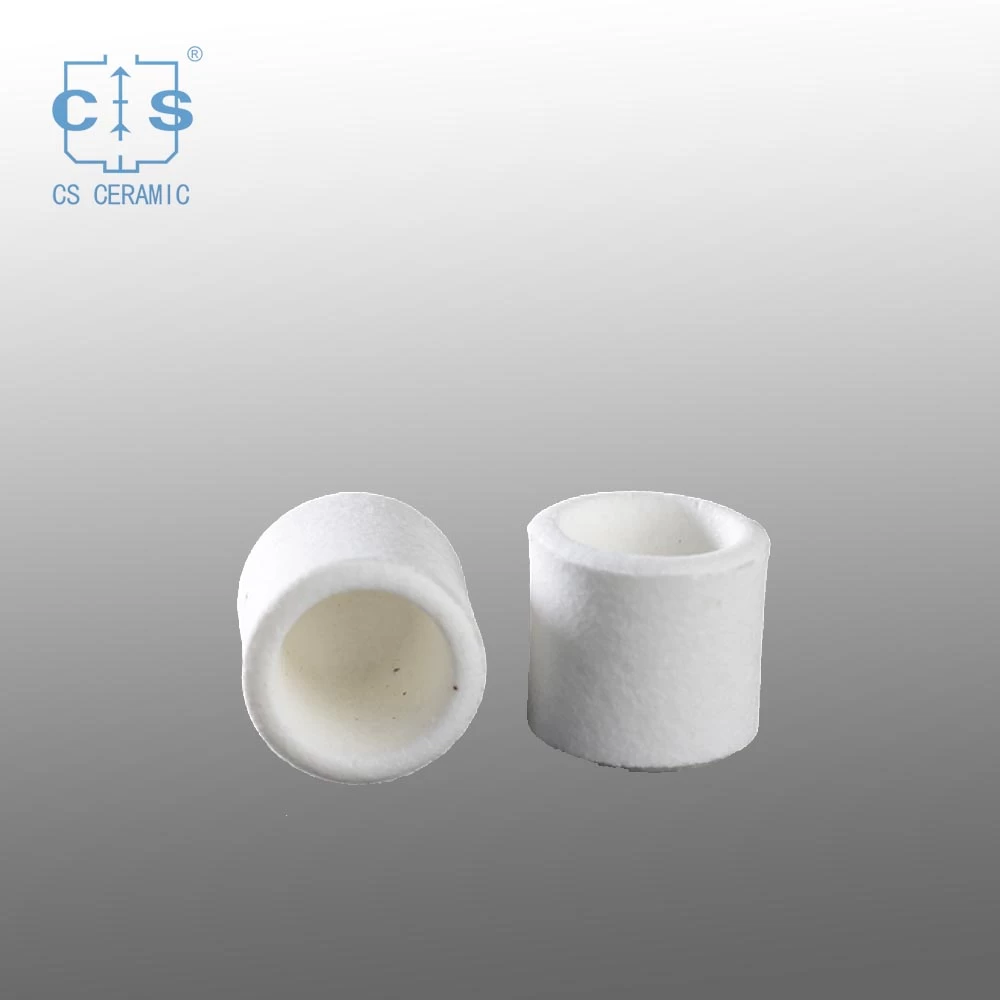

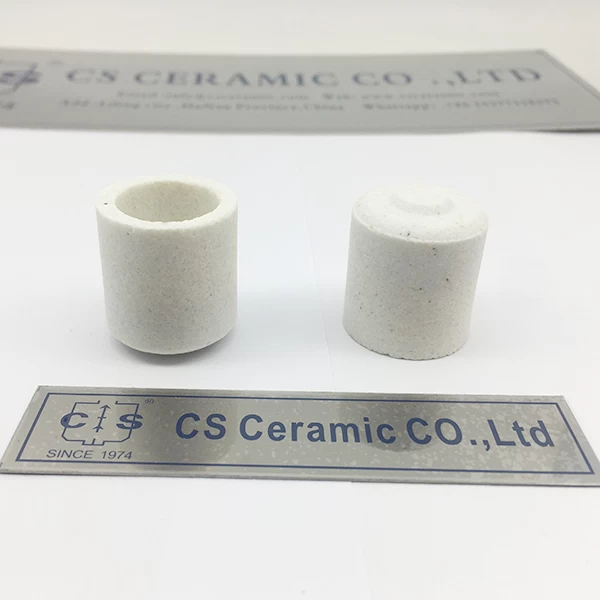

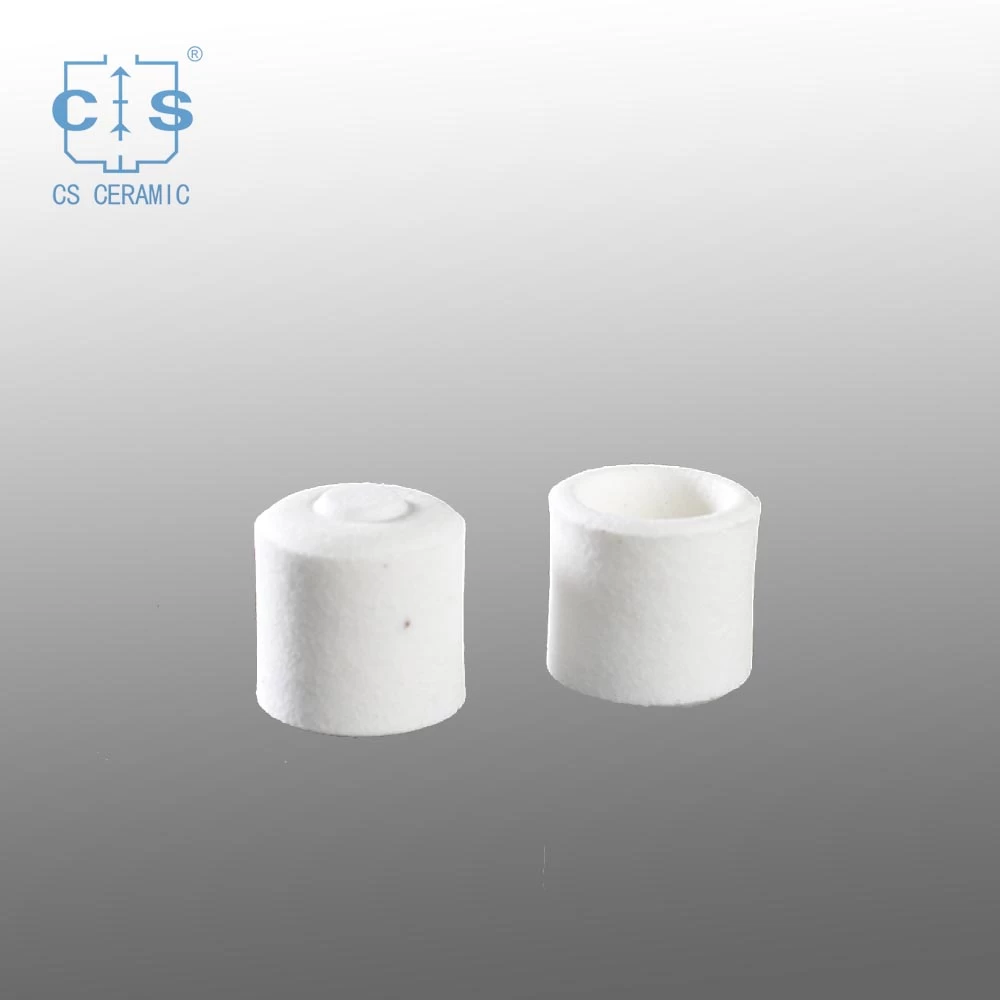

Product Item: Carbon Sulfur Crucibles CS Crucibles 23*23 24*24 26*26mm
Main features:
-
Stable blank value of C/S ,C%<5ppm S% <5ppm
-
Professional supplier of Bruker/Elementar/Baosteel/CKIC/SGS/NCS
-
40+ Years Manufacturer
-
15+ Years Oversea Market experience
-
6 Steps Inspection Processes ,Consistent quality
Aplication：
Test carbon and sulphur elements of iron and steel material;use in Iron & Steel lab, Chemistry& Physical laboratory, Mineral Industry, Industrial analyzer.Analysis consumables for Carbon and sulfur analyzer.
Usage:
CS Ceramic crucible for Carbon and sulfur analyzer is special used at Free Carbon analyzer,steel,Metallurgy,Petroleum,Mathinofacture,Research department.
Item info :
|
Sample:
|
Free offer
|
|
Shape dimension:
|
23mm*23mm ;24*24mm;26*26mm
|
|
Blank of C&S:
|
C%<0.0005% S% <0.0005%
|
|
QTY/PKG:
|
1000PSC/CTN
|
|
CS Ceramic is Manufacturer of :
|
Bruker/Elementar/CKIC/SGS/NCS/Baosteel
|
Dimension and allowable deviation of CS crucible
|
|
h1
|
h2
|
h3
|
⌀1
|
⌀2
|
⌀3
|
⌀4
|
|
Cs ceramic crucible code
|
basic dimension
|
Allowable deviation
|
basic dimension
|
Allowable deviation
|
basic dimension
|
Allowable deviation
|
basic dimension
|
Allowable deviation
|
basic dimension
|
Allowable deviation
|
basic dimension
|
Allowable deviation
|
basic dimension
|
Allowable deviation
|
|
PT 23*23
|
24
|
±1 ±0
|
23
|
±1 ±0
|
15
|
±0
|
23
|
±0.5
|
18
|
±0.5
|
14
|
±0.5
|
11
|
0-1
|
|
PT 25*25
|
26
|
±1
|
25
|
±1
|
18
|
±0.5
|
25
|
±0.5
|
19
|
±0.5
|
16
|
±1
|
11
|
0-1
|
|
CT 25*25
|
26
|
±1
|
25
|
±1
|
18
|
±0.5
|
25
|
±0.5
|
19
|
±0.5
|
18
|
±1
|
11
|
0-1
|
Production execution standard :YB/T 4145-2006 Metallurgical industry standard of the People's Republic of China-carbon and sulfur analysis crucible
CS Ceramic is the only production standard maker of carbon sulfur crucible in China.researches C/S Analyzer Consumables for C/S Analysis over 40 years of production history.
Use requirements
Besides raw material and fabrication process, crucible baseline may also from absorption. Before using, influence of water, SO2 and CO2 to analyzing result should be avoided. For this purpose, two methods below are recommended.
Method 1, put carbon sulfur ceramic crucible in high temperature furnace, raise the temperature to 1200℃ and burn it for 2 hours, then take it out and get cooled, put into desiccator for demand (preservation time no longer than 4 hours)
Method 2, put carbon-sulfuric analysis crucible in tube-type crucible furnace, induce pure oxygen (purity 99.% or higher), and burn it no less than 1 hour at 1200℃.

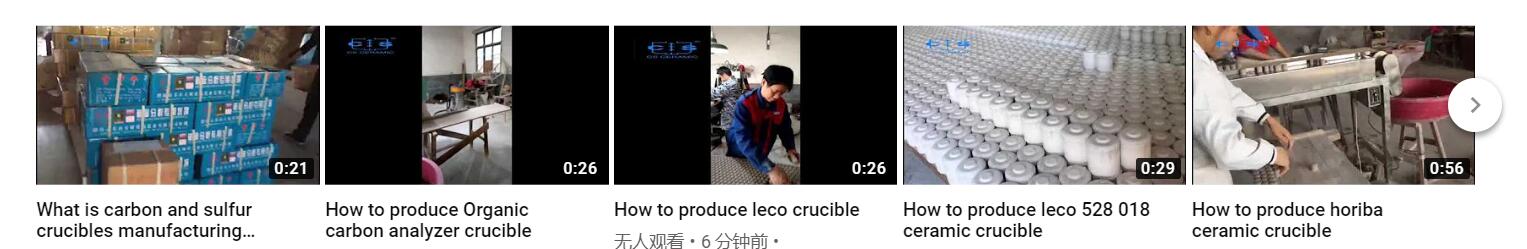

Vedio of CS CERAMIC'S manufacturing shop-carbon and sulfur analyzer crucible
Related products:
Carbon Sulfur Crucibles 528-018 Eltra 90150 Alpha AR3818 Ceramic Crucible For Carbon / Sulfur Analyzer
:Stand size 25*25 mm suit for Eltra crucibles,LECO Crucibles,Bruker crucibles ,Horiba Crucibles
Shipping: We do international shipping for clients.
Special offer: Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
