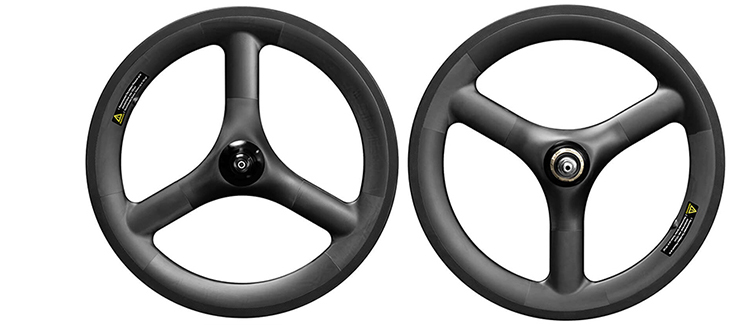

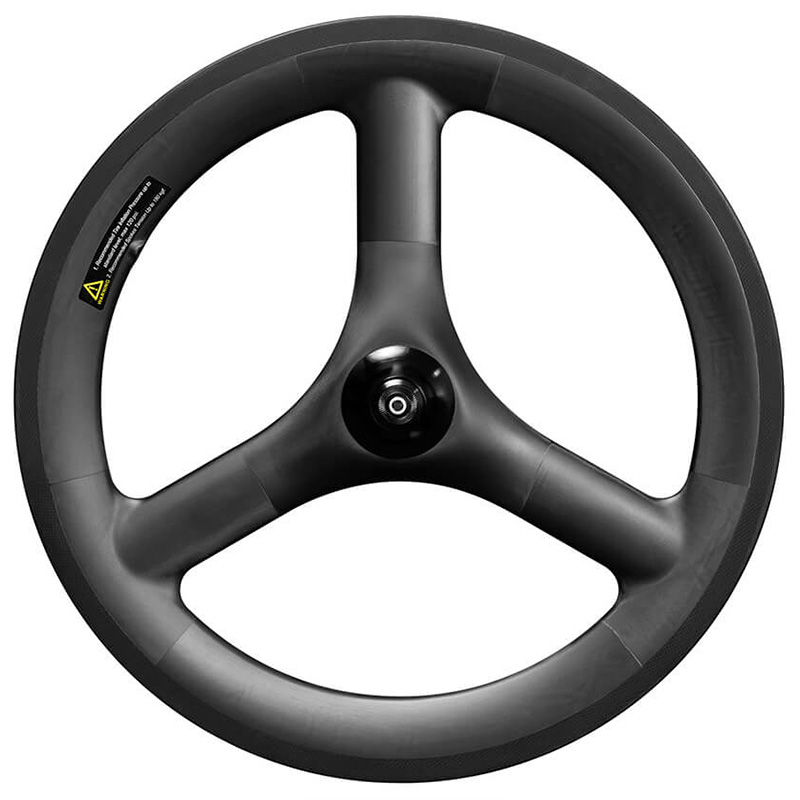

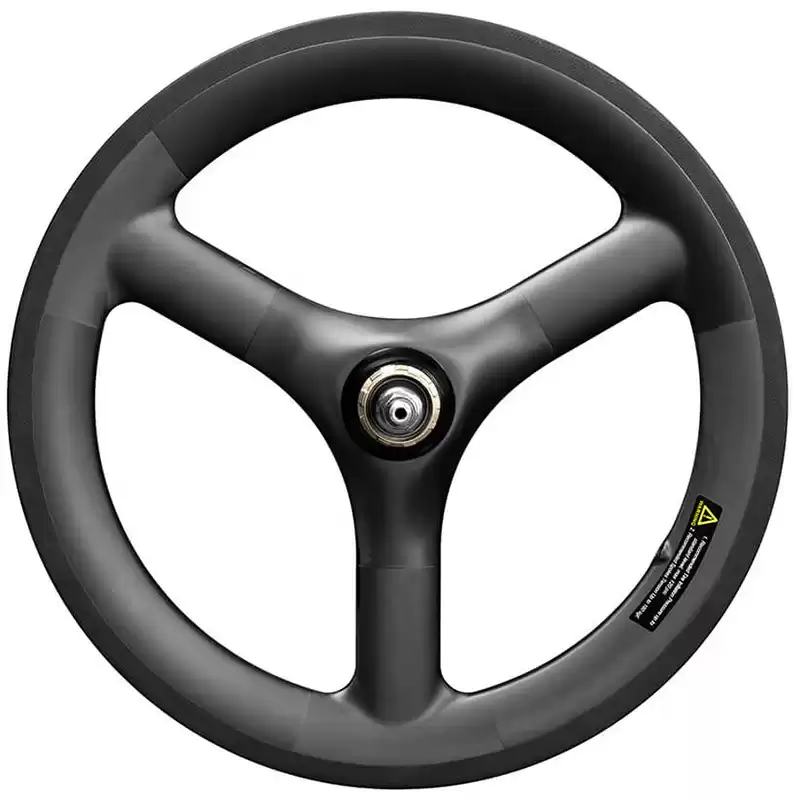

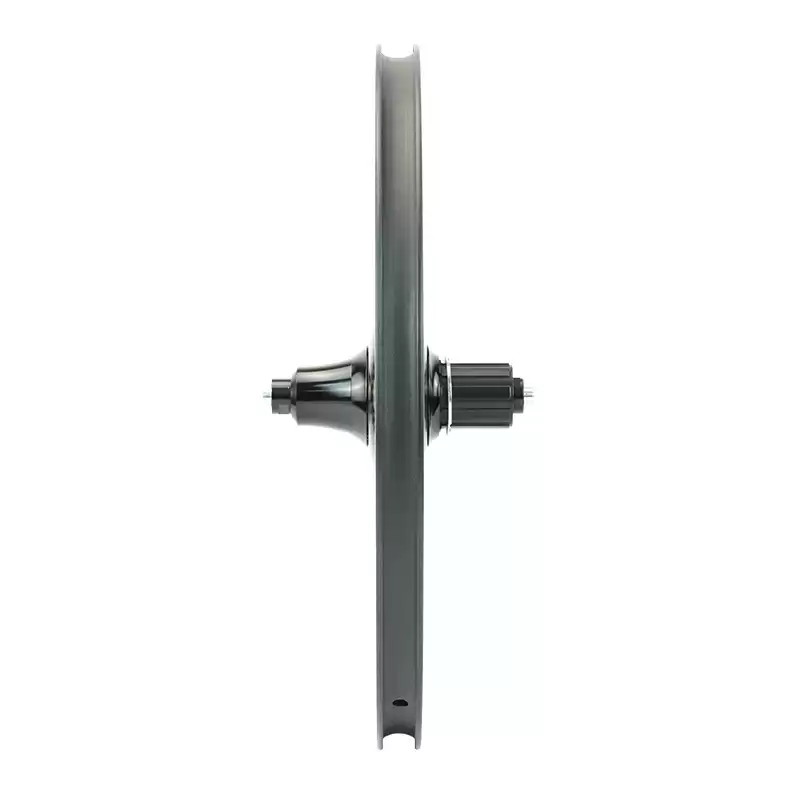

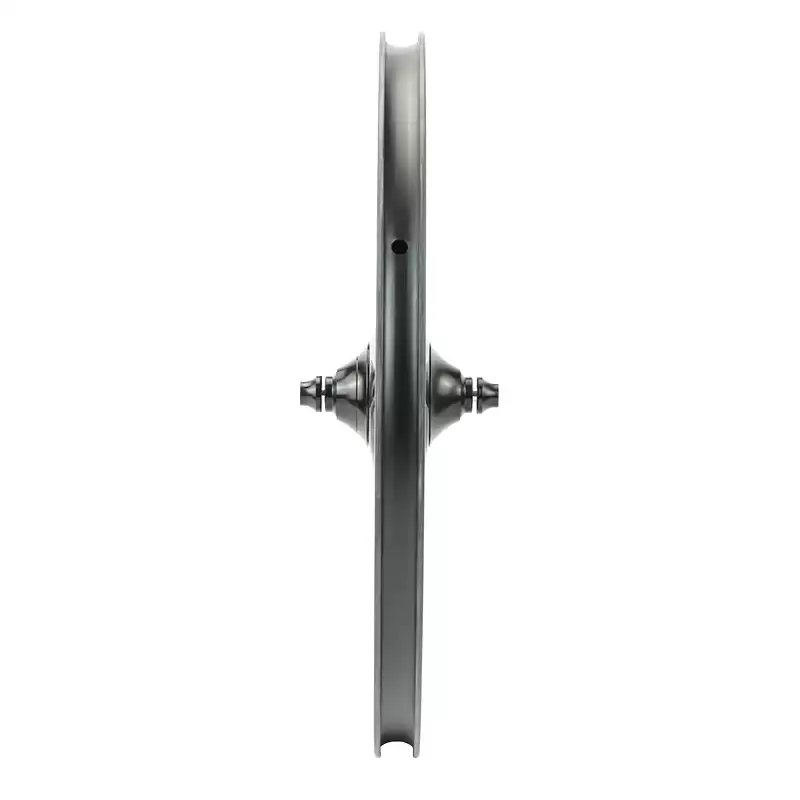

CARBON TRI SPOKE WHEELS 16 INCH 349 RIM BRAKE
DESCRIPTION
Lightweight with more capabilities than you can imagine the 16 inch 349 folding ride carbon tri spoke wheels rim brake has you covered from commuting to recreational fun, it was designed to tackle all types of riding and styles.
There are no EPS bubbles in the manufacturing process of the rim, this means the rims are molded with an air bag that has the inner shape of the rim. So the rim is complete, stronger and stiffer. Full carbon Toray T700, Provide UD, 3K, 3K twill, 12K, 12K twill weave carbon fiber wheels.

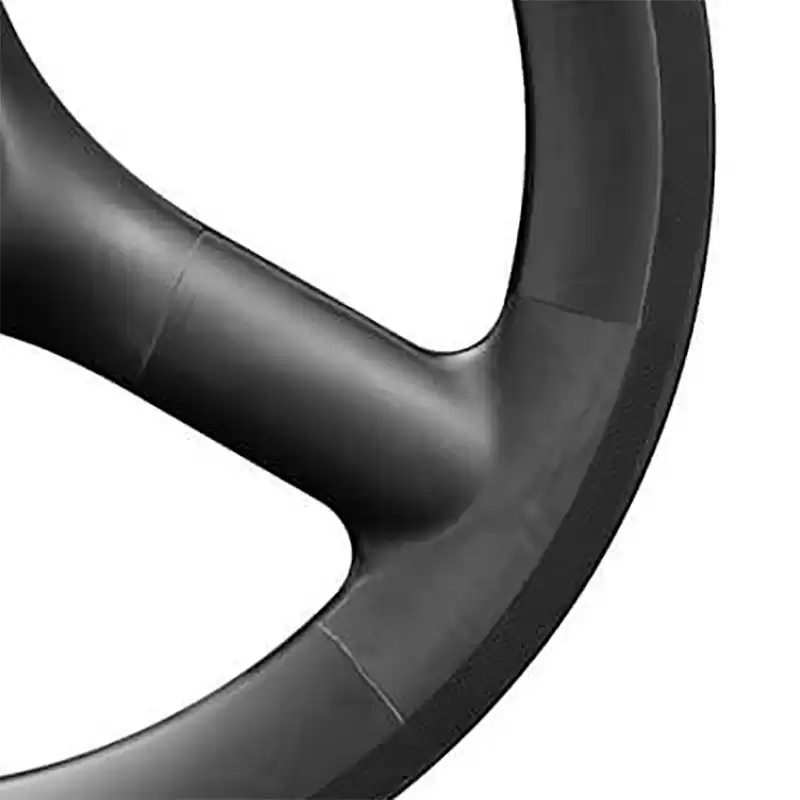

CARBON WEAVE PICTURE DISPLAY
WHEELSET SPECS
|
Model
|
Orn3-16"-349
|
Hub Specifications
|
Sectional Drawing
|
|
|
|
Use
|
Folding/Brompton/Road
|
Model
|
Fastace
|
|
Type
|
Clincher
|
Bearing
|
Front: Japan EZO, Rear: Germany FAG
|
|
Tubeless
|
NO
|
Material
|
AL6061
|
|
Internal/External Width
|
16mm/23mm
|
Front Axle Size
|
9 x 100mm
|
|
Depth
|
40mm
|
Rear Axle Size
|
10 x 130mm
|
|
OD
|
361mm
|
Driver Body
|
Shimano 11S or Sram XDR
|
|
Spoke
|
3S
|
Brake System
|
Rim Brake
|
|
Brake Surface
|
Basalt / 3K Twill
|
|
|
|
Weight Limit
|
130kg
|
|
|
|
Tire Recommended
|
16" x 1-1/4, 1-3/8
|
|
|
