CARBON TRI SPOKE WHEELS 20 INCH 451 RIM BRAKE
DESCRIPTION

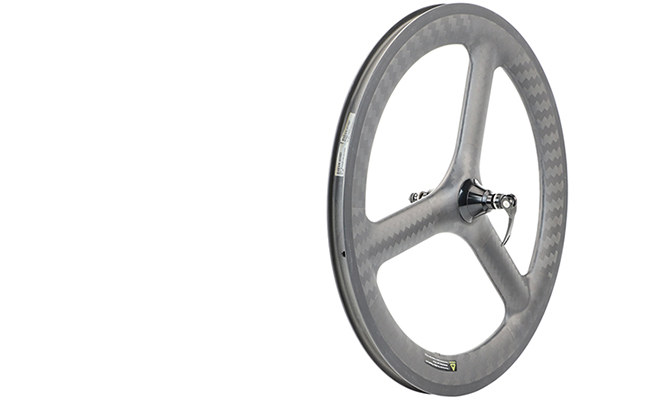

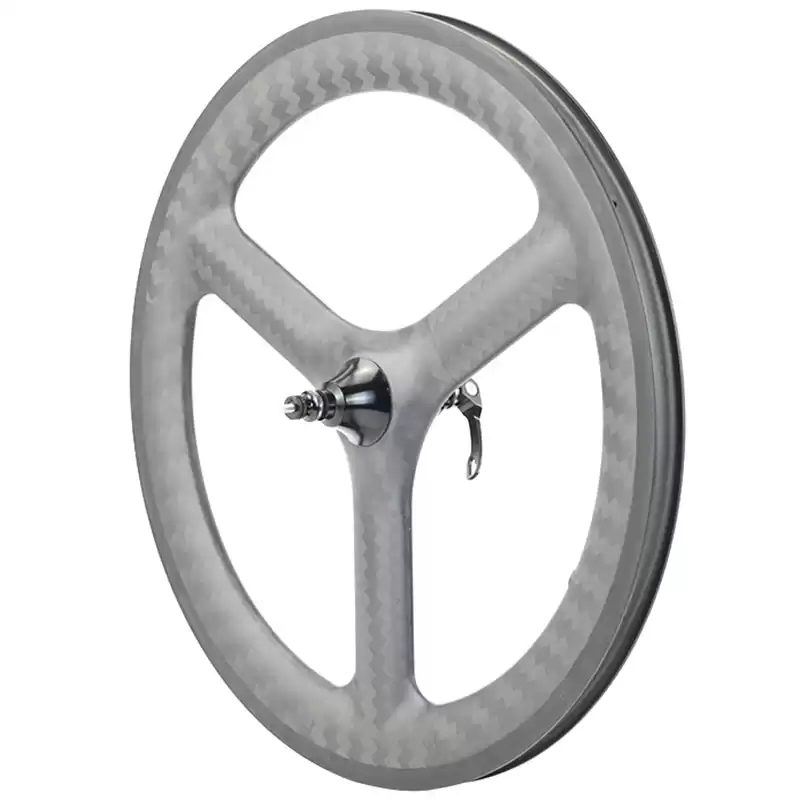

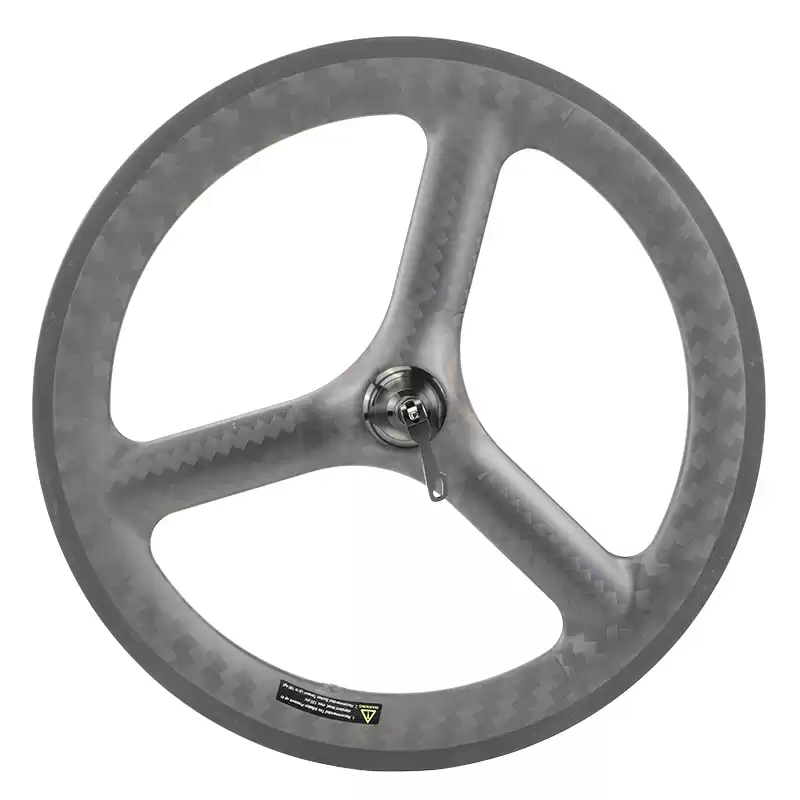

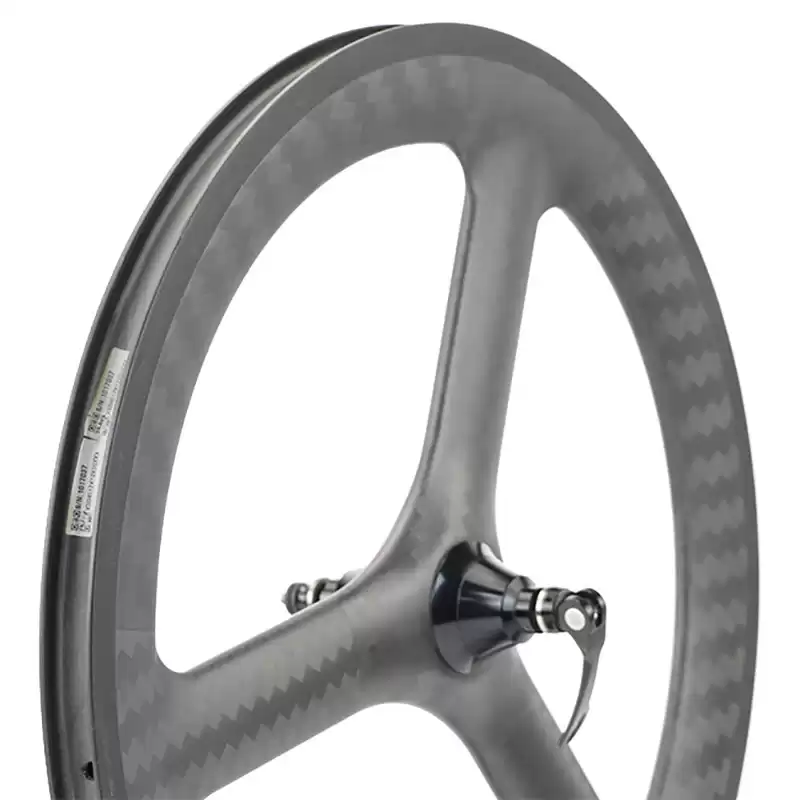

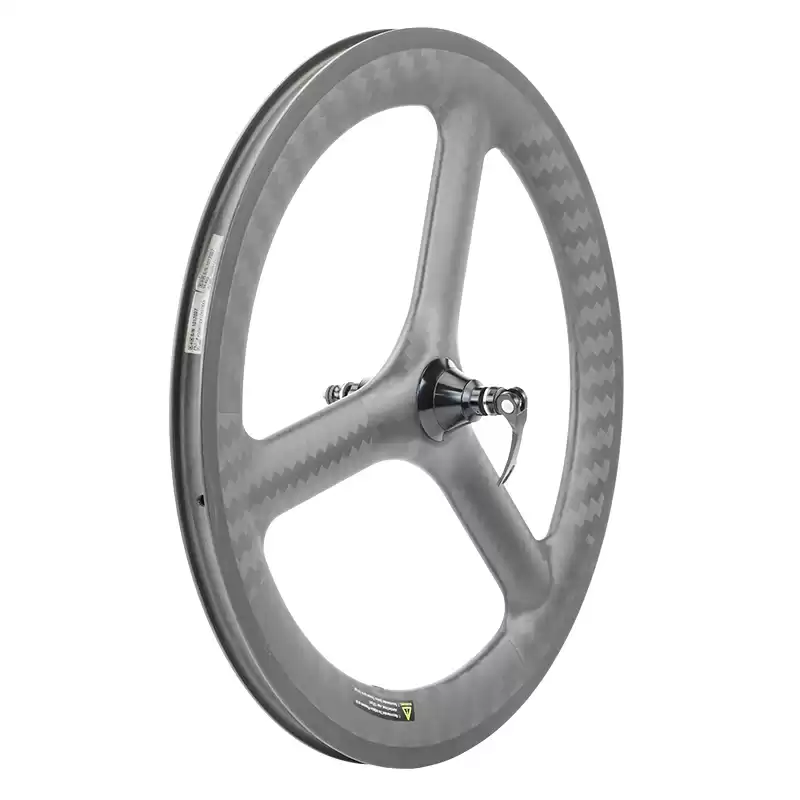

Carbon Tri spoke wheels for fixed gears. The 20 inch 451 folding riding rim brake has excellent performance, suitable for advanced aerodynamic manufacturing and compatible with the design of tubeless tires.
There are no EPS bubbles in the manufacturing process of the rim, this means the rims are molded with a air bag that has the inner shape of the rim. So the rim is complete, stronger and stiffer. Full carbon Toray T700, Provide UD, 3K, 3K twill, 12K, 12K twill weave carbon fiber wheels. More uses than you can imagine, ride it around the campground, pack it up in the RV, or take it out for a spirited recreation ride.

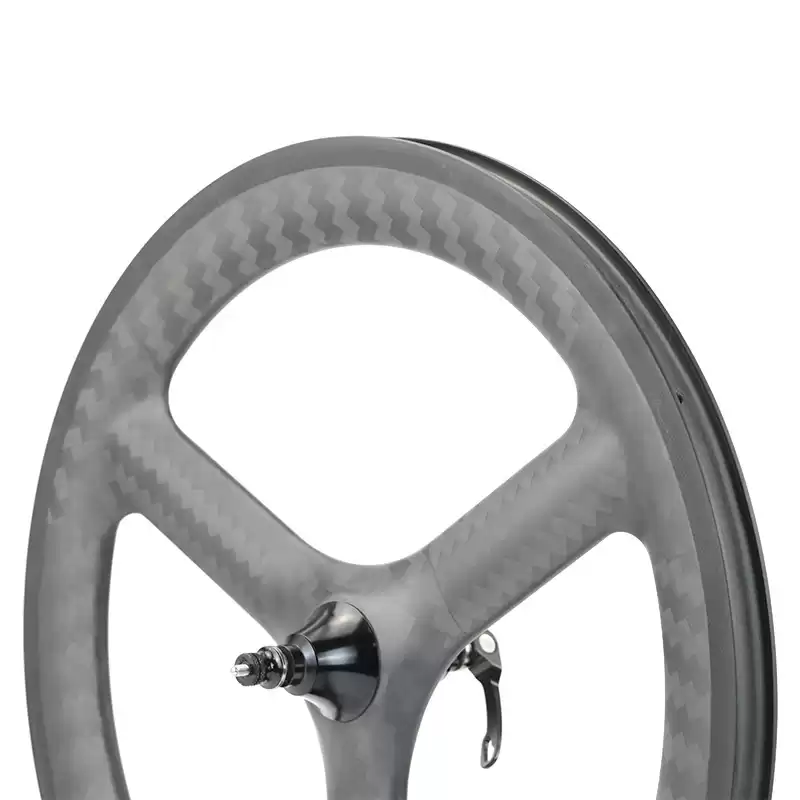

CARBON WEAVE PICTURE DISPLAY
WHEELSET SPECS
Model
|
Orn3-20"-451
|
Hub Specifications
|
Sectional Drawing
|
|
|
Use
|
Folding/Brompton/Road
|
Hub
|
Fastace
|
Type
|
Clincher
|
Bearing
|
Front: Japan EZO, Rear: Germany FAG
|
Tubeless
|
Ready
|
Material
|
AL6061
|
Internal/External Width
|
18mm/25mm
|
Front Axle Size
|
9 x 100mm
|
Depth
|
48mm
|
Rear Axle Size
|
10 x 130mm
|
OD
|
461mm
|
Driver Body
|
Shimano 11S or Sram XDR
|
Spoke
|
3S
|
Brake System
|
Rim Brake
|
Brake Surface
|
Basalt / 3K Twill
|
|
|
Weight Limit
|
130kg
|
|
|
Tire Recommended
|
20" x 1-1/8, 1-1/4, 1-3/8
|
|
|
