Carport Solar Panel Mounting

--Customized Solution
Design case by case, making a good utilization of ground resource and pursuit for easy and quick installation.
--High Waterproof
The special waterproof conforms to the structure of system, which make the performance Stronger
--Save Installation Time and Labor Cost on Site
With installation manuals and system solution, the construction on site will be simple.
Less construction time directly reduces project costs.

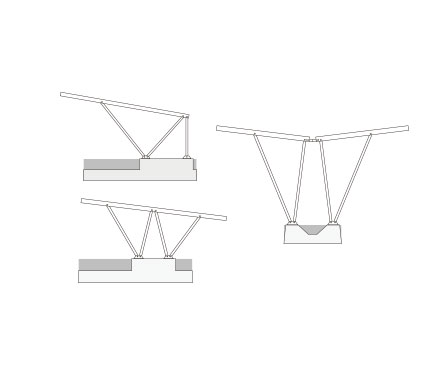

"N"and "W"Structure Type

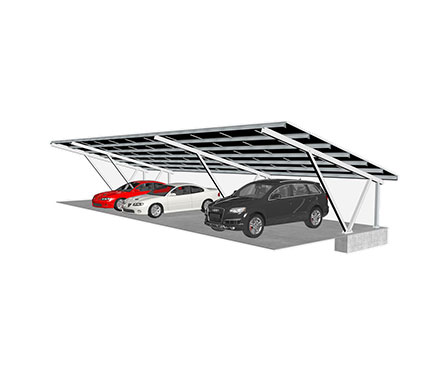

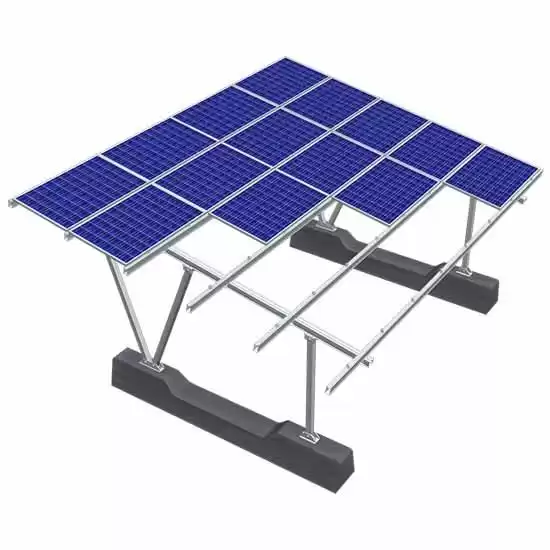

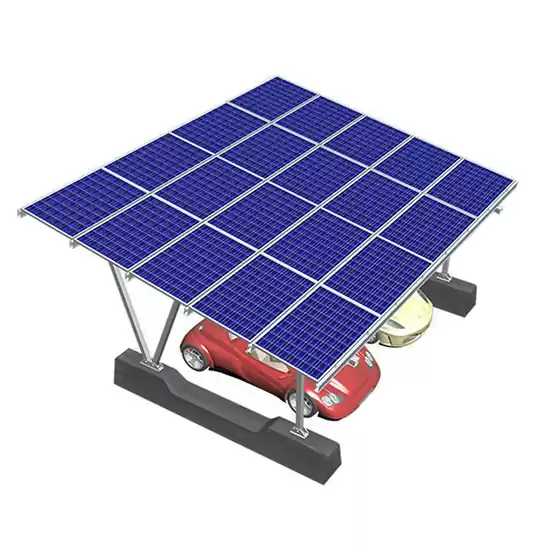

Solar Carport System is a pre-assembled ground solar mounting system which is ideal for large commercial and utility-scale solar PV projects.The system has been developed for various photovoltaic modules and will be customized to fit into the parking lot or designed according to specific requirements.The Carport System can protect the cars to avoid damage from sunshine, wind, rain water, and snow. Sunpal engineers continue to optimize the design of system, the quality of product and service, and also provide the best solution for your Solar Carport System

Component List

Wide End Clamp Kit: Wide End Clamp,Cross Module,Spring Washer M8,Hexagon Socket Bolt
U25 Inter Clamp Kit: U25 Inter Clamp,Cross Module,Spring Washer M8,Hexagon Socket Bolt
C Clamp Kit: C Clamp,Cross Module,Spring Washer M8,Hexagon Socket Bolt
Anchor Plate for Carport:Specification: 62*49*L250, 62*49*L450
Square Tube: L*100*100
Waterproof for Cross Beam: Specification:100*100
Conical Symmetric Cross Beam 135: Specification: L*58*135
Splice for Conical Symmetric Cross Beam 135: L260mm,Flange Head Self-Tapping, Screw ST6.3*19
Beam 160: L*100*100

Flat Roof Mountings System Meet Certifications:

Certified by TUV, SGS and qualified consultants in AU, JP, ASEAN, CN, UK, EU, US
