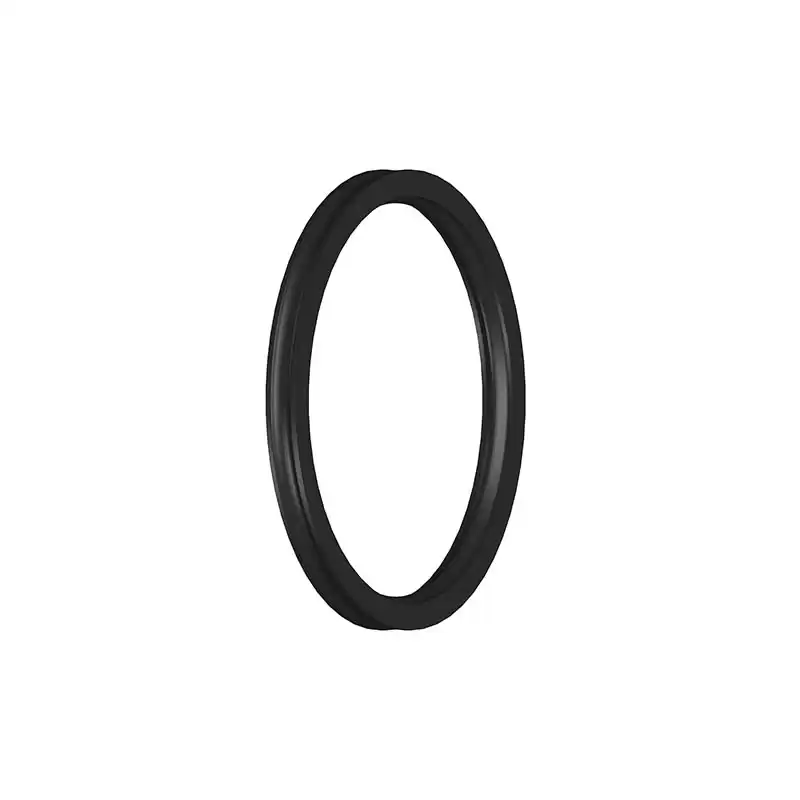

Casing head and tubing hanger FS seal

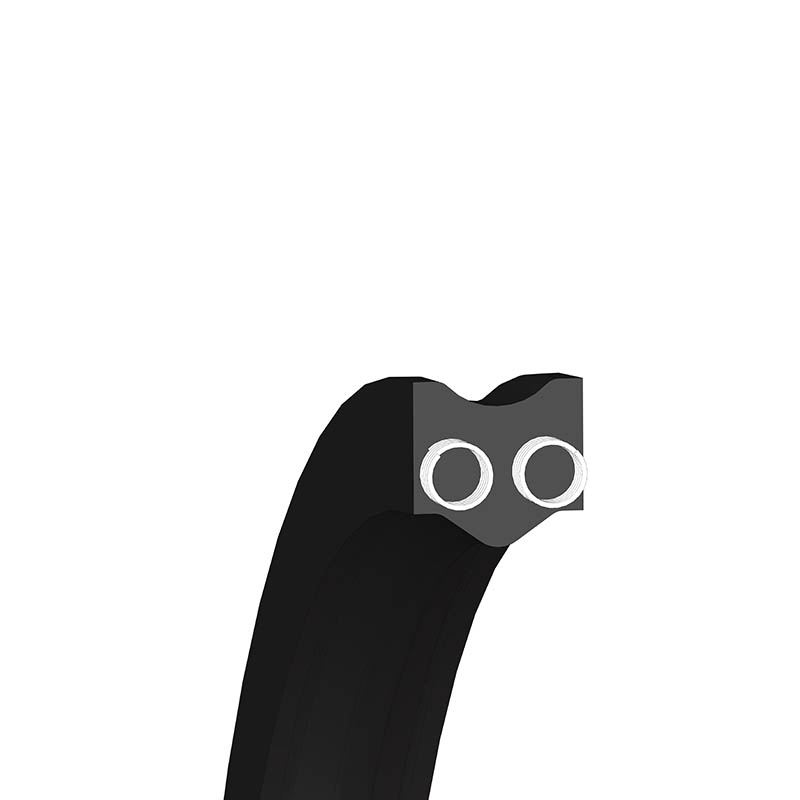

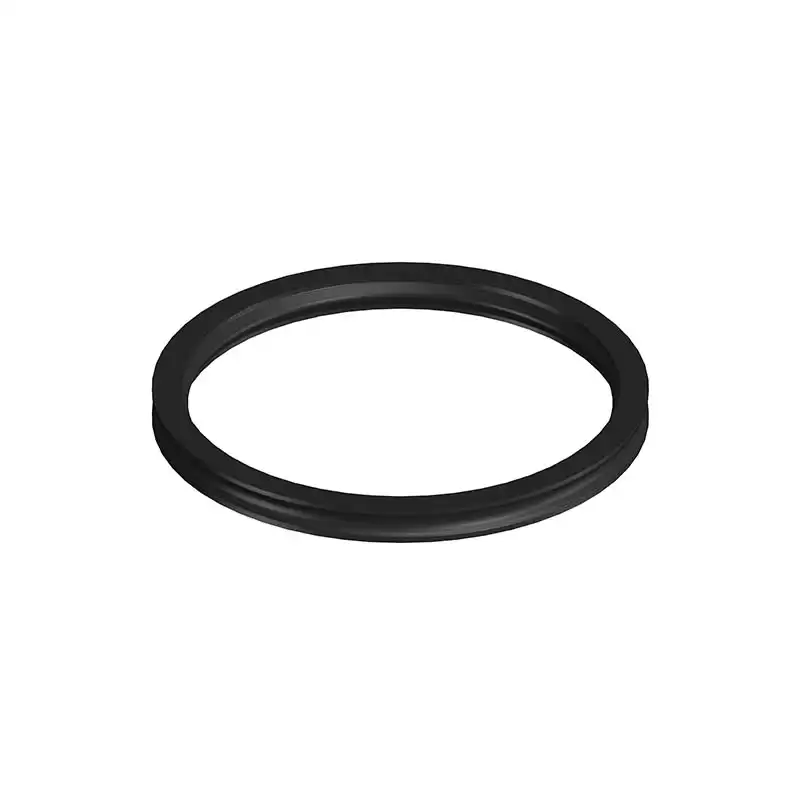

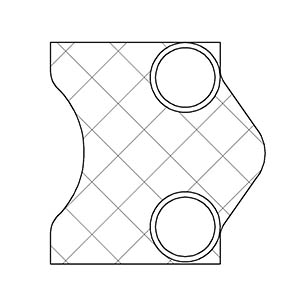

The FS-seal is a relatively large cross section spring energized elastomer casing and tubing hanger seal for wellheads that always has the springs on the internal surface.
FS-seals are used against rough surface finish and wider dimensional and geometrical tolerances of casing and tubing.
Sealing materials utilized for wellheads need to withstand pressures as high as 15 000 psi, and temperature from –46°C to +177°C (–20°F to +350°F).
JST has toolings for standard sizes from 4-1/2" to 30". FS-seal is available in material NBR, HNBR, FKM with 2 integral anti-extrusion springs.
|
Advantages:
1. Improve equipment reliability
2. Extend seal and equipment service life
3. Reduce installation time, delay and damage
4. Protect system from loose materials
5. Material is certified with Norsok M710 H2S immertion test.
6. Rapid gas decompression resistance
|
Working Conditions
|
Temperature range
|
Pressure
|
Medium
|
LU, PU, SX
|
≤20000 PSI
|
Oil, water, Gas, H2S, CO2 etc
|
Size:
From 4-1/2" to 30"
|
|
Inch
|
mm
|
|
Nominal casing
d
|

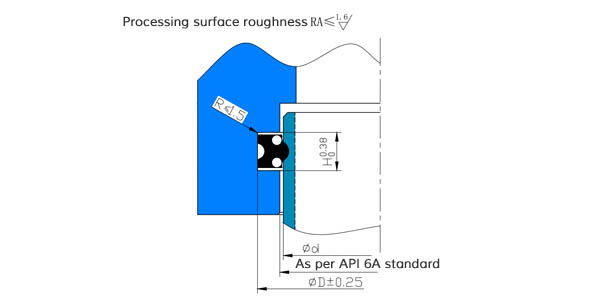

Outer diameter of groove
D
|
Height of groove
H
|
Nominal casing
d
|
Outer diameter of groove
D
|
Height of groove
H
|
|
3.500
|
4.688
|
0.835
|
88.90
|
119.06
|
21.21
|
|
4.000
|
5.250
|
0.835
|
101.60
|
133.35
|
21.21
|
|
4.500
|
5.750
|
0.835
|
114.30
|
146.05
|
21.21
|
|
4.750
|
6.000
|
0.835
|
120.65
|
152.40
|
21.21
|
|
5.000
|
6.250
|
0.835
|
127.00
|
168.28
|
21.21
|
|
5.500
|
6.750
|
0.835
|
139.70
|
171.45
|
21.21
|
|
5.750
|
7.000
|
0.835
|
146.05
|
177.80
|
21.21
|
|
6.000
|
7.250
|
0.835
|
152.40
|
184.15
|
21.21
|
|
6.250
|
7.875
|
0.835
|
168.28
|
200.03
|
21.21
|
|
7.000
|
8.250
|
0.835
|
177.80
|
209.55
|
21.21
|
|
7.625
|
8.875
|
0.835
|
193.68
|
225.43
|
21.21
|
|
7.750
|
9.000
|
0.835
|
196.85
|
228.60
|
21.21
|
|
8.625
|
9.875
|
0.835
|
219.08
|
250.83
|
21.21
|
|
9.000
|
10.250
|
0.835
|
228.60
|
260.35
|
21.21
|
|
9.625
|
10.875
|
0.835
|
244.48
|
276.23
|
21.21
|
|
9.875
|
11.125
|
0.835
|
250.83
|
282.58
|
21.21
|
|
10.000
|
12.000
|
1.000
|
254.00
|
304.80
|
25.40
|
|
11.750
|
13.125
|
1.000
|
298.45
|
333.38
|
25.40
|
|
11.875
|
13.250
|
1.000
|
301.63
|
336.56
|
25.40
|
|
13.375
|
14.750
|
1.000
|
339.73
|
374.65
|
25.40
|
|
13.625
|
15.000
|
1.000
|
346.08
|
381.00
|
25.40
|
|
14.000
|
15.375
|
1.000
|
355.60
|
390.53
|
25.40
|
|
16.000
|
17.375
|
1.000
|
406.40
|
441.33
|
25.40
|
|
18.625
|
20.000
|
1.000
|
473.08
|
508.00
|
25.40
|
|
20.000
|
22.063
|
1.563
|
508.00
|
560.39
|
39.69
|
|
24.000
|
26.063
|
1.563
|
609.60
|
662.00
|
39.69
|
|
30.000
|
32.063
|
1.563
|
762.00
|
814.40
|
39.69
|
