Cast Grinding Ball Making Machine
What is Cast Grinding Ball Making Machine
Cast grinding ball making machine adopts sand coated in metal mold cavity technology.Cast grinding ball making machine is used to produce cast grinding balls from Dia 40mm to Dia 150mm.These cast grinding ball is widely used in mining industry,cement plant,power plant,etc.Its Control mode is automatic PLC &intelligent remote service.Equipped with PLC automatic control and touching screen.Operators can monitor the whole production process by touching screen.If there is any problem,it can automatically alarm.All control box has emergency stop button.It also has the ability of remote maintenance&remote diagnose failure functions
Cast grinding ball making machine working process:
Preheat grinding ball mold into a certain temperature→Grinding ball mold into molding station and shooting sand→Operator checks（If the sand is not shot well into the mold cavity,the operator will repair this part)→Close mold→ Pouring molten metal liquid→Opening mold,then grinding ball coming out from the mold→Cleaning the residual sand→shooting sand again.

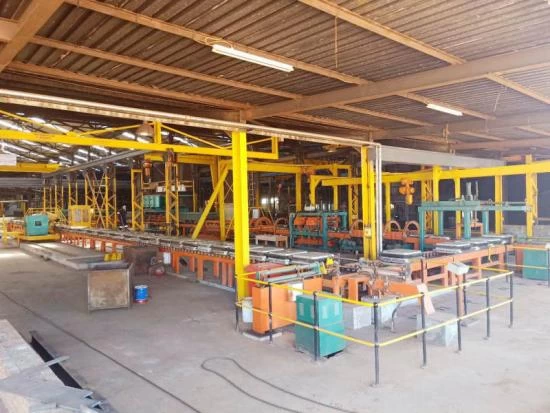

In Zhicheng,there are two models grinding ball production line widely sold.One is ZZJX-630-F4,the other is ZZJX-840-F4.
Technical parameters difference between ZQJX-630-F4 and ZQJX-840-F4 grinding ball production line
|
Item
|
ZQJX-630-F4
|
ZQJX-840-F4
|
|
Floor space
|
L37m*W12m
|
L45m*W14m
|
|
Driving mode
|
By hydraulic
|
By hydraulic
|
|
Installed capacity
|
100kw
|
100kw
|
|
Air compressor
|
Gas consumption is 3m³/min
Working pressure is 0.8Mpa
|
Gas consumption is 5m³/min
Working pressure is 0.8Mpa
|
|
The fastest running speed per mold without loading
|
≤40second/mold
|
≤40second/mold
|
|
Control mode
|
Automatic PLC+Intelligent remote service
|
Automatic PLC+Intelligent remote service
|
|
Main Workers needed
|
Four people
|
Four people
|
|
Grinding ball mold size
|
630*630mm
|
840*840mm
|
|
Grinding ball mold Qty needed
|
78 pairs
|
70 pairs
|
Zhicheng advantages:
1) We are the leading manufacturer in China for grinding media production line,grinding media heat treatment plant,grinding media mold,grinding ball producing related equipment.
2)20+Years manufacture experience.
3)We have sold out 200+Grinding ball making machines.Customers are the best way to prove the quality of our grinding ball molding lines.
4) More than 40+patent for invention
